Sandvik Coromant Radial Live Tool Holder 5HAR14NX-000944 | Orientation: Radial

Used in CNC turning centers and multi-task lathes, the Sandvik Coromant 5HAR14NX-000944 is a radial live tool holder designed for driven tooling applications on turret-style machines. Sandvik Coromant is among the top-tier tooling manufacturers globally, and their radial live tool holders are widely specified in precision metalworking environments requiring consistent runout performance and rigid tool positioning.

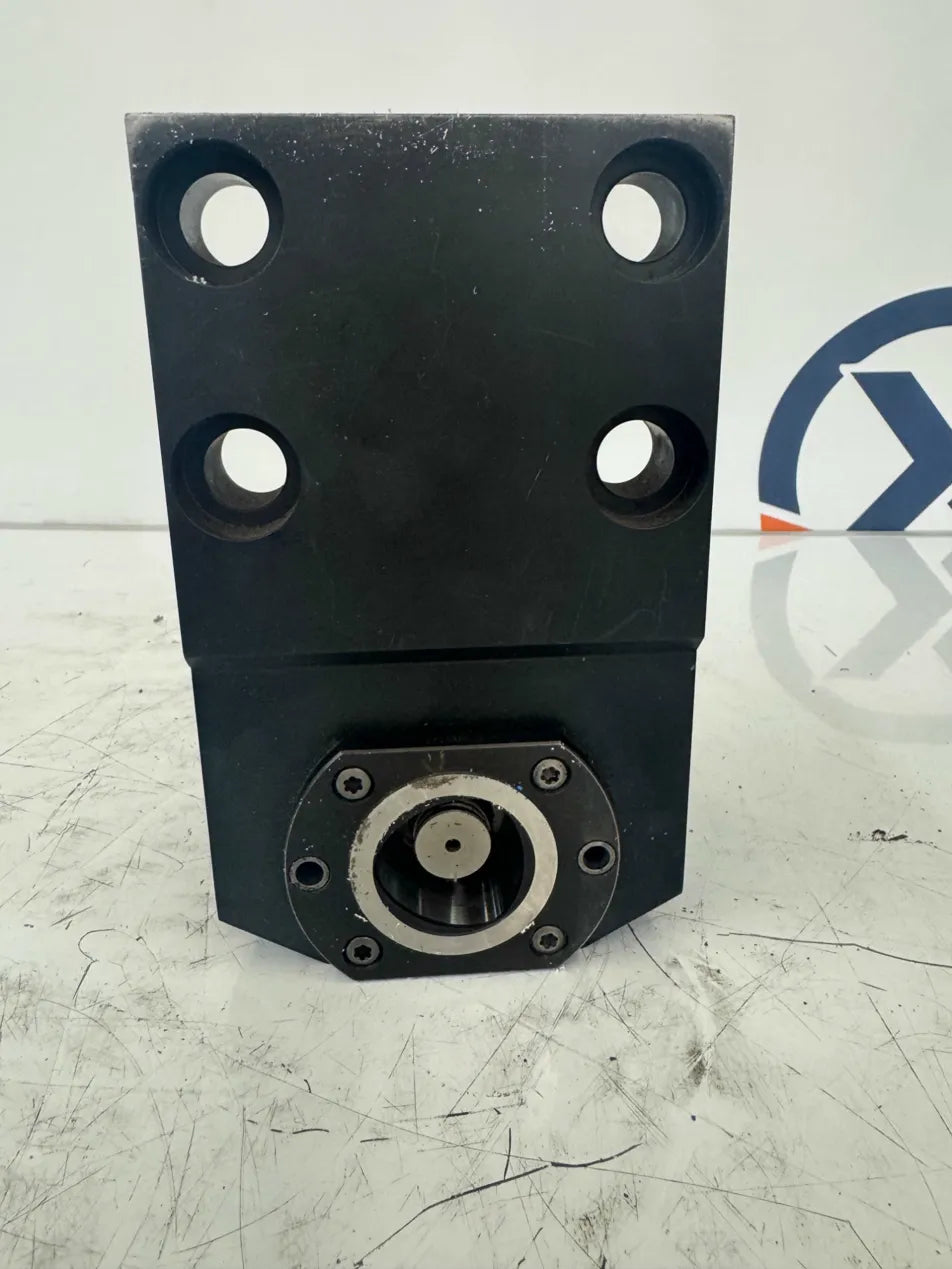

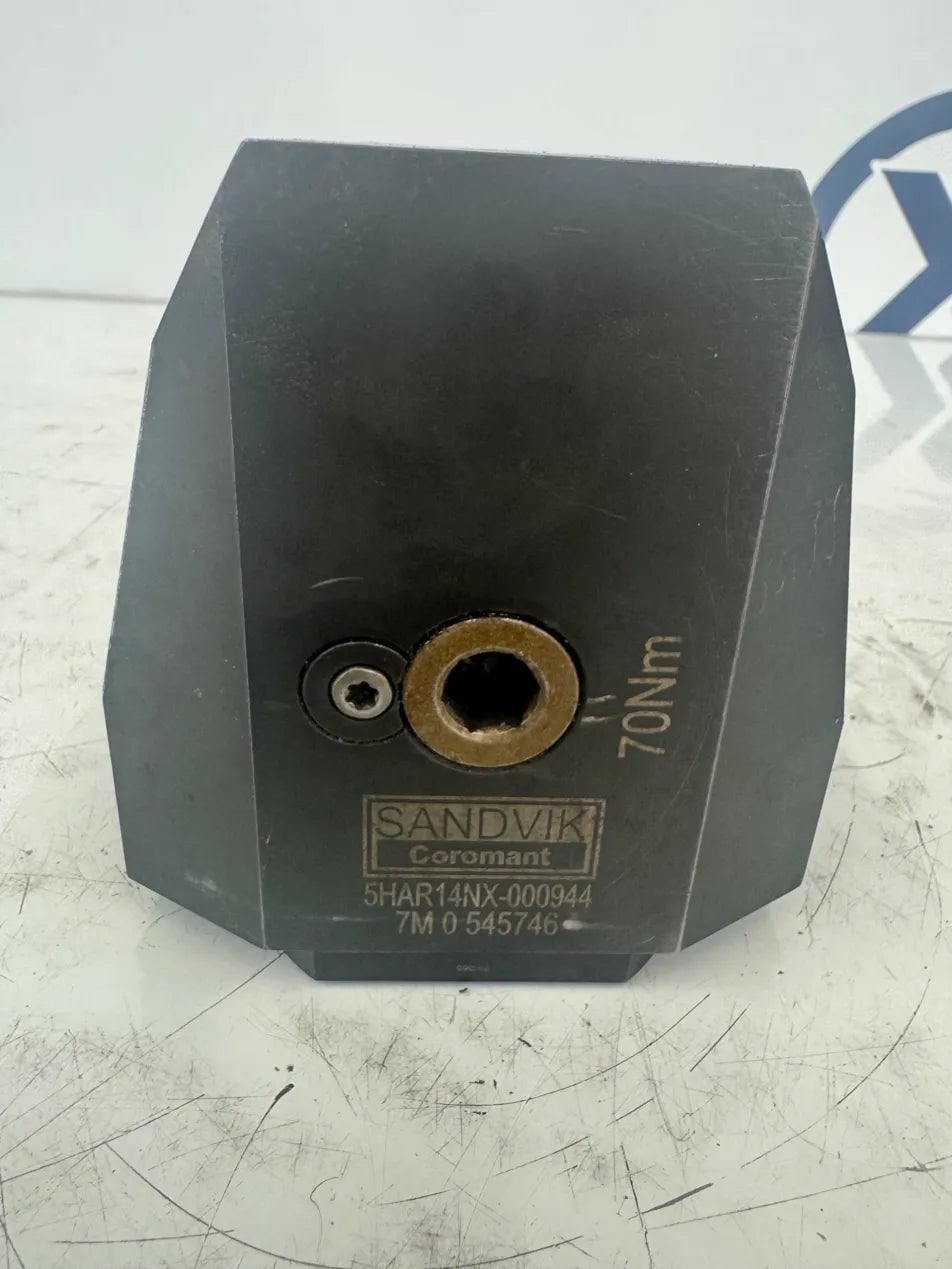

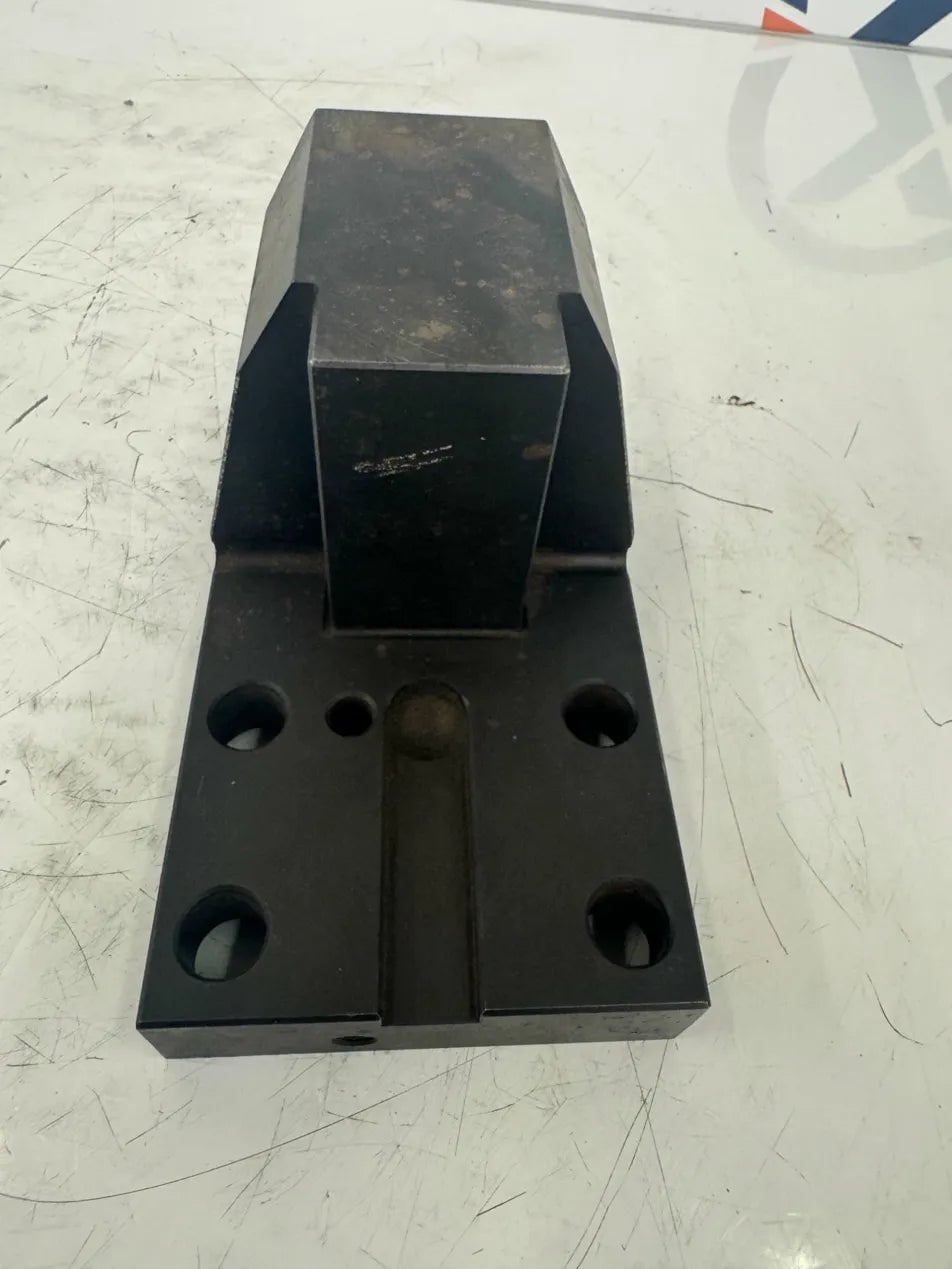

The holder features a Capto-style coupling visible on the mounting face, a radial output orientation, and a tightening torque specification of 70 Nm as marked on the body. The unit is constructed from hardened steel with a black oxide surface treatment. Four mounting bolt holes are machined into the base plate, consistent with standard turret interface configurations. The upper body houses the driven output spindle assembly with what appears to be an ER-series collet bore, secured via a hex-socket clamping interface.

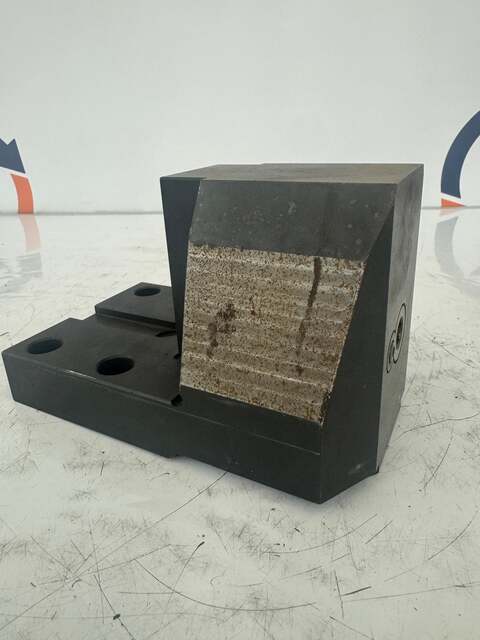

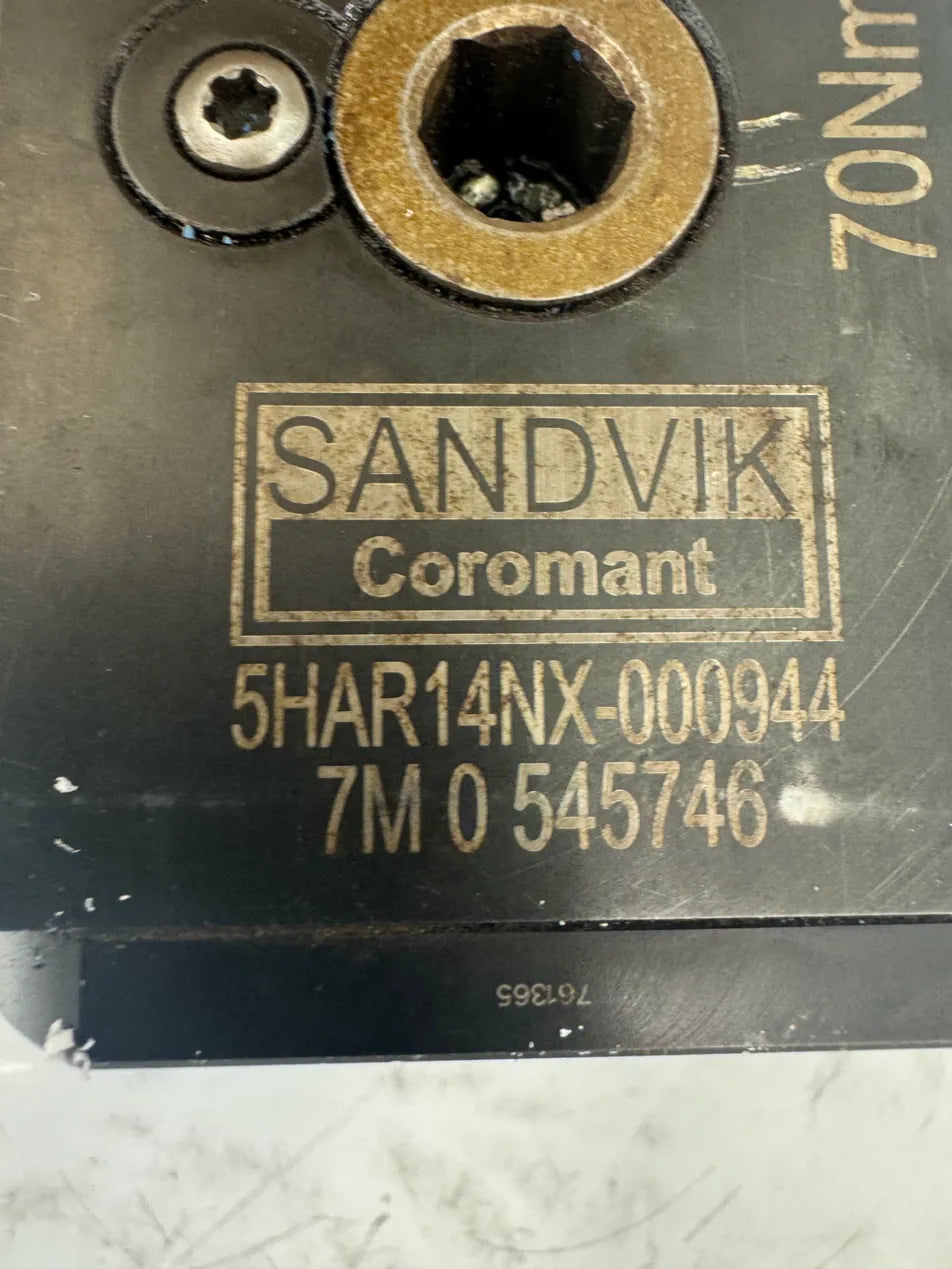

The serial number 7M 0 545746 is marked on the body. Part number 5HAR14NX-000944 appears on two faces of the holder. The unit shows typical signs of shop use including minor surface wear and oxidation on the collet nut contact area, visible in the provided photos.

Buyers should verify Capto coupling size and collet capacity compatibility with their specific machine turret before purchase, as exact specifications were not fully confirmed from visual inspection alone.

Stock # 0226-592
