Sandvik Coromant Clamping Unit C5-TRI-BT65A | BMT65 | Capto C5 Workpiece Connection | Orientation: Radial | Coolant Through 01206

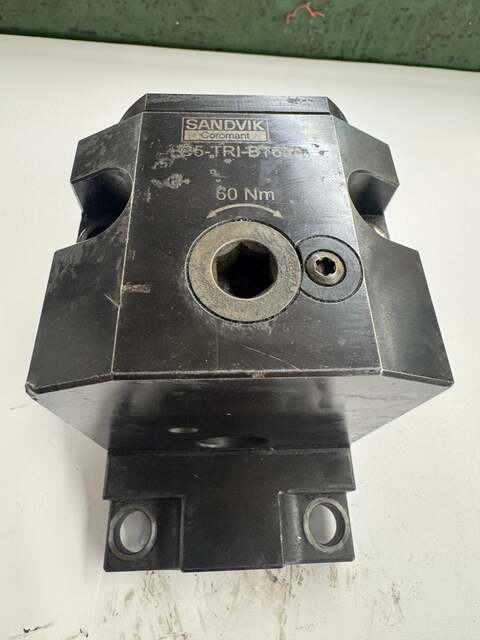

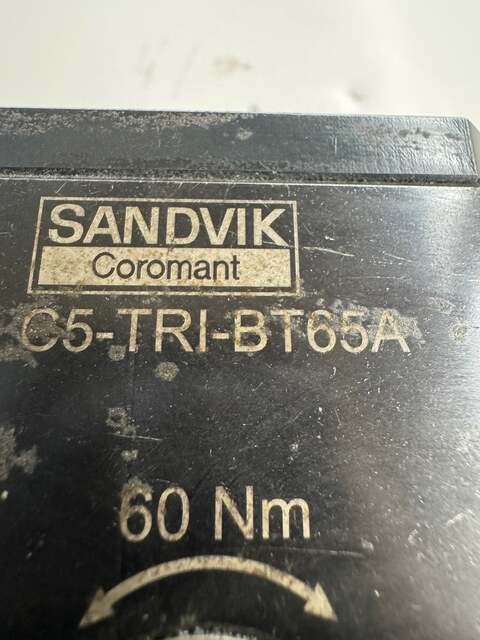

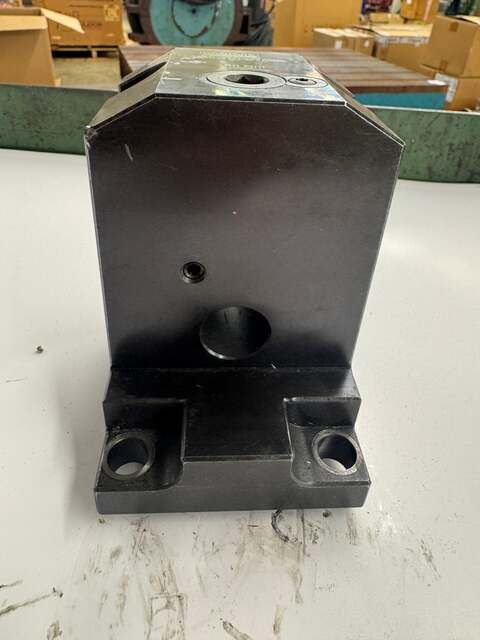

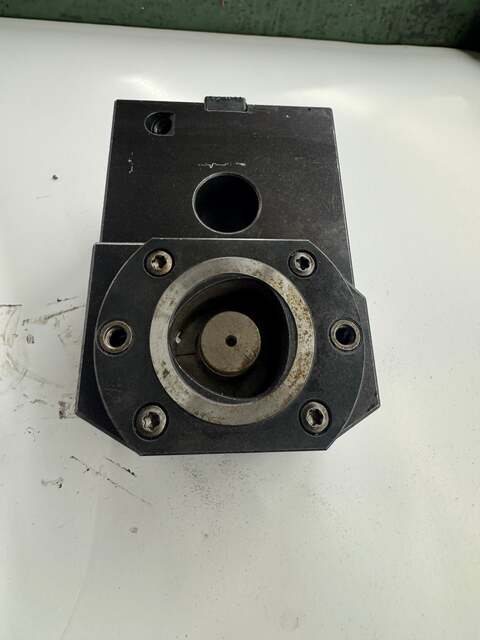

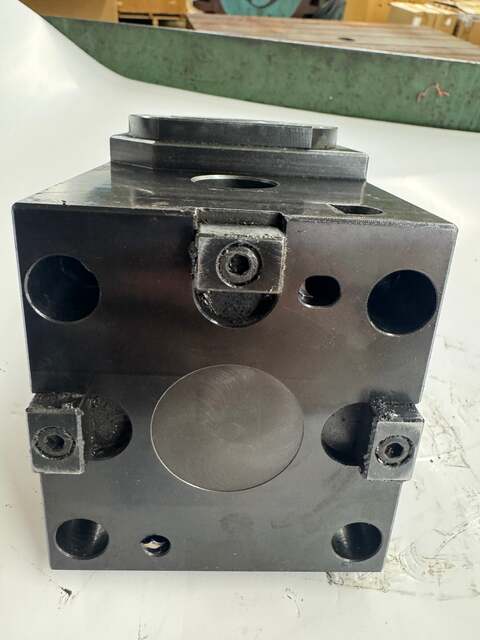

Used in CNC turning centers equipped with BMT65 non-driven turret interfaces, the Sandvik Coromant C5-TRI-BT65A is a manual clamping unit that adapts Coromant Capto C5 tooling to the BMT65 turret bolt pattern. The right-hand orientation is indicated by the TRI designation in the part number. The clamping mechanism uses a hex-drive actuation torqued to 60 Nm as marked on the face of the unit, with two workpiece-side Capto C5 connections in a linear arrangement. The body is a hardened steel construction with a bolt-down base featuring two precision-bored locating pin bores for repeatable turret registration. Coolant delivery is supported through the unit. The BMT65 machine-side interface is compatible with a range of CNC lathe platforms that utilize the BMT65 bolt pattern, including Doosan, Leadwell, and other BMT65-configured turning centers. The Sandvik Coromant Coromant Capto system allows for quick-change tool setup and is widely adopted in high-production turning environments for its rigidity and repeatability. No serial number or date code is visible in the available photos. Condition details are as photographed.

Stock # 0426-01206
