Rotoweld #3.0, Automated Pipe Spool Welding System, 3"-42" pipe diameter capacity, 150" diameter per shift, 32' system length, 10,000 lb/pair pipe stand capacity

Spec

Specification Single Bay Twin Bay Single Bay HD Twin Bay HD
Diameter capacity 3–42 in. 3–42 in. 3–48 in. 3–48 in.
Rotators 1 2 1 2
Pipe stands 2 4 2 4
Pipe stand capacity 10,000 lb/pair 10,000 lb/pair 20,000 lb/pair 20,000 lb/pair
System width 7.5 ft 7.5 ft 7.5 ft 7.5 ft
System height 9.2 ft 9.2 ft 11.5 ft 11.5 ft
Standard length 32 ft 80 ft 32 ft 80 ft
Productivity 150+ dia in/shift 300+ dia in/shift 150+ dia in/shift 300+ dia in/shift
Materials: Carbon steel including A333 Grade 6, 304/316 stainless steel and similar grades, Cr-Mo alloys, and duplex stainless steel

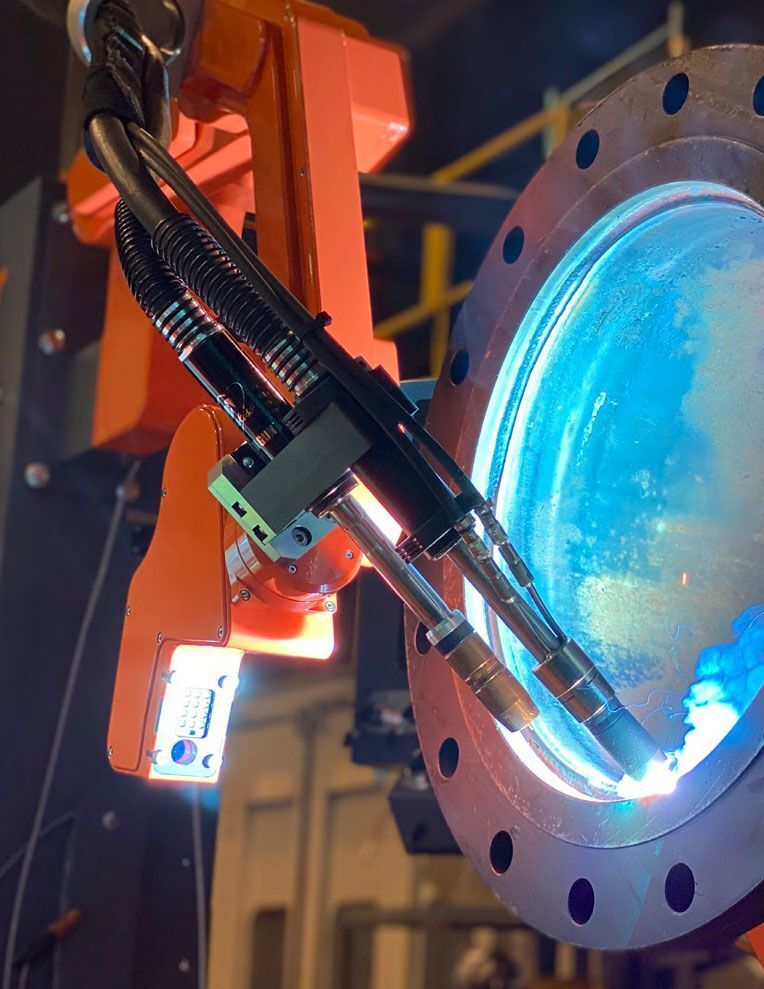

Root pass: GMAW short circuit / STT
Fill pass: GMAW spray or pulsed transfer
Optional fill processes: SAW and FCAW
Welding sources: Lincoln Power Wave S500; Lincoln Flextec 650 for SAW option

Description

The Most Advanced Automated Pipe Spool Welding Robot
Built on 35 years of automated welding expertise, the Rotoweld 3.0 helps pipe fabrication shops increase throughput, improve weld consistency, reduce dependence on highly experienced welders, and track production performance from anywhere.
Up to 400% productivity increase
True automatic welding with minimal welding experience required
Consistent, high-quality welds every cycle

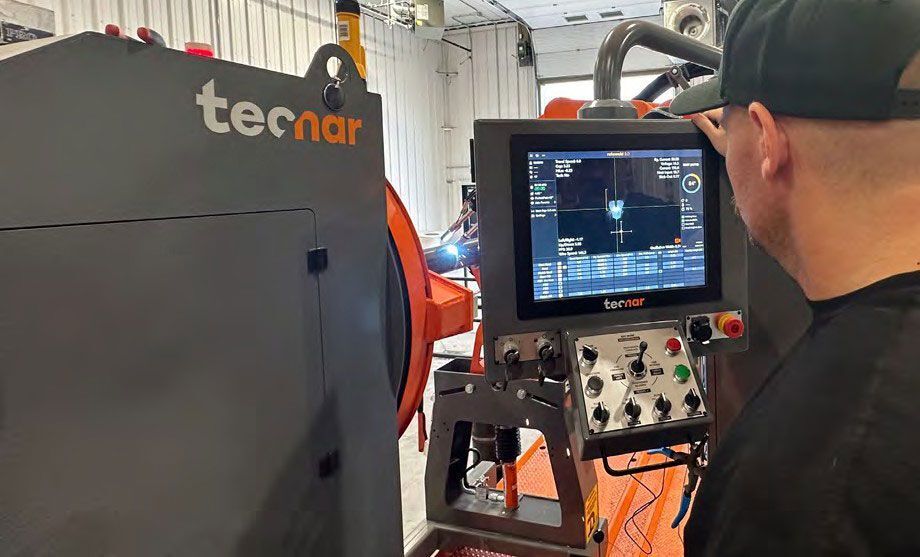

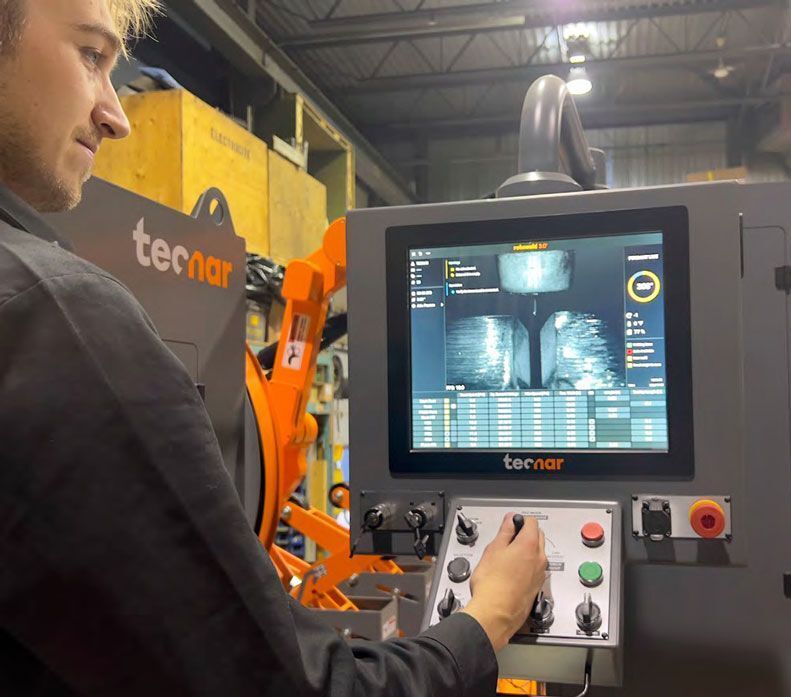

Remote productivity and quality tracking
