Romi #M20, CNC teach lathe, Fanuc 21i-T control, 20.5" swing x 60" centers, 10.2" over cross slide, 3.15" hole, 2-2200 RPM, 15 HP, 2005

Manufacturer: Romi
Model: M20
Year: 2005
Swing: 20.5
Centers: 60.0
Price: $24,000 USD

For Sale by Northwest Tool Co Inc

Surplus Record Dealer Since 2026
Location: Wood Dale, IL
Contact Jacob Dabkiewicz
Let the seller know you found their listing on Surplus Record!
$24,000 USD
Finance for as low as $487/mth financing info

Description

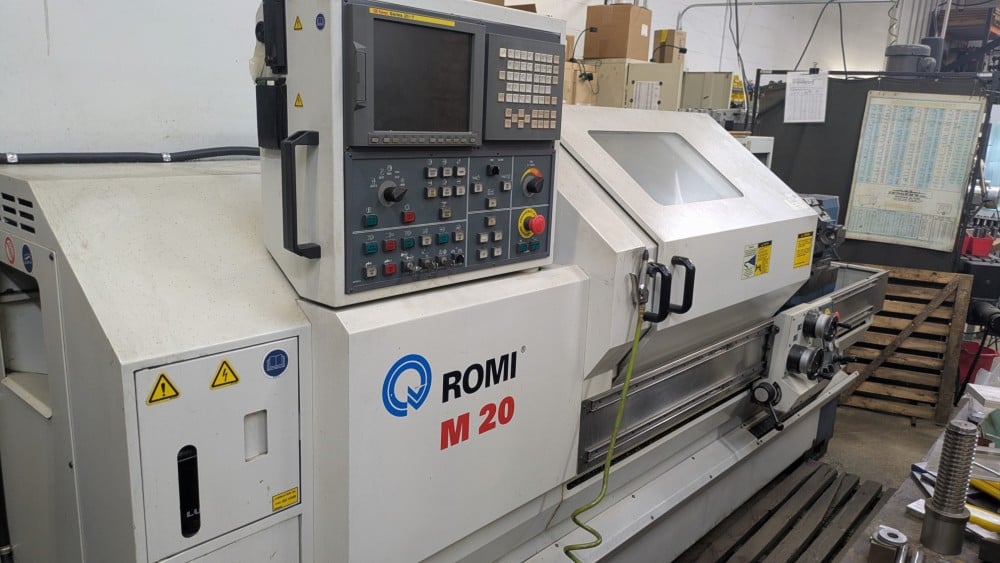

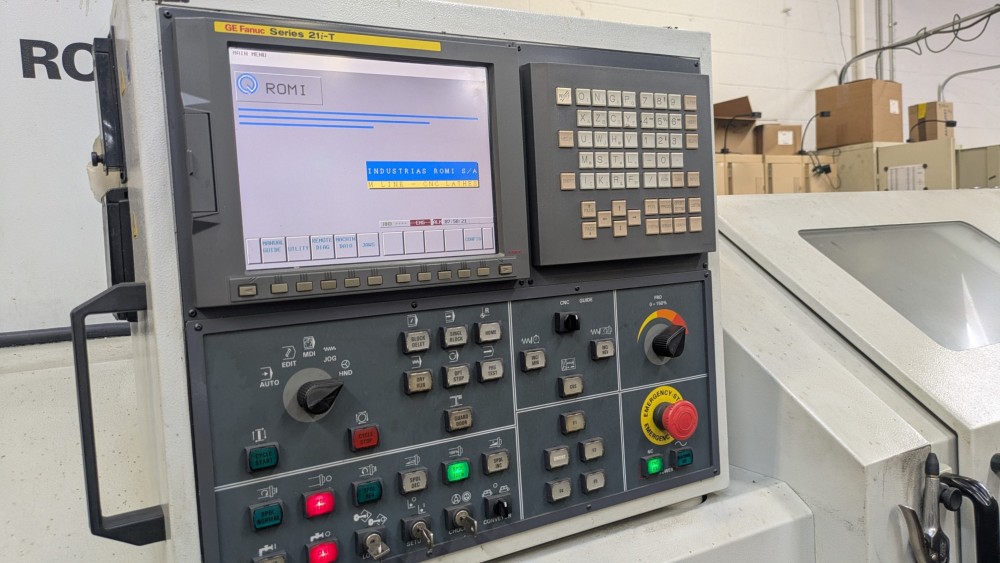

2005 Romi M20 x 60" (Serial Number format: 002-XXXXXX-404) is a highly accurate flat-bed CNC/Manual teach lathe. It combines the ease of manual operations with two MPG electronic handwheels and full CNC execution via the Fanuc 21i-T control system.
The factory specifications for this model configuration are detailed below:
📐 Capacities & Working Range
  • Distance Between Centers: 60" (1,524 mm)
  • Swing Over Bed: 20.5" (520 mm)
  • Swing Over Cross Slide: 10.2" (259 mm)
  • Swing Over Saddle Wings: 17.7" (450 mm)
  • Center Height: 10.04" (255 mm)
  • Bed Width: 13.39" (340 mm)
⚙️ Spindle & Headstock
  • Spindle Bore: 3.15" (80 mm) (Note: Standard bar capacity maxes out around 3.0")
  • Spindle Nose: A2-6 (Optionally A2-8 depending on chuck packages)
  • Spindle Speed Range: Variable from 2 to 2,200 RPM (Up to 3,000 RPM peak capacity)
  • Main Motor Power: 15 HP (11.2 kW)
🏎️ Travels & Feed Rates
  • X-Axis Travel (Cross Slide): 11.02" (280 mm)
  • Z-Axis Travel (Longitudinal): 60" (1,524 mm)
  • X-Axis Rapid Traverse: 295 IPM (7.5 m/min)
  • Z-Axis Rapid Traverse: 394 IPM (10 m/min)
🐎 Tailstock
  • Quill Diameter: 3.15" (80 mm)
  • Quill Travel: 5.12" (130 mm)
  • Inner Taper: #4 MT (Morse Taper)

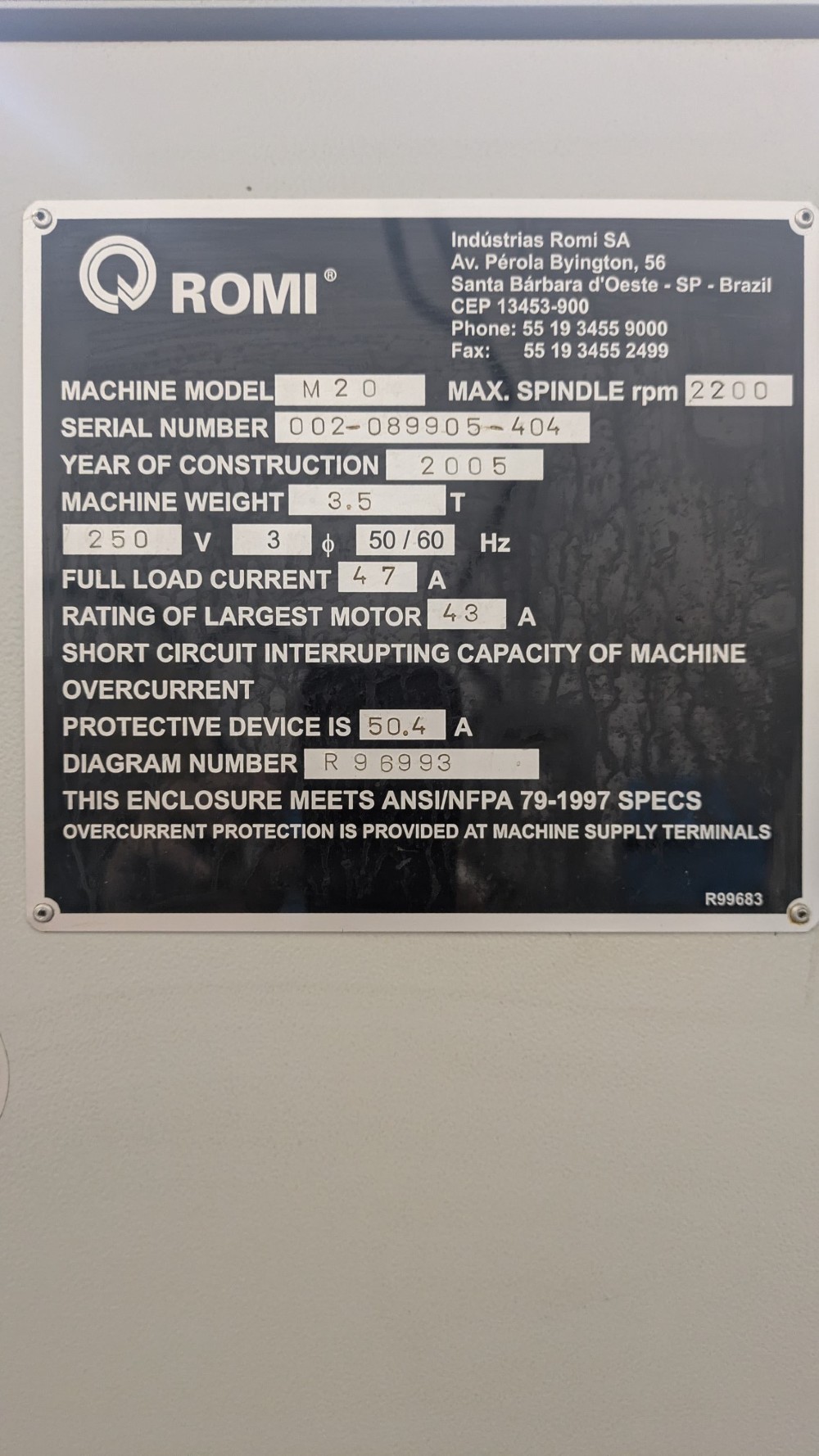

🔌 Physical & Electrical Requirements
  • Power Supply: 220V–240V AC / 3-Phase / 60 Hz
  • Approximate Footprint (L x W x H): ~124" x 65" x 78"
  • Approximate Machine Weight: ~8,000 lbs (3,628 kg)
FOB: Wood Dale IL 60191 (can recommend local rigger)
Any questions, please ask.

Inquire Further with Northwest Tool Co Inc!

Buyers Who Viewed This Listing Also Viewed:

JUST ADDED!

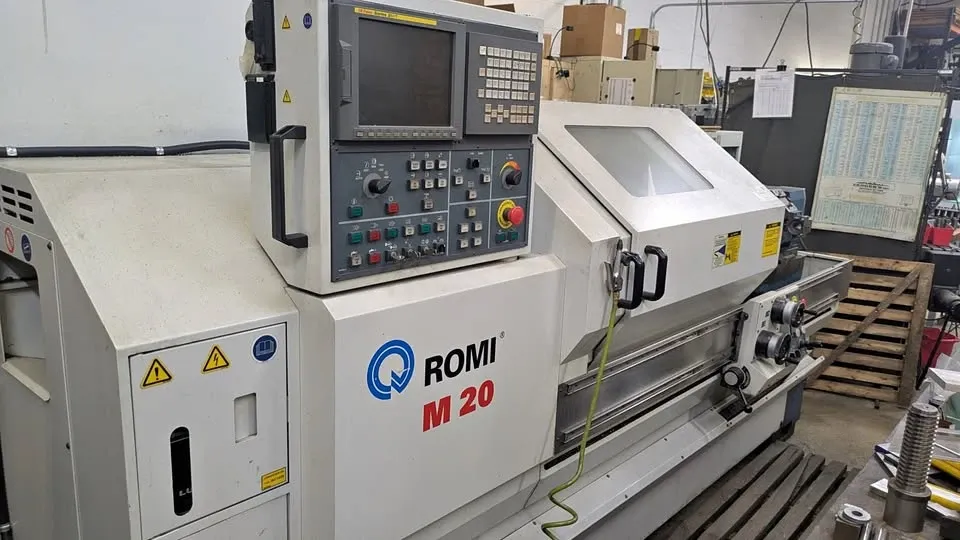

Romi #M20, CNC Lathe, 11" X, 60" Z, 20.5" swing, 60" centers, 10.2" socs, 3.15" spindle bore, 15 HP, 2200
