Rittal SV 9340.390 O-M Adapter, also listed in active market listings as Busbar Adapter or Busbar Support 690V AC Untested Surplus

Product Specifications

• Manufacturer: Rittal
• MPN / Model: SV 9340.390
• Product Type: OM Adapter, Busbar Support Accessory
• Voltage: 690V AC (Ue), 600V AC UL rating
• Current: 32A max (Imax), 30A UL rating
• SCCR: 65kA at 600V AC, 3 phase
• Connection Cable: AWG 10
• Poles: 3 pole
• Mounting Rail Type: TS 45D, TS 45D V
• Serial Number: 014823

Product Description

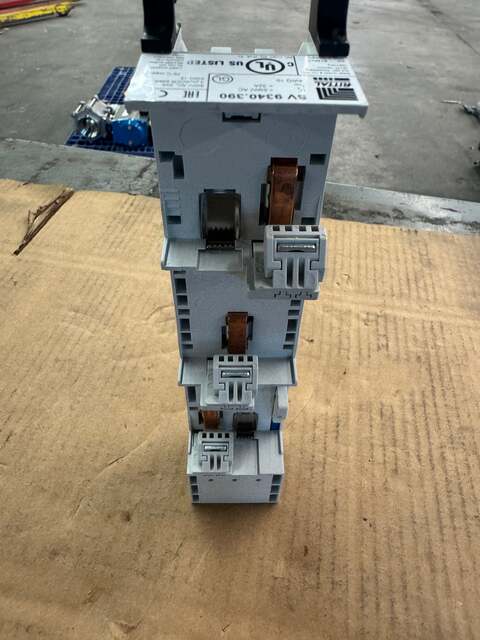

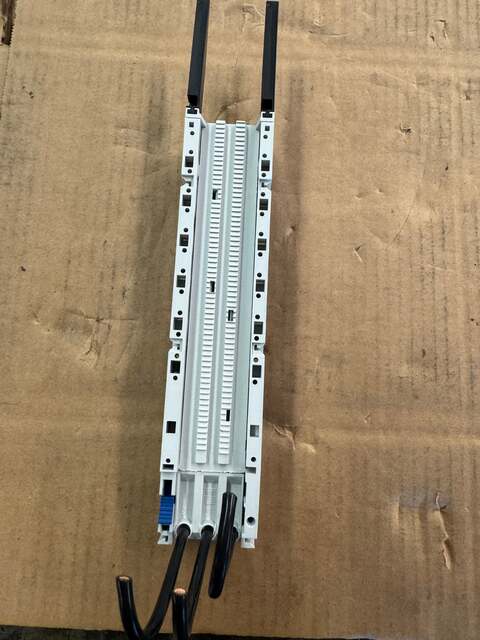

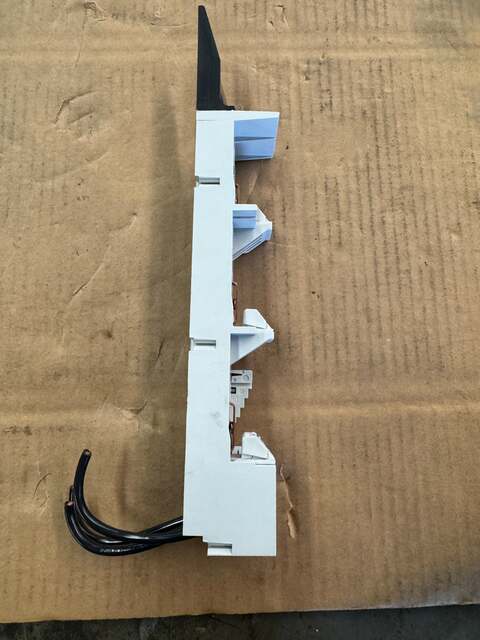

This Rittal SV 9340.390 is an OM adapter listed as a use only accessory for RiLine60 busbar supports, identified by the MPN SV 9340.390 on its nameplate. The unit is rated 690V AC and 32A maximum by the manufacturer, with a separate UL listing of 600V AC and 30A, 3 phase, at an SCCR of 65kA, using AWG 10 copper conductors rated for 75°C. Three integrated connection cables extend from the base of the adapter for wiring into a control panel, and the housing is built for mounting along a TS 45D or TS 45D V support rail.

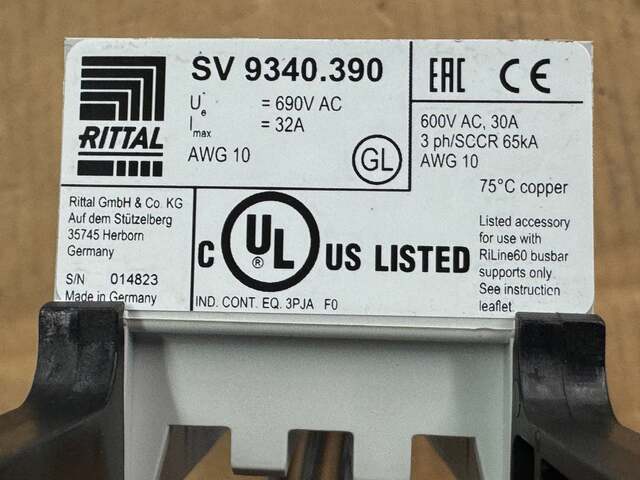

Buyers matching an exact Rittal catalog number for a RiLine60 panel build, replacement, or spare inventory can use SV 9340.390 along with the visible nameplate ratings to confirm fit against their existing busbar system. Confirmed details include the manufacturer, MPN, rated voltage, rated current, SCCR, conductor gauge, and serial number as shown on the label. Listed condition is Surplus, Untested.
