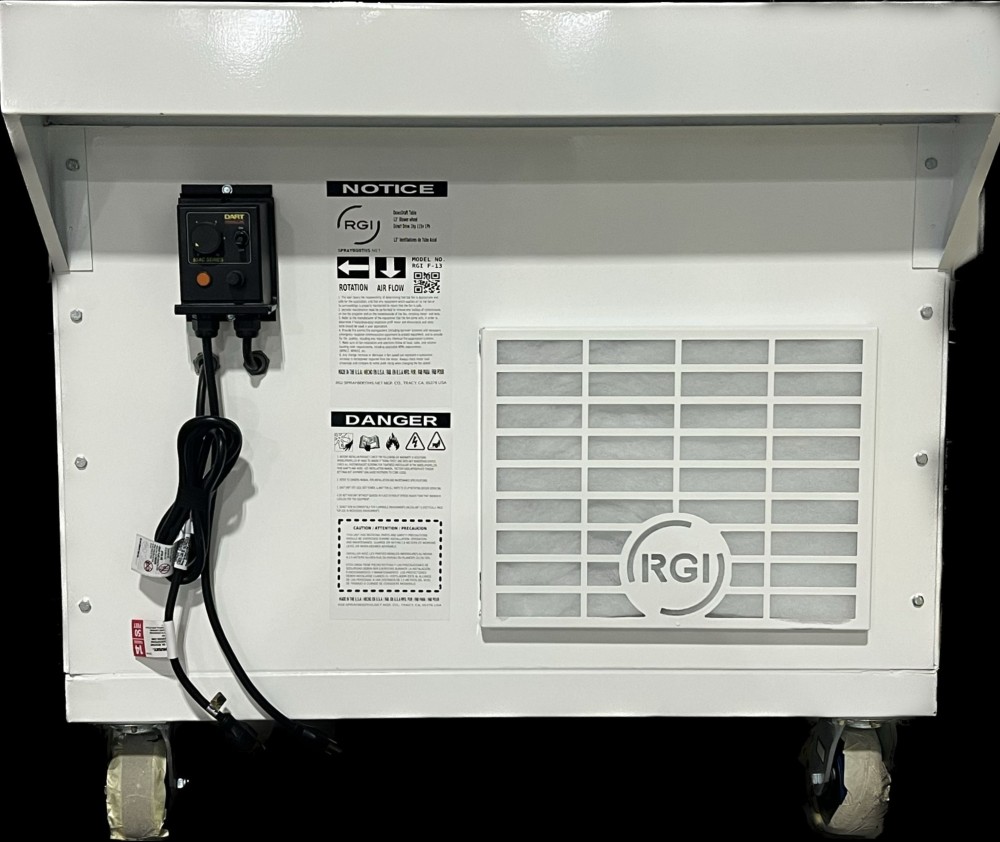

RGI Down Draft Table

When OSHA mandates these businesses to maintain a safe work environment, The downdraft tables we offer provide workplace-related air safety relief, and aid in the protection of the operator from exposure to dust, odors, and fumes from their finishing processes. Companies looking to be proactive can benefit from the products, which safeguard employees from toxic and carcinogenic fumes. Other businesses that can benefit include those caught using outdated practices of airborne particulate elimination.

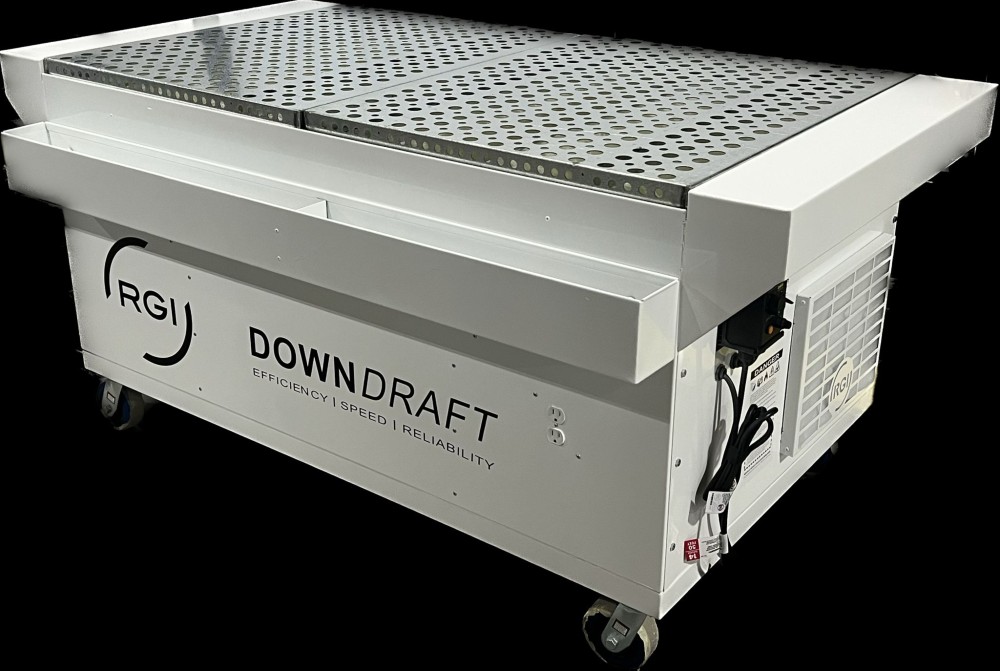

Down Draft Table - DD60
DIM: 36" Wide X 60" Long X 36" High
Average Face Velocity = 150 – 400 FPM dependent upon blower/motor combination)
2000 CFM – 5000 CFM (nominal) blowers
14 and 16 Gauge uni-body construction
Direct drive blower motor
Optional non-sparking table grates, vent back, side wings, and fan wheel
Large work surface for a range of applications

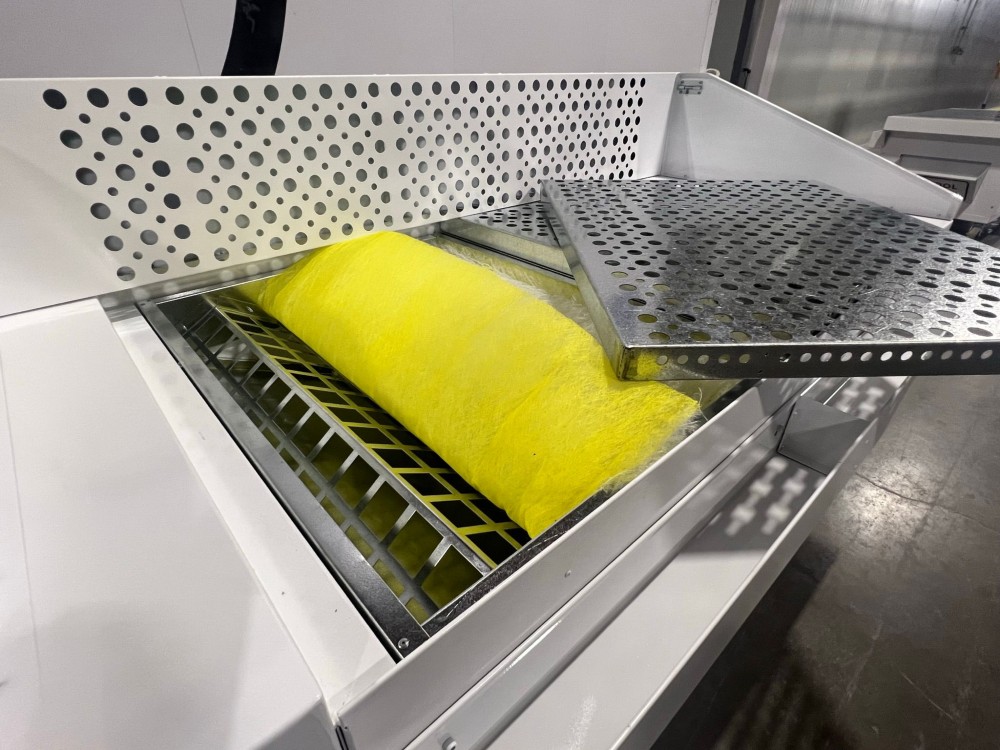

Removable clean-out tray in filter housing
Completely self-contained; no outside ducting necessary
Helps meet OSHA requirement 1910:1000 for industrial air quality
Custom is standard
120V 15 AMP 1PH POWER

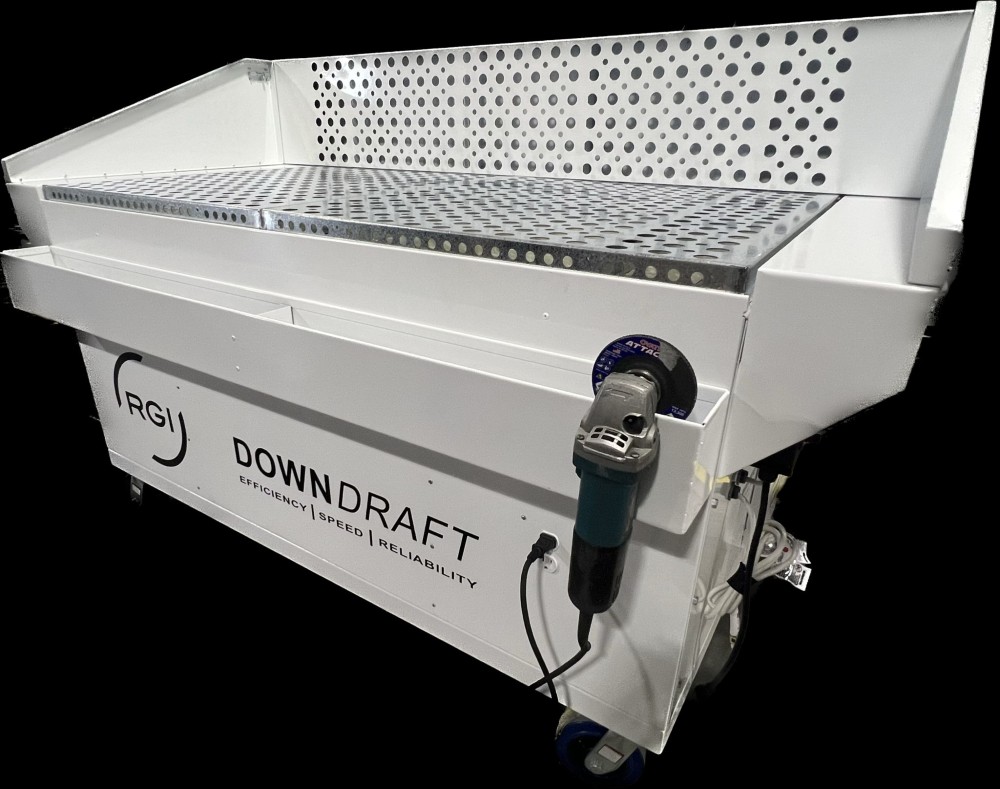

Down Draft Table with Back Wall Exhaust Plenum - DDT60BD
DIM: 36" Wide X 60" Long X 36" Workspace
Average Face Velocity = 150 – 400 FPM dependent upon blower/motor combination)
2000 CFM – 5000 CFM (nominal) blowers
14 and 16 Gauge uni-body construction
Direct drive blower motor
Optional non-sparking table grates, vent back, side wings and fan wheel
Large work surface for a range of applications
Removable clean-out tray in filter housing
Completely self-contained; no outside ducting necessary
Helps meet OSHA requirement 1910:1000 for industrial air quality
Custom is standard
120V 15 AMP 1PH POWER
Build with back Draft plenum for extra range of of ventilation

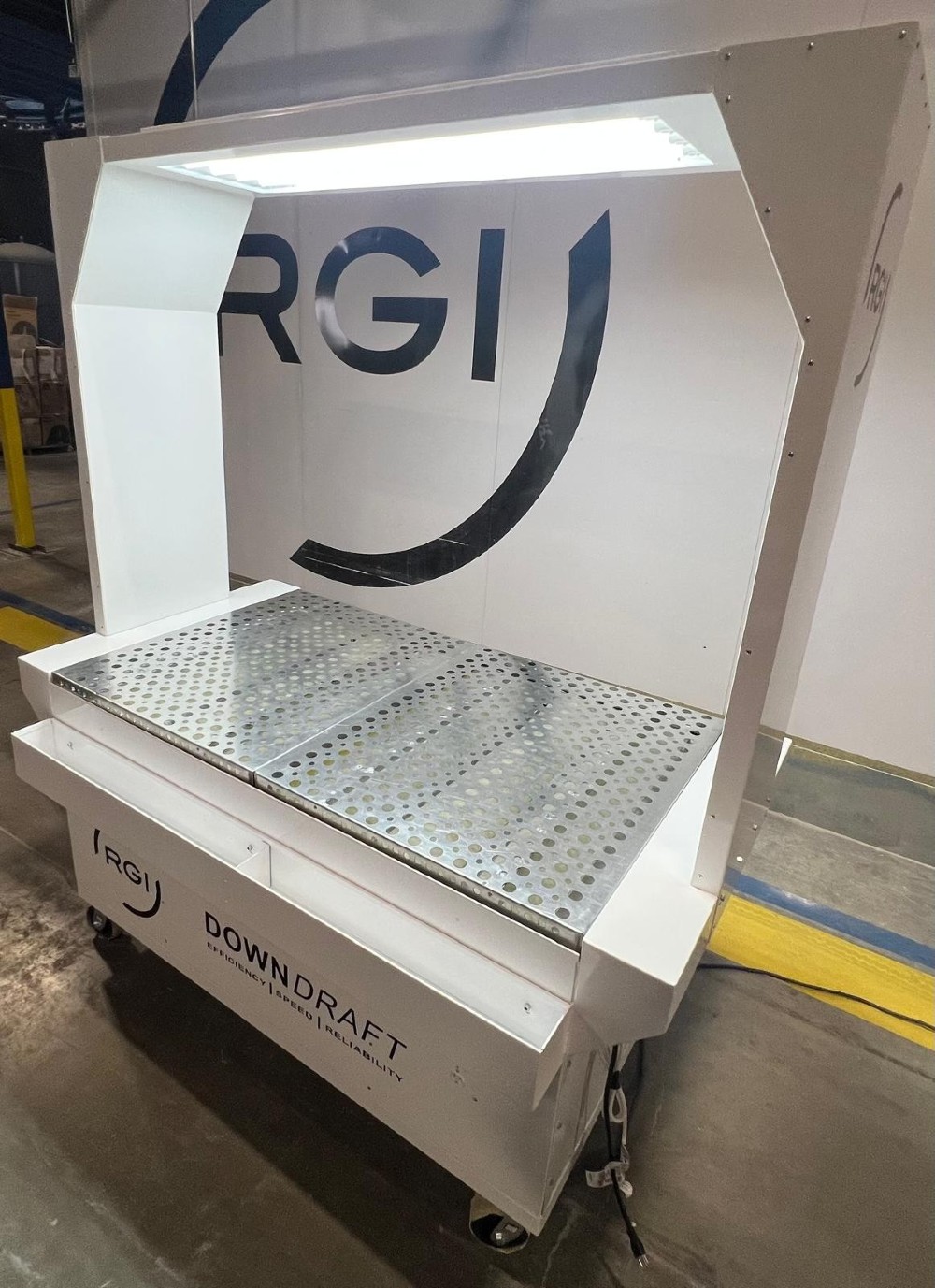

Downdraft Table and Top Light- DD60LP
DIM: 36" Wide X 60" Long X 36" Workspace
Average Face Velocity = 150 – 400 FPM dependent upon blower/motor combination)
2000 CFM – 5000 CFM (nominal) blowers
14 and 16 Gauge uni-body construction
Direct drive blower motor
Optional non-sparking table grates, vent back, side wings and fan wheel
Large work surface for a range of applications
Removable clean-out tray in filter housing
Removable clean-out tray in filter housing
Completely self-contained; no outside ducting necessary
Helps meet OSHA requirement 1910:1000 for industrial air quality
Custom is standard
120V 15 AMP 1PH POWER
LED Tower Table Light
