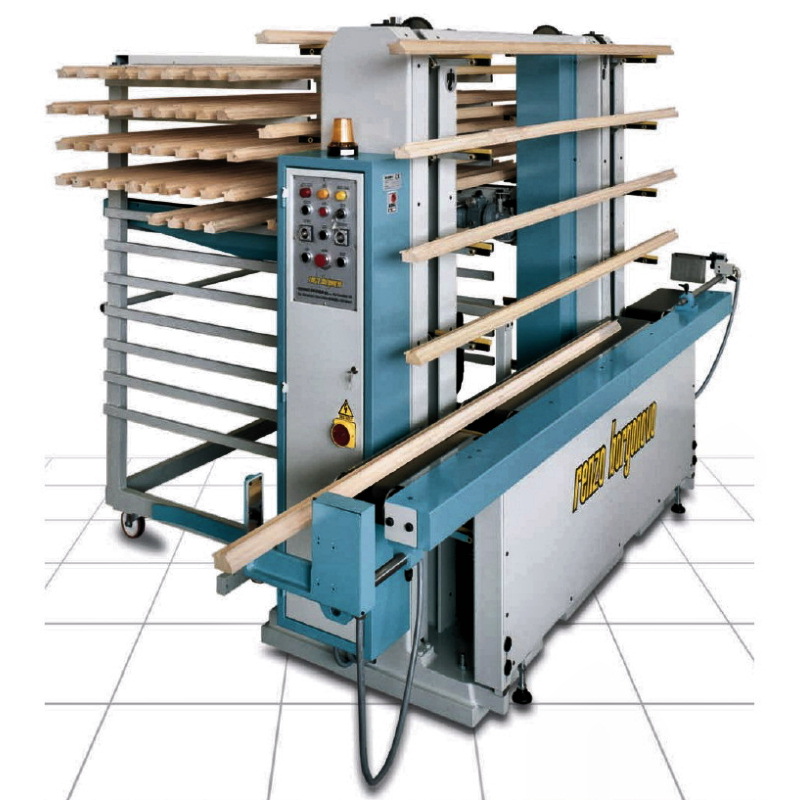

Renzo Borgonovo #BL-94-3, Vertical Moulding Stacker, 192" L x 6" width workpiece, 30 PPM, 87" H x 91" width x, 134" L overall, (11) arm rack, 2026, new

Estimated monthly payment valid upon approved credit.

Request Formal Quote

RENZO BORGONOVO - BL 94-3, ... Vertical Moulding Stacker. This 3-ARM AUTO STACKER has been specially designed to facilitate the loading of mouldings, picture frame strips, and other processed linear parts onto drying racks.It eliminates manual handling of workpieces, which can mar the finish. It also increases productivity and efficiency compared to manual stacking. The machine can work with moulding of the same length or of varying lengths at the same time.Specifications: -- Workpiece Lengths are 4,900 mm (192") Max. & 1,500 mm (58") min. workpiece length, 20 mm min. and 150 mm (6") max. material width cap. -- Stacking Capacity - (20 - 30) pieces/Min. -- Overall Height of 2,200 mm (87"); Overall Width 2,300 mm (91"); Overall Length of 4,000 (157"). -- Work Height at Infeed 860 mm ( 34"); Racks have (11) arms that extend out approx. 39" with 4" in between arms.Operation: -- Automatically loads just-painted mouldings onto air drying rack. -- Process: As moulding exits Coater, it is moved by belt conveyor to (3) arms, which lift the piece up and over the top of the Stacker Station; coming down the other side, it places the moulding onto (3) arms. A belt conveyor transfers the piece onto the 11-tier drying cart. -- Lifting can be triggered by electric photo-eye to determine the position of off-feed arms (arms move down as each tier of the rack is filled) and place moulding on the rack (indexing back-to-front).This Stacker comes with (1) rack; additional racks are available, priced at ...$ 1,950 each
