Reliance Electric Resolver and Drive I/O Module 0-60031-6

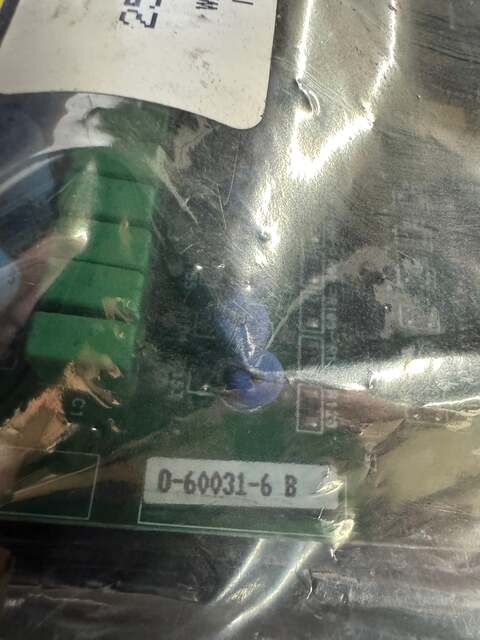

The Reliance Electric 0-60031-6 is a Resolver and Drive Input/Output Module used in the AutoMax and Reliance PMI based drive system architecture. This board provides resolver feedback processing and drive I/O signaling for AC and DC drive applications, interfacing the resolver feedback device with the PMI processor module for precise position and velocity control. Markings visible on the board and original packaging label include TCH JX1 01 9981 759 9942 and S0 60031 6 05 B 005, along with the PCB silkscreen identifier 0 60031 6 B. The barcode label on the anti static bag reads 25250573. The module is part of the Reliance Electric Reliance/Baldor/ABB AutoMax drive ecosystem and is also referenced in the 805401 1S four slot power module assembly, which combines a 0 60007 3 power module, 0 60021 4 PMI processor, 0 60031 6 resolver and drive I/O, and 0 60002 6 DC power technology module. The component features stacked gold colored metal brackets near the upper edge, two female plug connectors labeled P1 Feedback and P2 I/O, a large toroidal inductor with copper winding, multiple integrated circuits including a USA RDC19222 302 resolver to digital converter chip, ceramic and polyester capacitors, and a multi pin rear edge interface connector for rack mounting. The item is sealed in its original anti static bag with the manufacturer warranty void seal intact. Replaces and is interchangeable with prior revision boards in the 0 60031 series within the same drive platform.

Stock # 0526-02369
