Year: 1984
Description: 5 mmscfd
Stock # IH-48170
For Sale by IronHub
Surplus Record Dealer Since 2024
Mavis Anderson-Busch
833-43...> Show Seller's Phone Number 833-436-9692 Let the seller know you found their listing on Surplus Record!
Description
General Info
Driver Info
Compressor Details
Pump Info
Notes
| Packager: | Alco Gas & Oil Production Equipment Ltd. |
| Year Built: | 1984 |
| Service Type: | Sweet |
| PASC Condition Rating: | B |
| Skidded: | Yes |
| Housed: | No |
| Connection Status: | Disconnected |
| Warranty: | No |
| Units Available: | 1 |
Driver Info
| Driver Types: | Electric |
| Driver Make: | Toshiba Corporation |
| Driver Model: | B1004YLF3A0 |
| Max HP: | 100 hp |
| Rated RPM: | 1760 RPM |
Compressor Details
| Compressor Make: | Mayekawa Mfg. Co. Ltd. |
| Compressor Model: | F62BM2 |
| Compressor Serial #: | 16792 |
Pump Info
| Pump Manufacturer: | Milton Roy Industries Ltd. |
| Pump Model: | A |
Notes

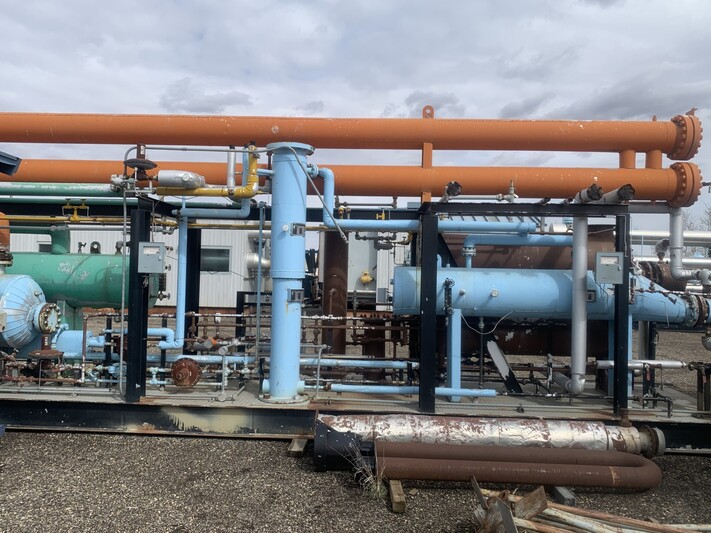

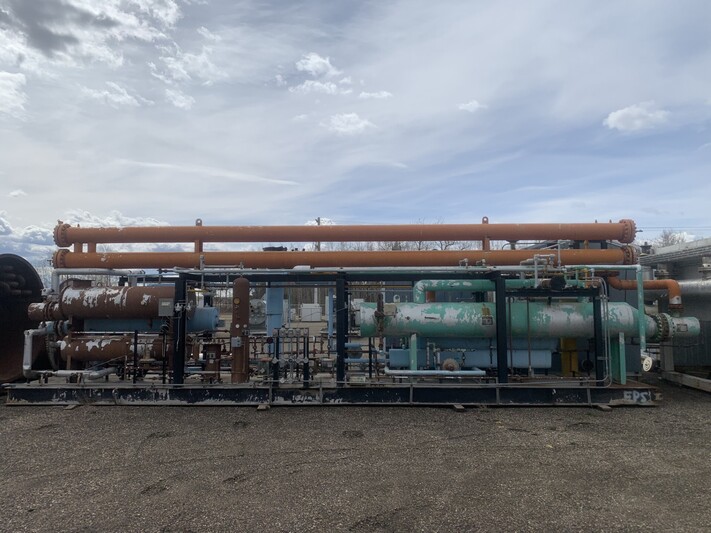

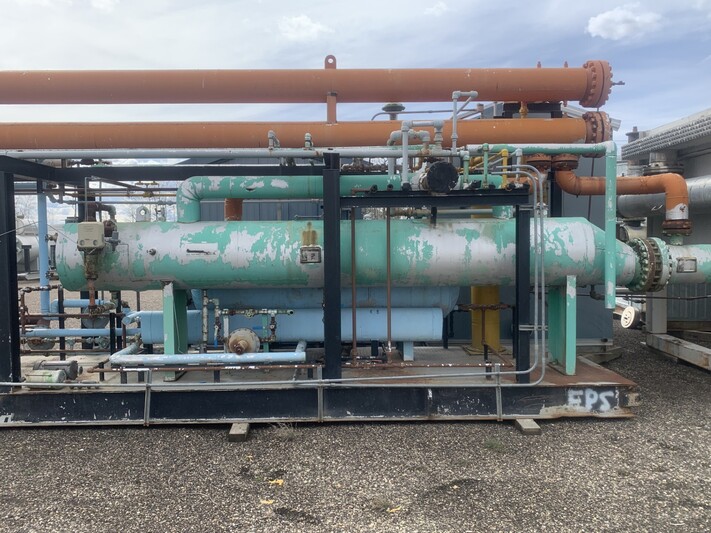

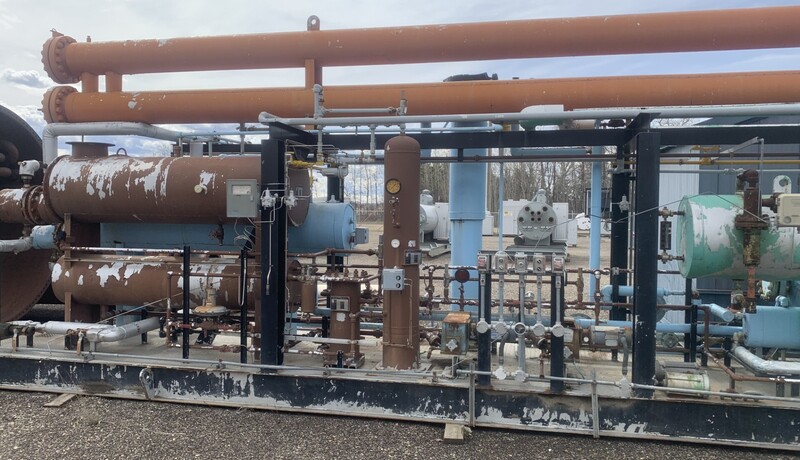

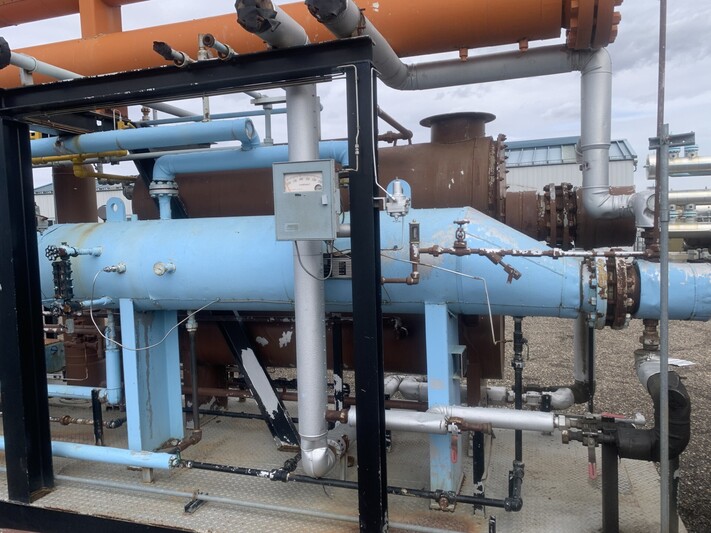

Process Skid
Gas Flow Rate: 2-8 mmscfd
Design Pressure/Temp 'A': 500 psi @ -50°F
Design Pressure/Temp 'B' 1250 psi @ -20°F

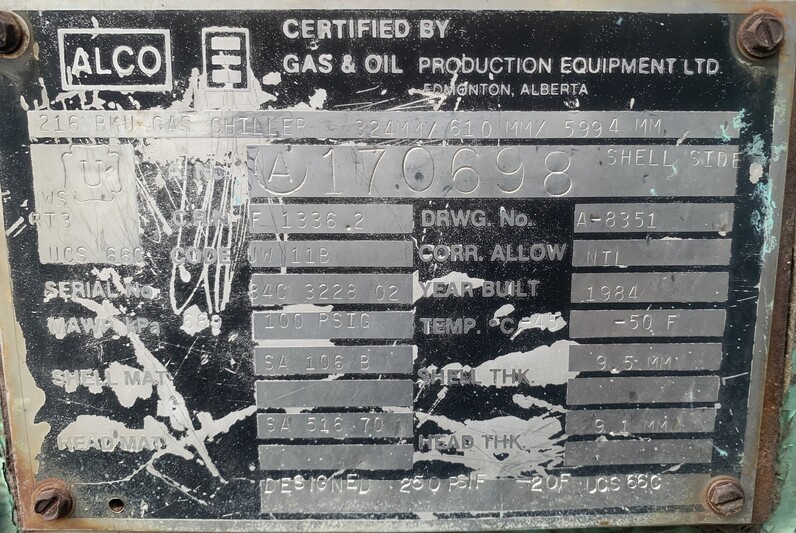

- 216 BKU Gas Chiller
- A-170698
- SN: 84C 3228 02
- CRN: F1336.2
- MAWP: 100 psi @ -50°F
The Plant Vessels are dual rated for 500 psi @ -50°F or 1250 psi @ -20°F.

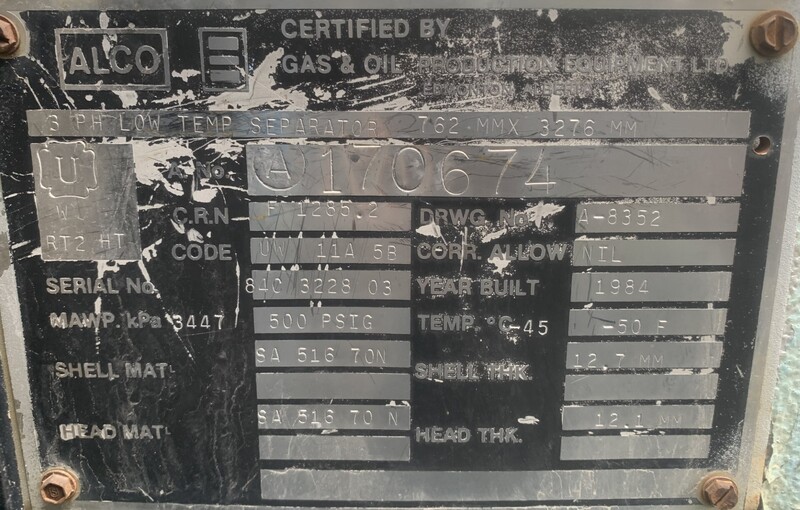

- 3 Ph Low Temp Separator
- A-170674
- SN: 84C 3228 03
- CRN: F1285.2
- MAWP: 500 psi @ -50°F

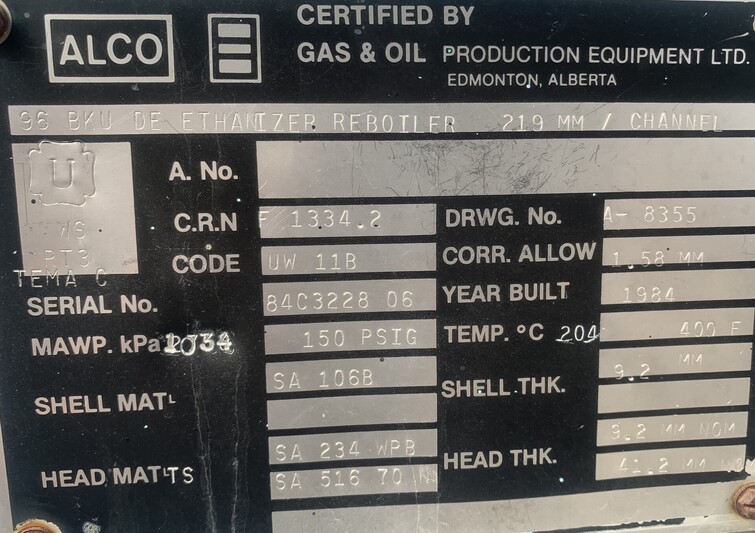

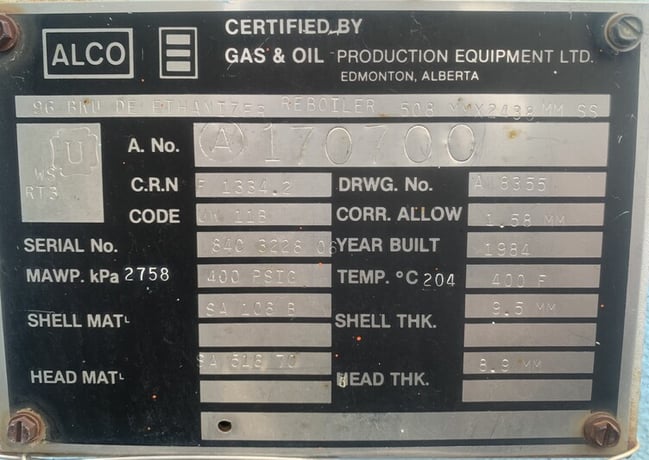

- 96 BKU De-Ethanizer Reboiler
- A-170700
- SN: 84C 3228 06
- CRN: F1334.2
- MAWP: 400 psi @ 400°F (Shell Side)
- MAWP:150 psi @ 400°F (Channel Side)

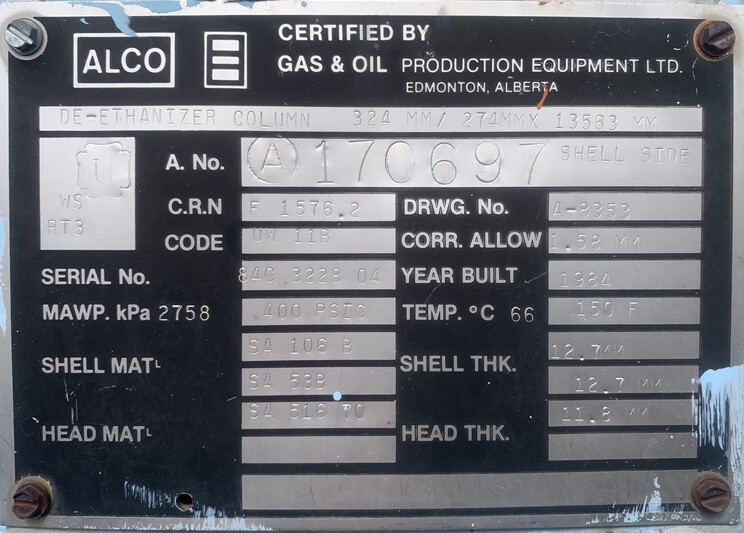

- De-Ethanizer Column
- A-170697
- SN: 84C 3228 04
- CRN: F1576.2
- MAWP: 400 psi @ 150°F
- De-Ethanizer Trim Cooler
- SN: 84C 3228 05
- CRN: F1576.2
- MAWP: 250 psi @ -20/150°F
- 200,000 BTU Reboiler/Tube Bundle
- A-170690
- SN: 84C 3228 07
- CRN: F1333.2
- MAWP: 100 psi @ 400°F
- Glycol/HC Flash Tank
- A-170691
- SN: 84C 3228 08
- CRN: F1284.2
- MAWP: 150 psi @ 150°F
- Gas/Gas Heat Exchanger
- A-170672
- SN: 84C 3228 01
- CRN: F1335.2
- MAWP: 500 psi @ -50°F
- Charcoal Filter
- A-190999
- SN: 84C 3228 22
- CRN: D1138.2
- MAWP: 100 psi @ 150°F
- Fuel Gas Scrubber
- A-170673
- SN: 84C 3228 21
- CRN: F1332.2
- MAWP: 200 psi @ 150°F
- 2 Glycol Pumps
- Model A
- MR1-61-113T
- Cap: 39 GPH
- Pressure: 615 psi
- Skid: 40' L x 6'6" W
- Package Height: 12' Overall
-------
Compressor Skid
- Reciprocating Compressor
- Model: F62BM2
- SN: 16792
- Leak (Psig) HP 313 LP 185
- Hyd (Psig) HP 470 LP 470
- Mayekawa Mfg. Co. Ltd.
- Electric Motor
- Model: B1004YLF3A0
- SN: 40189623
- Refrigerant Oil Separator
- A-170595
- SN: 84C 3228 20A
- CRN: E9525.2
- MAWP: 250 psi @ 230°F
- Refrigerant Oil Separator
- A-170596
- SN: 84C 3228 20B
- CRN: E9525.2
- MAWP: 250 psi @ 230°F
- Vert. Suction Scrubber
- A-199415
- SN: 84C 3228 14
- CRN: F1287.2
- MAWP: 100 psi @ -50°F
- Vert. Interstage Scrubber
- A-170689
- SN: 84C 3228 15
- CRN: F1575.2
- MAWP: 250 psi @ 150°F
- Horz. Surge Receiver
- A-170687
- SN: 84C 3228 13
- CRN: F1286.2
- MAWP: 250 psi @ 150°F
- Skid: 20' L x 10' W
- Package Height: 12'6" Overall
- Weight: 19,000 lbs
Get Your Price from IronHub!
Buyers Who Viewed This Listing Also Viewed …
Nitric Acid Plant, 200 Ton/day, designed by Weatherby, 1972
Seller: EcReCon Inc.
Location: Pedericktown, NJ
Year: 1972
, used 200 Ton/Day Nitric Acid Plant. Designed by Weatherby. Built in 1972. Originally designed for 170 T/D. Major revamp in 1978/79. Shut down in mid 1990's. Absorber tower has 22 trays and is rated 120 PSI @ 200 Deg.F. NOX abatement unit added in 1978. DeLaval Air Compressor with tail gas expanders. Platinum ...more
Complete Lipids Production Plant, 50 Hz motors, Alfa Laval Disc Centrifuge, 1.7L chamber, 9600 RPM bowl, 3000 L/hr, Centritherm evaporator
Seller: Aaron Equipment Co
Location: Schaumburg, IL
used- complete lipids production plant. consisting of: modified niro recirculating single effect evaporator (ethanol extraction) operating in a semi-continuous manner. alfa laval centri-therm model ct6, 1.1kg(lb) per kg (lb) evaporated water, max concentrate viscosity 20,000cp, 11.5kw. seitel model se13x centrifugal ...more
Asphalt Production Plant. 24' x 50' inclined conveyor, 200 tons/hr
Seller: Alan Ross Machinery Corp
Location: Zion, IL
Inclined conveyor: 24' x 50', Output: 200 tons/hr, Built by Astec Industries Chattanooga TN, USA delivered 1988 and partly 1995, Cold feed system: 6 bins + 2 hot bins, 150 tons each, added 1995, Aggregate dryer: 8" x 36', Primary cyclone: 9', Bag house: 51,000 CFM, Mineral filler silo: 350 BBL, Tower ...more
Featured

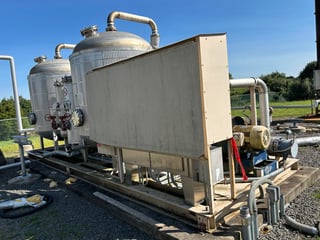

Gas Conditioning Skid Heat Regenerative Selective Adsorption System, Venture
