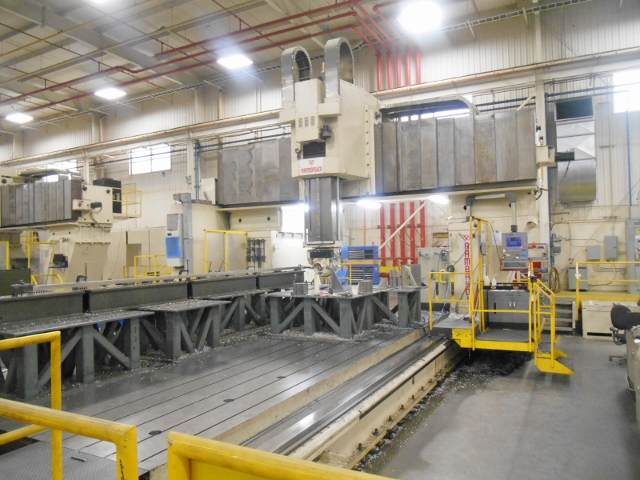

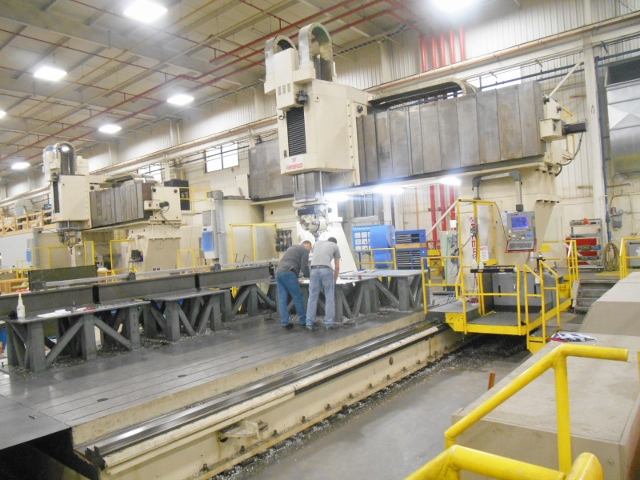

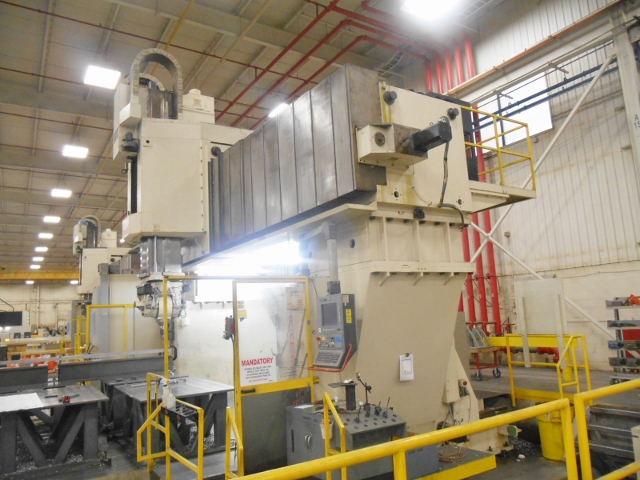

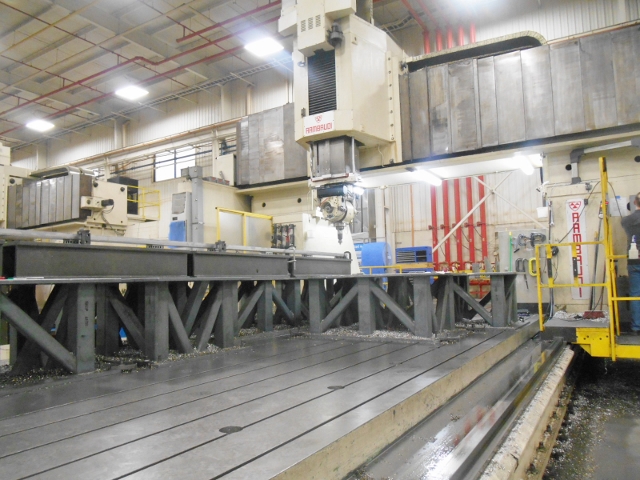

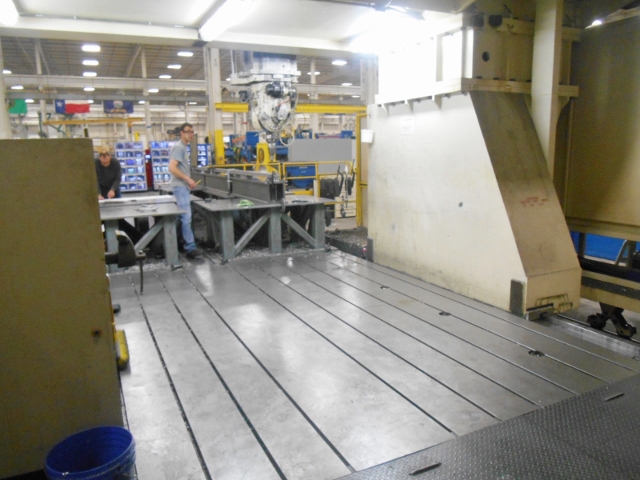

Rambaudi, 5" Axis vertical double column traveling gantry bridge mill w/nutatin spindle

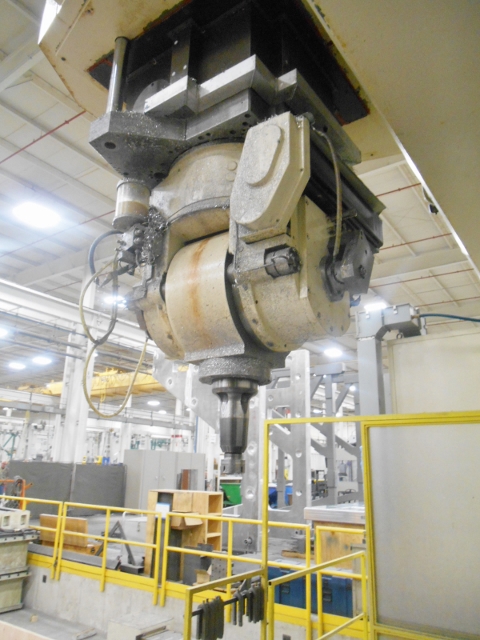

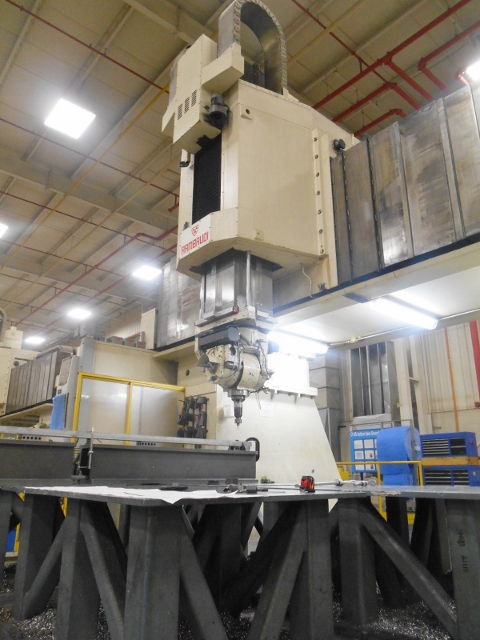

1 (one) Rambaudi 5-Axis Vertical Double Column Traveling Bridge Gantry Mill with Nutating Mill Head

Stationary table size: 480” x 156” (40’ ft x 13’ ft) (12.19 m x 3.96 m)
X axis travel: 328” (27.3 ft) ( 8.32 meters)
Y axis travel: 178” (14.83 ft) ( 4.53 m)
Z axis travel: 56” (4.67 ft) ( 1.4 m)
Maximum height from table to gauge face when fully retracted: 80” (6.67 ft) ( 2.03 m )
Spindle taper: Cat 50 with power took lock
A axis rotation: + 105 degrees
C axis rotation: + 180 degrees
Main power to milling head: 60 HP

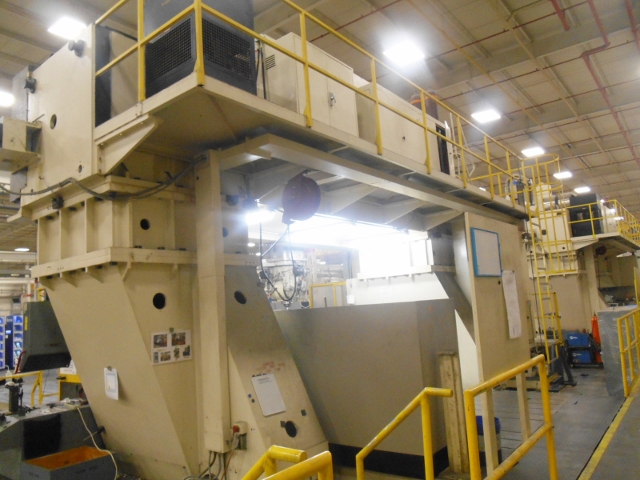

Distance between columns: 175” (14.58 ft) (4.44 m )
Power locks
Milling feeds: 0 – 400 IPM
Rapid traverse: 400 IPM
Spindle speeds: up to 4,000 RPM (subject to verification)

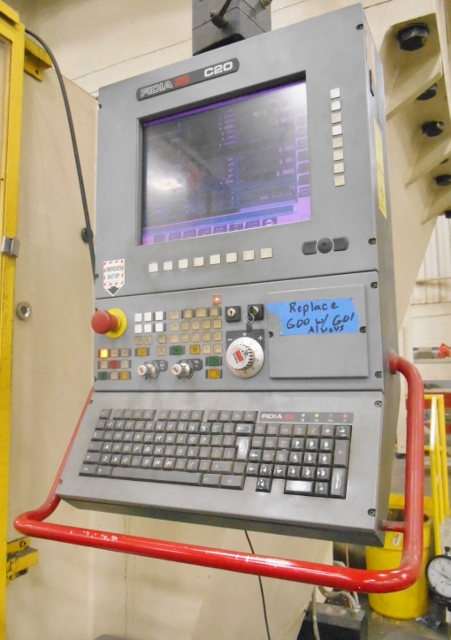

Fidia C-20 CNC Controller
