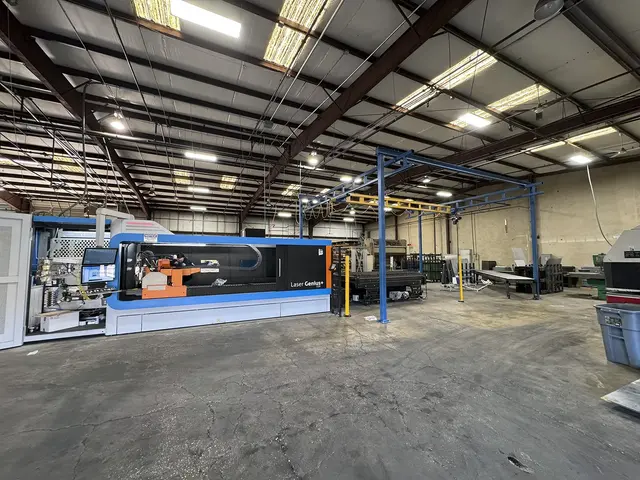

Prima Power #Laser-Genius+, 10000 watt fiber laser, 5' x 10', IPG YLS-10000U, linear motors, automatic pallet exchange, 480 V., 2022

Description
Prima Power Genius+ 10kW Fiber Laser (2022) is a high-performance CNC laser cutting system designed for heavy-duty industrial production and automated lights-out manufacturing. Capable of processing mild steel, stainless steel, aluminum, copper, and brass with exceptional precision, it excels in automotive, HVAC, machinery, transportation, and architectural metal fabrication applications requiring speed, accuracy, and superior cut quality.
MACHINE SPECIFICATION
Power: 480V / 3 Phase / 60 Hz

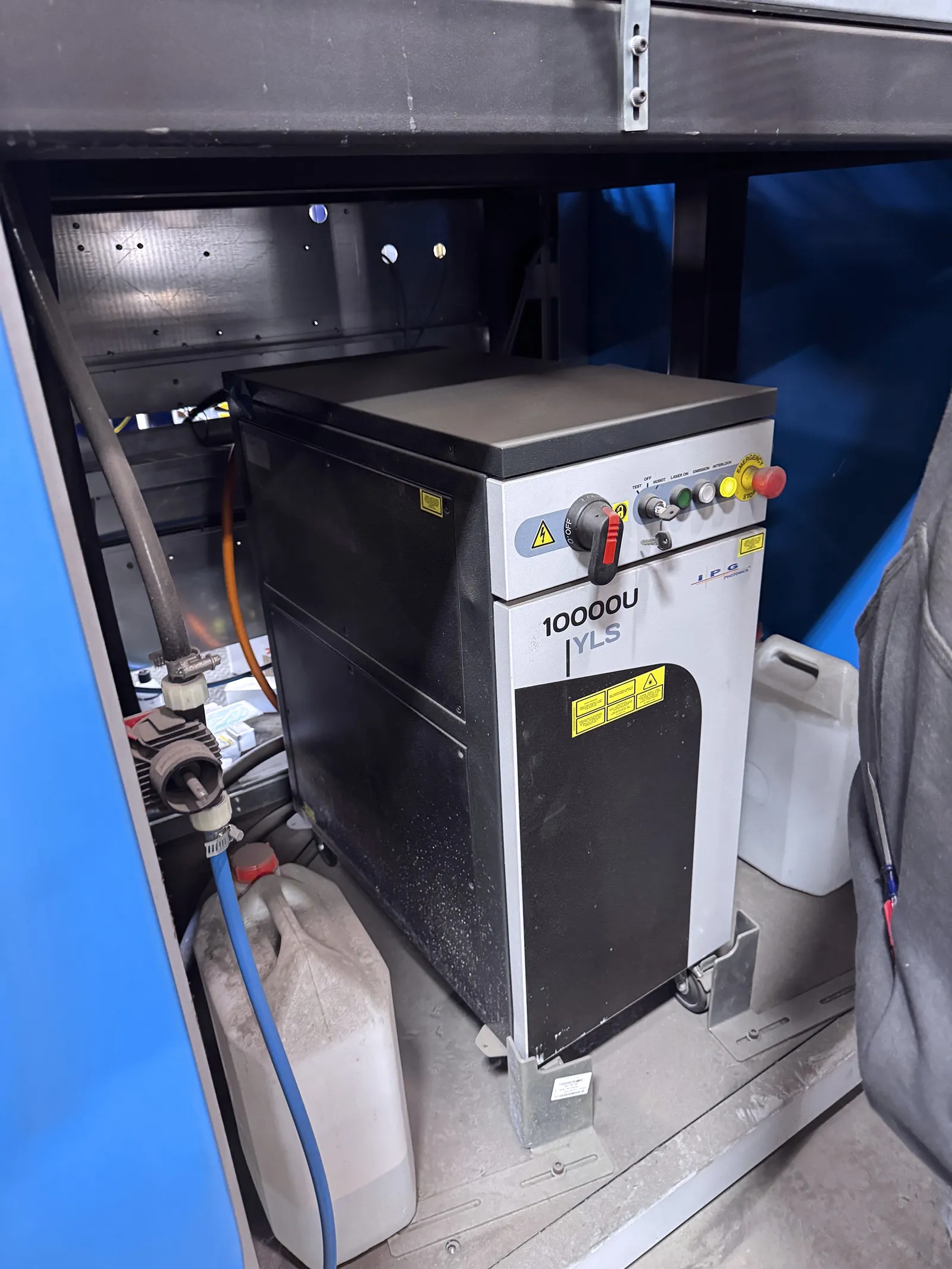

Laser Source: IPG YLS-10000U Fiber Laser (10 kW)
Table Size: 5' x 10' (1500 x 3000 mm)
Country of Manufacture: Italy
Cutting Capacity:
Mild Steel: 1.25" (32 mm)
Stainless Steel: 1.5" (40 mm)
Aluminum: 1.0" (25 mm)
Brass: 0.50" (12 mm)
Copper: 0.50" (12 mm)
Laser Power: 10,000 Watts
Positioning Accuracy: 0.0016" (0.04 mm)
Repeatability: 0.0008" (0.02 mm)
Simultaneous Axis Speed: Up to 11,000 IPM (280 m/min)
Acceleration: Up to 2.8 G
CNC Control: Prima Power Open CNC Platform
Drive System: Linear Motors

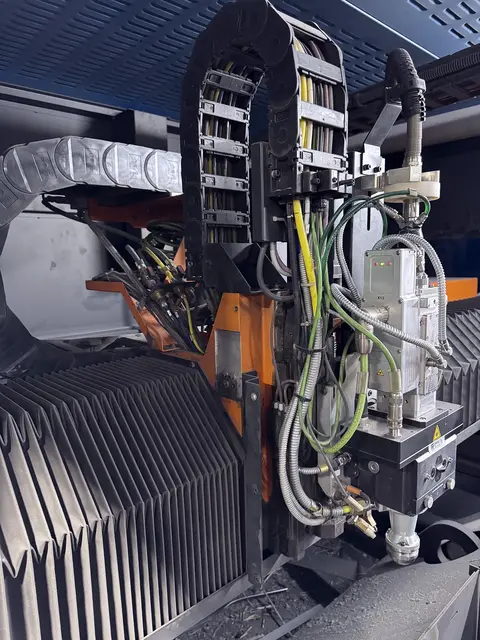

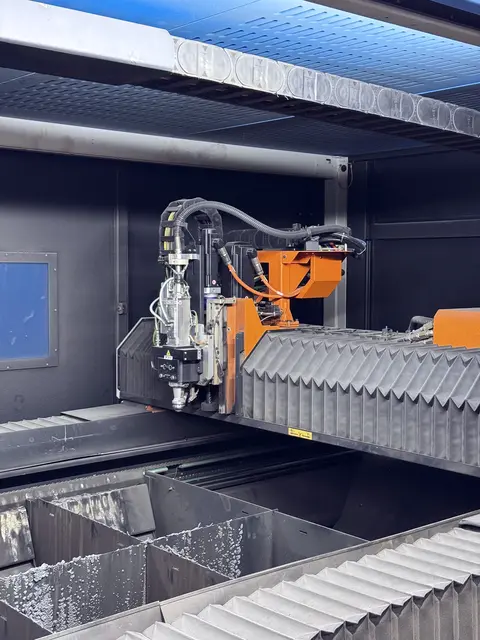

Cutting Head: Prima Power High-Dynamics Autofocus Head

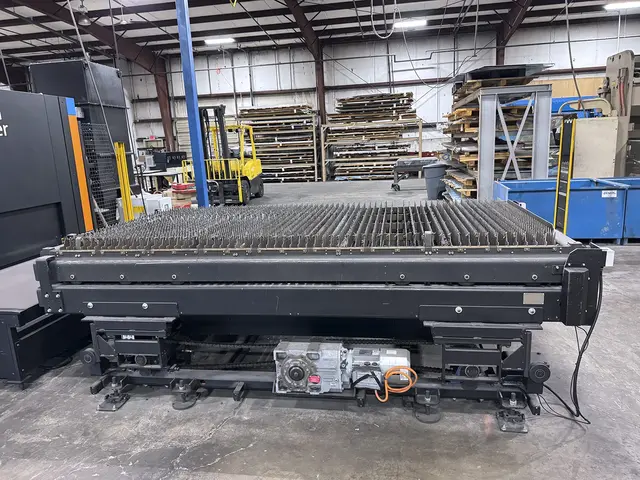

Pallet Exchange: Automatic
Electrical Requirements:
Volt: 480 Volt
3 Phase:
60 Hz:
Total Load Current: 122.12 Amps
Largest Motor FLA: 40 Amps
Recommended Service: 150-200 Amp Dedicated Circuit
