Precise Live Tool Holder 000.973.194 | Orientation: Radial

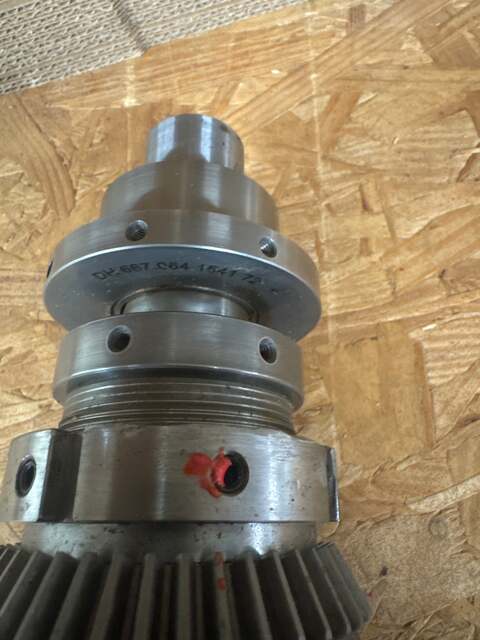

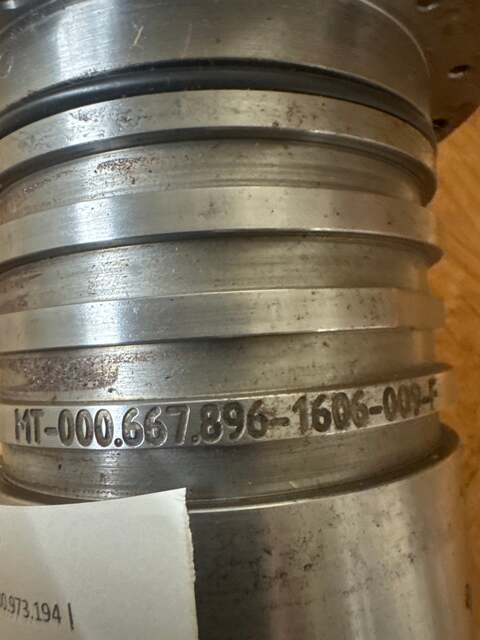

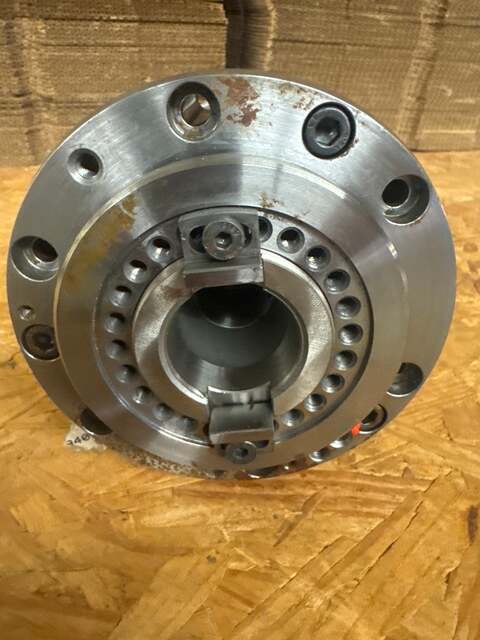

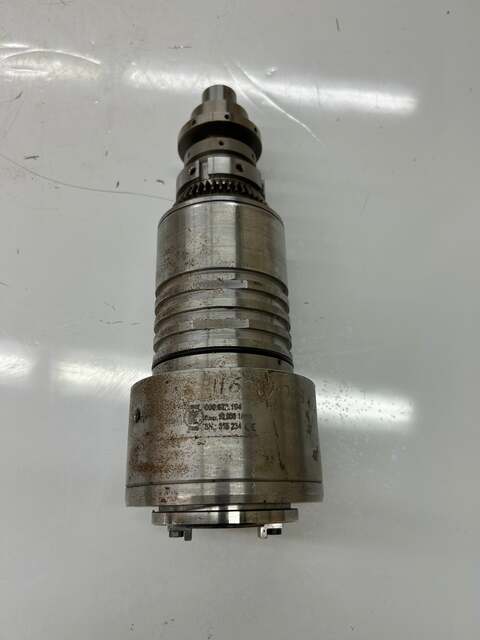

A radial live tool holder from Precise, carrying part number 000.973.194, with a confirmed maximum spindle speed of 18,000 RPM as marked on the nameplate. The unit features a multi-groove body typical of high-speed live tooling designed for CNC lathe turret applications, with a large-diameter flange face showing a bolt-circle pattern consistent with gang-style or VDI turret mounting. Serial number 315 234 is visible on the body. The drive end shows a spur gear interface at the top of the assembly, and dual O-ring seals are present at the body transitions, indicating a sealed internal bearing arrangement suited for coolant-environment operation. Precise is a European manufacturer recognized in the US market for precision live tooling components used in turning centers and Swiss-style lathes. The MPN 000.973.194 can be used to cross-reference compatibility with the specific turret interface and collet system for which this unit was originally configured. CE marking is present on the nameplate.

Stock # 0326-273
