For Sale by Asset Exchange Corporation
Description
| Type: | Lathes-Engine |
| Manufacturer: | TR135-B2/10M |
| Model: | TR135-B2/10M |
| Year: | 1994 |
| Stock #: | 92785 |
| Status: | For Sale |
| Serial #: | 740201-13001-07 |
| Country: | United States |
Specifications
| size | 53" x 32' | 53" x 32' |
| Swing | 53" | 1,346.2 mm |
| Centers | 396" | 10,058 mm |
| Spindle Bore | 4.72" | 119.89 mm |
| Power | 55 hp | 41 kW |
| RPM | 500 RPM | 500 RPM |
| Swing Over Cross Slide | 41" | 1,041.4 mm |
| Dimensions | 65.5’ (L) x 9.41’ (W) | 65.5’ (L) x 9.41’ (W) |
| Weight | 43000 | 43000 |

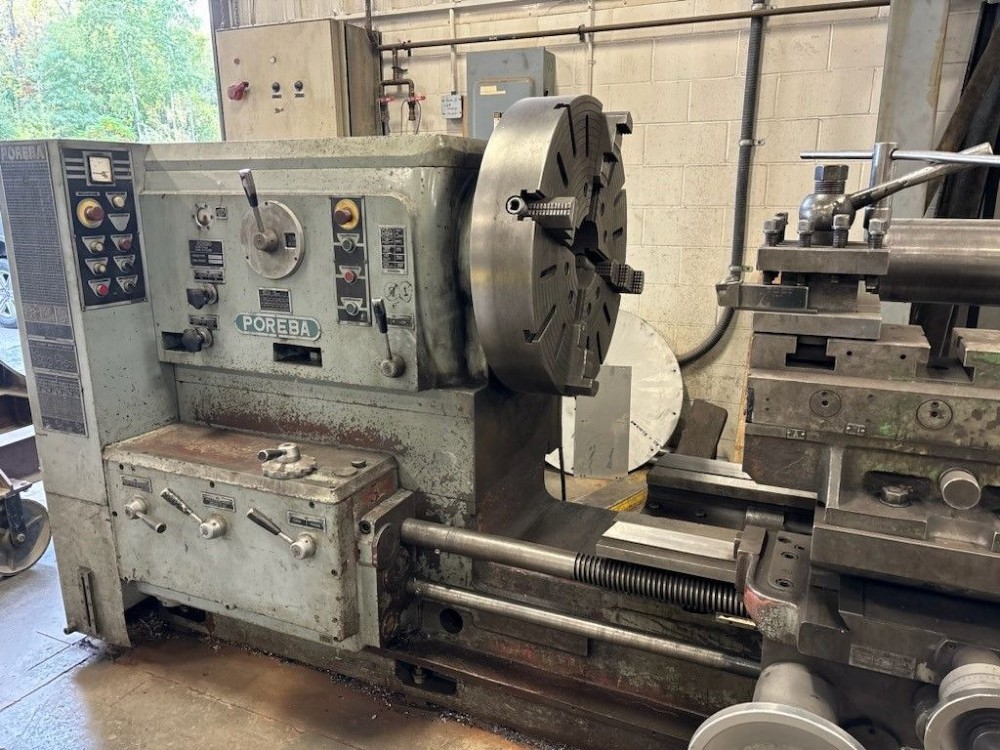

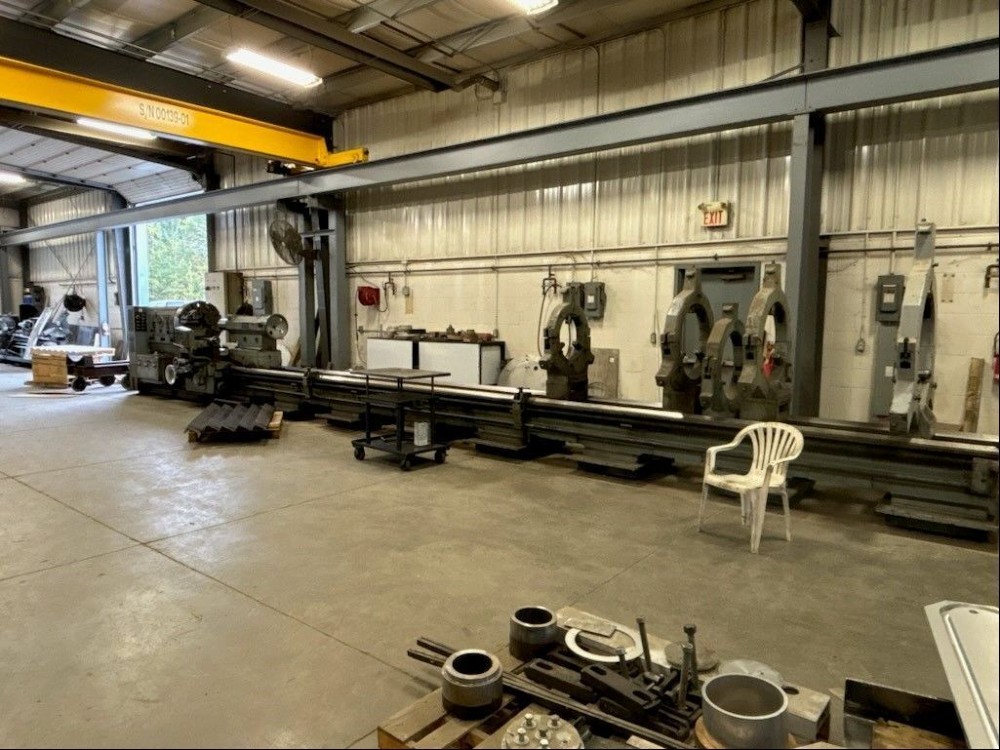

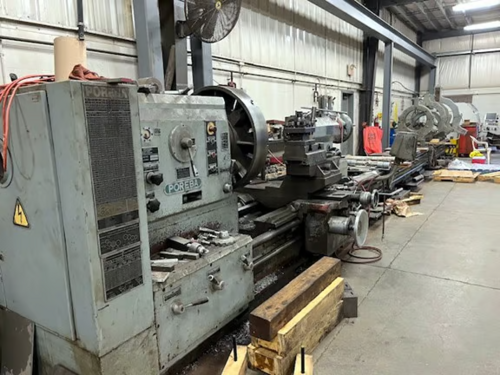

Poreba TR135-B2/10M 53" x 396" Engine Lathe
Maximum Distance Between Centers:. 396”
Swing Over Bed: 53"
Swing Over Cross Slide:. 41"
Swing in Gap: 65”
Length of Gap from Spindle Nose: 22”
Bed Width: 25.98”
Spindle Hole Diameter: 4.72”
Spindle Nose:. A1-15
Spindle Speeds: (24) 5 - 500 RPM
Feeds – Longitudinal. 0.0035” - .400” TPR
Cross Slide Feeds:.. 0.0017 to .200 TPR
Top Slide Feeds: 0.0008 to .100 TPR
Threads - Inch (61) ½ to 60 TPI
- Metric (62) 1 – 120 mm/Rev
Cross Slide Travel:.20-3/4”
Tailstock Spindle Diameter (No. 6 Morse Taper) 7-1/2”
Tailstock Travel:12”
Maximum Weight Between Centers Unsupported: 20,000 Lbs.

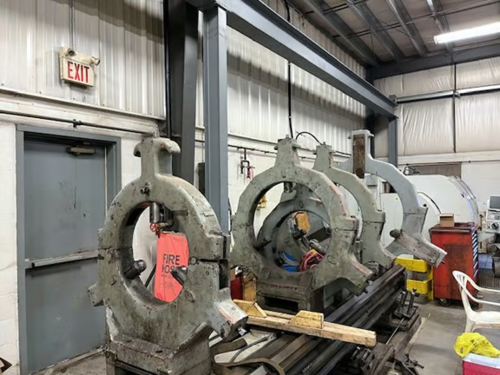

Maximum Weight Between Centers With (1) Steady: 22,100 Lbs.
Maximum Weight Between Centers With (2) Steadies:. 26,500 Lbs.
Main Motor: 55 HP
Approximate Dimensions: 65.5’ (L) x 9.41’ (W) 42,240 Lbs.
