Precision Matthews PM-932M-PDF-w/3axDRO Precision Bench Top Milling Machine

Main Specifications of PM-932M:

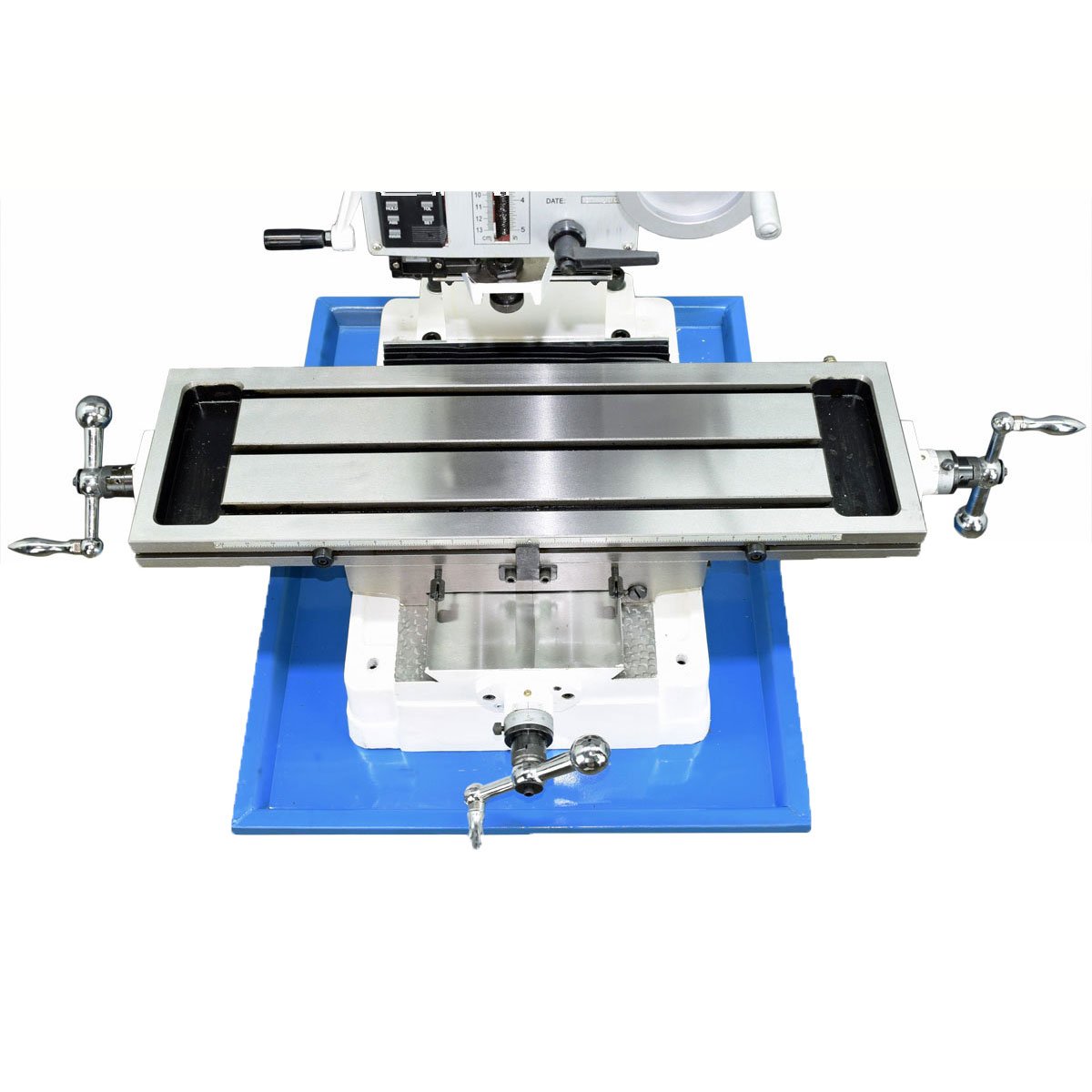

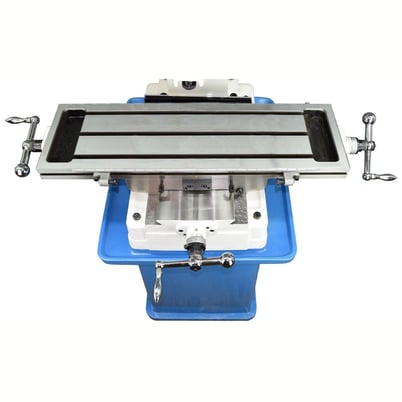

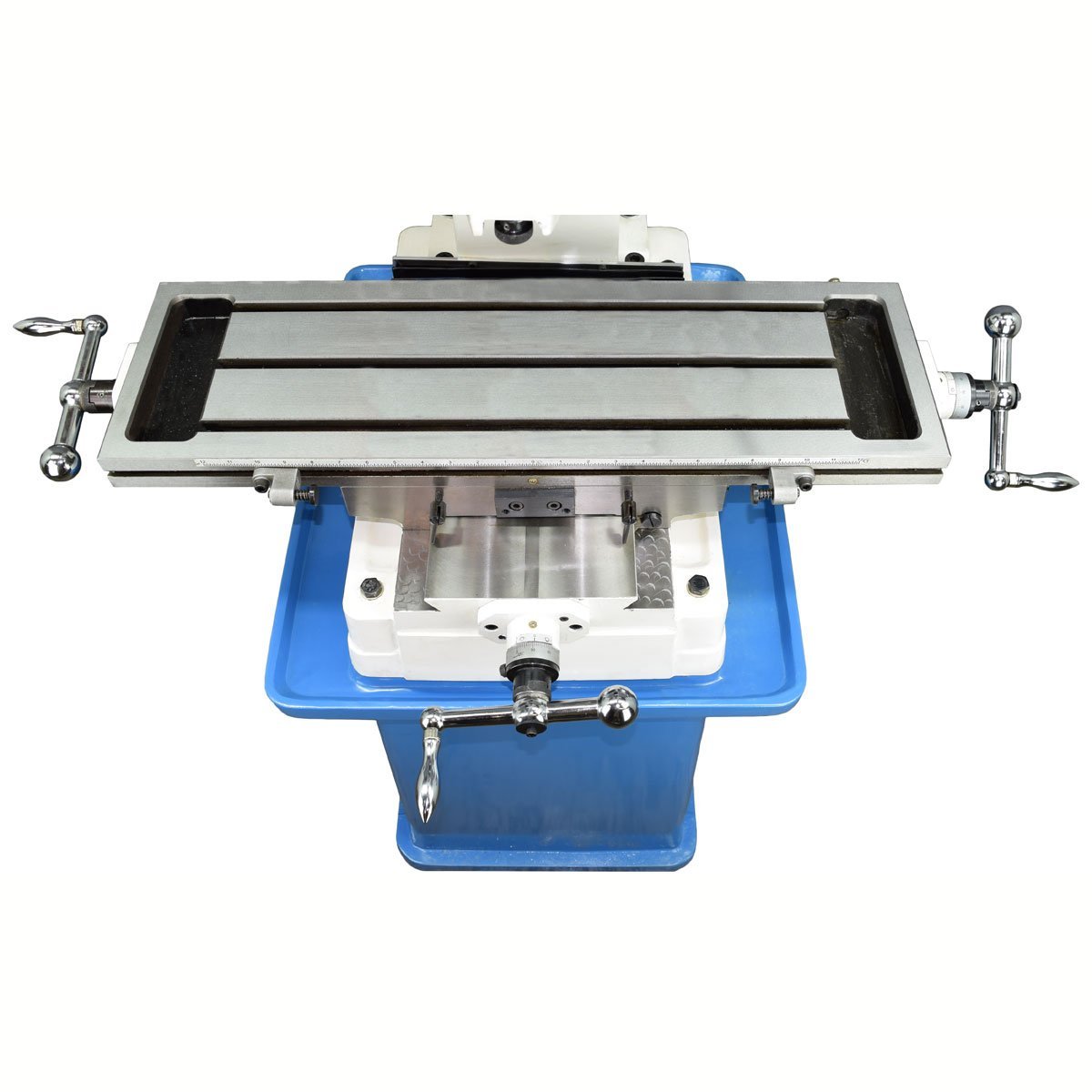

• Table Size: 9″x31.5″
• Max. Table Load Capacity: 300 lbs
• Spindle Speeds (RPM): 90, 210, 345, 670, 1180, 1970
• Table T-Slot Size and Number: 14mm / 9/16″, 3 Slots
• Table Travel, X Axis: 22-3/8″ Hand Only, 19.5″ w/ Power Feed
• Table Surface Height from floor, 34-3/4″ (With base flat on floor)
• Base Dimension at floor approx. 18-5/8″W x 27″D
• Bolt Mounting Pattern, Milling Machine Base (Where the machine would bolt to either a work bench or to the cast iron base) Approx. 12-3/4 Wide x 18-3/4 Deep, 9/16” Hole Diameter
• Base of machine casting, bottom of the mill where it would mount to the optional base is approx. 24″ Front to back, 16″ Wide
• Normal Working Max Height: (top of column travel motor) 76-1/2″ (with optional stand)
• Height with head all the way up: (top of main motor) 81-1/2″(with optional stand)
• Stand (Base) height, to machine mounting surface: 24″
• Cross Travel, Y Axis: 8″
• Head Vertical Travel: 17″
• Max. Distance Spindle to Table: 18″
• Quill (Spindle) Travel: 5″
• Lead Screw Type: Inch Pitch Acme Threads
• Spindle Taper: R-8, with 7/16-20 drawbar thread (U.S.
  Standard)
• Quill Diameter: approx. 3″
• Head Tilt Front to Back: N/A
• Head Swivel: Side To Side, 90 Degrees
• Ram Swivel: N/A
• Power: 220 Volt, Single Phase, 9 Amps
• Motor Horsepower: 1.5 H.P. (Some other similar machines will say
  that they are 2HP, but its the SAME exact motor as this one, just rounded
  up to 2hp and marked that way, we prefer to be honest and mark it as
  what it really is, which is 1.5HP, which is more than enough power for
  this machine either way)
• Cord Connection/Type: Cord approx. 5′ length, User to supply plug needed for your outlet (20A 240V With Ground, No Neutral Required)
• Casting Type: Fine Grain Cast Iron
• Country of Origin: China
• Approximate Weight: 1100lbs with Stand, 850 Without Stand

Available Machine Options

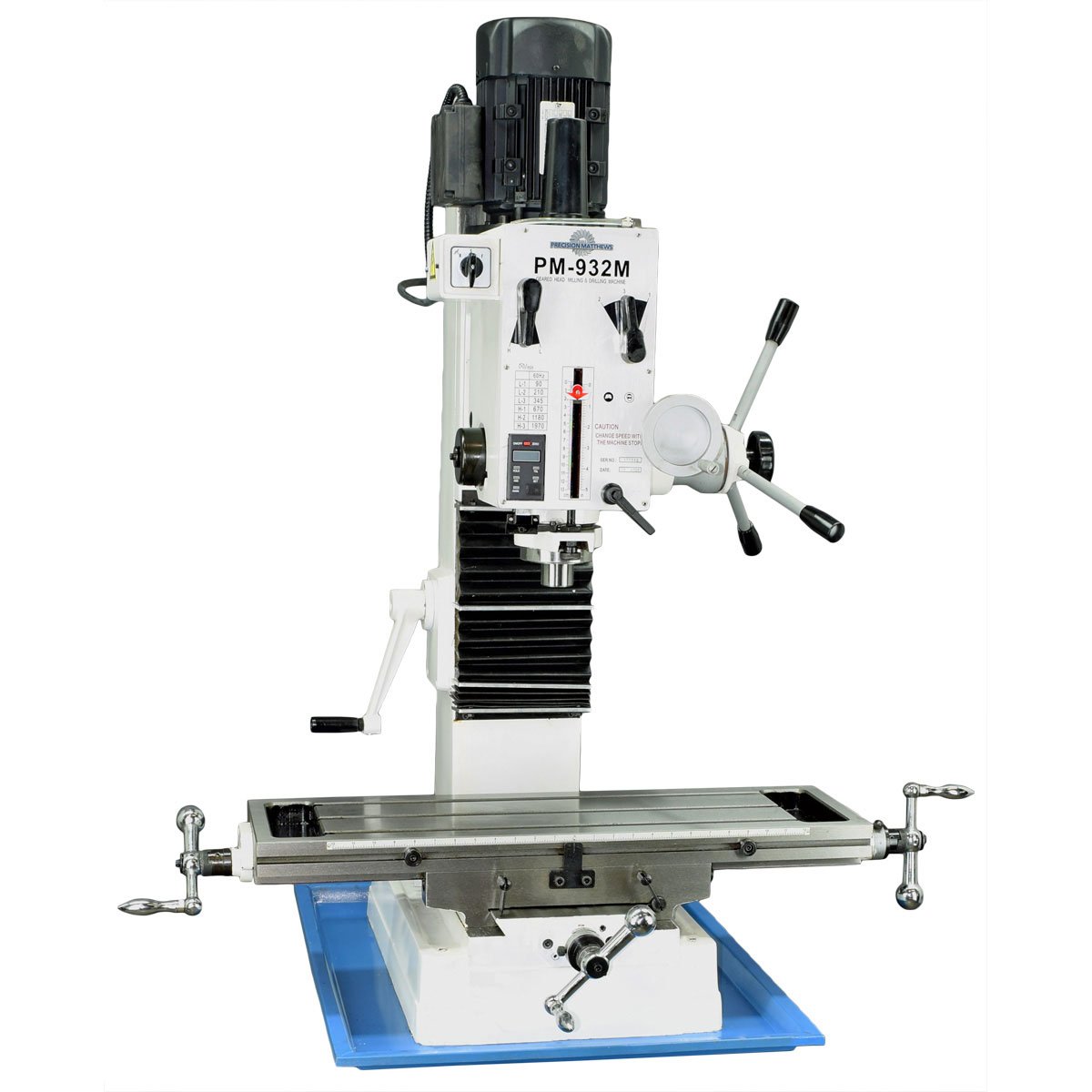

* ALL Machines now come with larger mill style crank handles for
better feel and easier operation by hand, as shown in main

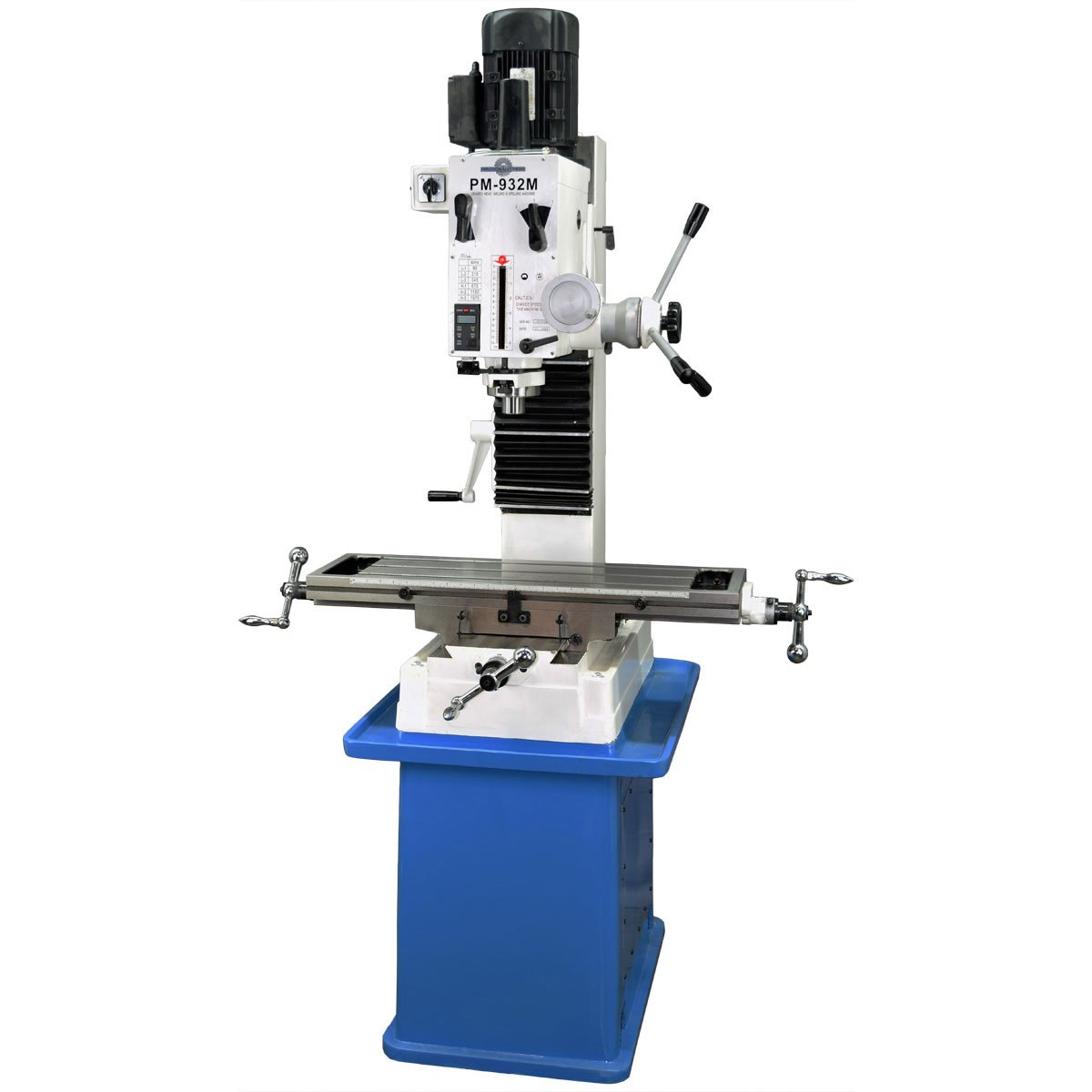

picture * STAND IS OPTIONAL FOR ALL MODELS, MUST BE SELECTED IF CAST IRON STAND IS DESIRED*

1. PM-932M-BASIC
Includes: Quill DRO, Manual Down Feed on spindle

2. PM-932M
Includes: Quill DRO, Z Axis (Head) Positioning Motor, X Axis
Table Feed, Manual Down Feed on spindle

3. PM-932Mw/3axPMDRO
Includes: Quill DRO, Z Axis (Head) Positioning Motor, X Axis
Table Feed, Manual Down Feed on spindle PLUS, 3 axis Precision Matthews DRO Installed (3rd axis is on Head up/down movement, not a duplicate of quill travel)

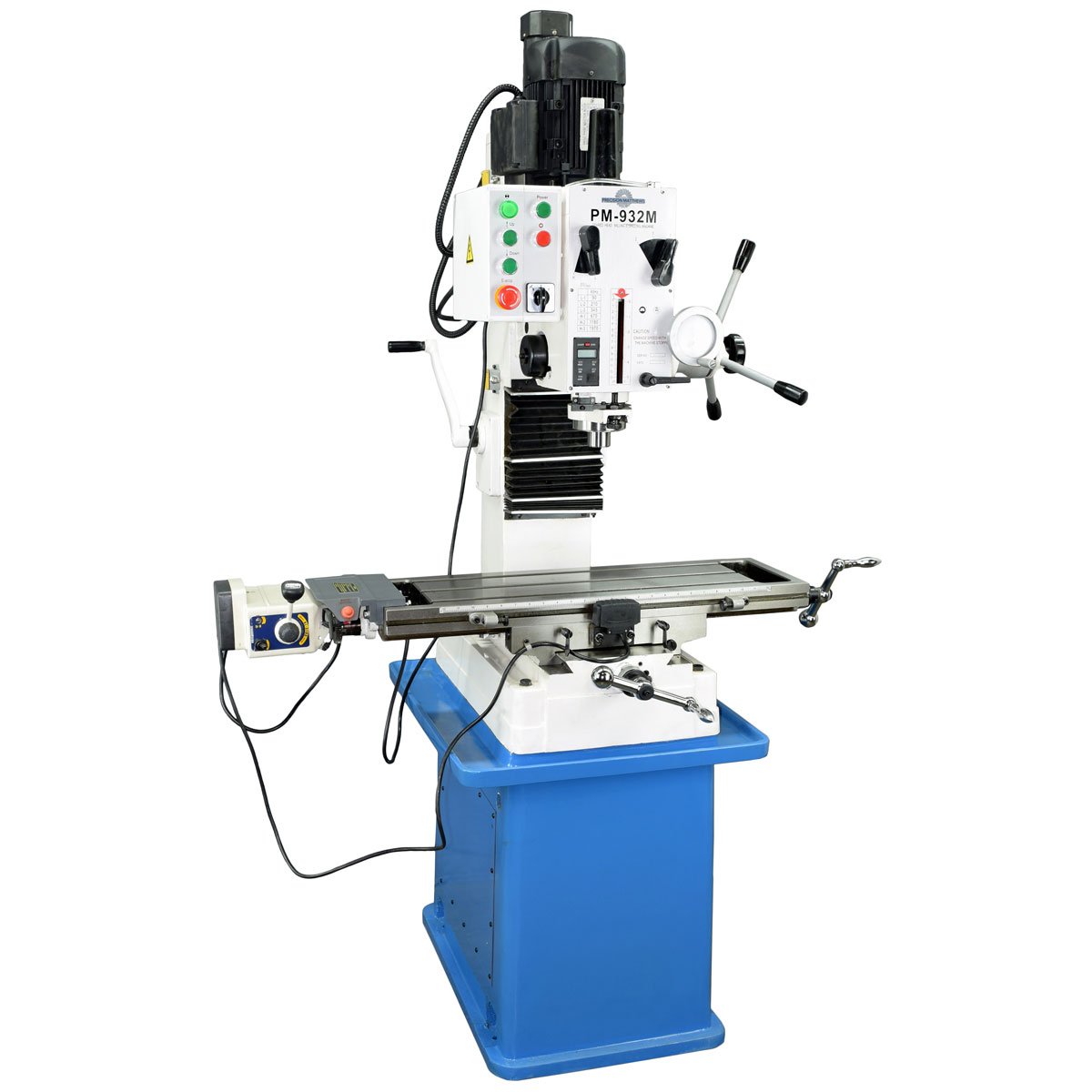

4. PM-932M-PDF –
Includes: Quill DRO, Z Axis (Head) Positioning Motor, X Axis
Table Feed, Power Down Feed on spindle for drilling and boring

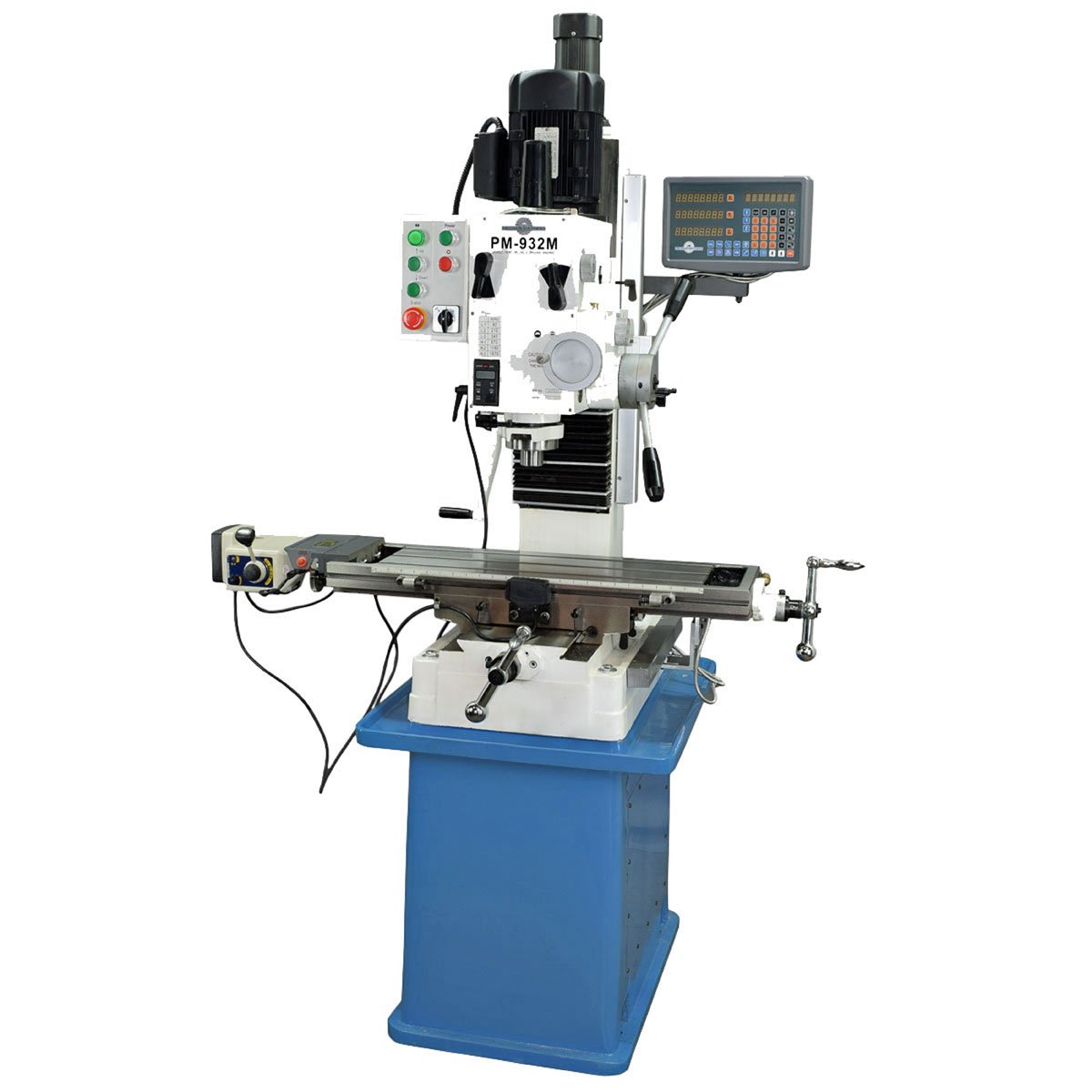

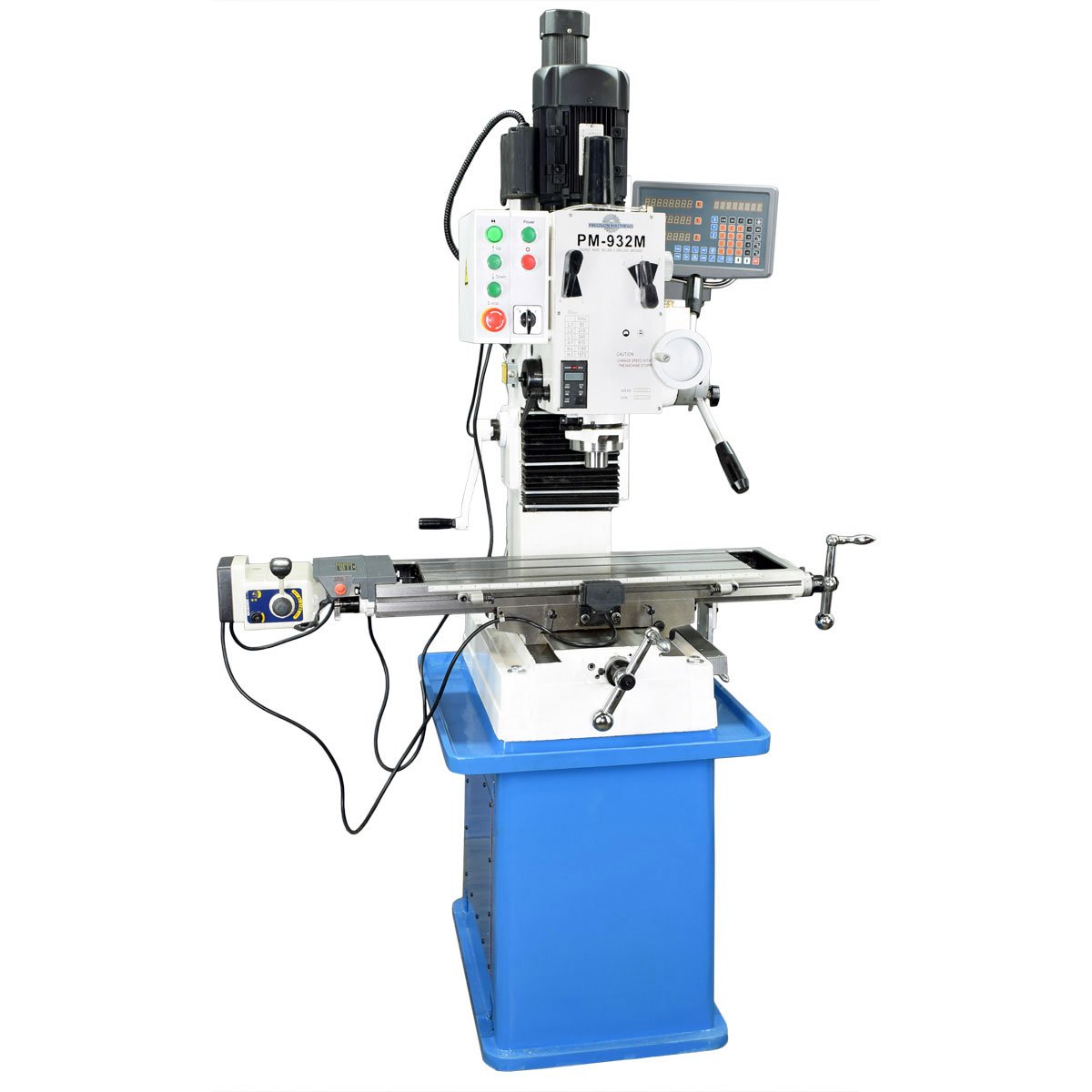

5. PM-932M-PDFw/PM3axDRO
Includes: Quill DRO, Z Axis (Head) Positioning Motor, X Axis
Table Feed, Power Down Feed on spindle for drilling and boring, PLUS 3 axis Precision Matthews DRO, Installed (3rd axis is on Head up/down movement)

*If no base is desired, a Sheet Metal Coolant/Chip Tray is also available as an option, if you would still like a chip pan with your machine. This will not work with the cast iron base, because the cast iron base option already has a ship/coolant tray built in.
