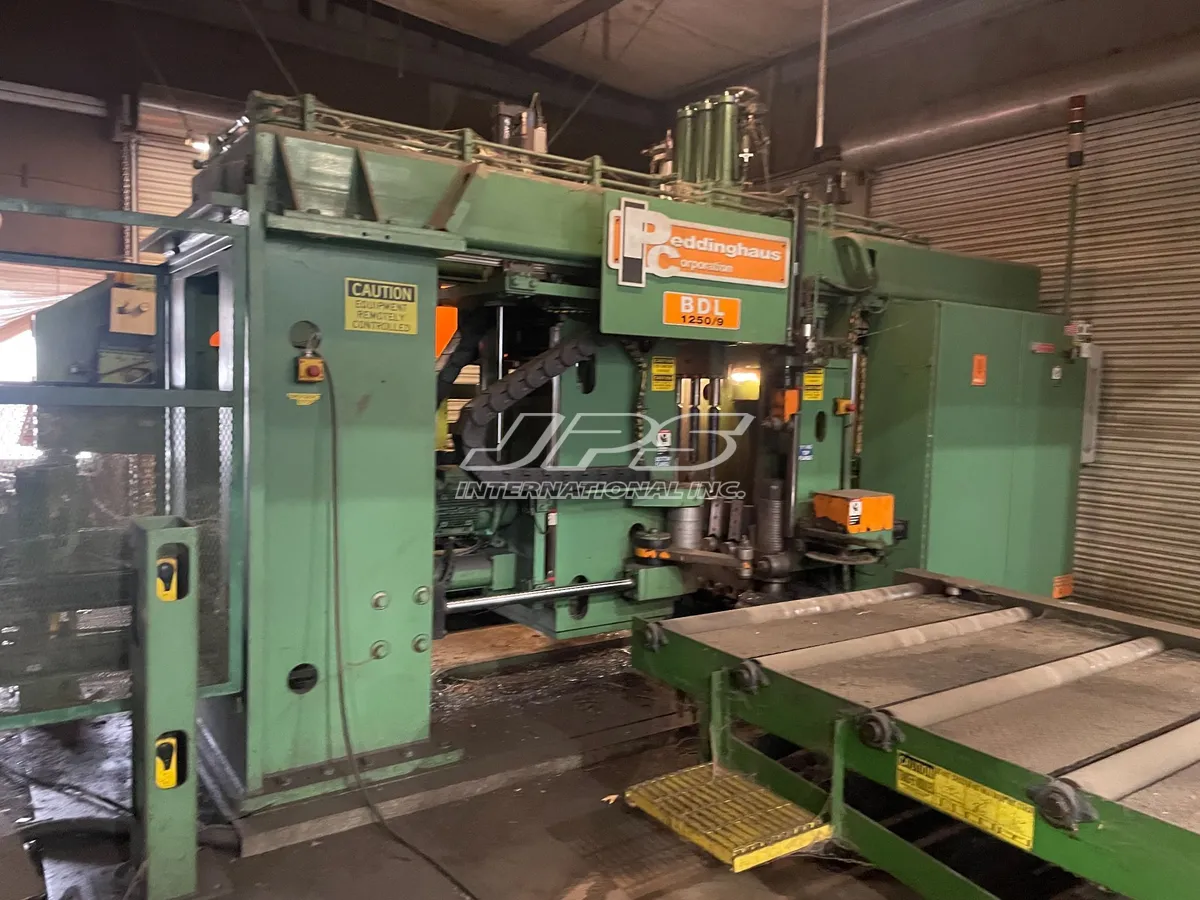

For Sale by JPS International Inc
Description
Available Immediately. This machine is currently under power and available for inspection. A factory-trained technician can be provided at extra cost for installation & operator training.
Please note: The machine is sold as-is, where-is. Pricing does not include decommissioning, loading, shipping, installation, training, taxes, or any other associated costs.
| Max Profile Width | 49" | 1,244.6 mm |
| Minimum Profile Width | 3" | 76.2 mm |
| Max Profile Height | 24" | 609.6 mm |
| Spindle Power | 15 hp | 11.2 kW |
| Spindle Speed | 900 rpm | 900 RPM |
| Saw Capacity | Cutting Capacity at 90: 20" / 44.9" × 20" | Cutting Capacity at 90: 20" / 44.9" × 20" |
| Saw Band Speed | 49492 ft/min | 49492 ft/min |
| Saw Band Size | Saw Blade Dimensions: 385.8" × 2.64" × 0.06" | Saw Blade Dimensions: 385.8" × 2.64" × 0.06" |
| In-feed Conveyors | 72' | 21,946 mm |
| In-feed Transfers | 21' | 6,400.8 mm |
| Out-Feed Conveyors | 65' | 19,812 mm |
| Out-Feed Transfers | 27' | 8,229.6 mm |
| Power Requirements | 460V, 70amps, 60Hz | 460V, 70amps, 60Hz |
| Control | CNC (Siemens CNC Control) | CNC (Siemens CNC Control) |

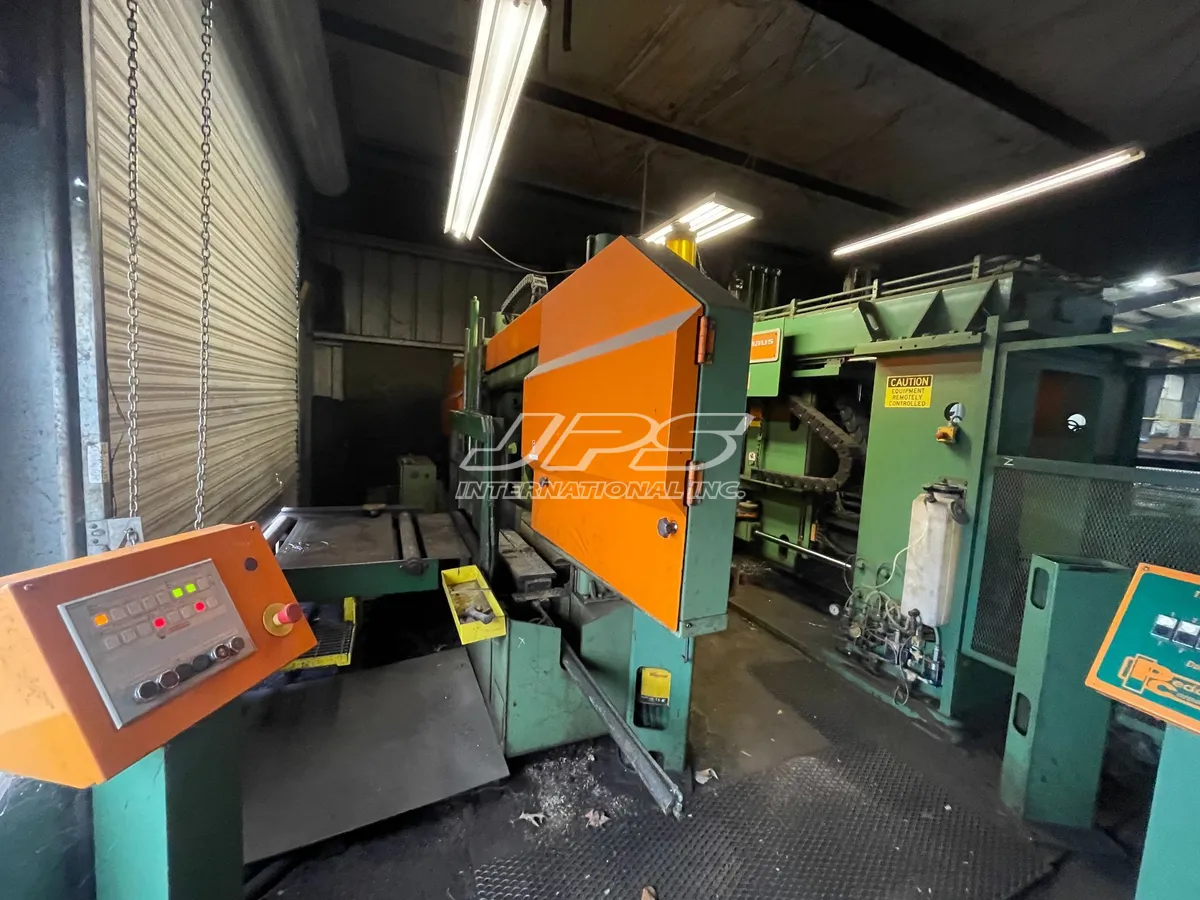

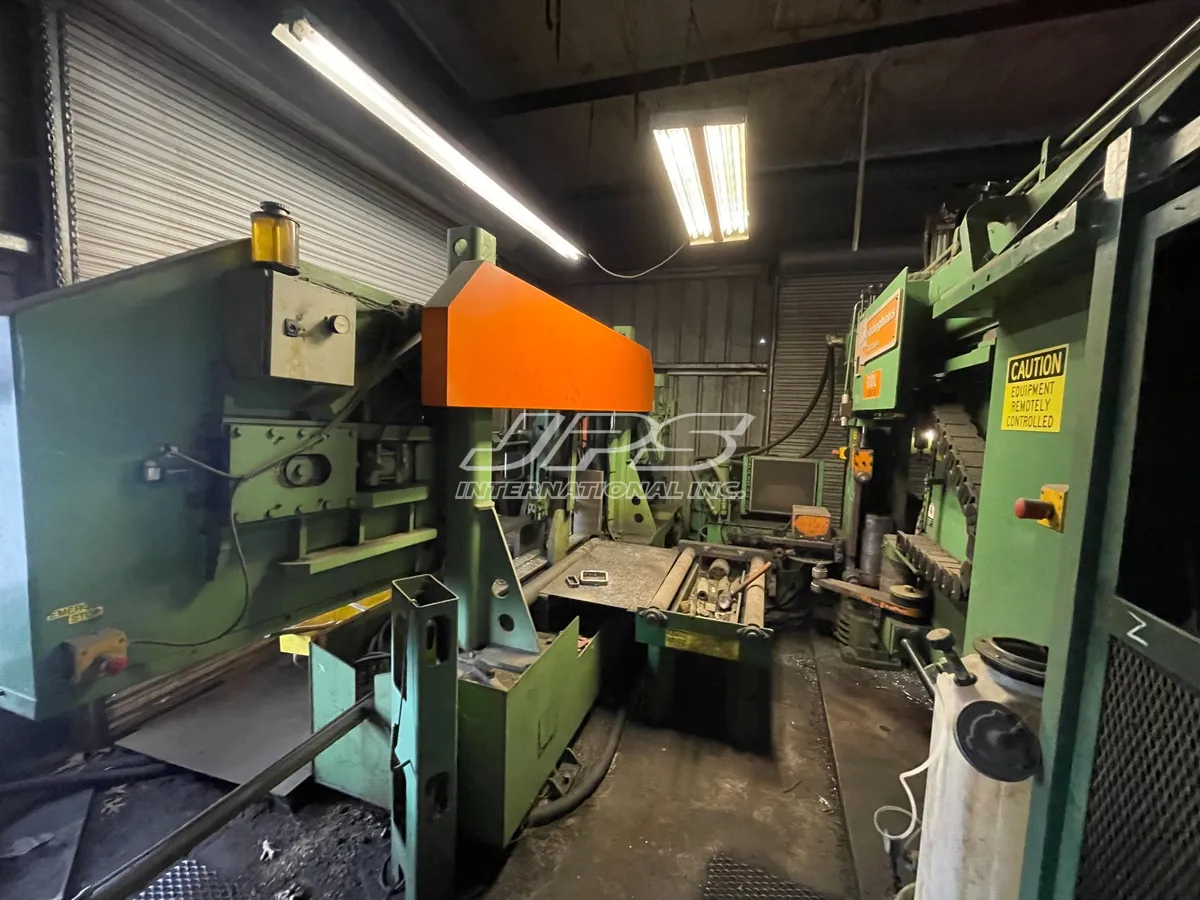

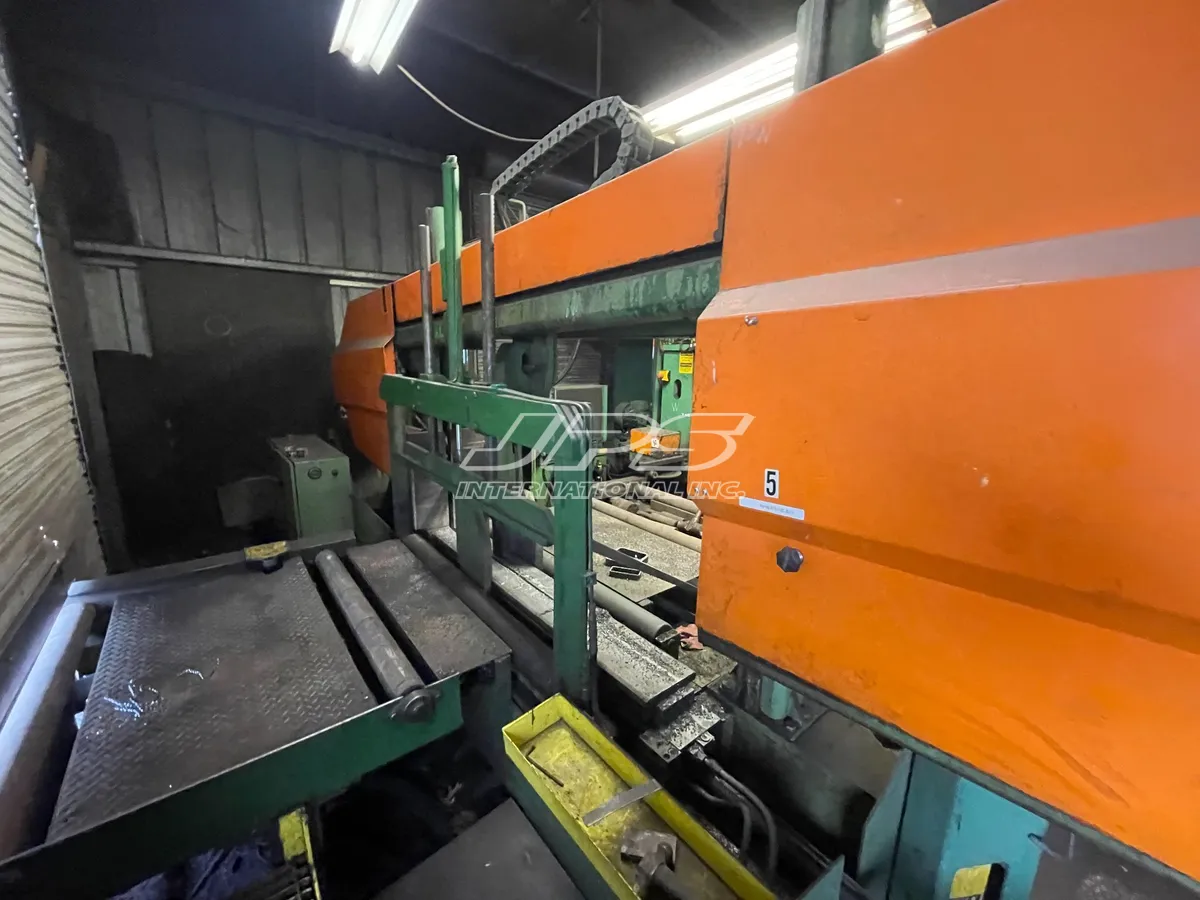

2005 MEBA 1140-510 Band Saw Specifications:
Type: Semi-automatic
Cutting Capacity at 90: 20" / 44.9" × 20"
Motor Power: 19.4 HP
Saw Blade Dimensions: 385.8" × 2.64" × 0.06"
Saw Blade Speed: 49492 ft/min
Length of Remaining Piece (without Bundle Clamp):
Manual: 0.87"
Length of Remaining Piece (with Bundle Clamp):
Manual: 8.86" / 16.93"
Maximum Material Size (with Bundle Clamp): 20" / 44.9" × 20"
Minimum Material Diameter: 0.39"
Machine Dimensions (L × W × H): 37.4" × 183.1" × 94.5"
Working Height: 24.8"
Weight: 10,141 lbs
Shipping dimensions:

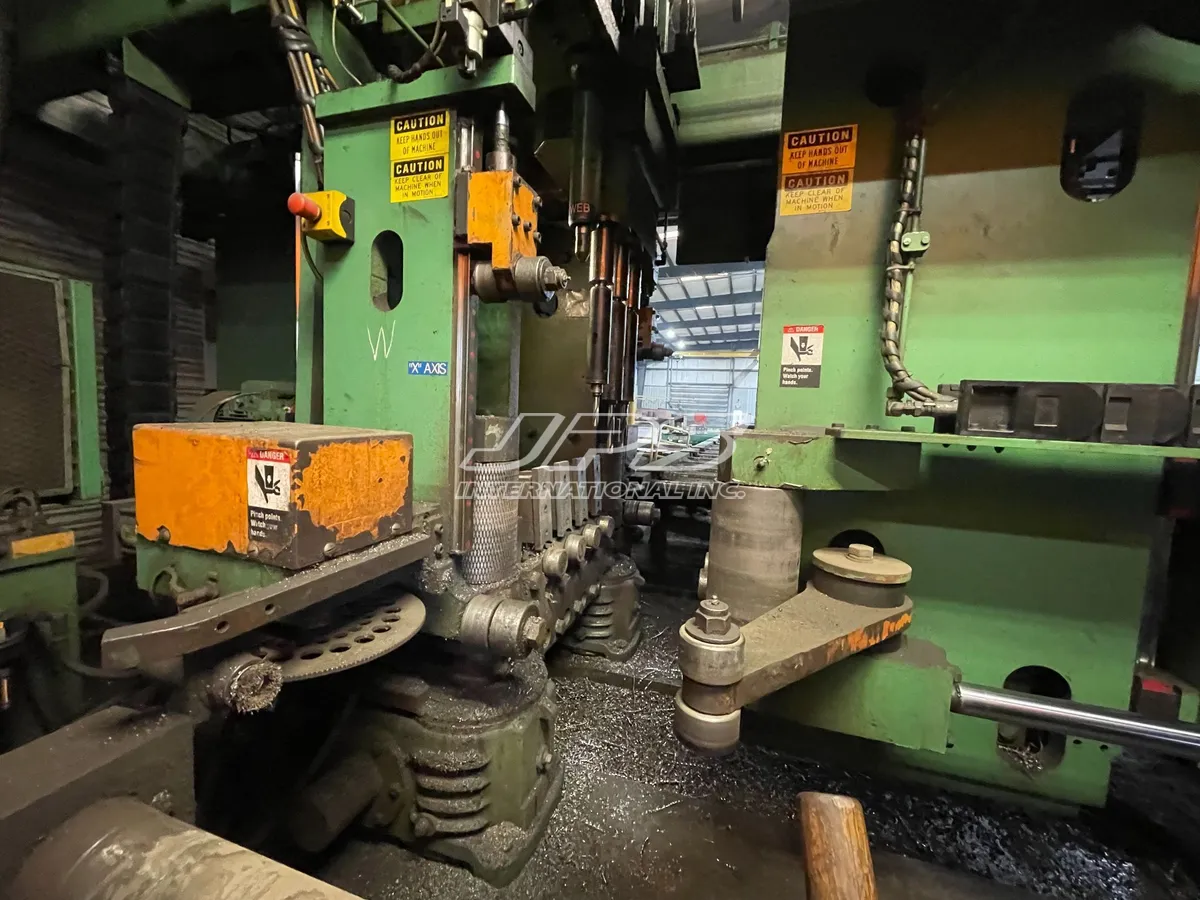

Drill:
Height- 96
Length- 19
Width- 7-5
Saw:
Height- 9-8
Length- 16-7
Width- 3
Hydro pump Drill/ Transfer:
Height- 4-2
Length- 5-7
Width- 3-8
Electrical Cabinet:
Height- 6-3
Length- 5-10
Width- 1-8
Hydro for saw:
Height- 3-2
Length- 3-4
Width- 1-2
Infeed: 72'- 4" with 4 transfers at 21'
Outfeed: 65' with 4 transfers at 27'
