Description

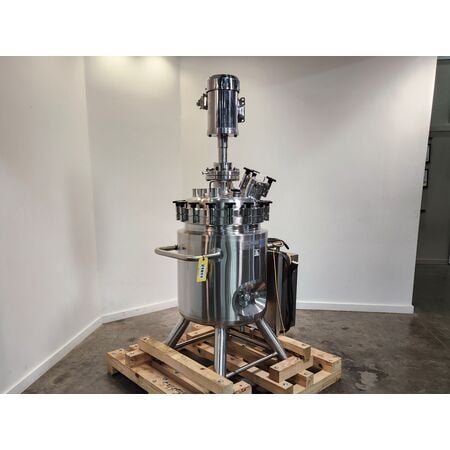

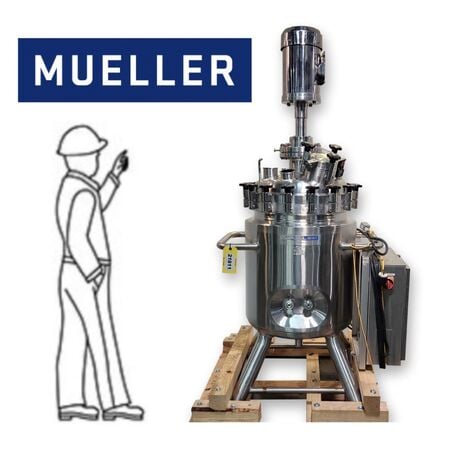

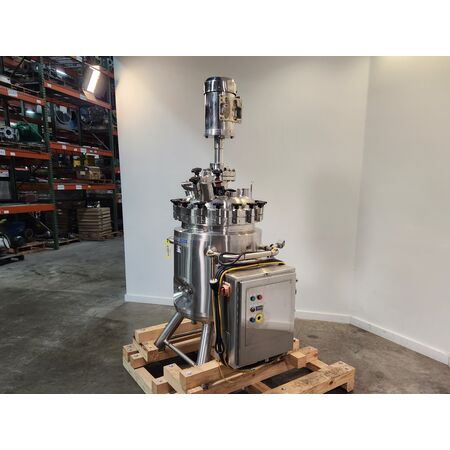

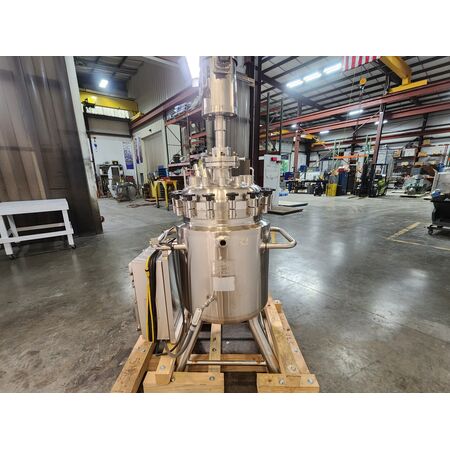

Used Paul Mueller Stainless Jacketed Reactor Mix Tank Quadro Disperser Processor Serial No: 266932-2. 316 stainless steel wetted parts with electropolished internals. Tank Capacity: 42 gallons, 160 liters Tank dimensions: 22" inside diameter, 26" straight wall, top & bottom dished heads. Steam Jacketed bottom dish and cylinder with Temp-Plate heat transfer. VESSEL- Max. Working Pressure: 100PSI/FV @ 300 F MDMT: 0 F @ 100PSI/FV JACKET (steam)- Max. Working Pressure: 150PSI/FV @ 300 F MDMT: 0 F @ 150PSI/FV Installed 3HP Quadro Ytron Y-Jet High Shear Disperser mixer (mixing head not included). Pre-wired NEMA enclosure with speed controller, digital panel meter, and more. Electrical Service: 460V, 3 phase AC
SKU: 114268, Condition: Used, Weight + Dimensions :, Diameter: 5 ft., Material: Stainless Steel, Dimensions: 66.50 (H) x 100.00 (W) x 506.00 (L) inches, Additional :, Original Use, - Beginning with a large air contactor, air is pulled into a structure containing potassium hydroxide solution which will chemically bind ...more
one(1) used Glass Lined Baffle. 2 finger. Overall Length: 25.5", 24" of glassed area. OD of pipe is approx. 1.25" to 1.33". Glass looks good, no visable chips. White marks on picture is flash reflection.
