Parker Hannifin #940734, hydraulic filter element, 4.7" outside dimension x 24" L, double length

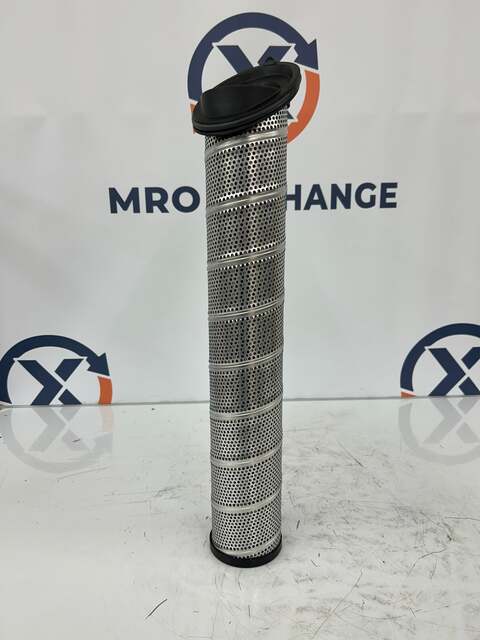

Parker Hannifin part number 940734 is a replacement filter element for the Moduflow Plus Series low pressure in-line suction, return, and duplex filter assemblies. This element is designed for use with double length bowl housings, specifically compatible with Parker housing model 10MFP240SA10QB16151. The filter media is rated for water removal, with a maximum flow rate of 10 GPM and a maximum operating pressure of 200 PSI. Fatigue rating is 150 PSI. The seal material is nitrile. Per published dimensional data, the element measures approximately 4.7 in. in diameter and 24.0 in. in length. The outer support structure is a perforated stainless steel shell with spiral reinforcement bands, and the filter media is a pleated paper element visible through the open inner bore. End caps are molded plastic with a bypass indicator tab on the upper cap. Country of origin is the United States per published product data. This element is part of the Parker ParFit interchange program and is available both as an OEM Parker element and as a ParFit replacement manufactured to the same specifications. Date codes WR 19 XY are visible on the upper end cap, indicating a 2019 production date. Compatible with industrial hydraulic systems requiring low pressure filtration with water removal capability.

Stock # 0226-671
