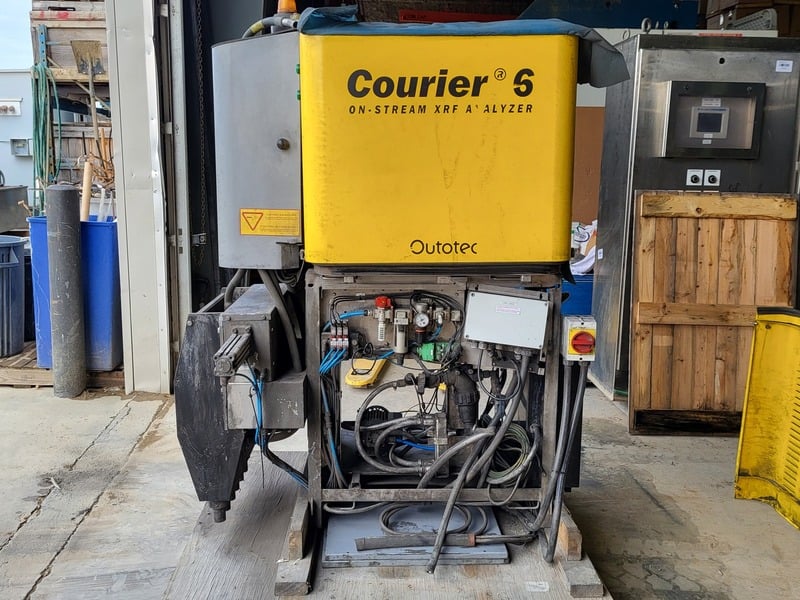

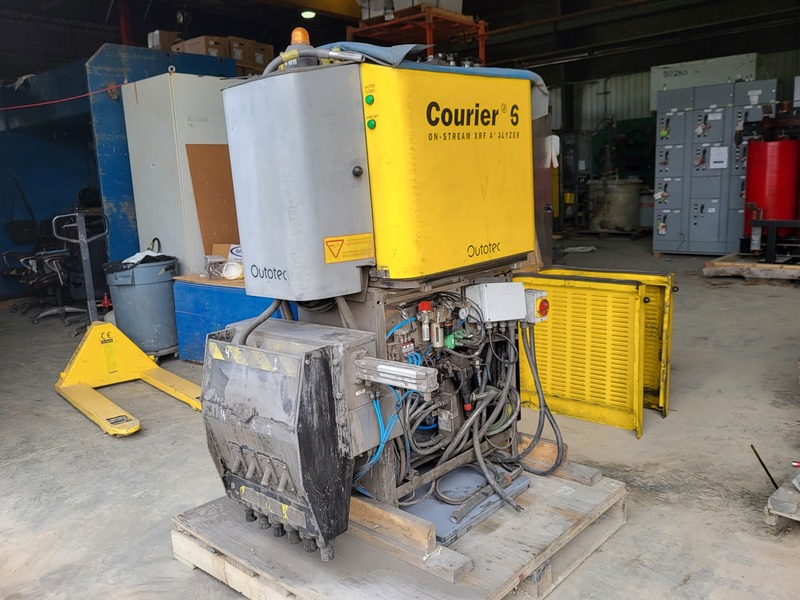

Outotec #Courier-6i, On-Stream XRF Analyzer, up to 24 slurry samples, calcium to uranium range, 50 kV X-ray tube, 115/230 V., 2009

Estimated monthly payment valid upon approved credit.

Request Formal Quote

SKU: 157193
Model: Courier 6i
Year: 2009
Condition: Used
S/N: 1930
Dimensions: 76.00 (H) x 46.00 (W) x 48.00 (L) inches
Additional Description:
Description:Courier 6i analyzer is designed for accurate and reliable on-stream X-ray fluorescence (XRF) measurement of element concentrations in slurries for up to 24 samples.
Analysis Method:The analysis method is Wavelength Dispersive X-ray Fluorescence (WDXRF) with X-ray tube excitation and fixed crystal spectrometers. An additional Energy Dispersive (EDXRF) measurement can be performed by using an optional proportional counter and/or a Peltier cooled solid state detector.

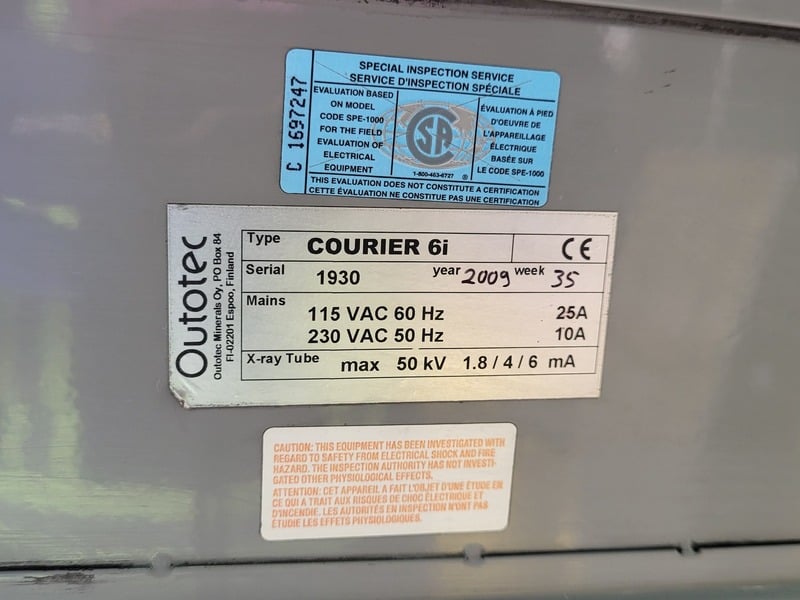

Main Electrical:
- 115 VAC, 60 Hz, 25 A, 1-ph
- 230 VAC, 50 Hz, 10 A, 1-ph
X-Ray Tube: Max. 50 kV, 1.8/4/6 mA
Element Range: Calcium to Uranium (Atomic numbers 20 to 92)
Number of simultaneous assays:
- The Courier 6i analyzer probe can have up to 6 parallel measurement channels, based on either fixed spectrometers (WDXRF) or energy dispersive detectors (EDXRF).
- The number of simultaneous assays is dependent on the application; in practice one can measure simultaneously 1-12 element concentrations and the solids content of the slurry.
Count Rate: There are up to 30,000 counts per second for each WDXRF channel
Concentration Range: 0.002 to 100% by weight for slurries
Detection Limit:
- The detection limit for most elements is 3-30 ppm in slurries.
- For Chrome and lighter elements, elements from Cadmium to Promethium and with ED channels, the detection limit is higher.
