Description

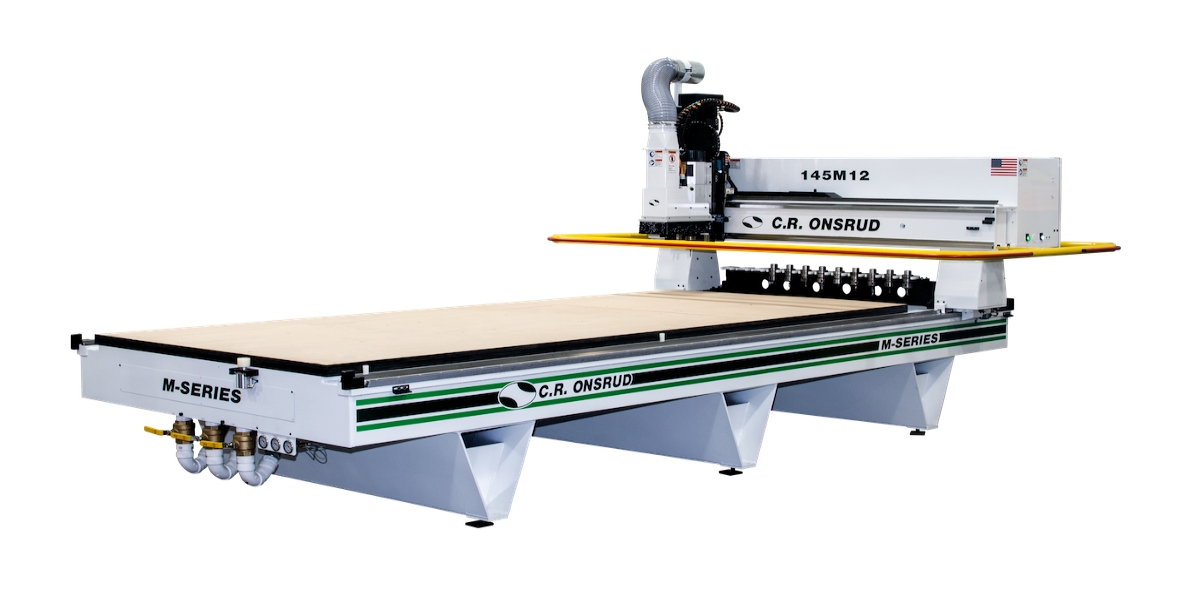

- C.R. Onsrud Model 4100M CNC Router
- The M Series may be the smallest moving gantry CNC router in the C.R. Onsrud line-up, but don't be fooled into thinking it's any less of a workhorse than bigger machines in our product line. C.R. Onsrud incorporates the same detailed engineering, workmanship and quality of materials into every machine we manufacture - no matter how small or large. The M Series CNC router boasts rigid frame construction, highly responsive drive mechanisms, and many more of the top-end features you'd expect to find on our bigger models. Our competitors may say we've over-engineered this model, but we just happen to think they've under-engineered theirs. We want you to have a CNC machine you can grow your business with, not just get by for now. With the M-Series, we give you the power, precision, speed and strength to do big things with this robust CNC platform, without any fears your machine gives out before you do.
- Standard Features
- Full 2 Year Warranty Factory Provided 24/7/365 After Hours Emergency Tech Support
- Factory Provided Onsite Machine Installation and Training
- Factory Provided Advanced Technical & Applications Support
- Factory Provided In Depth Remote Online Diagnostics

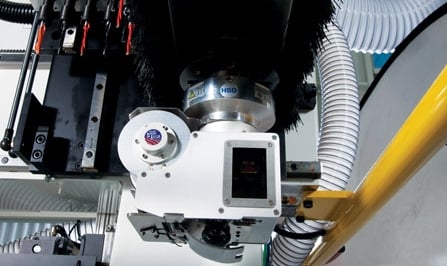

- 4-Pole, reversible, 24,000 RPM High Torque Spindle HSK-63F Spindle Taper and Tool Holders, with 1 inch (25mm) collet capacity
- Over 10 Inches of Z-Axis Clearance & 9 inches of Z-Axis stroke Finite Element Analysis used in Engineering entire frame FEA Engineered, Heavy-wall, All-Steel Bridge, Vertical Columns, & Table Support Base Std. 10 Position, Aggregate Ready, Fixed Rack Style, Automatic Tool Changer
- Dual Support, Direct Drive, Independent Channel, Design Enhances Accuracy & Rigidity
- Compact Design Saves Valuable Shop Floor Space
- Intelligent Design Allows for Easy and Unrestricted Access to All Sides of the Machine Efficient and Effective Integrated Dust Transition that Only Requires a 6 inch Dust Hose

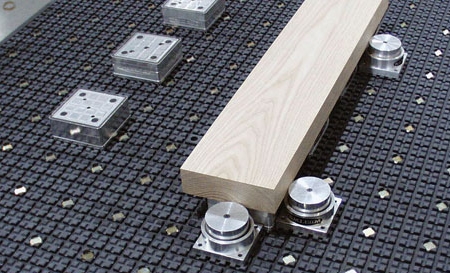

- C.R. Onsrud High-Flow Universal Vacuum Table System Comes Equipped with Choice of Flow Through or Dedicated Spoil Board
- FANUC, OSAI, and B&R control options
- 4-Port Ethernet Connection, USB, and Serial Connectivity, for Easy Network Integration
- Full 3D capability with Helical Interpolation
- Machine Specifications
- Table Size: 2.1M x 4.1M
- Z Clearance: 8.9"
- X-Axis Travel: 199"
- Y-Axis Travel: 99"
- Z-Axis Travel: 9"
- Aproximate Footprint: 21' x 11'
- Machining Speed: 1400ipm
- X & Y Rapid Traverse: 2500imp
- Standard Spindle: 12HP, 24,000rpm
- Tool Shank: HSK 63F
- Standard Tool Capacity: 12
- Standard Vacuum Zones: 4
