Description

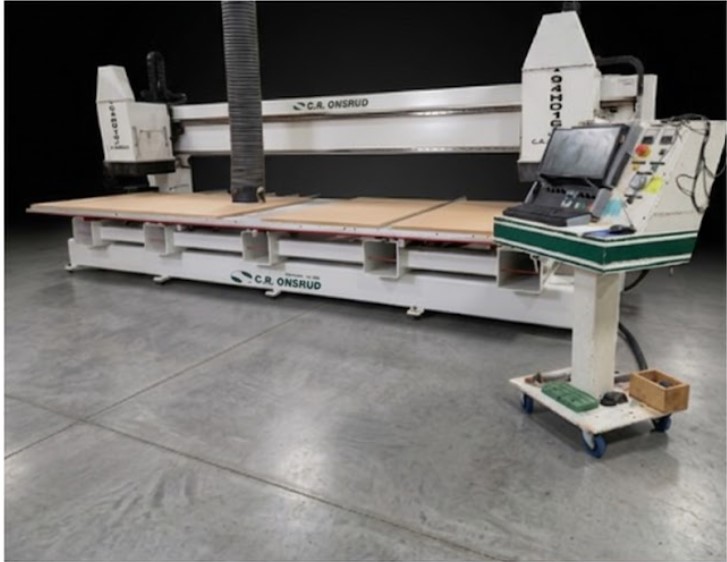

2006 C.R. Onsrud 194HD16 Twin Spindle CNC Router Twin Table 24 ATC (6) Vac Pumps SPECIFICATIONS MANUFACTURER: C.R. Onsrud (Troutman, North Carolina, USA) MODEL: 194HD16 Heavy-Duty Series YEAR OF MANUFACTURE: Circa 2006 ARCHITECTURE: Fixed-bridge, twin moving-table vertical machining center OPERATING MODES: Independent twin-table pendulum processing (continuous cycle) or electronically slaved tandem operation as a single large table X-AXIS TRAVEL (CROSS-BRIDGE): ~194" total bridge span coverage Y-AXIS TRAVEL (TABLE MOTION): ~61" (short dimension shuttle under bridge) Z-AXIS TRAVEL (VERTICAL STROKE): 11" to 14" (standard stroke) Z-AXIS UNDER-BRIDGE CLEARANCE: ~14" clearance from table deck SPINDLE COUNT: (2) independently controlled electro-spindles mounted on the bridge slide SPINDLE POWER: 15 HP to 18 HP per head (continuous-duty, 4-pole) SPINDLE SPEED RANGE: Variable up to 24,000 RPM WORK TABLE SIZE: (2) 96" x 60" phenolic universal high-flow vacuum grid tables COMBINED WORKING AREA: ~192"194" x 60" in tandem mode ESTIMATED SHIPPING WEIGHT: ~18,000 22,000 lbs (bare machine; vacuum pumps and racks ship on dedicated skids) PHYSICAL FOOTPRINT: Approximately 20 ft (W) x 12 ft (D) x 8.59 ft (H) WEIGHT: Approximately ~18,000 22,000 lbs DESCRIPTION Title: 2006 C.R. Onsrud 194HD16 Twin Spindle CNC Router Twin Table 24 ATC Vac Pumps Upland Brand: C.R. Onsrud Model: 194HD16 Year: 2006 Specifications Manufacturer: C.R. Onsrud (Troutman, North Carolina, USA) Model: 194HD16 Heavy-Duty Series Year of Manufacture: Circa 2006 Architecture: Fixed-bridge, twin moving-table vertical machining center Operating Modes: Independent twin-table pendulum processing (continuous cycle) or electronically slaved tandem operation as a single large table Work Table Size: (2) 96" x 60" phenolic universal high-flow vacuum grid tables Combined Working Area: ~192"194" x 60" in tandem mode X-Axis Travel (Cross-Bridge): ~194" total bridge span coverage Y-Axis Travel (Table Motion): ~61" (short dimension shuttle under bridge) Z-Axis Travel (Vertical Stroke): 11" to 14" (standard stroke) Z-Axis Under-Bridge Clearance: ~14" clearance from table deck Spindle Count: (2) independently controlled electro-spindles mounted on the bridge slide Spindle Power: 15 HP to 18 HP per head (continuous-duty, 4-pole) Spindle Speed Range: Variable up to 24,000 RPM Spindle Taper: HSK-63F quick-change Tool Changer: 24-position automatic dynamic rotary tool changer (aggregate compatible) Base Construction: Stress-relieved, normalized heavy structural steel base with cast-iron bridge and vertical upright columns Guideways & Drives: Precision preloaded linear profile guide rails with ground ball screw / helical rack drive mechanics Feed / Cutting Speeds: Up to 3,4003,600 IPM Rapid Traverse Rate: Up to 4,0004,800 IPM CNC Control: OSAI 10/510 PC-based CNC control housed in a standalone rolling operator console JPG Vacuum System: (6) high-capacity rotary vacuum pumps mounted on modular steel staging racks Power Supply: Multi-tap industrial isolation / step-up/down power transformer included Tooling Package: Included set of HSK-63F tool holders and collets Floor Footprint: Approximately 20 ft (W) x 12 ft (D) x 8.59 ft (H) Estimated Shipping Weight: ~18,000 22,000 lbs (bare machine; vacuum pumps and racks ship on dedicated skids) Pneumatic Requirements: 90100 PSI clean, dry compressed air (approx. 810 CFM) Electrical Service: 460/480V 3-Phase (stepped via the included transformer) Description High-production heavy-duty CNC routing powerhouse designed for continuous industrial output. This 2006 C.R. Onsrud 194HD16 vertical machining center features a rigid fixed-bridge architecture paired with twin moving tables and twin independent spindles, allowing for seamless pendulum cycle operation or slaved tandem processing across large sheets. Key Features & BenefitsEquipped with dual 1518 HP HSK-63F spindles capable of speeds up to 24,000 RPM, a 24-position rotary automatic tool changer, and an extensive hold-down system powered by six vacuum pumps on dedicated staging racks. Includes the OSAI 10/510 PC-based control, tooling package, and isolation transformer for rapid industrial deployment. Dimensions & Weight Physical Footprint: Approximately 20 ft (W) x 12 ft (D) x 8.59 ft (H) Weight: Approximately ~18,000 22,000 lbs Shipping & Location Details Location: Upland, CA FOB Upland, CA This machine is offered FOB Upland, CA. Buyer is responsible for all applicable freight and rigging expenses.
