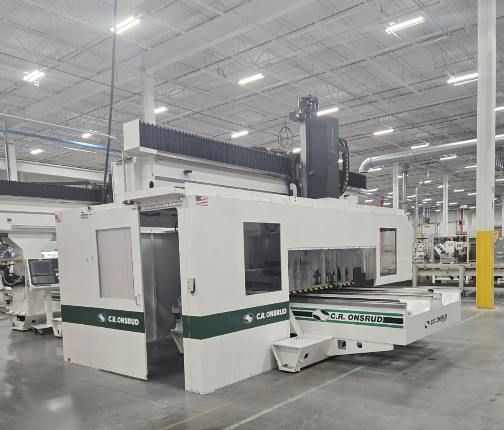

Onsrud #122E24W6 Extreme Series, 3-Axis CNC router, 12 ATC, 24k RPM, HSK-63F, 24 HP, Fanuc 0i, Renishaw NC-4 laser tool setter, 2023

The 2023 C.R. Onsrud Model 122E24W6 "Extreme Series" CNC Router features a robust 6 x 10 work table designed for high-speed, precision machining of wood, plastics, and composites. Equipped with an advanced Fanuc CNC controller and a powerful spindle, this American-made router delivers reliable performance for demanding production environments. Perfect for shops seeking a versatile, durable CNC router with the latest technology and minimal runtime.
C.R. ONSRUD MODEL 122E24W6 "Extreme Series" 3-Axis CNC ROUTER New 2023 6 x 10 Table
Like new. Never used in production. Less than 20 hours run time.
Original Acquisition Price: $420,497.00
------------------------------------------------------------
Machine Overview
- 3-axis configuration
- Work envelope: 6' × 10' (122 Series)
- Aluminum flat/base table, ground cast tool plate
(supports bolt patterns, matrix, or T-slot if customized; replaces standard vacuum table)
- Z-stroke: 28"
Clearance with 3-axis head: 31"
- Includes 10' × 6' aluminum base table
------------------------------------------------------------
Controller
- Fanuc 0i Machine Controller with Panel-i HMI (industrial PLC platform)
- High-resolution touchscreen
- Large Fanuc digital drives and servos
- Network capability with remote diagnostics
- 4-port network hub (requires 460V isolation transformer)
- Standard controller package included
------------------------------------------------------------
Spindle / Head
- 24 HP long-nose 3-axis spindle (18 kW)
24,000 RPM
HSK-63F taper
Liquid cooled
Fully programmable and reversible
Suitable for routing and drilling
- Chiller-based fluid cooling system (ideal for non-ferrous metals and high-HP duty cycles)
- Programmable air blast (M-code controlled)
------------------------------------------------------------
Power
- 6-tap non-compensating isolation transformer
(input voltage specified after order)
------------------------------------------------------------
Lubrication
- Automatic grease lubrication system
(upgrade from standard centralized lubrication)
------------------------------------------------------------
Electronics Cooling
- Air-conditioned electrical cabinet
(recommended for non-climate-controlled environments)
------------------------------------------------------------
Tool Changer
- 12-tool dynamic rotary ATC
Fully servo controlled
Faster and more reliable
------------------------------------------------------------
Single-Position Aggregate Station
- Automatic single-pocket aggregate changer
Requires aggregate retention ring or C-axis ability
Supports future aggregate tooling options
------------------------------------------------------------
Accuracy & Metrology Enhancements
- RMI-Q RF receiver (for Renishaw probing; requires re-pairing to probe)
- Enhanced machine accuracy: precision laser alignment of machine axes
- 3-axis laser compensation (bi-directional + straightness), performed by 3rd party
Includes control activation
------------------------------------------------------------
Auxiliary Options
- 3D CAD model (IGES/STEP) for simulation
- 3D CAD model (IGES/STEP) for layout planning
- Full machine enclosure with steel roof
Table can exit enclosure
Dual interlocked access doors
- Extended E-Series frame (+24")
Allows table to clear enclosure
Requires 12' wide door for installation
- Osync machine analytics (real-time monitoring, OEE, diagnostics, alerts)
First year license included
- Control prep for robot integration
Enables Fanuc robot communication features
Robot programming not included
- Robotic integration hardware
PN-to-PN coupler and interface components
------------------------------------------------------------
Tool Measurement
- Renishaw NC-4 laser tool setter
Automatic tool length and diameter measurement
Profiled tooling may require orientation adjustments depending on beam interruption
