Model: F13S
Stock # 21350N
For Sale by RT Machine
Surplus Record Dealer Since 2025
Sales
570-58...> Show Seller's Phone Number 570-584-2002 Let the seller know you found their listing on Surplus Record!
Description

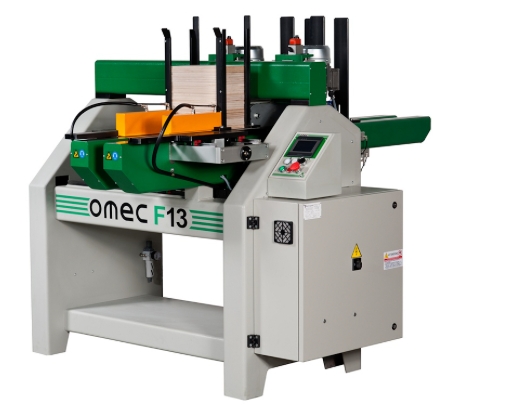

- Omec Model F13S Automatic Milling Machine
- Technical Data:
- Power installed of machine: 4.55 HP
- Working pressure: 0.7 Mpascal
- Number of blades: 2
- Blade revolutions: 5,600 RPM
- Position of grooves: Variable
- Piece production: 1200 n/h
- Workpiece Limits
- Lengths: Min. 40mm Max. 600mm
- Width: Min. 40 mm Max. 850mm
- Thickness: Min. 5mm Max. 17mm
- Groove Width: Min. 3mm Max. 12mm
- Distance from Edge: Min.0mm Max. 150mm
- Standard Equipment
- Tool kit for adjustments and maintenance
- User's and instruction manual
- Automatic dado or rabbet milling machine has been designed to produce bottom grooves for box covers or inset slots for bottle racks
- Two blades for cutting slots in various dimensions and positions
- The machine cuts single pieces
- Touchscreen control panel with easy data entry and 40-file stored memory
- Controlled by a PLC programmed for the maximum flexibility and highest machining speedAdjuster shafts and position indicators.
