Description

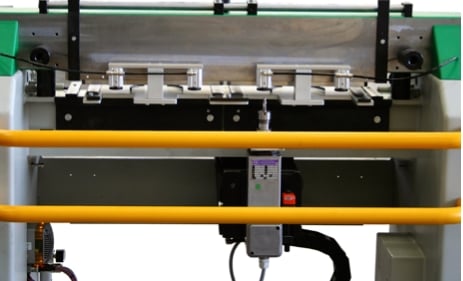

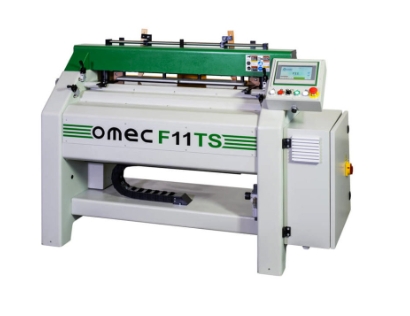

- Omec Model F11 TS Automatic Dovetail Machine
- Technical Data:
- Power installed of machine: 6.1 HP
- Working pressure: 0.7 Mpascal
- Number of spindles: 1
- Spindle revolutions: 18,000
- Distance between centers of joints: Fixed or variable
- Workpiece Limits
- Lengths: Min. 1700mm Max. 1500mm
- Width: Min. 60mm Max. 770mm
- Indent Height: Min. 6mm Max. 40mm
- Front Thickness: Min. 8mm Max. 55mm
- Side Thickness: Min. 8mm Max. 40mm
- Standard Equipment
- Fixed and Variable Pitch
- 80 drawers per hour
- Drawer height Min 2.36"(60mm) Max 30.31" (770mm)
- Bord Thickness Max .31" (8mm ) Max 2.16" ( 55 mm )
- Integral Carbide cutter installed on the machine
- Tool Kit for adjustments and maintenance
- User's and instruction manual
- Machining area of approximately 30"
- 11TS can produce most any design and size dovetail product desired
- Spindle speeds of 18,500 rpm, can accommodate a variety of tooling to produce the dovetail effect desired by operator including box cuts, French dovetails, alternating pitch, etc
- Control of spindle location, machining speed, tooling variance, height of pin, depth of joint, location of joint, and number of joints are all controlled by CNC

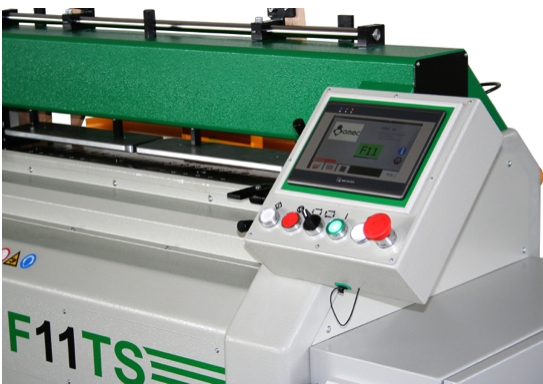

- 7" inch touch screen /600 programs for easier and faster operator inputs and a better visual representation of the machine operation
- Additional modifications include the positioning servo now equipped with an absolute encoder eliminating X and Y axis limit switches
