1 / 5
Click to zoom in
1 / 5
For Sale by Ex-Factory
Surplus Record Dealer Since 2022
Location: Charlotte, NC
Contact Sales Dept.
Phone Number: 704...> Show Phone Number 704-285-2223
Let the seller know you found their listing on Surplus Record!
Description

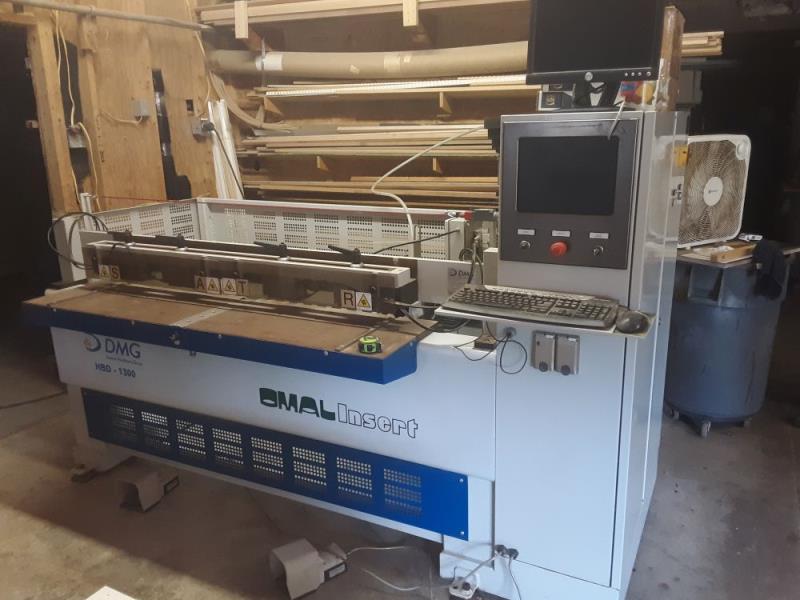

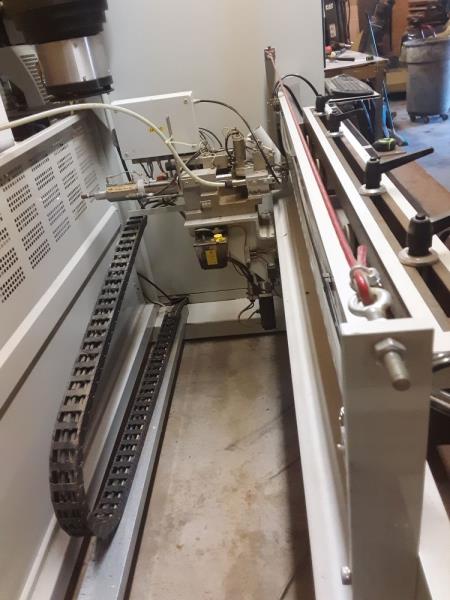

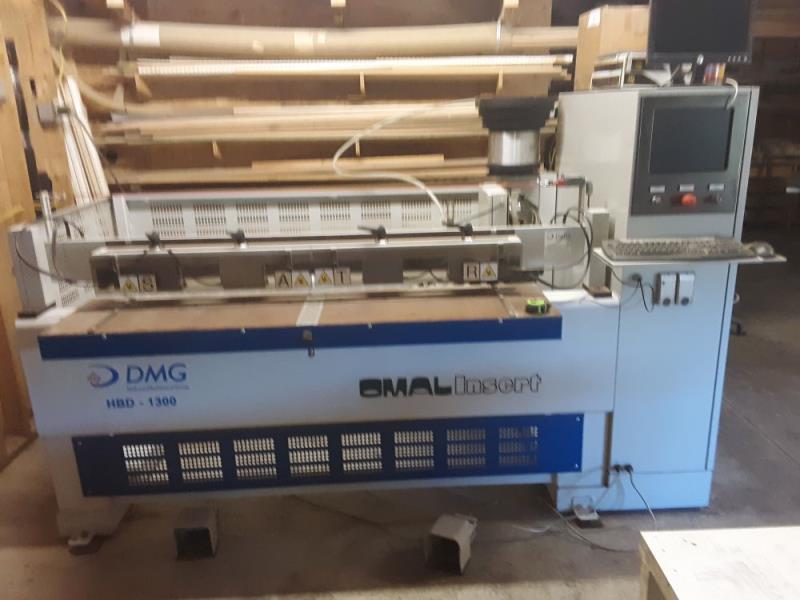

OMAL INSERT 1300 (DMG HBD - 1300) CNC BORE, GLUE & DOWEL INSERTER: -- Specifications:NC Controlled automatic step-by-step, boring, glue injection & dowel insertion into panel components, drawer parts, chair pieces, etc. at random spacing. -- Working Capacity: X-axis work area,1300 mm (51"). Y-axis, (depth) max. 40 mm (1.57"), Z-axis (thickness manual setting) max. 40 mm (1.57") - setup for 8 mm dia. x 40 mm long max. dowel dimension; positioning speed 164 FPM (50 MPM). -- Equipped With:PC Controller with Windows "XP" operating system, flat screen color monitor, industrial keyboard, mouse, 40GIG hard drive; USB port; bar code scanner; (4) working zones, retractable center fence, useful for processing smaller parts like drawers, stretchers etc. (1) 1-HP NC controlled horizontal drilling unit, gluing and (1) dowel insertion unit. "Double Depth" drill control (allows operator to program two different depths, same tool) -- Complete With:(1) 8-Liter cap. high pressure glue tank, (1) 8-liter cap. water tank (for cleaning), (1) Vibratory Dowel Hopper, (4) pneumatic holddown clamps. Bar code scanner. Centralized manual lubrication for all linear bearings. Side and back safety protection fence -- Actual Model is OMAL INSERT 1300 (DMG HBD 1300)
Get Your Price from Ex-Factory!
