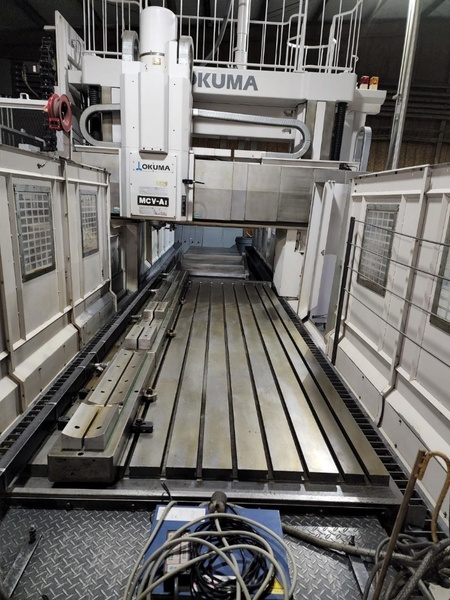

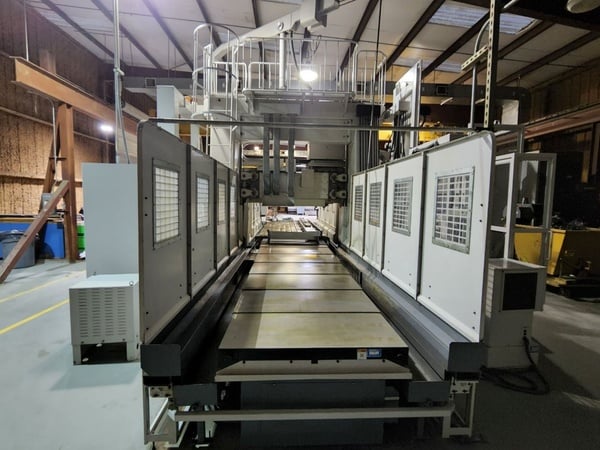

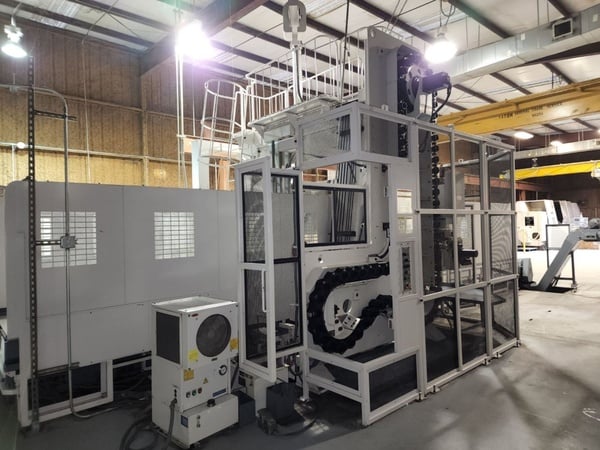

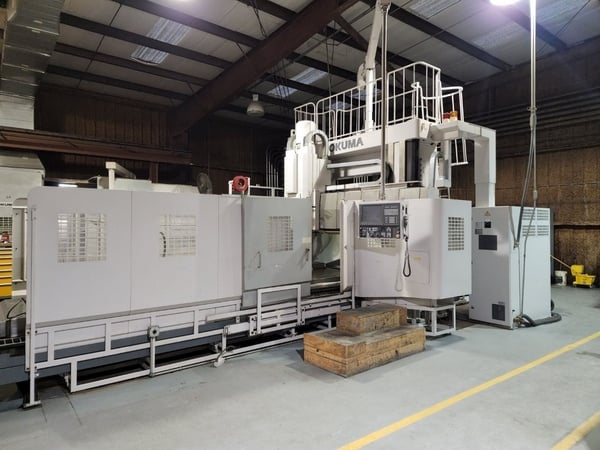

Okuma #MCV-A2, OSP-P200M CNC control, 60" x 162" table, 78" Y-travel, 50 taper, 4000 rpm, 72 tool stations, 80" between the columns 2007

Specifications:

Model MCV-A2

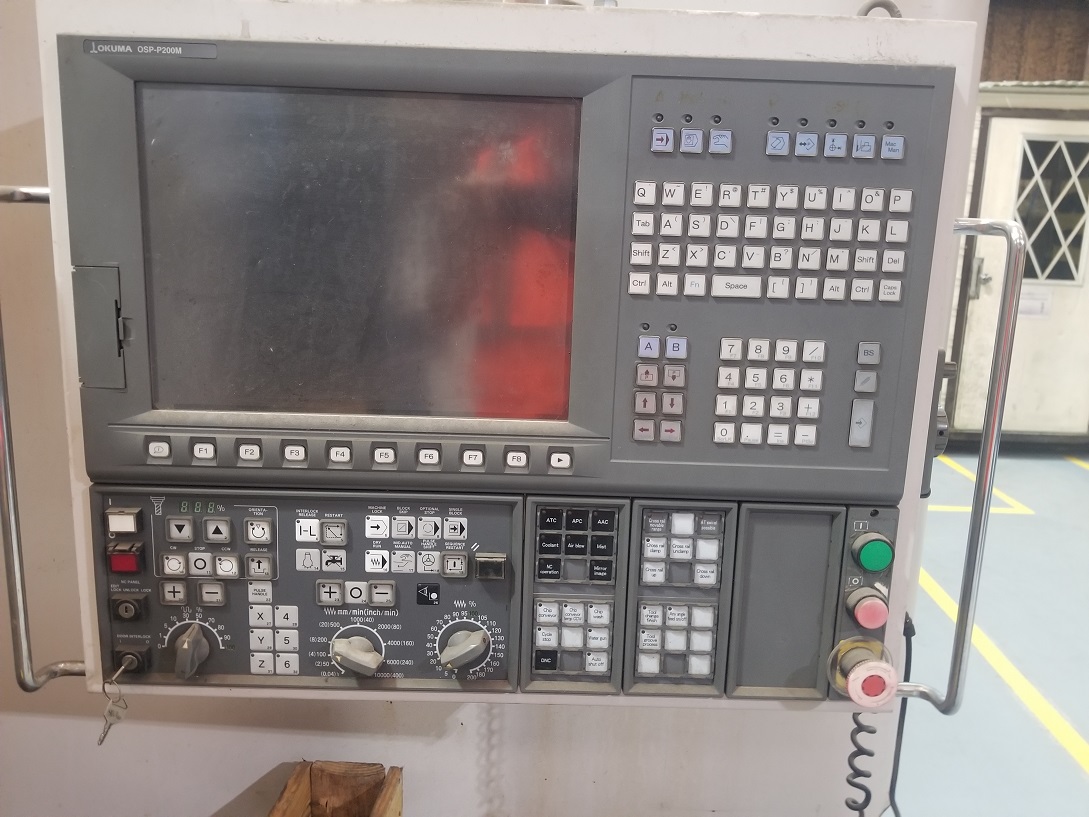

CNC control OSP P200M

Year of manufacture 2007

Width between columns 80"

Travel, X-axis, table 157

Travel, Y-axis, spindle head 78"

Travel, Z-axis, spindle quill 18"

Dist. from spindle to table, Min-Max 0"59"

Size of table, width x length 60" x 162"

Cutting federate 0.04" to 393" ipm.

Rapid traverse rate 787" ipm.

Spindle diameter 3.94"

Spindle taper BT 50

Spindle speed range 30 to 4,000 rpm.

Quill diameter 8.27"

Tool stations 72

Tool taper BT-50

Main motor hp. 25/30 hp. 30 minute

Manuals Yes, complete set

Tooling Minimal (may be more)

Machine height 17" (6 will come off when pendant is removed)

Floor space 40 Wide x 18 Long

Machine weight 86,900 lbs.

New cost today: About $ 1 Mil. Delivery: 12-18 months.

Comments: The machine is under power and in GOOD TO VERY GOOD CONDITION. It was purchased

to manufacture whip stock, which is an angular down hole tool that used to be used for offset drilling.

Mud motors, directional drilling and MWD (Measure while drilling) made whipstock obsolete. It has been

kept under power in an air conditioned and heated building.

Ten years ago, new owners purchased the facility. The machine has not been used since the

new owners purchased the facility. Last year Okuma come in and powered up the machine. The

batteries were dead. They were replaced, parameters reinstalled and the machine cycled.
