Description

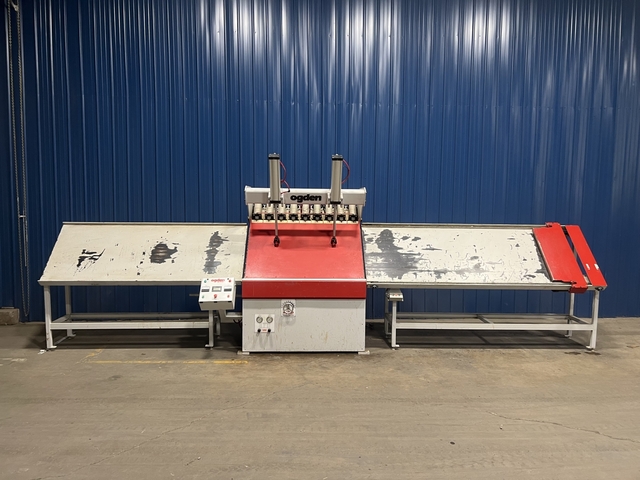

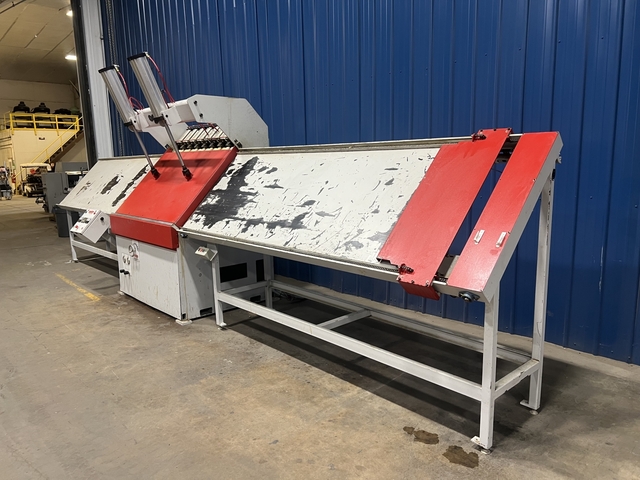

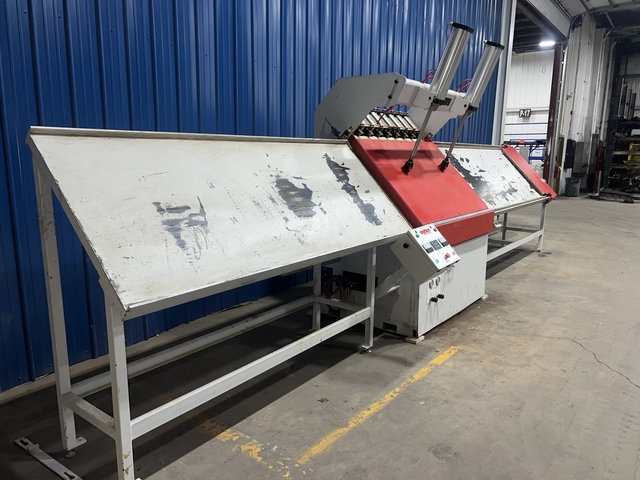

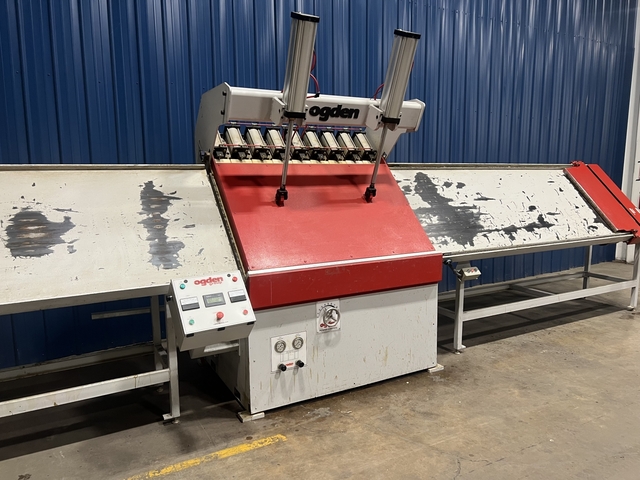

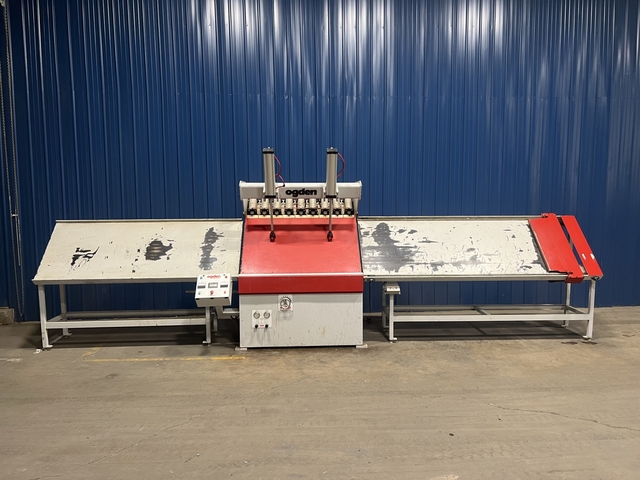

- Ogden Model SL3660 RFS Protec SL Solid Wood Radio Frequency Gluing Machine
- Curing area: 36" x 60" x 2" thick.
- Clamping pressure is applied by multi-power (dual pistons on a common shaft) pneumatic cylinders to maximize pressure while relying on standard plant pressures. Unlike presses without multi-power cylinders, which require booster compressors, the Model SL36x60 reaches full capacity at 100-psi plant air pressure.

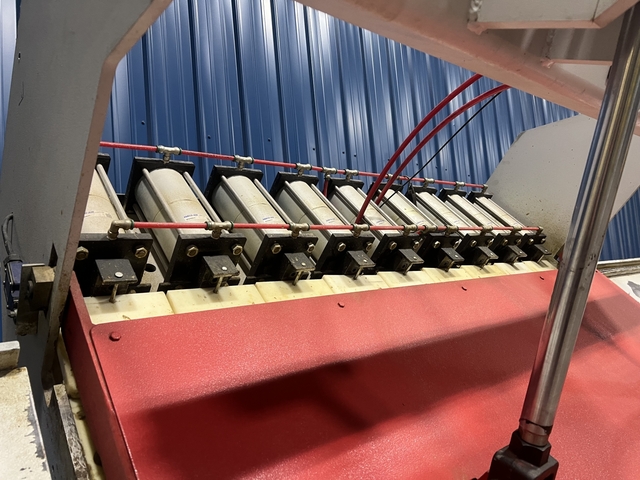

- Edge pressure is applied by eight (8) each pusher shoes, each with a 4" bore x 4" stroke twin-piston multi-power pneumatic cylinders.

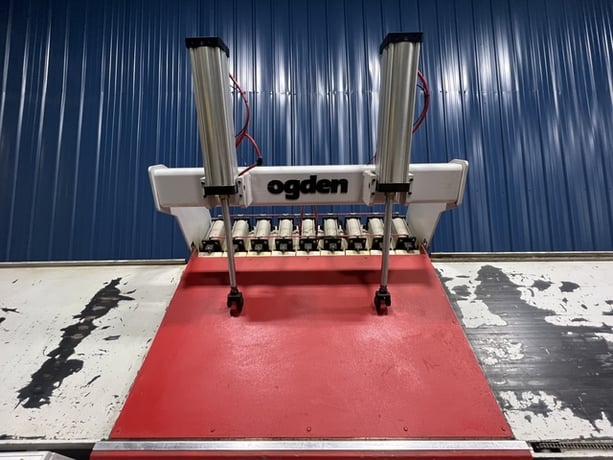

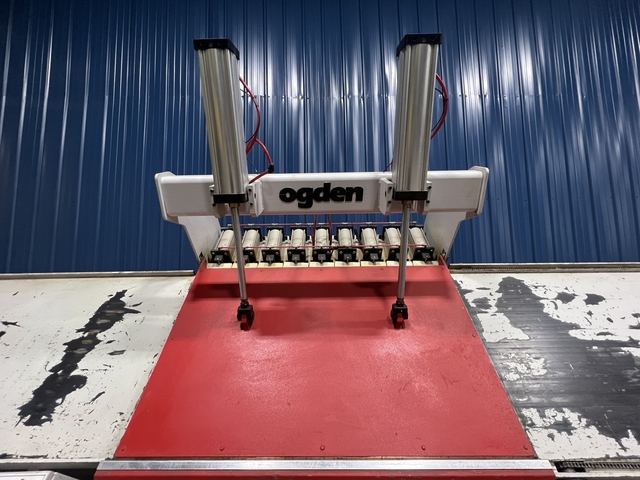

- Top platen pressure is applied by two (2) 5" diameter x 16" stroke pneumatic cylinders through a cantilever arm that keeps the footprint to a minimum while still allowing the operator full access to the platen area.
- The platen is set at a 45-degree angle and the top platen opens wide; allowing the operator to step inside the press for ergonomic and accurate parts placement.
- The internal solid state RfsProtech 6KW Generator cures approximately 600 square inches of glue line per minute.
- Two-hand no-tie-down safety controls for closing the top platen.
- The machine is controlled by a PLC for dependability and efficient maintenance. All controls will be provided for safe and efficient operation. The operator screen permits efficient operation, and the included press diagnostics screens assist in trouble-shooting when the need arises.

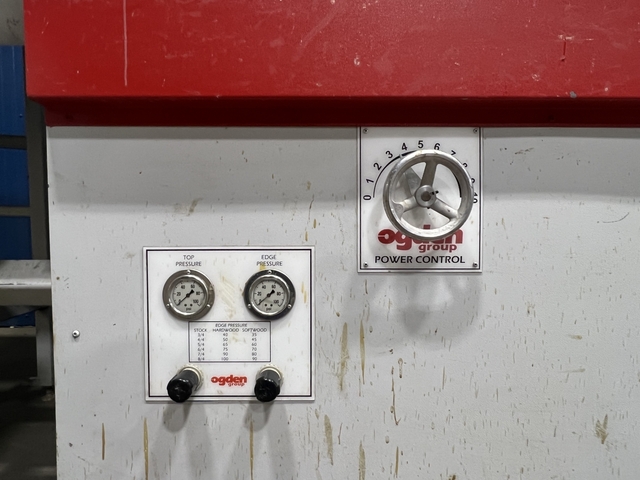

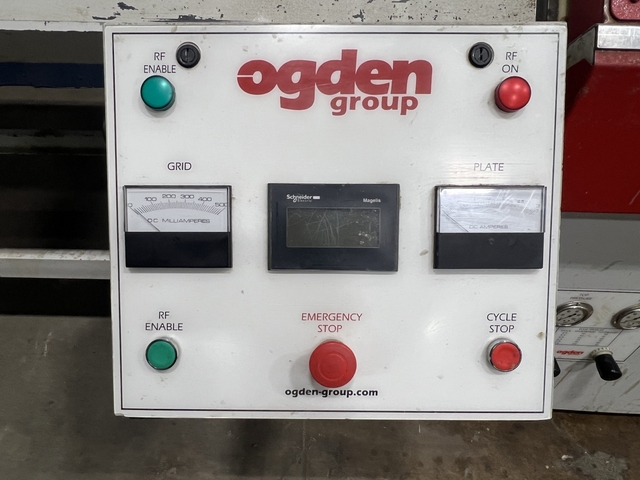

- All necessary RF controls, including buttons, meters, and PLC operator interface panel are mounted on a control panel attached to the left front of the press.
- Interlocked top platen and safety switches on all access doors insure operator safety.
- Power requirements are 480 volt, 60 cycle, 3 phase electric.

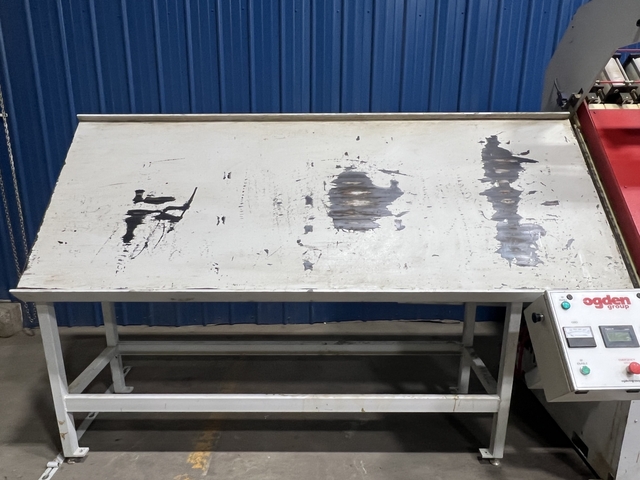

- Powered In-Feed table with motor and controls
- Out-feed steel deck
- Located at RT Machine's facility and ready to ship!
