Northpointe Industries Allis-Chalmers Hydraulic Power Unit MPT100B23UV5C07

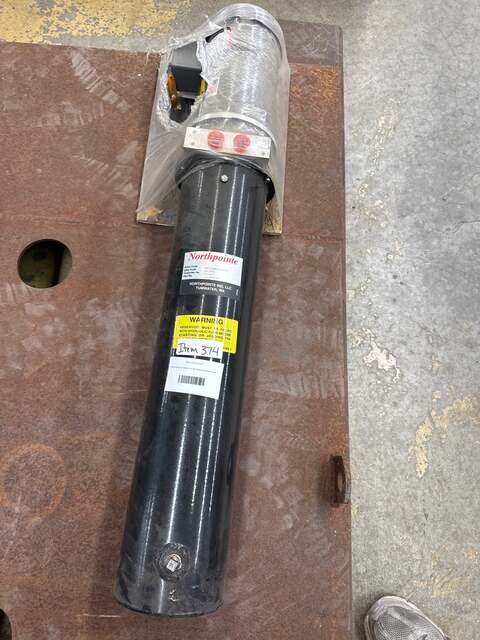

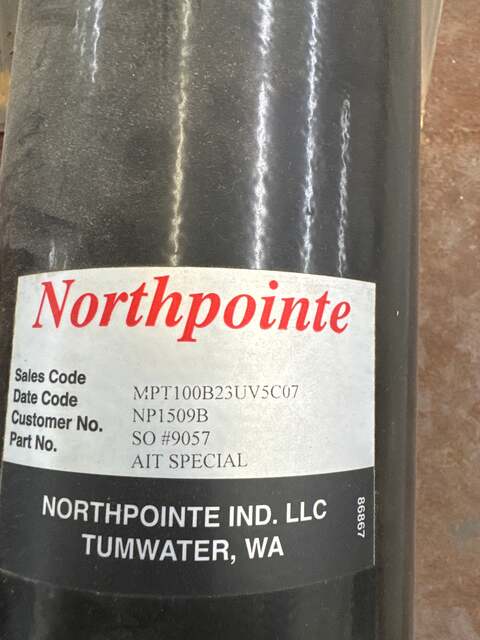

The Northpointe Industries MPT100B23UV5C07 is a compact AC hydraulic power unit assembled and tested by Northpointe Ind. LLC of Tumwater, Washington. The unit is built around a Baldor CM3546 electric motor rated at 1 HP, 208-230/460V, 3-phase, 60 Hz, 1725 RPM, in a 56C frame with TEFC enclosure. Motor spec is 34G795X269 with a service factor of 1.15, insulation class B, and NEMA nominal efficiency of 78.5%. The power unit features a vertical cylindrical steel reservoir with an integral gear pump and solenoid valve package, consistent with Northpointe's standard MPT100B series configuration. The sales code MPT100B23UV5C07 indicates a 3-phase motor, specific valve package, and reservoir capacity per Northpointe's modular build system. The unit was built to customer order SO #9057 with a date code of NP1509B. A warning label on the reservoir states the reservoir must be filled with hydraulic fluid before starting or jogging the electric motor. The unit ships in its original wrap with a capacitor or control assembly visible at the motor end. This is a purpose-built industrial hydraulic power unit intended for stationary applications requiring continuous AC-powered hydraulic pressure, such as lift tables, clamps, presses, and similar fluid power machinery.

Stock # 0226-374
