Siemens / Schneider, new switchboards & panels (Quick Ship 6 - 8 weeks - Standard Ship 12 - 16 weeks)

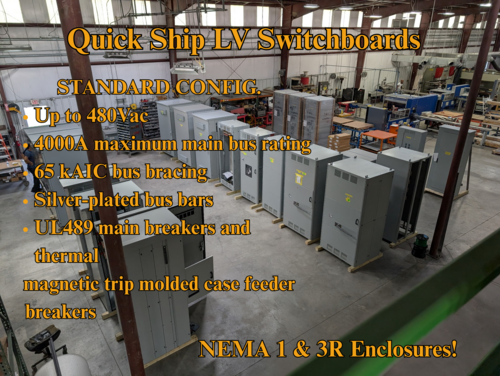

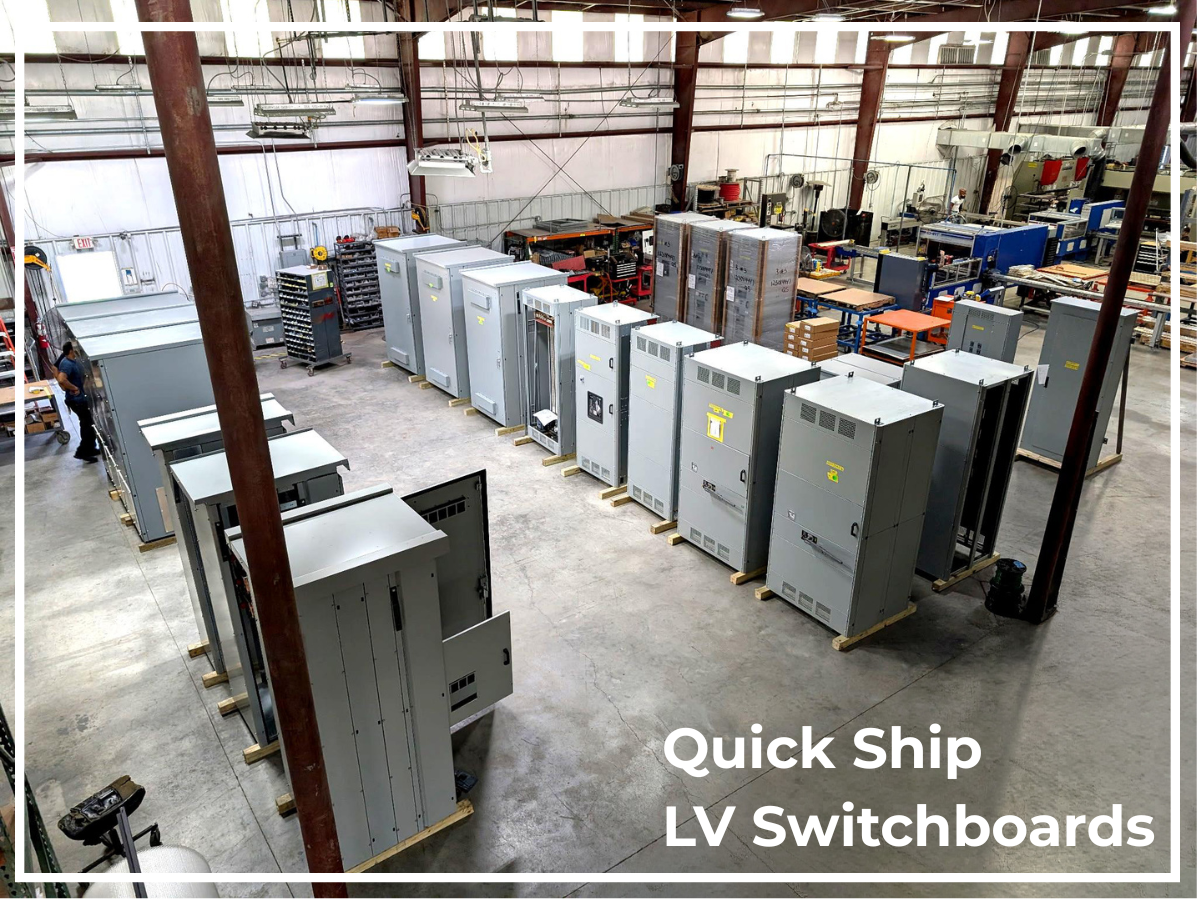

Quick Ship Program
- Ships in 4-8 Weeks (4 Weeks ALL Siemens Breakers, Schneider available at longer lead time)
- NEMA 1 & NEMA 3R Enclosures
- Bottom or Top Feed
- Up to 480Vac
- 4000A maximum main bus rating
- 65 kAIC bus bracing
- Silver-plated bus bars
- UL489 main breakers and thermal
magnetic trip molded case feeder breakers

Standard SWBD's
- UL891 Listed
- 12-16 Week Lead Time (Expedite Pricing Available)
- Voltage: Up to 800Vac
- Ampacity: 400A to 6000A maximum main bus rating
- Up to 1000A per sq in. fully rated copper bus systems
- Up to 200 kAIC
- Type 1, 12, 3R or 3RX NEMA enclosures
- Drawout and fixed mounted breakers
- Silver- or tin-plated copper bussing
- Rigid construction isolating bus and breaker assemblies
- Cables, bus duct, and closed coupled connection options
- UL489 breakers with thermal magnetic
or electronic trip units standard, high kAIC or current limiting capability,
80% or 100% rated

LV Panelboards
- 2-4 Week Lead Time
- Available in Nema 1 and Nema 3R ratings
- P1 available in 250A and 400A
- P4 available in 60”,75”, 90”
- P5 available in 60”,75”, 90”
- 14 and 16 gauge steel for strength and rigidity
