Manufacturer: Nakamura
Model: SC-300L
Year: 2018
Chuck: 10
Bar Capacity: 2.7
Centers: 47.7
Stock # 2166
1 / 8
Click to zoom in
1 / 8
For Sale by Machinery Inc
Surplus Record Dealer Since 2002
Location: Sherbrooke, QC Canada
Contact Stephane Gourde
Phone Number: 819...> Show Phone Number 819-346-2369
Let the seller know you found their listing on Surplus Record!
Description

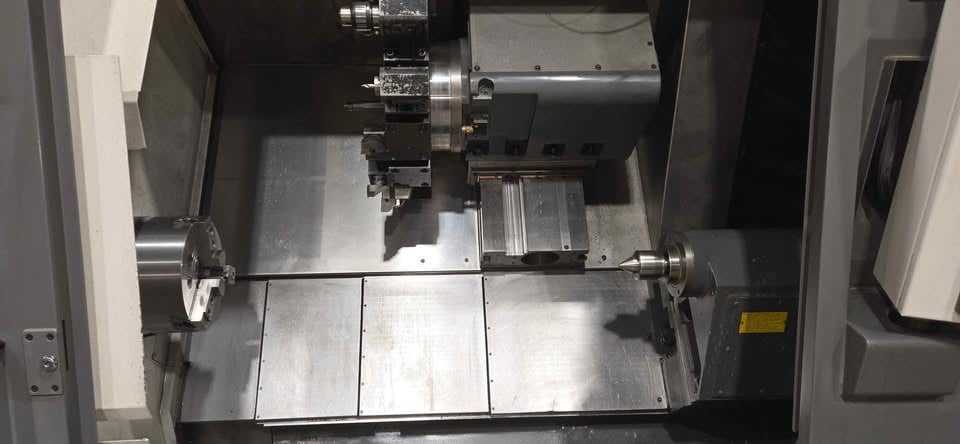

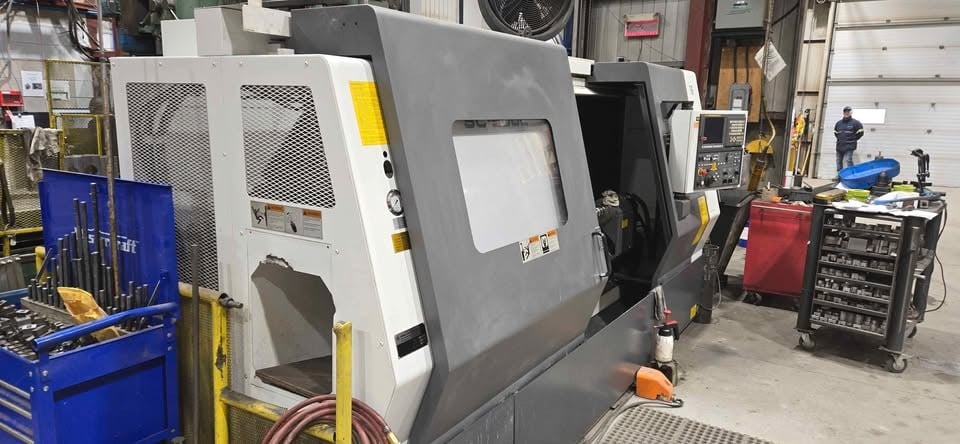

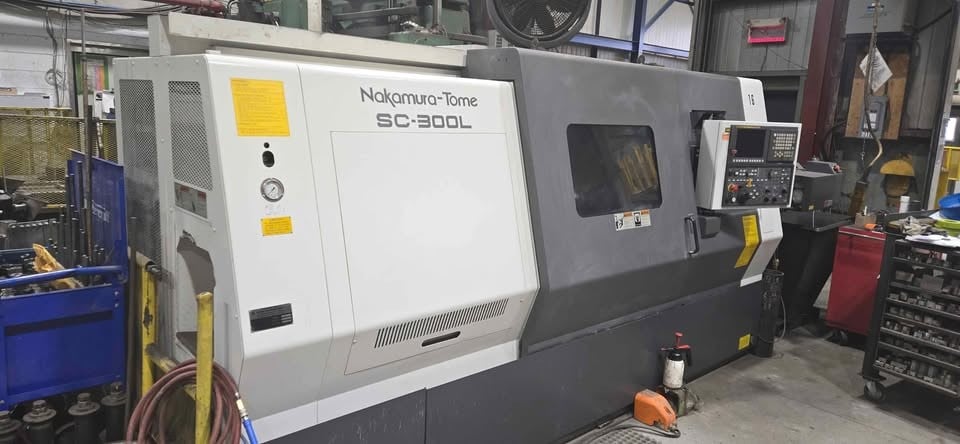

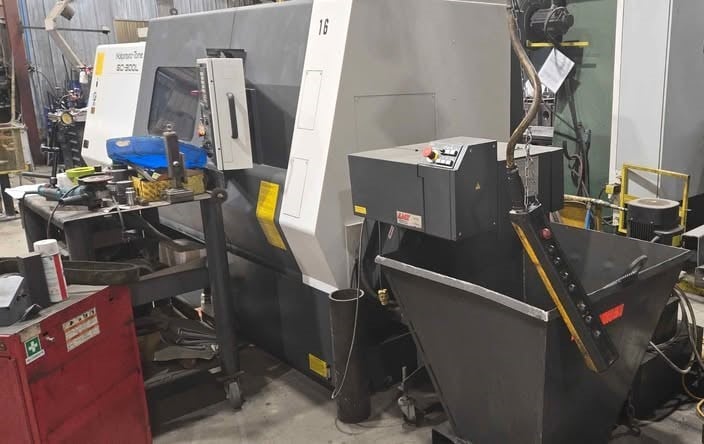

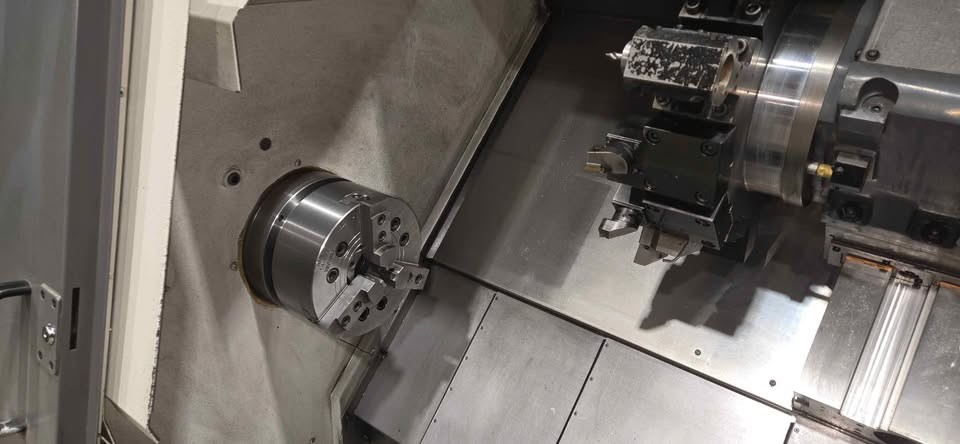

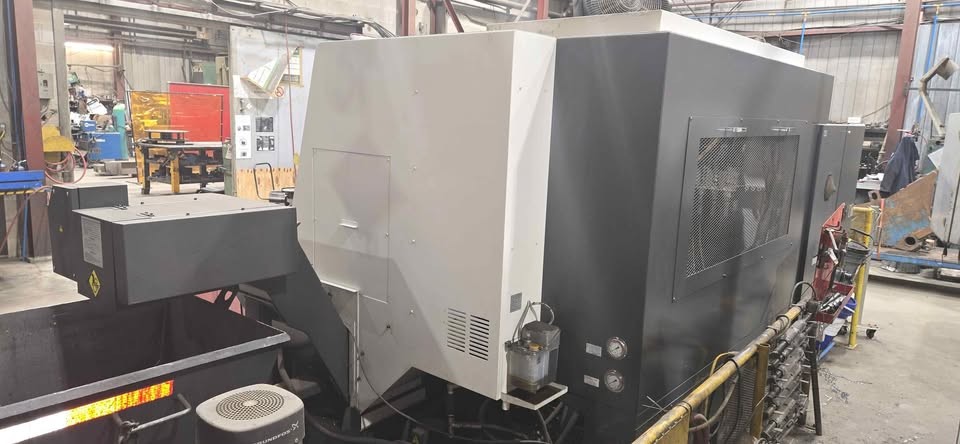

NAKAMURA SC300L CNC LATHE WITH LIVE MILLING, 2018
Capacity SC-300 SC-300L
Max. turning diameter 350mm 350mm (13.77")
Max. turning length 600mm 1,100mm (43.30")
Distance between center 713.5mm 1213.5mm (47.7")
Bar capacity(mm) 71 80(op.) 89(op.) 71mm (2.795")
Chuck size 10″254mm
Axis travel SC-300 SC-300L
Slide travel X 222.5mm 222.5mm
Slide travel Z 635mm 1,135mm
Spindle SC-300 SC-300L
Spindle speed(min-1 ) 3,500 2,500 3,500
spindle motor Standard 22/18.5kW
Option 30/22kW
Turret SC-300 SC-300L
Number of turrets 1
Type of turret head Dodecagonal
Number of index positions 12
Driven tools（op.） SC-300 SC-300L
Spindle speed 3,600min-1
Driven motor power 5.5/3.7kW
Rotary system Individual rotation
Number of driven-tool stations 12

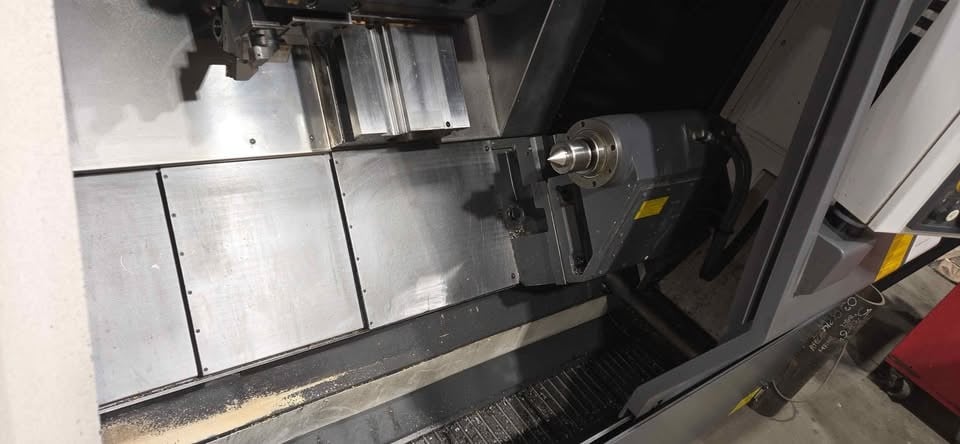

Tailstock(op.） SC-300 SC-300L
Quill diameter/Quill stroke 90mm/100mm
Quill taper MT-5
（Rotating center） MT-4
（built-in center）
Sub spindle（op.） SC-300 SC-300L
Chuck size/Bar capacity 8″215mm/51mm
Spindle speed 3,500min-1
Spindle motor 11/7.5kW
Distance between spindle nose max/min max.810mm/min.310mm
General SC-300 SC-300L
Floor space （L×W×H）3,702mm×1,735mm
×1,950mm
Machine weight 5,500 kg
LOW HOURS
Capacity SC-300 SC-300L
Max. turning diameter 350mm 350mm (13.77")
Max. turning length 600mm 1,100mm (43.30")
Distance between center 713.5mm 1213.5mm (47.7")
Bar capacity(mm) 71 80(op.) 89(op.) 71mm (2.795")
Chuck size 10″254mm
Axis travel SC-300 SC-300L
Slide travel X 222.5mm 222.5mm
Slide travel Z 635mm 1,135mm
Spindle SC-300 SC-300L
Spindle speed(min-1 ) 3,500 2,500 3,500
spindle motor Standard 22/18.5kW
Option 30/22kW
Turret SC-300 SC-300L
Number of turrets 1
Type of turret head Dodecagonal
Number of index positions 12
Driven tools（op.） SC-300 SC-300L
Spindle speed 3,600min-1
Driven motor power 5.5/3.7kW
Rotary system Individual rotation
Number of driven-tool stations 12
Tailstock(op.） SC-300 SC-300L
Quill diameter/Quill stroke 90mm/100mm
Quill taper MT-5
（Rotating center） MT-4
（built-in center）
Sub spindle（op.） SC-300 SC-300L
Chuck size/Bar capacity 8″215mm/51mm
Spindle speed 3,500min-1
Spindle motor 11/7.5kW
Distance between spindle nose max/min max.810mm/min.310mm
General SC-300 SC-300L
Floor space （L×W×H）3,702mm×1,735mm
×1,950mm
Machine weight 5,500 kg
LOW HOURS
Get Your Price from Machinery Inc!
Buyers Who Viewed This Listing Also Viewed:
Nakamura -Tome #WT-300MMY, CNC lathe, 10.6" swing, 3-jaw 10" chuck, 2.5" bar, 43.3" centers, 25 HP, 4500 RPM, 5-Axis, Fanuc 18i-TB, live tool, sub spindle, 2008
Category: CNC Lathes and Turning Centers
Seller: Machinery Resources Intl
Location: Simi Valley, CA
Mfr: Nakamura
Model: WT-300MMY
Year: 2008
Nakamura-Tome WT-300 MMY is a high-performance, multi-tasking CNC machine known for its precision milling and turning capabilities. It's a robust and reliable machine, box ways and very stout., Max. Swing Dia.: 10.630'', Standard Cutting Diameter: 10.630'', Max. Distance Between Spindles: ...more
JUST ADDED!

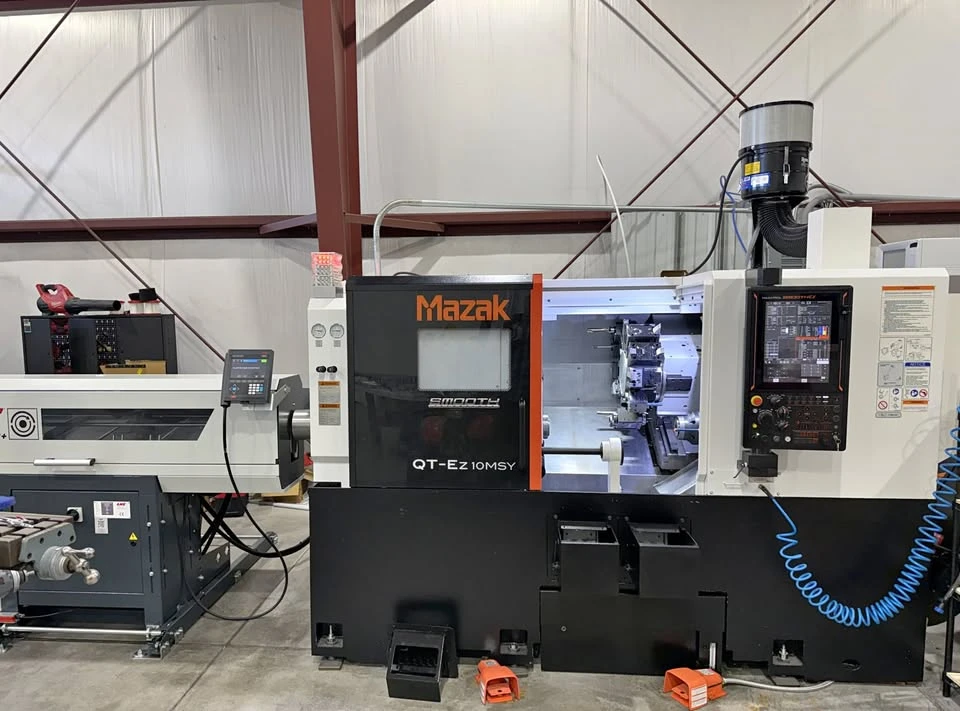

Mazak #QT-EZ-10MSY, CNC Lathe, 8.5" X, 4" Y, 23.75" Z, 27.4" swing, 20.78" machining length, 10"/6" chucks, 2.5" bar, 20 HP, 4200 RPM, 12 tool, 2024
Category: CNC Lathes and Turning Centers
Seller: Toolquip Inc
Location: Lebanon, OH
Mfr: Mazak
Model: QT-EZ 10MSY
Year: 2024
CNC Lathe used. Featuring 10"/6" chucks, 20 HP spindle, 4200 RPM, mill spindle at 6000 RPM, 8.5"x4"x23.75" travel, high-pressure coolant, tool eye, parts catcher, mist collector, and extensive tooling. Weighs 12,125 lbs., Standard Chuck Size (Main/Second). 10 / 6, Maximum Swing. 27.4, Maximum Machining Length.20.78 ...more
JUST ADDED!

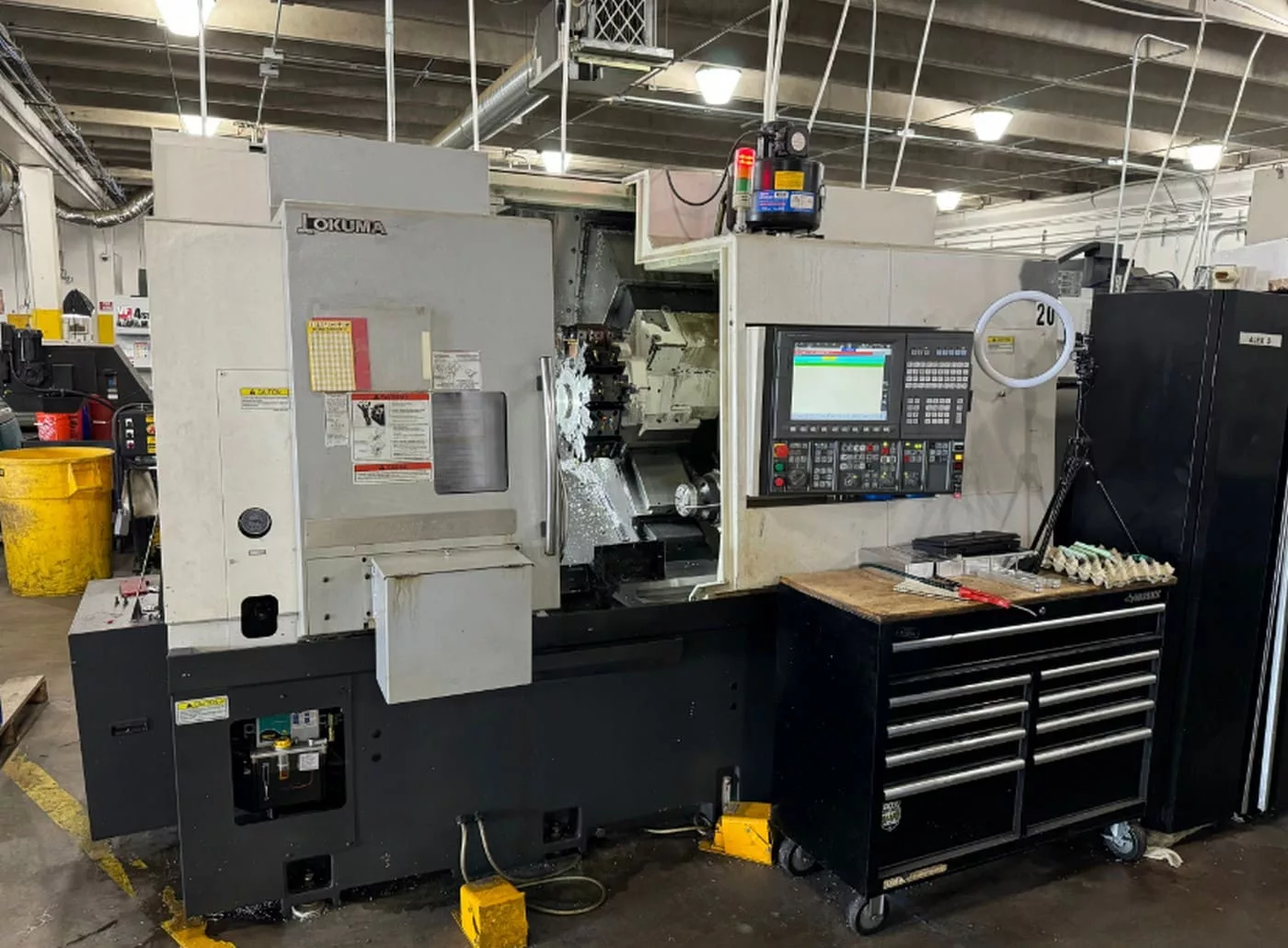

Okuma #Genos-L300-MYW-e, CNC Lathe, 20.4" swing, 11.8" turning diameter, 10" chuck, 2.7" bar, 18" centers, 3000 RPM, 12 turret, live tooling, Okuma OSP control, 2017
