Murrelektronik Modlink MSDD Data Insert 4000-68000-0970000 42.4 Vdc Max

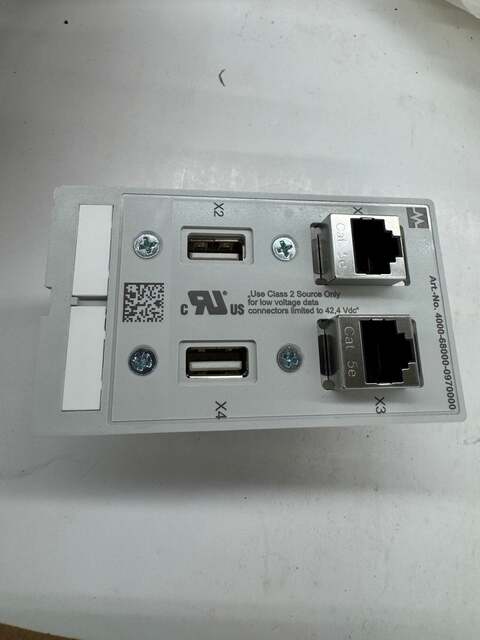

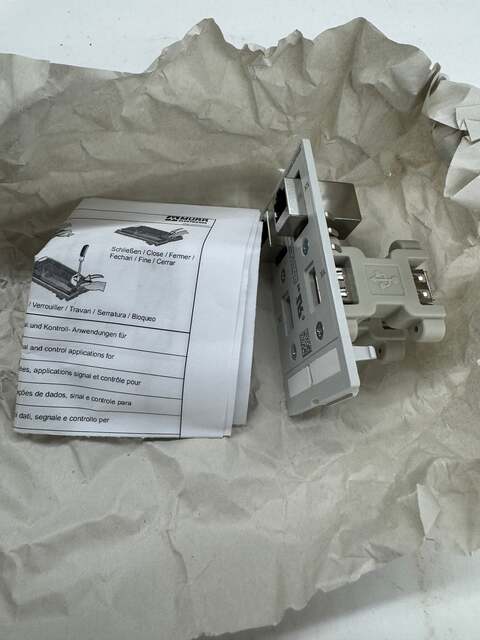

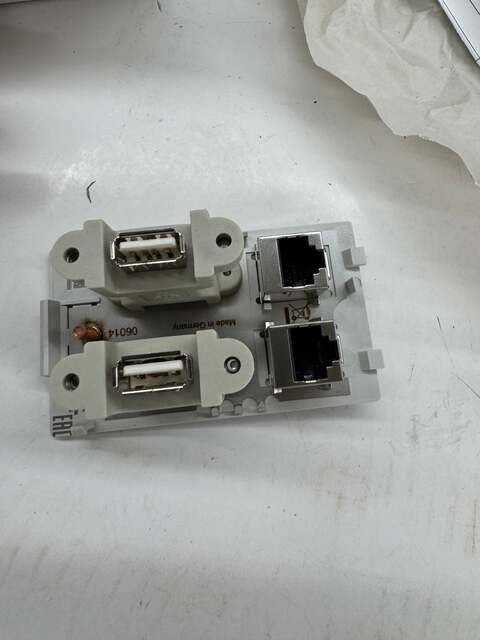

Used in industrial control cabinet front panels, the Murrelektronik Modlink MSDD Data Insert with part number 4000-68000-0970000 provides two USB Type A female-to-female pass-through connections and two RJ45 Cat 5e female-to-female Ethernet connections in a single compact insert assembly. Port designations visible on the face panel are labeled X1, X2, X3, and X4. The unit carries cULus certification and is rated for Class 2 Source use only, with low voltage data connectors limited to 42.4 Vdc. Manufactured in Germany by Murrelektronik GmbH, headquartered in Oppenweiler, with address listed as Falkenstrasse 3, 71570 Oppenweiler. The box label identifies the article number as 4000-68000-0970000 with Code 06014. The item ships with its original instruction sheet covering installation in multiple languages. The Modlink MSDD system is designed for signal and control applications requiring front-panel access to USB and Ethernet connections without penetrating the cabinet enclosure. The insert mounts into a standard Modlink MSDD frame or housing (frame not included). Connectors are metal-bodied Cat 5e RJ45 jacks and standard USB Type A receptacles. Country of origin is Germany as marked on both the component and original packaging.

Stock # 0326-1080
