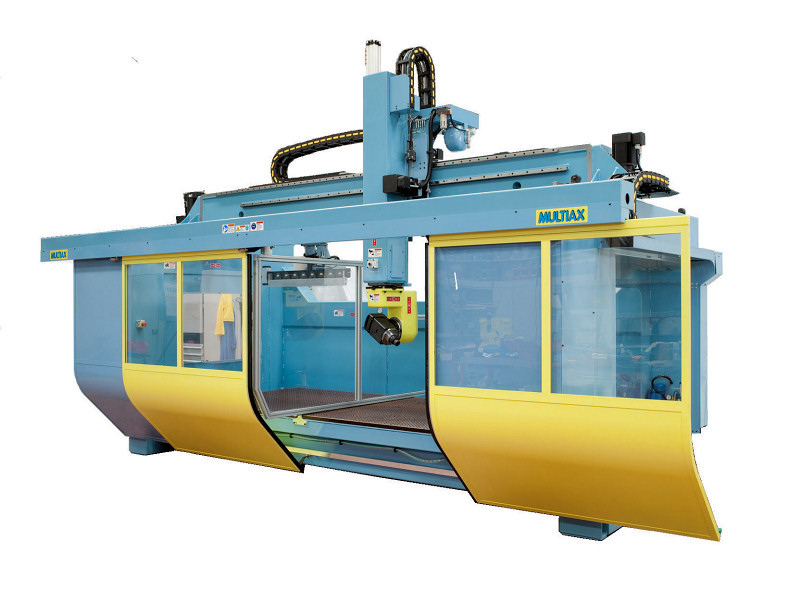

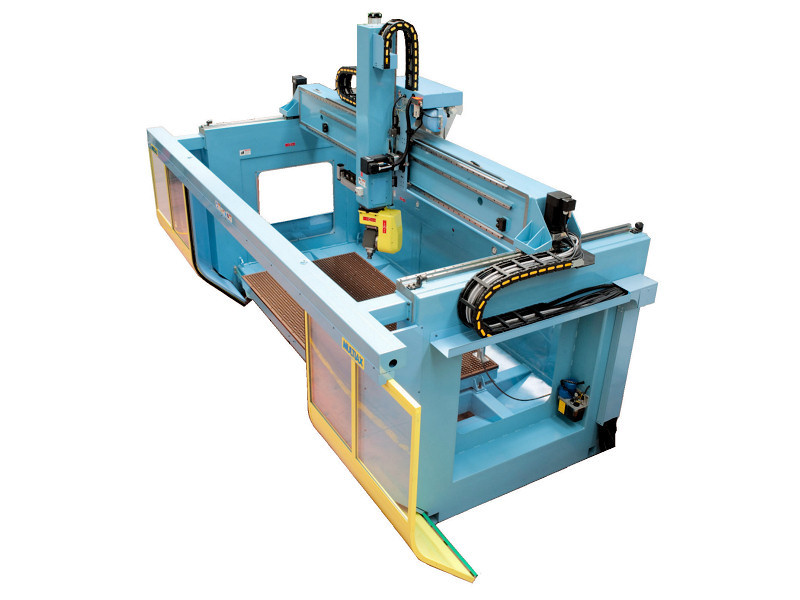

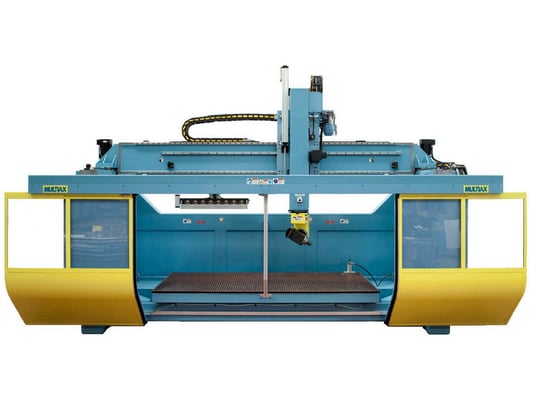

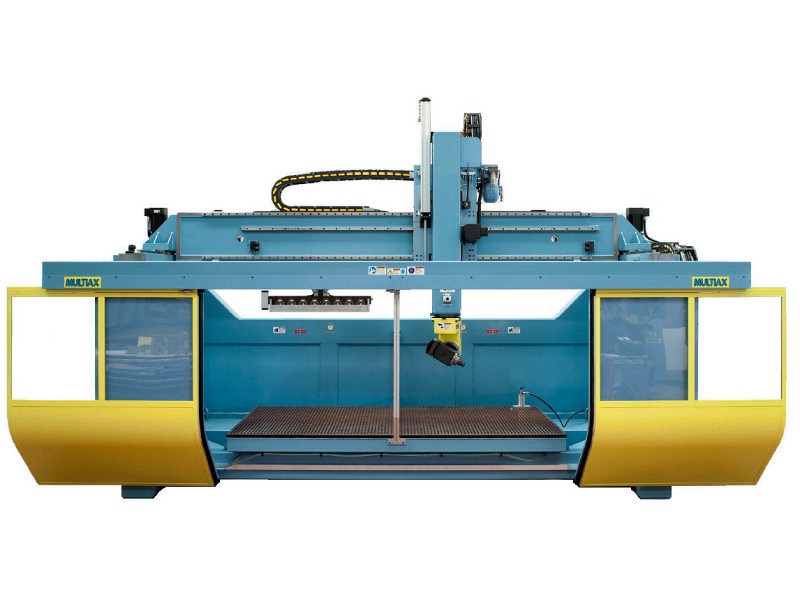

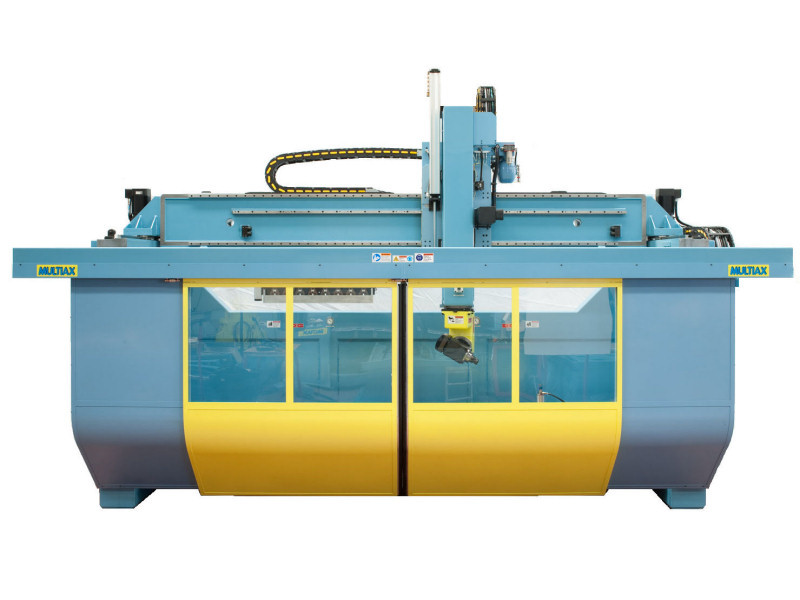

Multiax #P-115-3016, CNC router, 5-axis, 120" X, 62.2" Y, 35.4" Z, 10 HP, 2026, new

Heavy Duty 5-Axis Machine ideal for high speed and precision routing/sizing/milling/trimming & surfacing of wood & composite parts, as well as machining light alloys. -- Steel bar table with threaded holes in 23.6" x 11.8" (600 mm x 300 mm) centers for attaching fixtures and vacuum jigs; system comes with one removable center safety wall for pinnular load and unload work. -- Axis strokes & quick positioning speeds: X-Axis is 120" (3,050 mm) at 275 FPM (84 MPM); Y-axis is 62.2" (1,580 mm) at 275 FPM (84 MPM); Z-axis is 35.4" (900 mm) at 131 FPM (40 MPM). -- A-Axis is +/- 120 at 30 RPM.; C-axis is +/-360 at 30 RPM. -- Equipped with: (1) 7.5 kW (10 HP), ISO 30 Type air cooled ATC spindle, variable speed from 1,000 - 24,000 RPM with 8-position tool rack. -- "OSAI 10/510" Series CNC Control operating with WINDOWS/XP "Pro Multilingual", 15" LCD color display, large hard disk for program storage, network ready via Ethernet. -- Features: 5-Axis simultaneous motion, M & G code programming operation. -- Complete with: Safety enclosure and automatic doors. -- Options: A- & C-Axis alignment system for re-setting both polar axes, please add ...$ 3,600; Radio touch probe system add ...$ 9,580; OSAI Teach Pendant System add ...$ 3,775.
