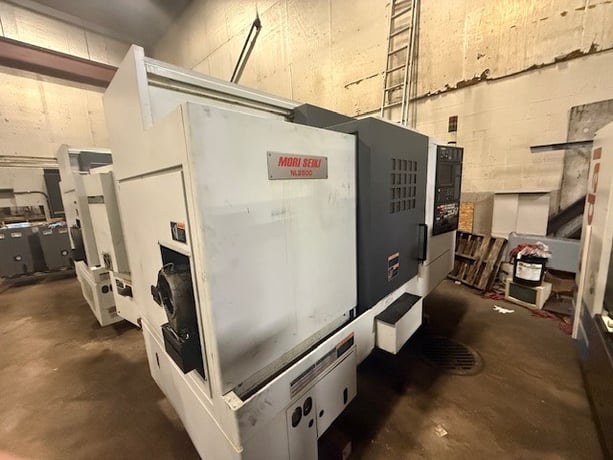

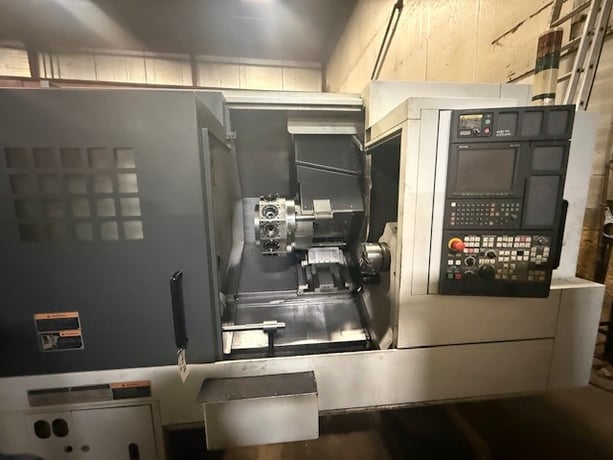

Mori Seiki #NL-2500SY/700, CNC Lathe, Sub Spindle, Y-Axis, Live Tooling, MSX-850 Control, 22.8" swing, 3.1" bar, 2008

MORI SEIKI NL2500SY/700 CNC Lathe, 2008 – Sub Spindle, Y Axis, Live Tooling

Serial # NL251HB3929

Type of CNC Control: MSX-850

Swing Over Bed: 22.83"

Max Distance Between Spindle Nose Surfaces: 37.83"

Max Turning Diameter: 14.02"

Standard Turning Diameter: 10.83"

Max Turning Length: 27.76"

Bar Capacity: 3.15"

X-Axis Travel: 10.24"

Y-Axis Travel: -1.67, +1.67"

Z-Axis Travel: 31.30"

Spindle 2 B-Axis Travel: 28.90"

SPINDLE 1

Spindle Speed Range: 4000 RPM

2 Speed Spindle Ranges

Spindle Nose: JIS A2-8

Through Spindle Hole Diameter: 3.58"

Min. Spindle Indexing Angle: 0.001

Chucks: Collet (10" Solid & Hollow Capable)

Drive Motor: 26/22 H.P.

SPINDLE 2

Spindle Speed Range: 6000 RPM

1 Spindle Speed Range

Spindle Nose: JIS A2-5

Through Spindle Hole Diameter: 1.69"

Min. Spindle Indexing: 0.001

Chuck: Collet (6" Solid & Hollow Capable)

Turret: 12 Tool (10)

Turret Rotary Tool Spindle Rate: 6000 (10,000)

Spindle 2 Drive Motor: 14.74/10.05 H.P.

Rotary Tool Drive Motor: 7.37/4.96 H.P.

Equipped With:
main spindle chuck BB10”, sub spindle BB206, coolant tank with pump, chip conveyor, leveling pads
