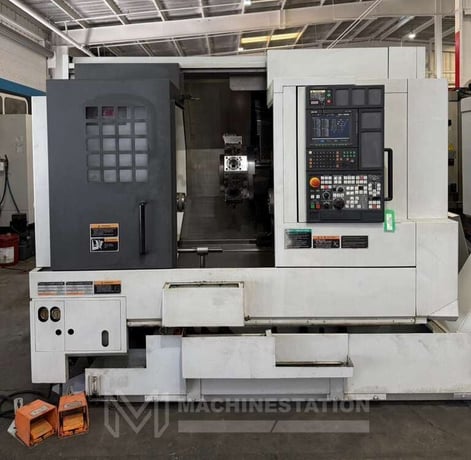

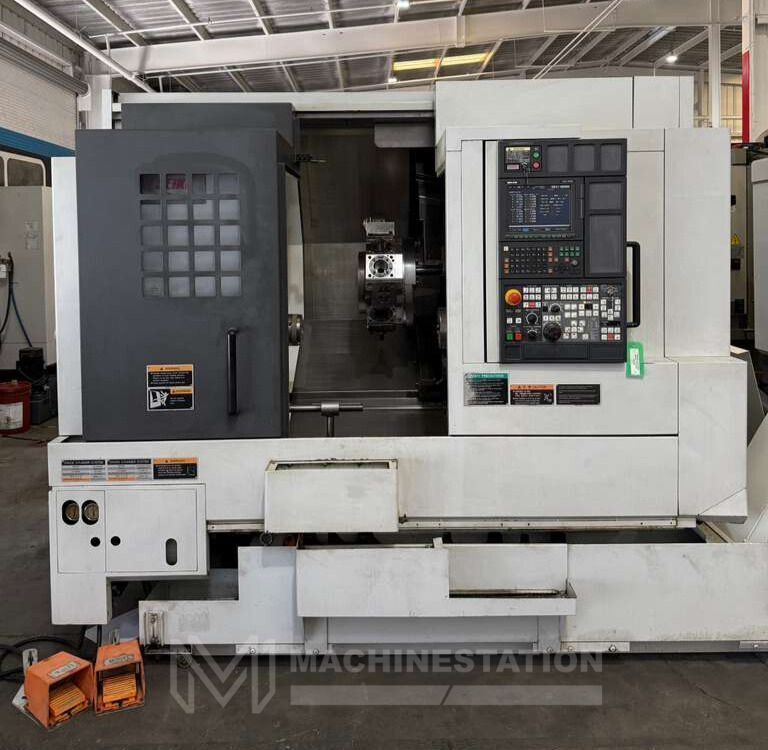

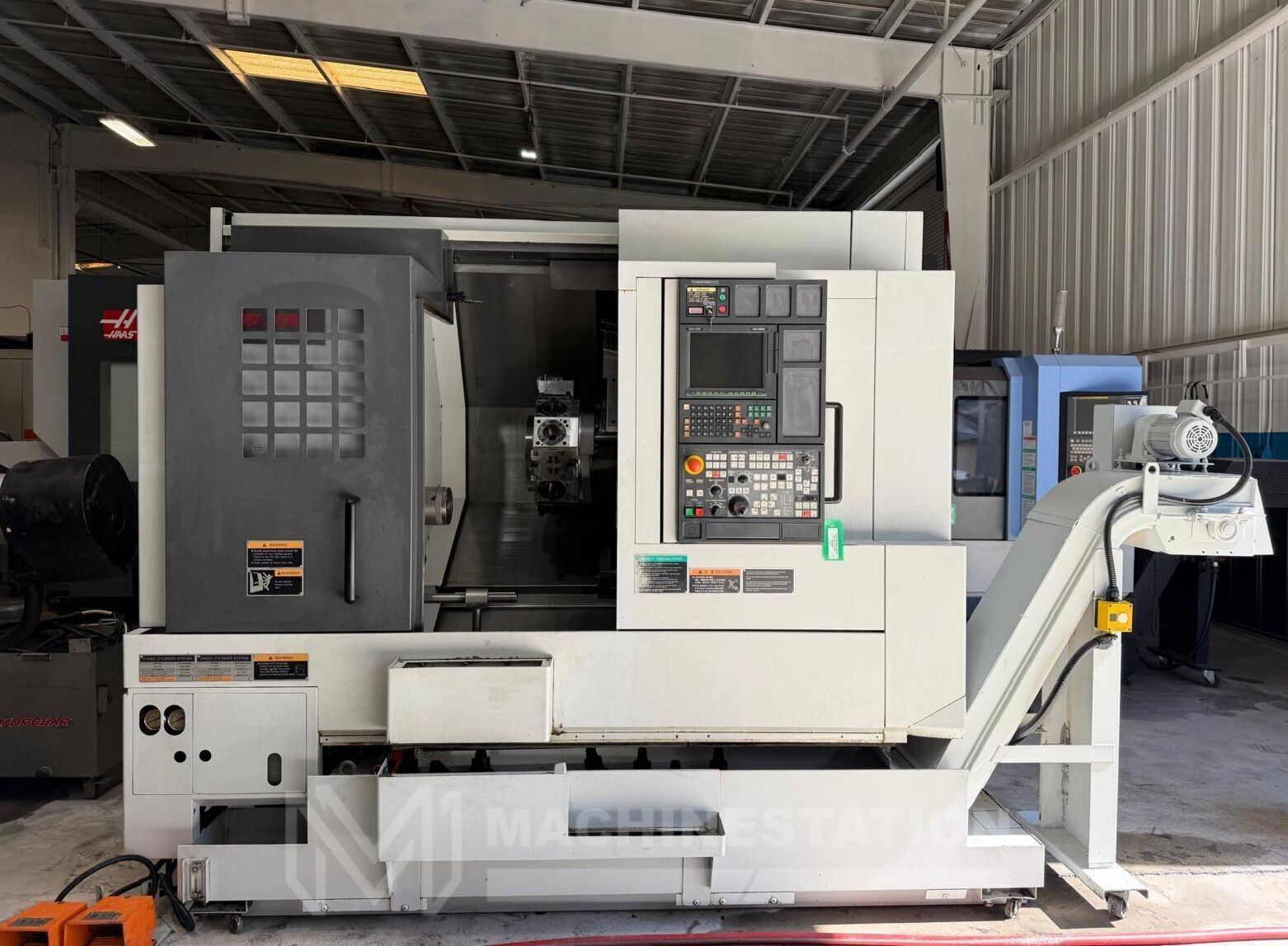

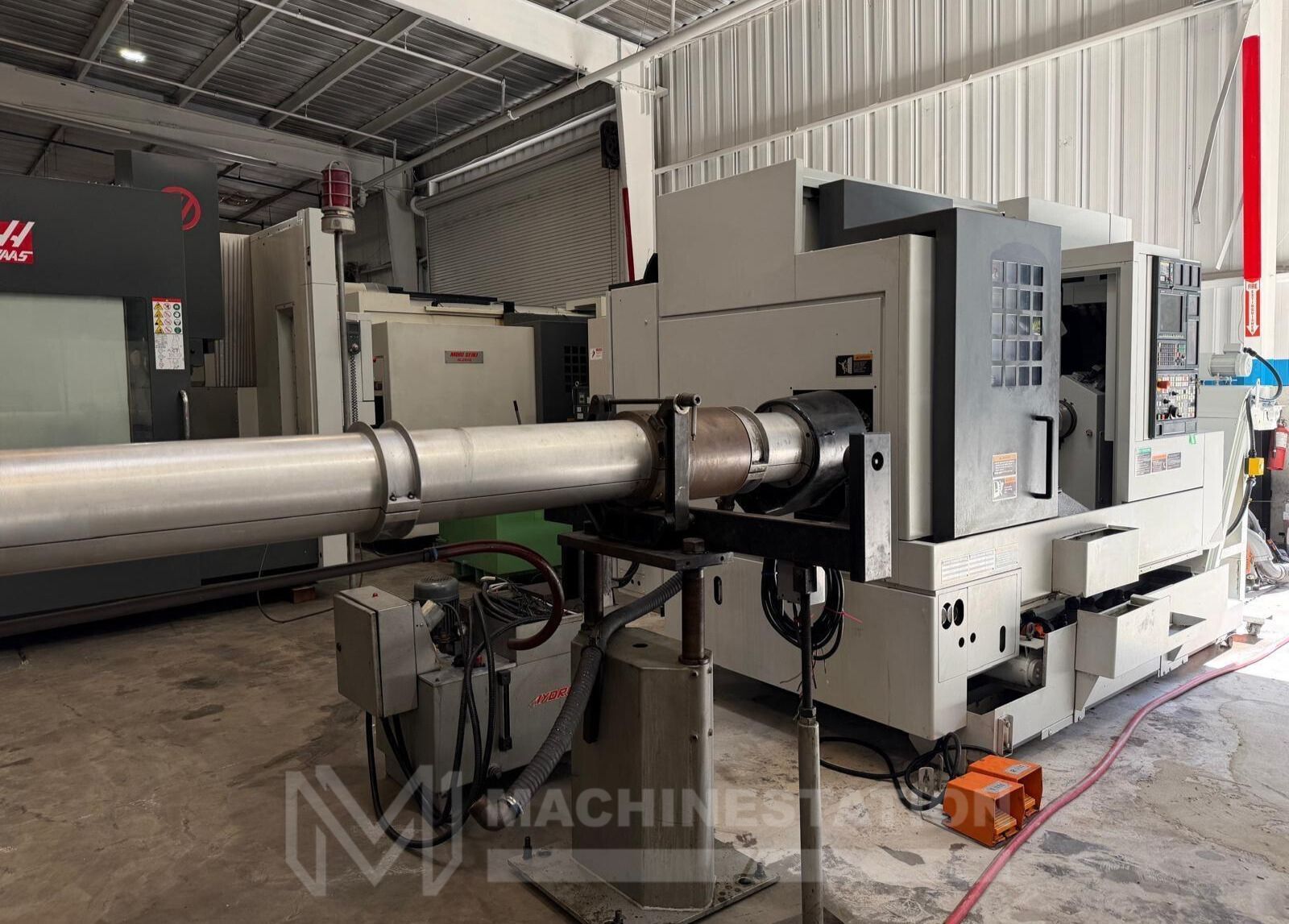

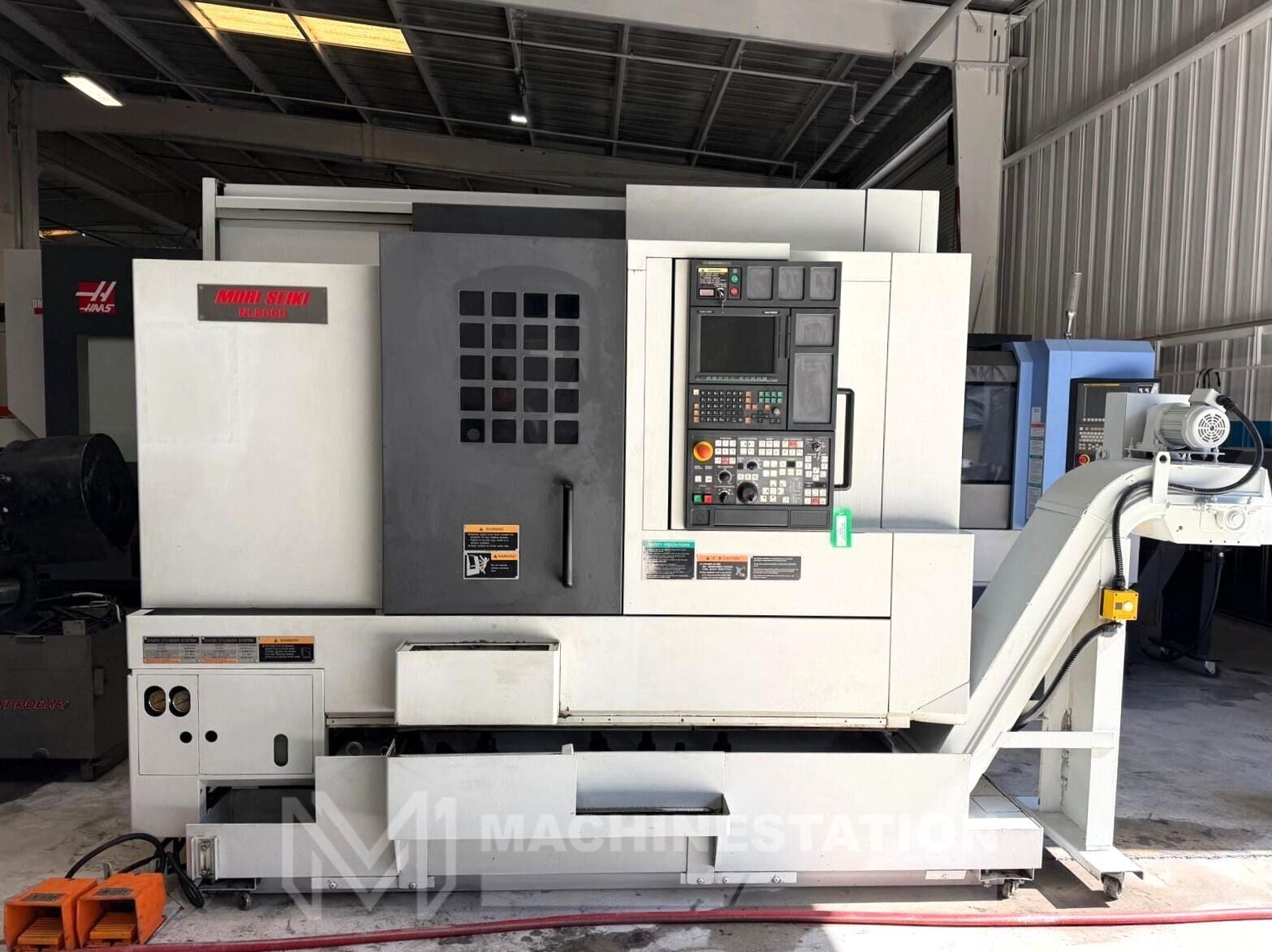

Mori Seiki #NL-2000SY/500, CNC turning center, 22.8" swing, 10" chuck, 3-jaw, 2.5" bar, 14.4" dia., 20" lgth, MSX-850III, LNS Hydrobar bar feeder, sub spindle, Y-Axis, 2009

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Features:

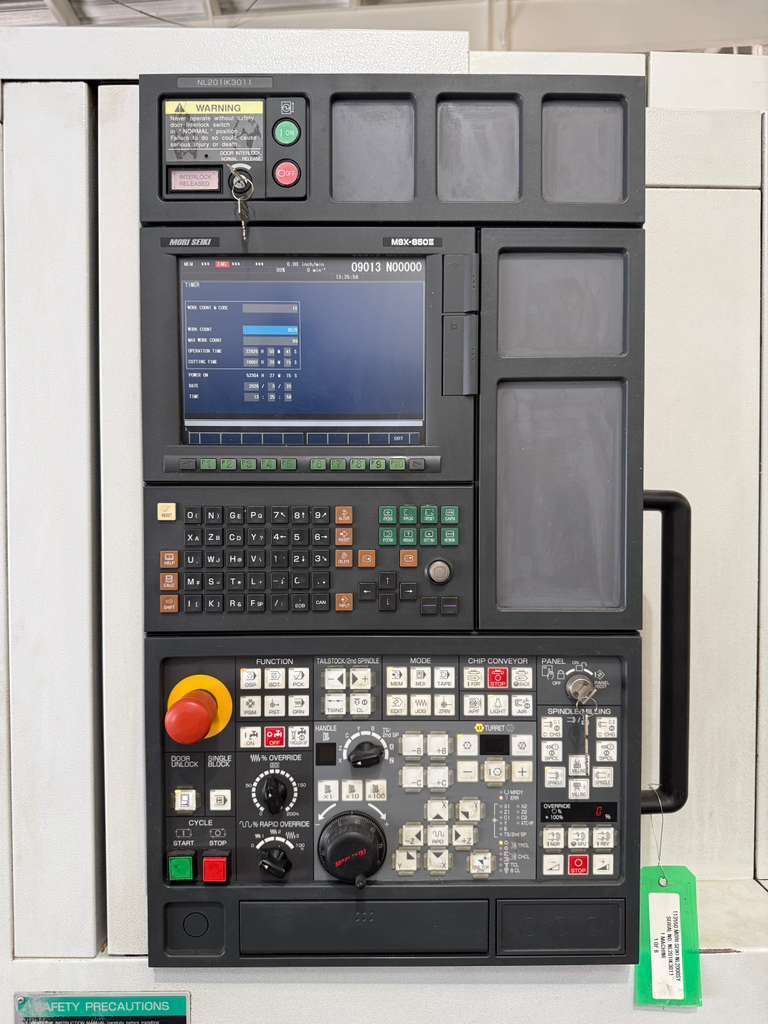

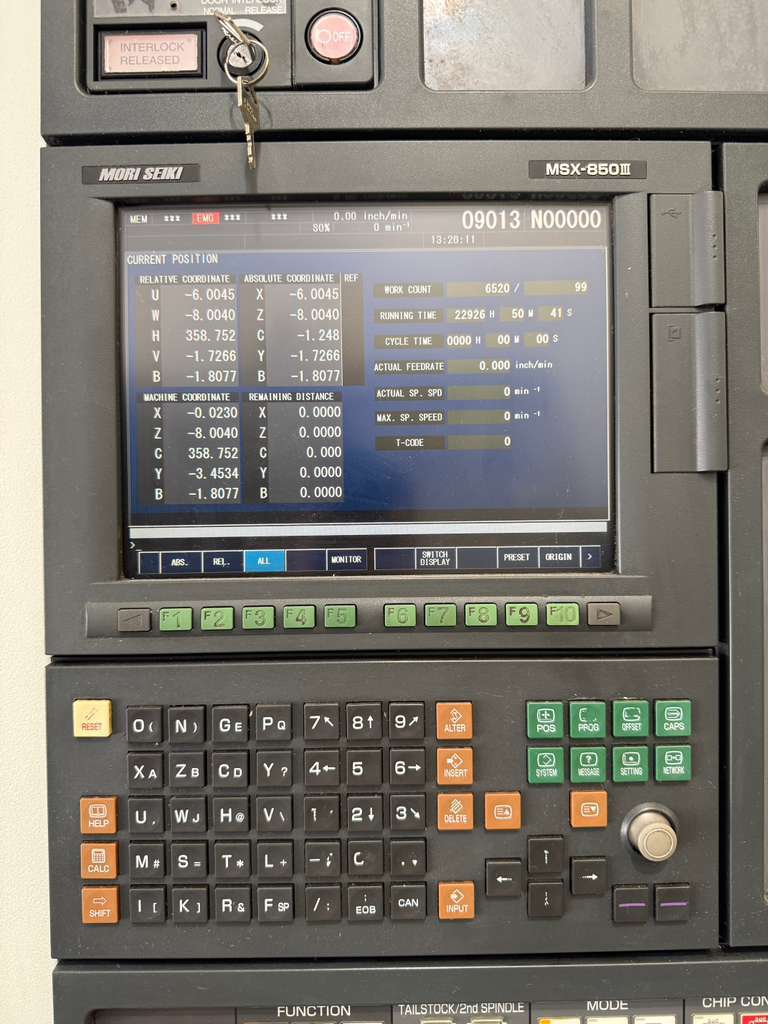

Mori Seiki MSX-850III CNC Control

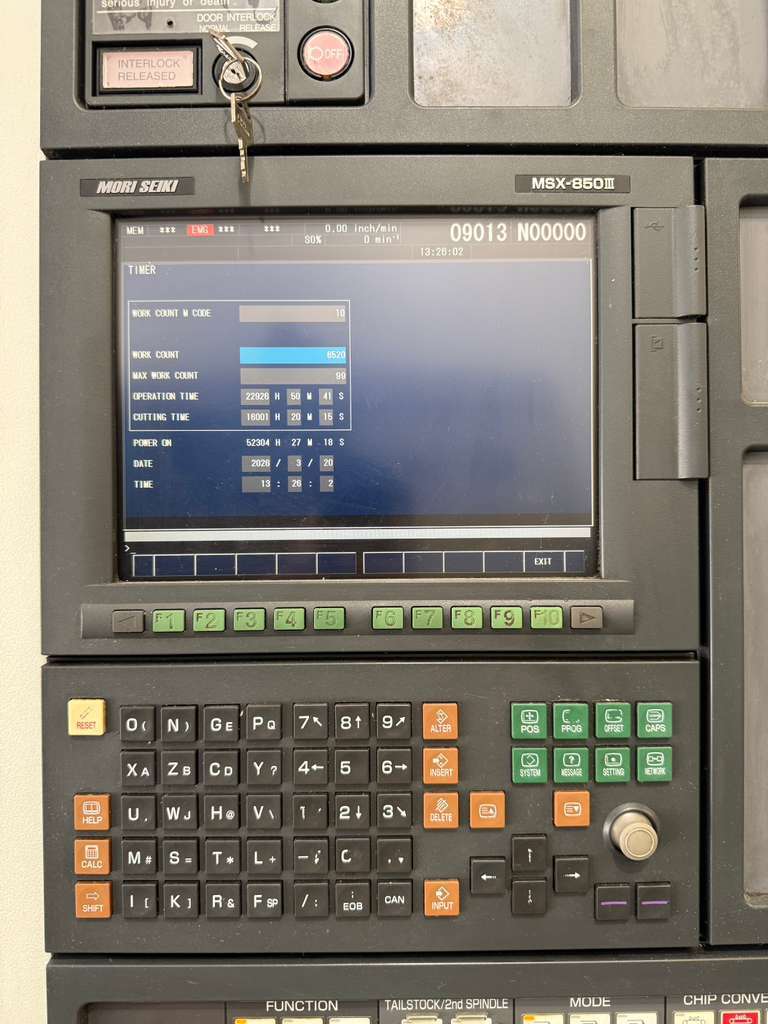

16,001 Hours Cutting Time
Rigid Tapping
Coolant Tank
Capacity:
Max Turning Diameter: 14.4"
Max Turning Length: 20.0"
Swing Over Bed: 22.8"
Max Bar Capacity: 2.50"
Travel:
X Axis Travel: 10.2"
Z Axis Travel: 23.2"
Y Axis Travel: 3.9" (±2.0)
B Axis Travel (Sub Spindle): 24.6"
C Axis: 360° (0.001°)
Rapid Traverse X,Z,B Axis: 1181 IPM
Rapid Traverse Y Axis: 394 IPM
Main Spindle:
Main Spindle Nose: A2-6
Main Spindle Bore: 2.9"
Main Spindle Speed: 5000 RPM
Main Spindle Motor: 20 HP

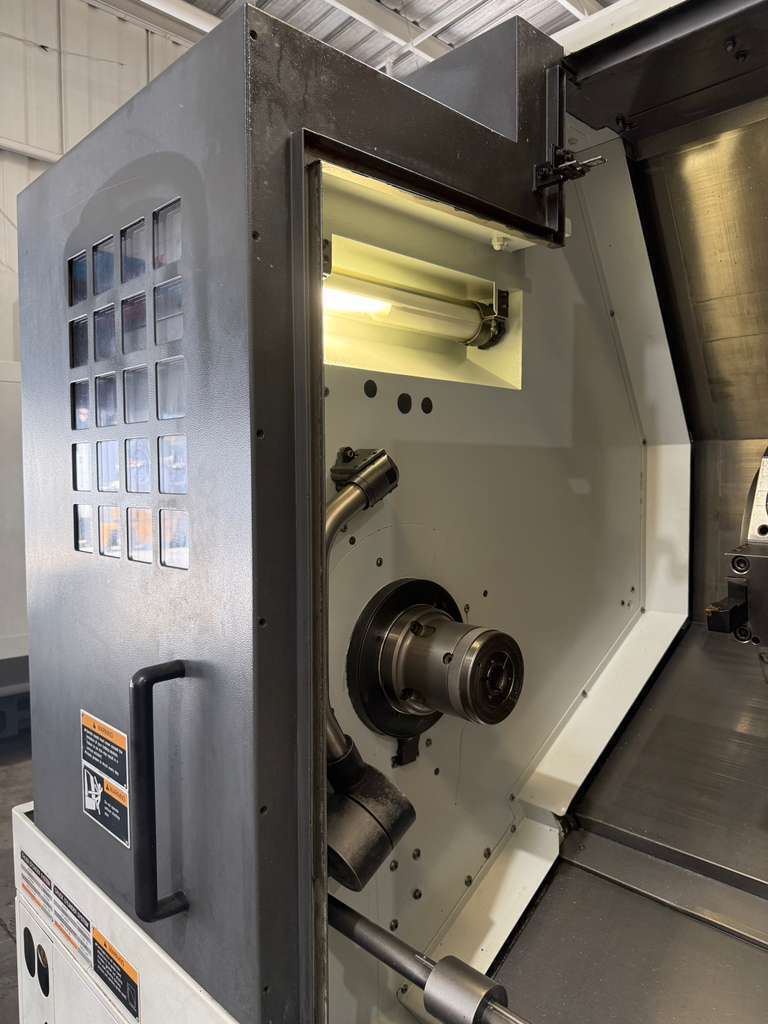

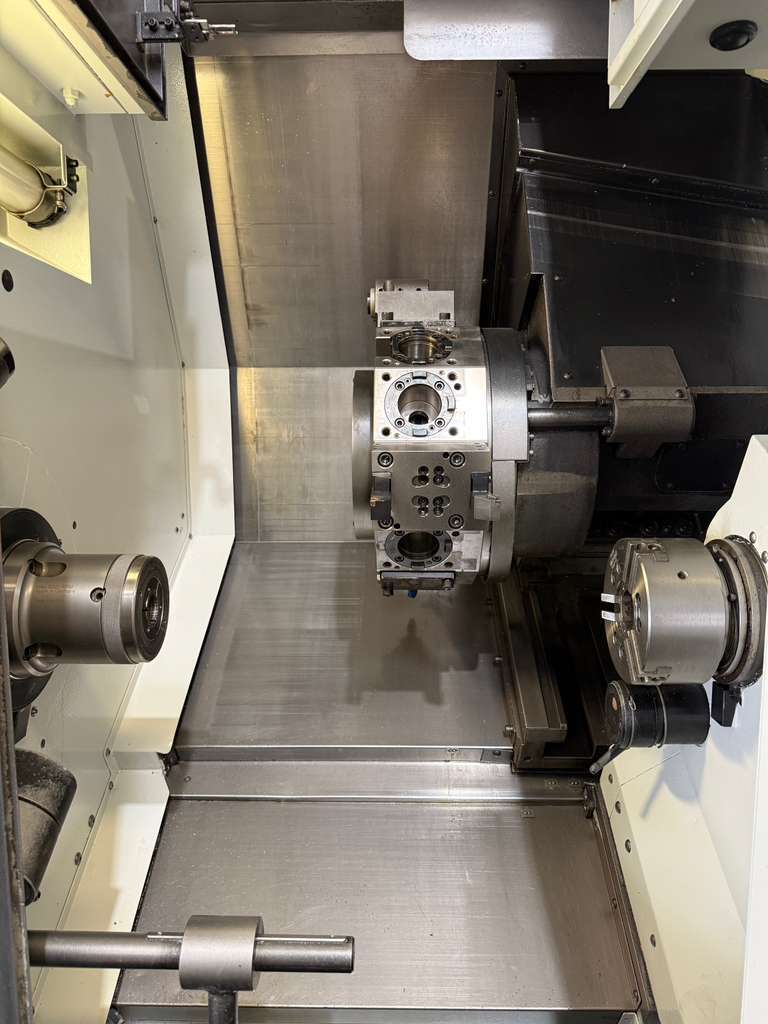

Sub Spindle:
Sub Spindle Nose: A2-5
Sub Spindle Bore: 1.7"
Sub Spindle Speed: 6000 RPM
Sub Spindle Motor: 15 HP

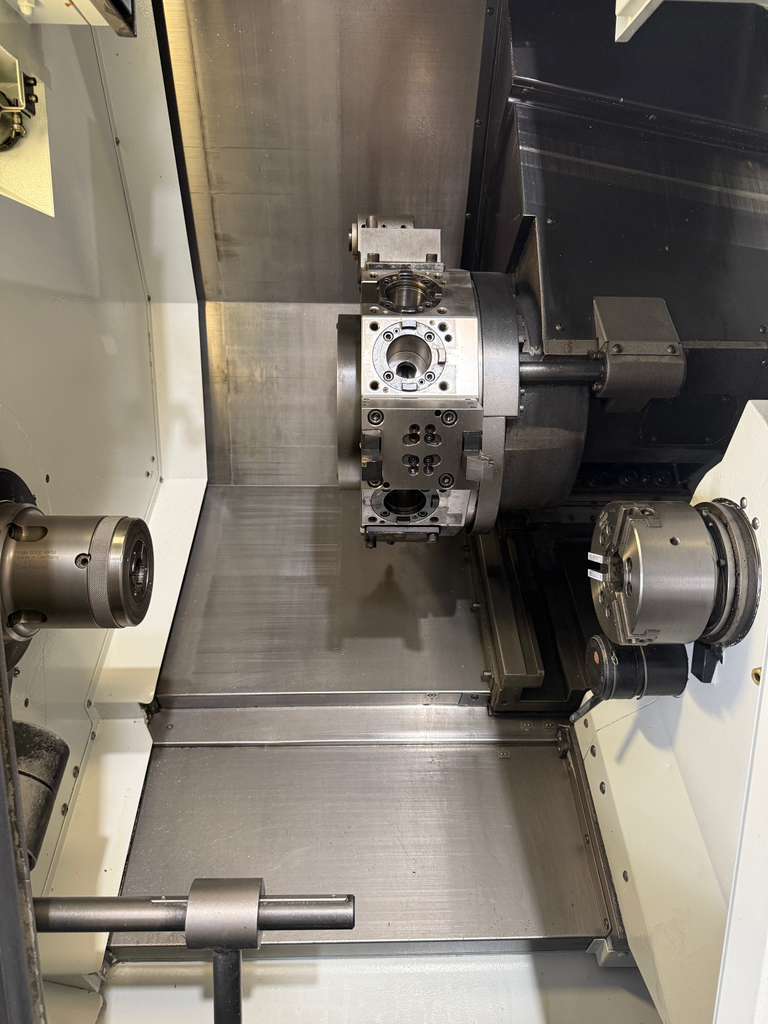

Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.25 Second
Rotary Tool Speed: 6,000 RPM
Rotary Tool Motor: 7.5 HP
Tool Holders Type: Bolt Mounted
General:
Power Source: AC 220 V, Three Phase, 60 Hz
Power Requirement: 38 kva
Overall Dimensions: 107" X 79" X 84" High
Weight : 12,785 lbs. Approx.
