Description

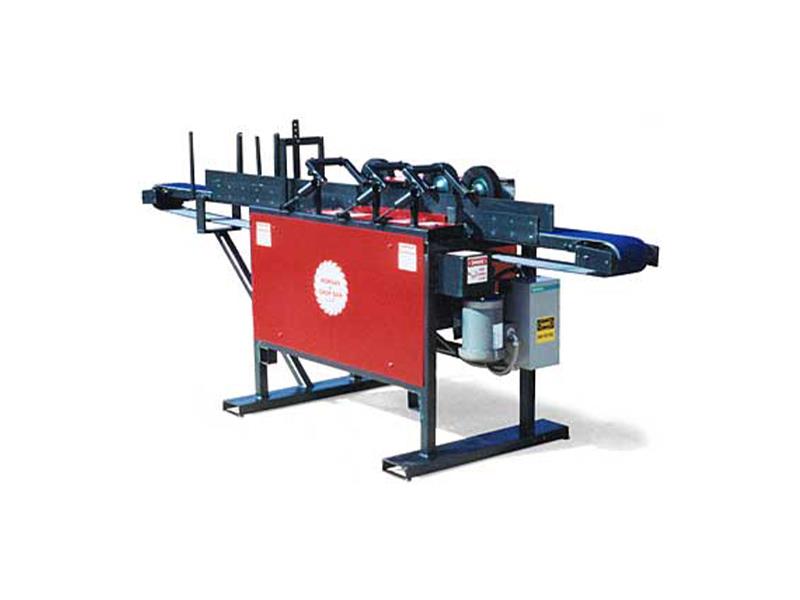

MORGAN BAND Military Band NotcherMorgan's Military "Band" Notcher is also known as a "Strap Notcher" or banding groove machine. Specifications: -- 10 HP Electrical motor. -- Automatic board feed with loading rack to hold 5 - 6 boards for notching. -- Belt-driven in-feed and out-feed conveyor with variable speed up to 70 Ft/Min. -- Notch depth is easily adjustable from 1/4" to 1" (Machine is set at 1/4"). -- Blades with 4-sided Carbide teeth can be re-sharpened. -- Enough blades to notch up to 1.5" width (Most only notch 1" but this machine will have the blades and the HP if specs change). -- Heads are adjustable from side-to-side for different material width. Maximum is a 4" x 6". -- Hold down-wheels and kickback finger. -- Heavy-duty square tubing frame. PRICING SUBJECT TO CONFIRMATION.
SKU: 129350, Model: AC0125-1, Condition: New, Additional :, Stock Number: ED9-AC0125-1, Designed for the Edwards 40, 50, 55, and 60 Ton Ironworkers, this Angle Notcher takes a precise 92 notch out of mild steel up to 3" x 3" x 1/4".
Grinding Capacity 12.7mm to 114mm Grinding Capacity 12.7mm to 114mm Angle Range Straight 90 Degrees to 30 Degrees Belt 6" x 78-3/4" Belt Speed 98.4 Feet Per Second Speed 3,420 RPM Voltage 230V ~ 3 Phase Dimension (LxDxH) 55" x 27" x 45" WEIGHT 600 Lbs. s Extra Spindles Sanding Belts.
Minimum Diameter 1 inches Maximum Diameter 4.5 inches Angle Range 0-60 at 3 O.D. Belt Size 7" X 79" Belt Speed 100 FPS Dust Extraction Powered Voltage Requirement 220V or 480V 3ph Motor 5 hp 50-60Hz Motor Speed 3,650 RPM Contact Wheel 5 optional Length, Width, Height 60 x 24 x 57 Shipping Weight 680 pounds, S:, * ...more
Notching Capacity (OD) 2" Angle Adjustment 0 - 60 Degree Belt Size 4" x 79" Belt Speed 5420 fpm Warranty 1 Year Parts Only Horsepower 3 H.P. Voltage 220V ~ 1 Phase Dimensions (L x W x H) 60" x 44" x 60" s 4" Abrasive Type Notcher Lever Feed With Adjustable Stop 1-1/4" Pipe Mandrel Self Centering Vise Quick Change ...more
