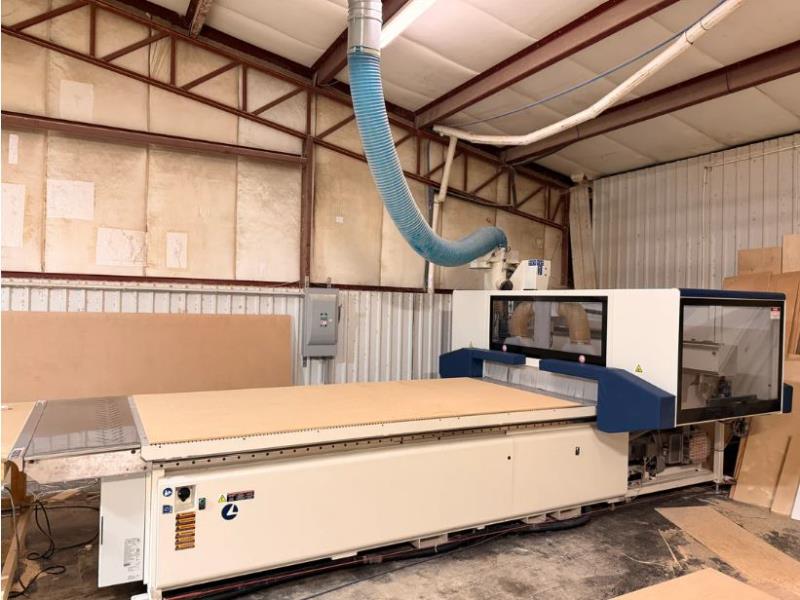

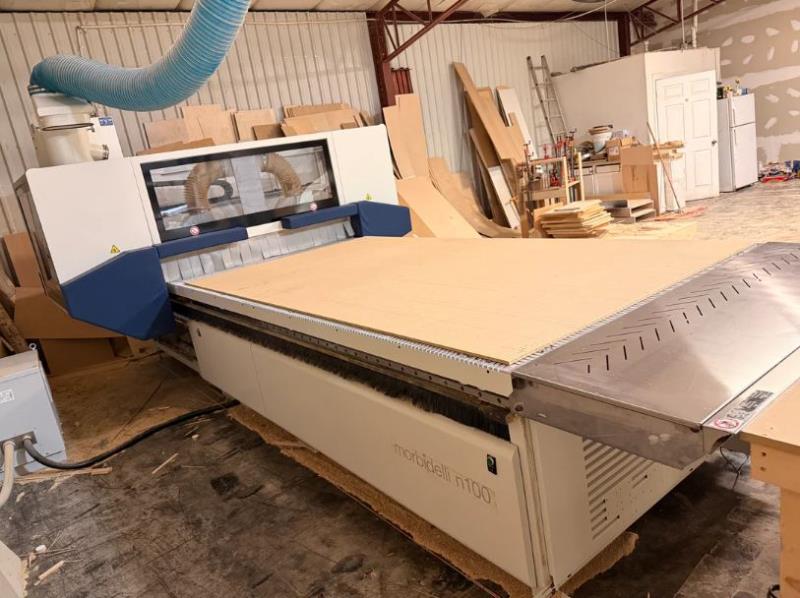

Morbidelli #N-100, CNC Machining Center w/ATC/Boring, 5' x 12' table, 145" X, 61" Y, 9.8" Z, 13 HP, 24000 RPM, 14-pos. ATC, 2021

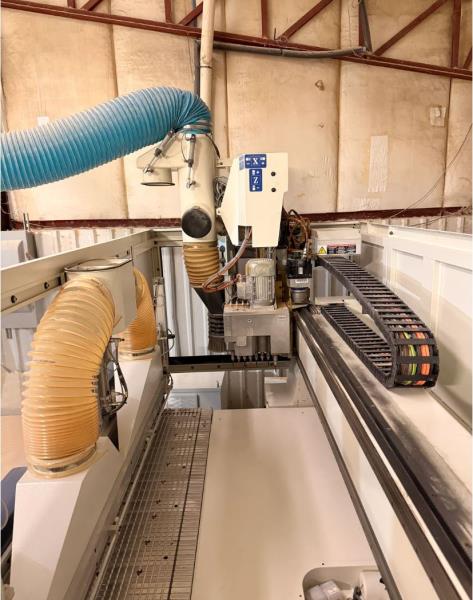

MORBIDELLI - N 100 15. Flat Table Machine with: ATC, Boring -- Specifications5' x 12' x 37"; H - High efficiency laminate aluminum with: Vacuum locking system.Grid pattern allows: Use of vacuum pods or closed cell rope gasket material; use of spoilboards for nested-base machining. Part location pop-up pins mounted on: Table perimeter; chips conveying device. -- Working AreaX-Axis: 3,686 mm (145.12"); Y-Axis: 1,555 mm (61.22"); Z- Axis stroke: 250 mm (9.8"); Z- Axis: 150 mm (5.9"). -- TravelsX-Axis: 4,230 mm (166.54"); Y-Axis: 1,985 mm (78.15"); Z-Axis: 250 mm (9.84"). -- Positioning SpeedsX- & Y- Axes: 35 MPM (114 FPM); moving gantry, high precision rack & pinion system for: X & Y Axes; ground ball screws for: Z-Axis. All axes ride on extra large precision profile linear guide ways. -- Boring Unit2.2 kW (3 HP) Motor; (12) independent vertical roto-axial spindles with: (8) In X-Axis; (4) in Y-Axis; max. spindle speed: 8,000 RPM. -- Machining(1) 9.6 kW (13 HP) Air-cooled electrospindle with: HSK F63 Adaptor; variable spindle speeds: 1,500 - 24,000 RPM; (1) 14-position TR side tool changer. -- Operator InterfaceMobile console: 17" LCD Display with Windows 7 Operating System.“XILOG PLUS Operator Interface & Xilog MAESRO CAD CAM free-form software with labeling. "MAESTRO SUITE" with: Auto-diagnostic to zooming; controlled acceleration & deceleration; encoder feedback; dynamic tool correction via PLC: Due to active tool wear using space-and-time criteria; "TECPAD" remote pendant with: 7" Color touchscreen & fitted with a USB port, which allows for a quick load & setup of new programs. -- Complete with: (1) 300 CBM/Hr Vacuum Pumps; air-conditioned electrical cabinet. - Universal 3-phase transformer.Electronic tool detecting length (touch probe) allows for: Detecting tool length without running a test program.Safety bumpers on both sides of the mobile unit allow: Safe movement while saving space by eliminating caging around the machine.
