Mitsubishi Electric MDS-EH-V1-80 Servo Drive

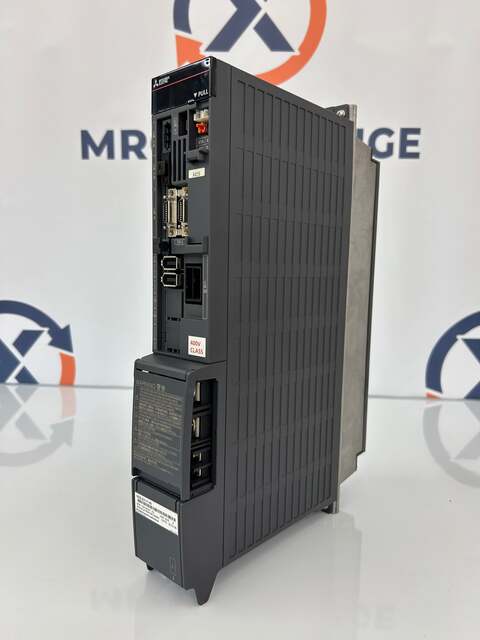

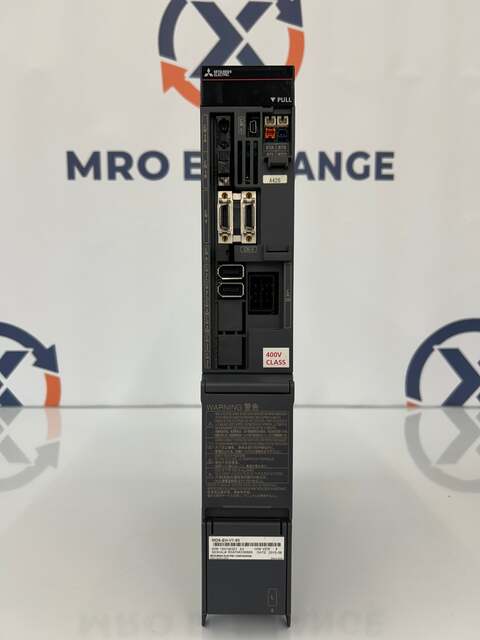

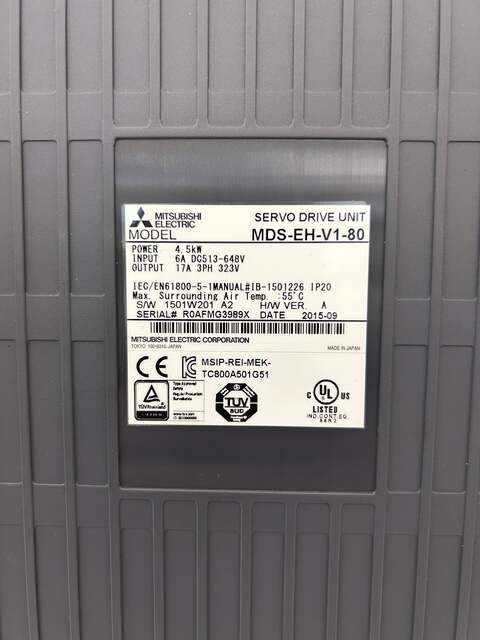

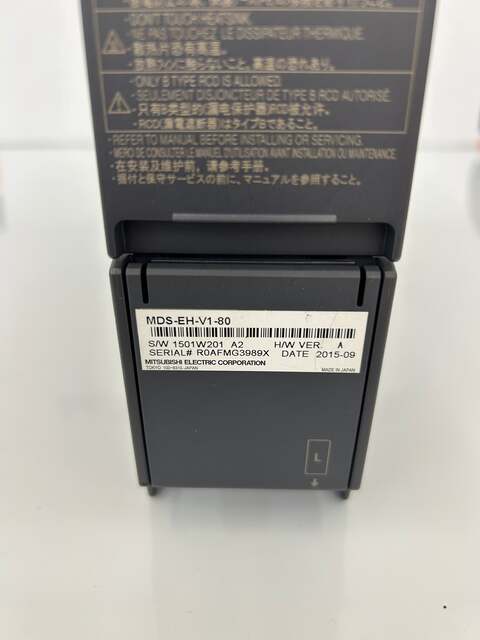

The Mitsubishi Electric MDS-EH-V1-80 is a single axis AC servo drive unit from the MELSERVO MDS-EH series, designed for use in CNC machine tool applications and commonly paired with Mitsubishi HF-H and HP-H series servo motors. The nameplate identifies a power rating of 4.5 kW, 6A input at DC 513V to 648V, and 17A three phase output at 323V. Construction follows the IEC/EN61800 5 1 standard with IP20 protection and a maximum surrounding air temperature rating of 55 degrees C. The unit carries CE, KC (MSIP REI MEK TC800A501G51), TUV, and cUL Listed (Ind. Cont. Eq., 88R2) certifications. Manual reference IB 1501226 applies. The unit shown carries software version 1501W201 A2, hardware version A, serial number R0AFMG3989X, with a date code of 2015 09, and is manufactured by Mitsubishi Electric Corporation in Tokyo, Japan. The MDS-EH series uses sine wave PWM control with current control method and supports fully closed loop control. The series is widely used in Mazak, Mori Seiki, and other Mitsubishi controlled CNC machining centers and turning centers. This MPN may also appear in listings as MDSEHV180 or MDS EH V1 80. Buyers should confirm software version compatibility with the target machine control before installation.

Stock # 0226-049
