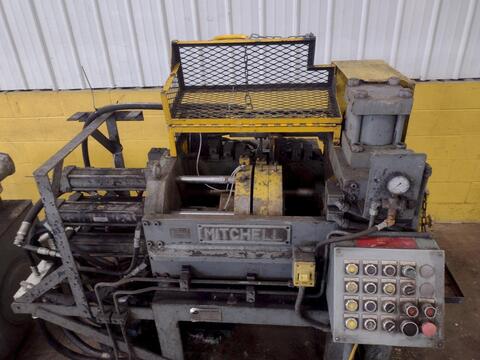

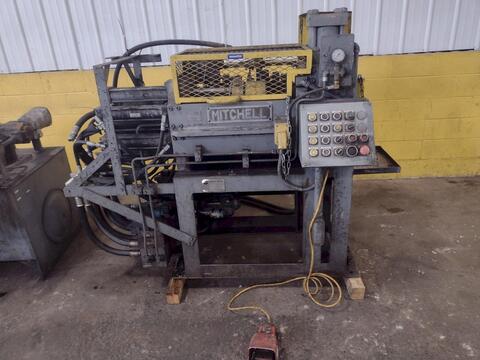

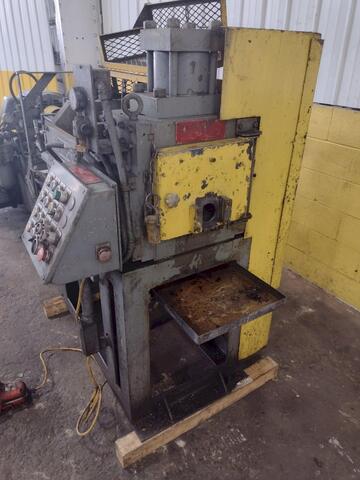

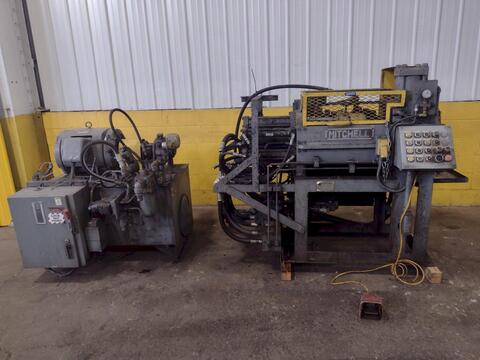

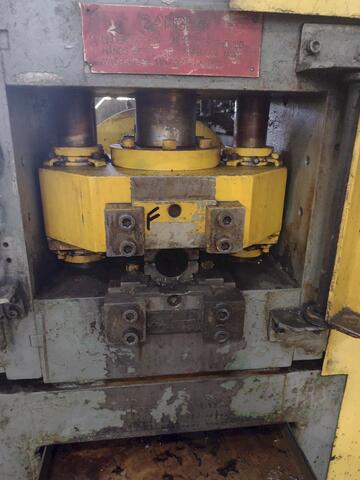

Mitchell, 4 die in line tubular conveyor roll shaft end forming machine, 25000 lb.

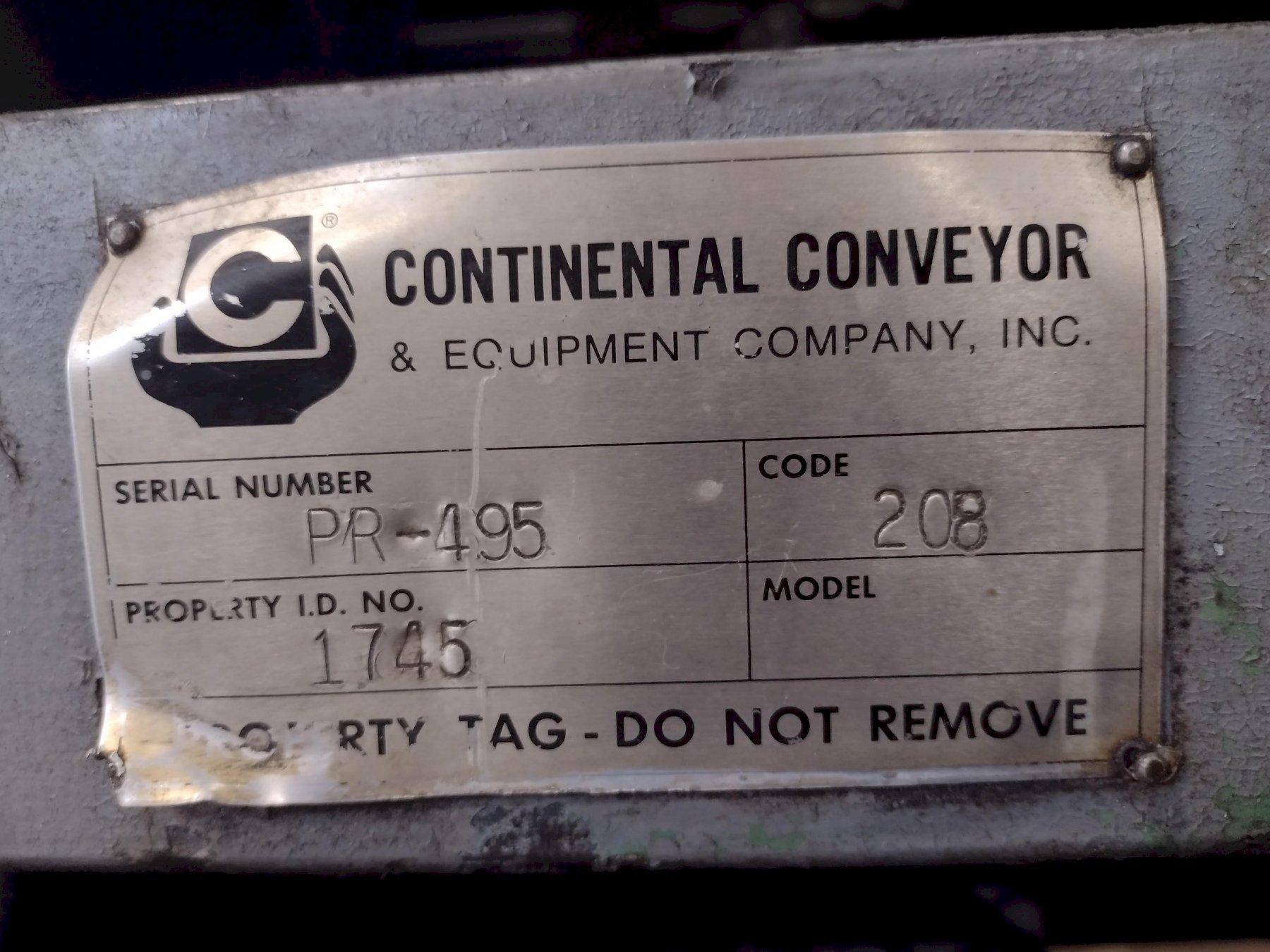

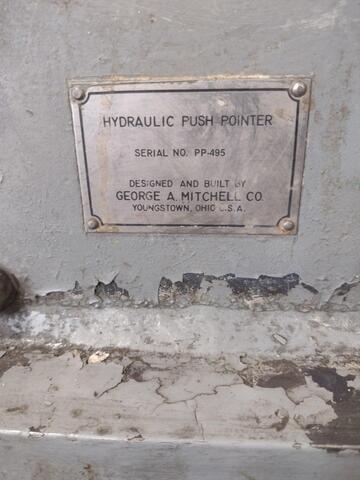

SERIAL .................................... PP495

RATED TUBE SIZES:
1-3/4" O.D. x .165" WALL
1-1/4" O.D. x .120" WALL
3/4" O.D. x .156" WALL

MIN CAPACITY OF CROSSHEADS(RATED):
#1, 2 & 3 .................................. 29.500 LBS @ 3000 PSI
#4 ......................................... 24,900 LBS @ 3000 PSI

MAX CAPACITY OF CROSSHEADS(RATED):
#1, 2 & 3 .................................. 29,500 LBS @ 3000 PSI
$4 ......................................... 24,900 LBS @ 3000 PSI

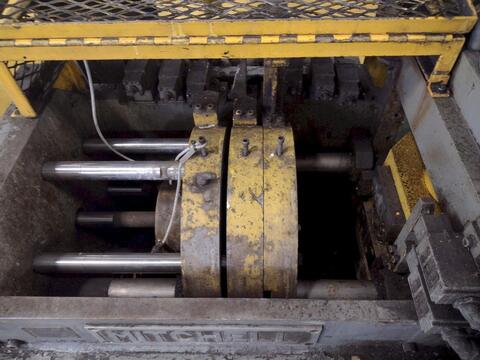

POINTING DIES:
#1, 2 & 3 .................................. 5" OD (SPECIAL FLANGED)

CARBIDE INSERT DIES:
#4 ......................................... 3-1/2" OD CARBIDE

NUMBER OF POINT LENGTHS .................... INFINITE BY ADJUSTABLE

LIMIT SWITCH:
MAX TRAVEL OF DIES ......................... 12"

POINTING SPEEDS:
ADVANCE #1 DIE TO POINT LENGTH ............. 60 IPM @1000 PSI
ADVANCE #1, 2, & 3 DIES .................... 349 IPM @ 2500 PSI
RETRACT #1, 2 & 3 DIES ..................... 534 IPM @ 1000 PSI
ADVANCE #4 DIE ............................. 328 IPM @ 2500 PSI
RETRACT #4 DIE ............................. 442 IPM @ 1000 PSI

AUTOMATIC CYCLE ............................ 1, 2, 3 OR 4 PUSH

TUBE GRIPPER JAWS:
MAX OD (SINGLE SIDED FIXED) ................ 1-3/4" MAX OD
LENGTH OF GRIPPER JAWS ..................... 10"
MAX OPENING BETWEEN GRIPPER JAWS ........... 1-3/4"
CLAMPING MECHANISM ......................... DIRECT ACTING

HYDRAULIC CYLINDER:
HYDRAULIC RESERVOIR ........................ 100 GALLONS
HYDRAULIC FLUID (PETROLEUM OIL) ............ 150-315 SUS @100E F

HYDRAULIC CYLINDERS:
#1, 2 & 3 DIE CROSSHEADS ................... (6) 2-1/2" BORE X 1-3/8" ROD
#4 DIE HOLDER .............................. (1) @ 3-1/4" BOR X 1-3/8" ROD
CLAMPING ................................... (1) @ 6" BORE X 3-1/2" ROD

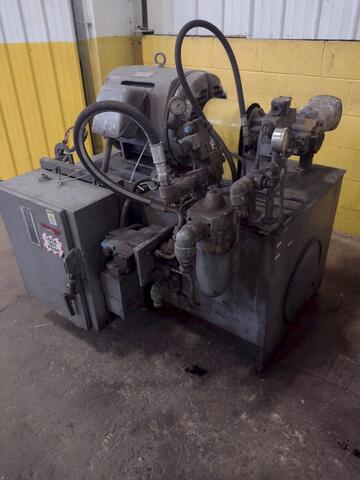

HYDRAULIC PUMP ............................. DOUBLE VANE PUMP
14.8 GPM @2500 PSI
11.8 GPM @ 2500 PSI

METHOD OF LUBING DIES ...................... LINCOLN LUBE
EJECTORS:
HYDRAULIC PUMP DRIVE MOTOR ................. 30HP/1200RPM/3PH/6HZ/TEFC/FR #326TC

HYDRAULIC PUMP DRIVE MOTOR STARTER SIZE 3 .. FULL VOLTAGE COMBINATION W/FUSED DISCONNECT IN NEMA 12 ENCLOSURE

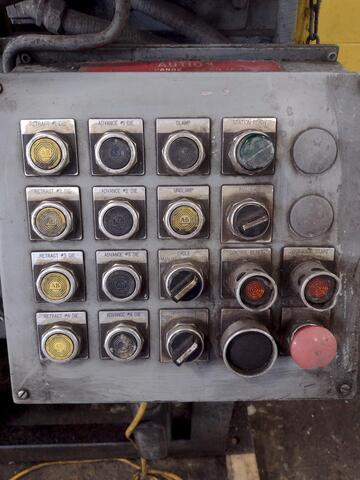

PROGRAMMABLE ELECTRICAL CONTROL ............ YES
MAIN POWER SUPPLY .......................... 460V/3PH/60HZ
CONTROL CIRCUIT ............................ 120V/SINGLE PHASE

SPECIAL TUNGSTEN CARBIDE FLANGED DIES FURNISHED FOR 1-1/4" DIA TUBES:

(1) - 1.050"
(1) - .875"
(1) - .756"

(1) PAIR SINGLE SIDED TRUE GRIPPER JAW ..... 1.250"
