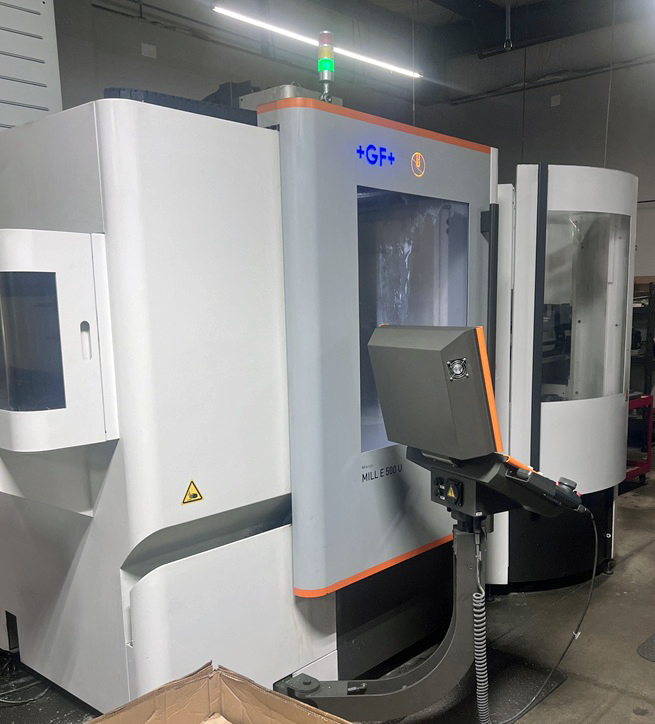

Mikron Mill #MILL-E-500U, 5-Axis vertical machining center, 19.7" X, 17.7" Y, 15.7" Z, 20000 RPM, 60 automatic tool changer, Heidenhain iTNC 640 Control, 50-70 bar thru spindle coolant, Chip Conv., probe, 2020

MACHINE OVERVIEW:
Machine was built 8/2020
Machine was first installed new in 2021
EQUIPPED WITH:
- 28 kva Isolation Transformer
- Adapter Kit 7x for System 3R Dynafix
- Air Pressure Booster
- APS (ADVANCE PROCESSING SYSTEM)
- Band Filter System 600L
- Calibration ball HH KKH 100mm tall for Kinematics
- Clamping System 3R Dynafix
- Complete Machine Enclosure
- Compressed Air through Spindle
- Compressed Air Through Spindle & TSC Prep.

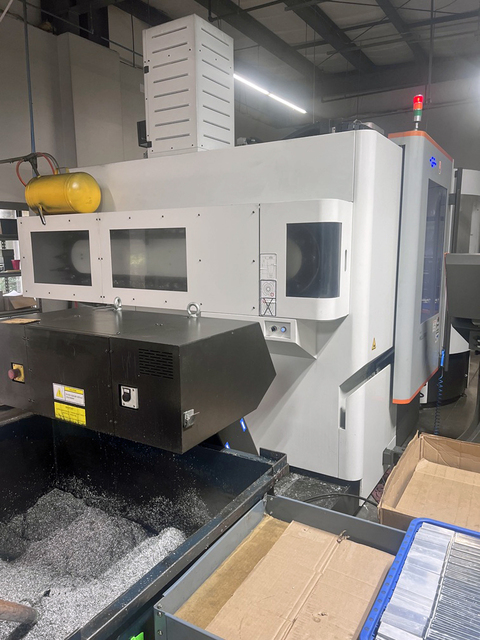

- Coolant system - Lift-up Chip Conveyor

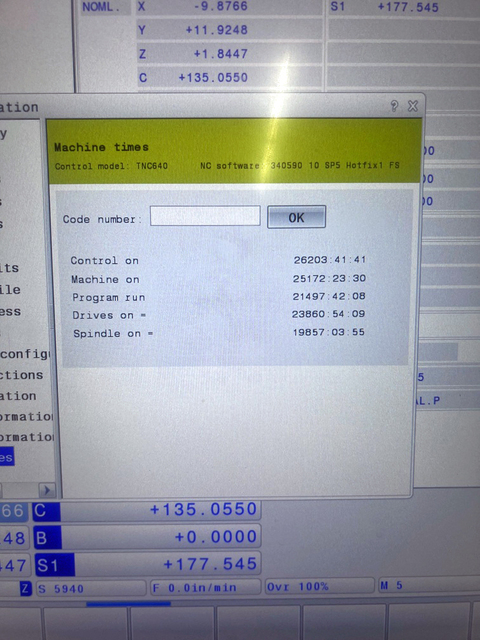

- Heidenhain CNC - TNC640
- Heidenhain Linear glass scales
- Interface for Pallet Changer
- ISM (Intelligent Spindle Monitoring)
- ITC (Intelligent Thermal Control)
- ITC-5X (5-Axis Intelligent Rotary Center Control)
- KinematicsOpt
- Laser Tool Measuring System
- Mist extraction unit
- 2 x used Pallets Dynafix 280×280 mm
- 1 x used Pallet Dynafix 280x280 mm with sphere for kinematics calibration
- Pallet Magazine (WPC)
- Preparation for Touch Probe
- Remote handwheel pendant

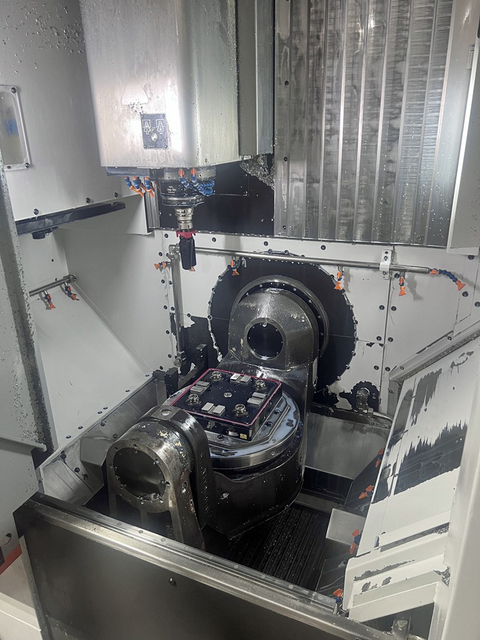

- Rotary Tilting Simultaneous Table - Direct Torque Motors
- Spindle 20.000 min-/ - HSK-A63

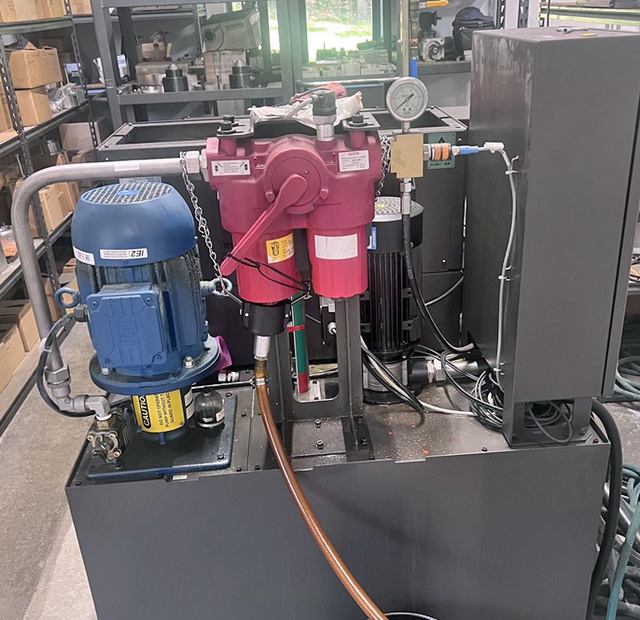

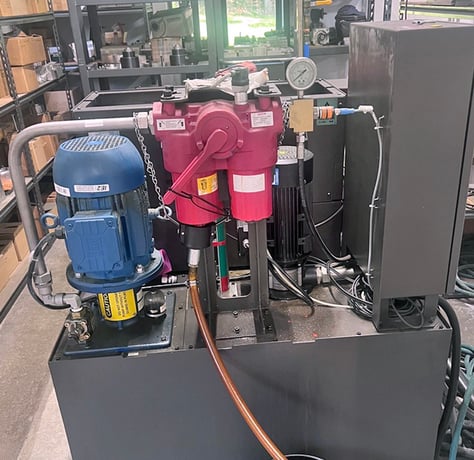

- Through Spindle Coolant 50-70 bar
- Tool Magazine 60 pos. / HSK-A63
- Touch Probe OMP 40/ HSK A63
- Wash down system
- Window for front door
Machine is offered subject to availability, prior sale, and terms & conditions of FRANKE CNC Sales Agreement. To the best of our knowledge all details listed are deemed correct. It is the Buyer's responsibility to confirm all details including condition, capacity, suitability or performance and we encourage an under power inspection of the machine(s) and accessories prior to purchase.
Price quoted includes the cost of loading onto truck supplied by Buyer.
