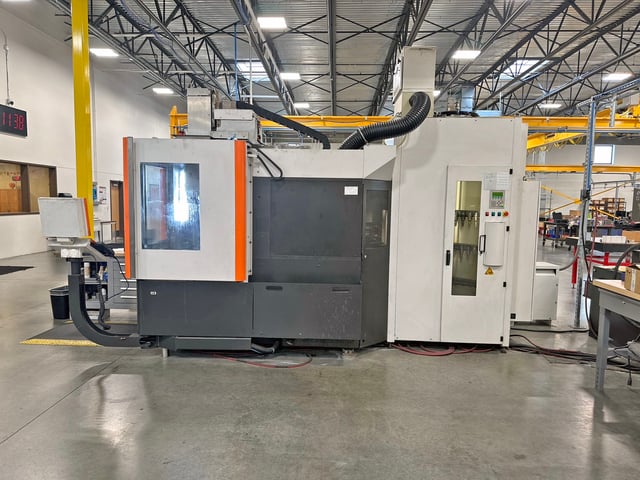

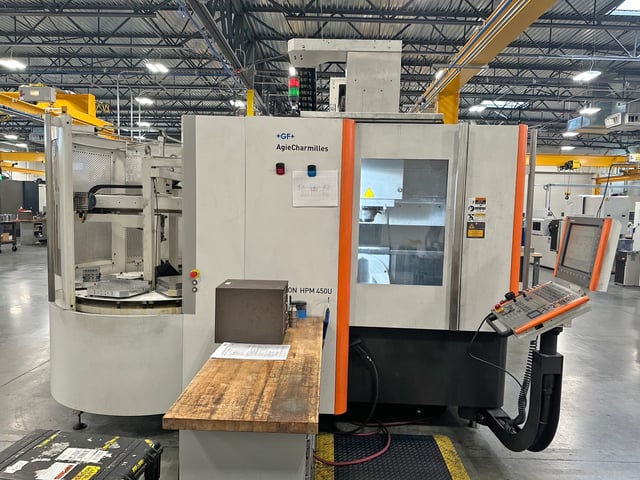

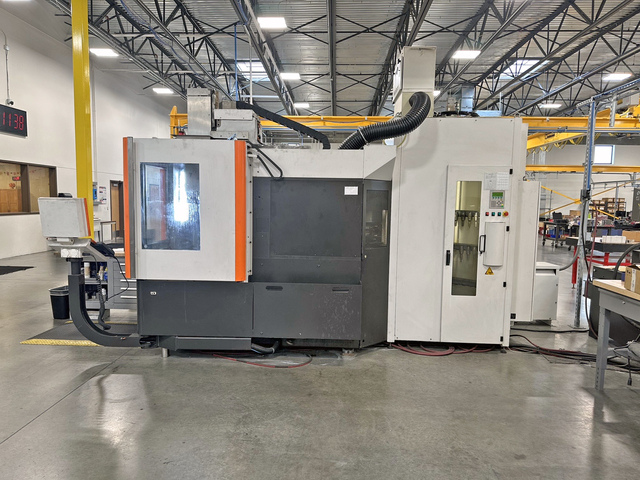

Mikron #HPM-450U, 5-Axis CNC vertical machining center, Heidenhain iTNC 530, 23.6" X, 17.7" Y, 17.7" Z, 20000 RPM, 40 HP, 120 automatic tool changer, 7 pallets, 2012

Machine was manufactured at +GF+ AgieCharmilles AG in Nidau, Switzerland 1/2012
Equipped With:
HEIDENHAIN iTNC 530 control with Ethernet and electronic handwheel for part setup
HEIDENHAIN direct measuring system glass scales X/Y/Z 0.00004" (1 um) resolution
HEIDENHAIN direct measuring system rotary encoders B/C 0.00004" (1 um) resolution
System 3R Dynafix 7 station automatic pallet changer
120 position tool tower automatic tool changer

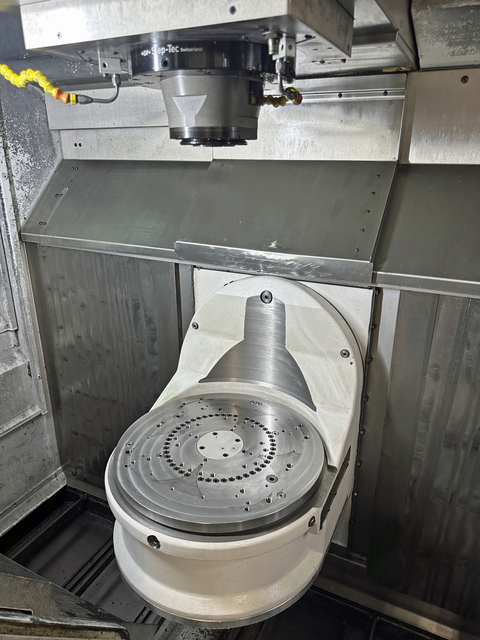

Hydraulic clamping in turning and swiveling axis
Liquid cooled feed motors
BLUM Laser tool measurement system with blow off unit
M&H infrared measuring touch probe
Complete machine enclosure
Oil mist extraction system

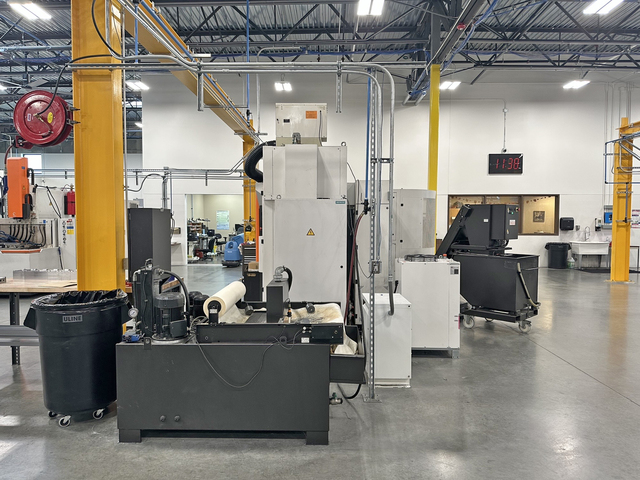

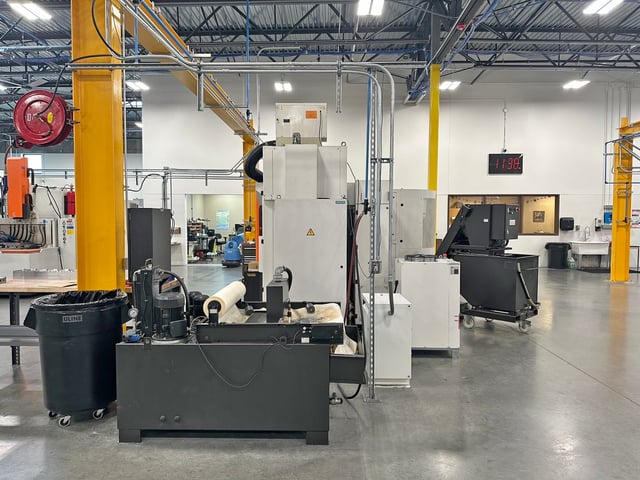

172 gallon (650 l) high performance coolant tank with micro paper filtration
260-1,000 psi(18-70 bar)adjustable high pressure coolant thru the spindle (CTS)

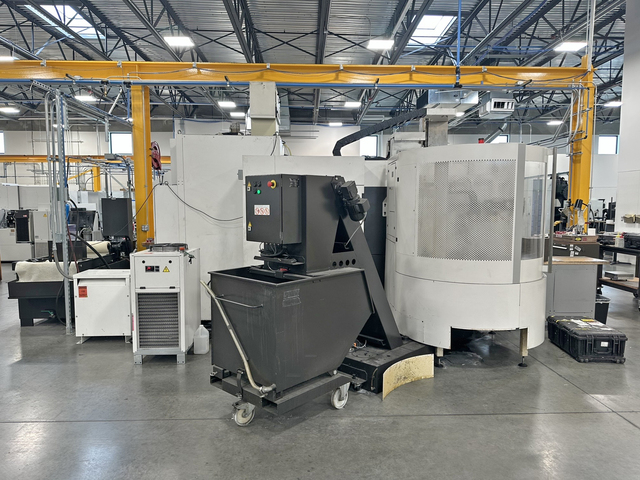

Chip conveyor for higher demands for aluminum machining
Rinsing gun
Beacon signal lamp
External spindle chiller
Machine is offered subject to availability, prior sale, and terms & conditions of FRANKE CNC Sales Agreement. To the best of our knowledge all details listed are deemed correct. It is the Buyer's responsibility to confirm all details including condition, capacity, suitability or performance and we encourage an under power inspection of the machine(s) and accessories prior to purchase.
