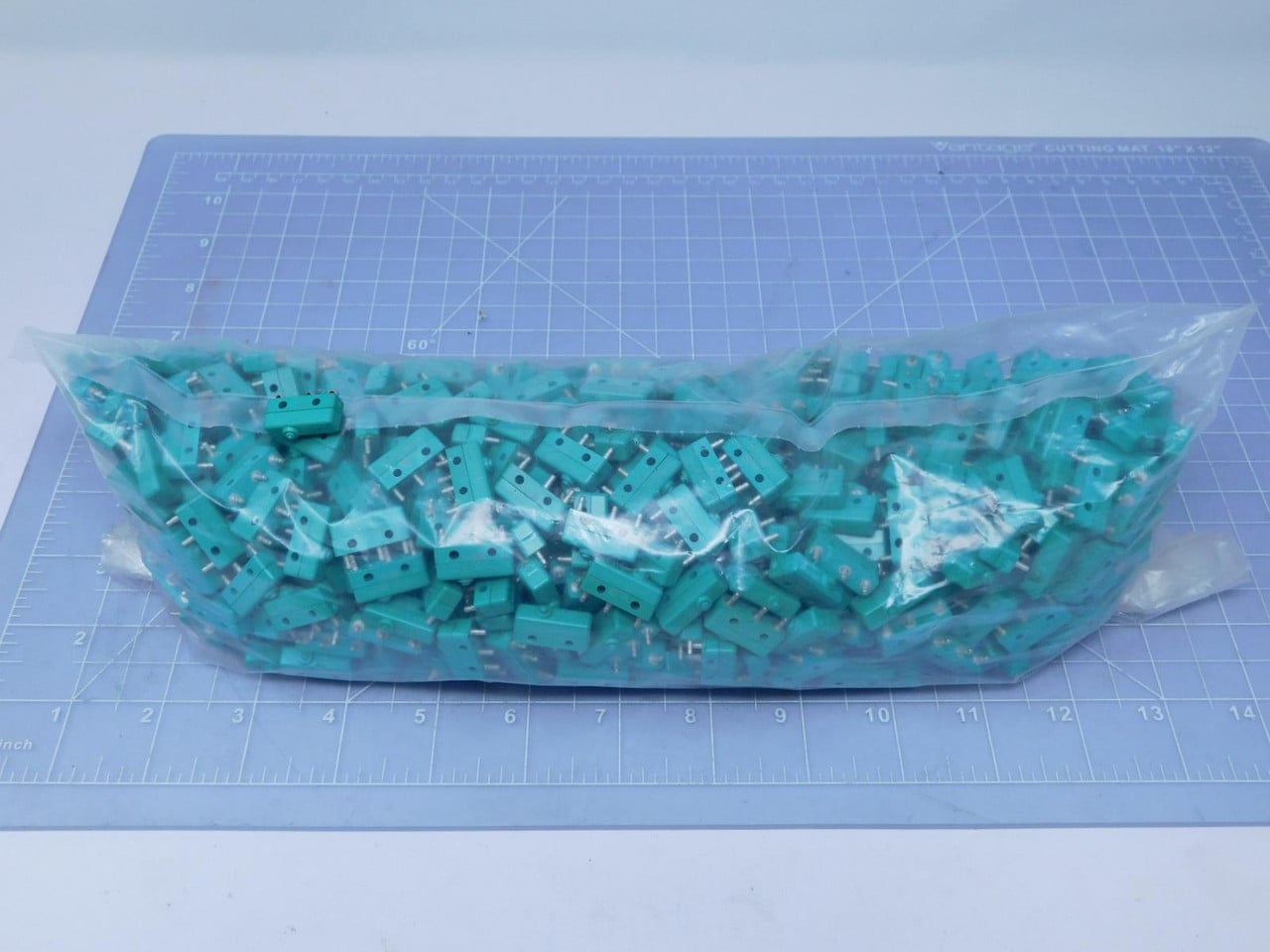

Micro Switch #21SM367-1222, basic / snap action switch, 1822, LOT of 650

$4,875 USD

Request Formal Quote

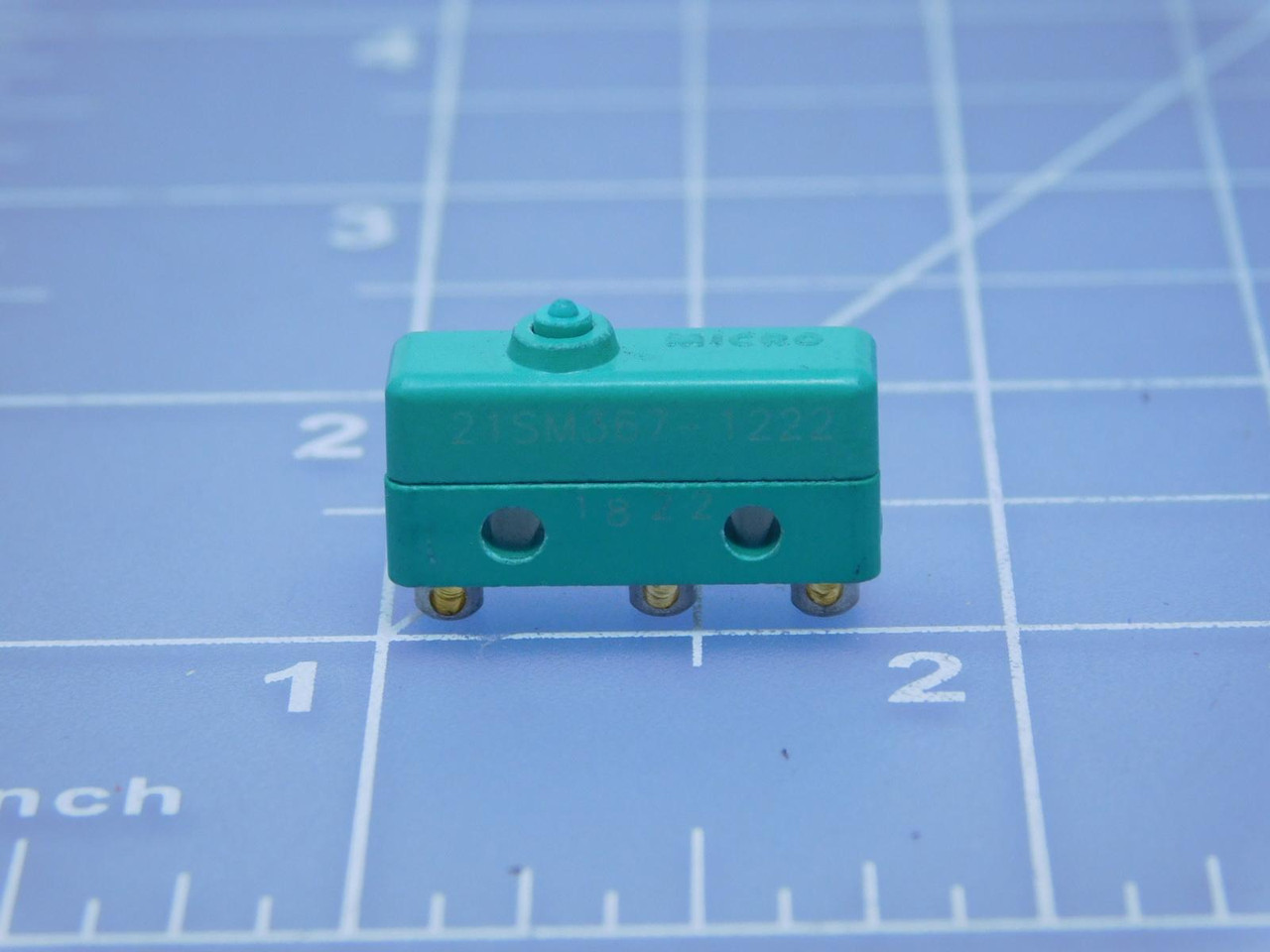

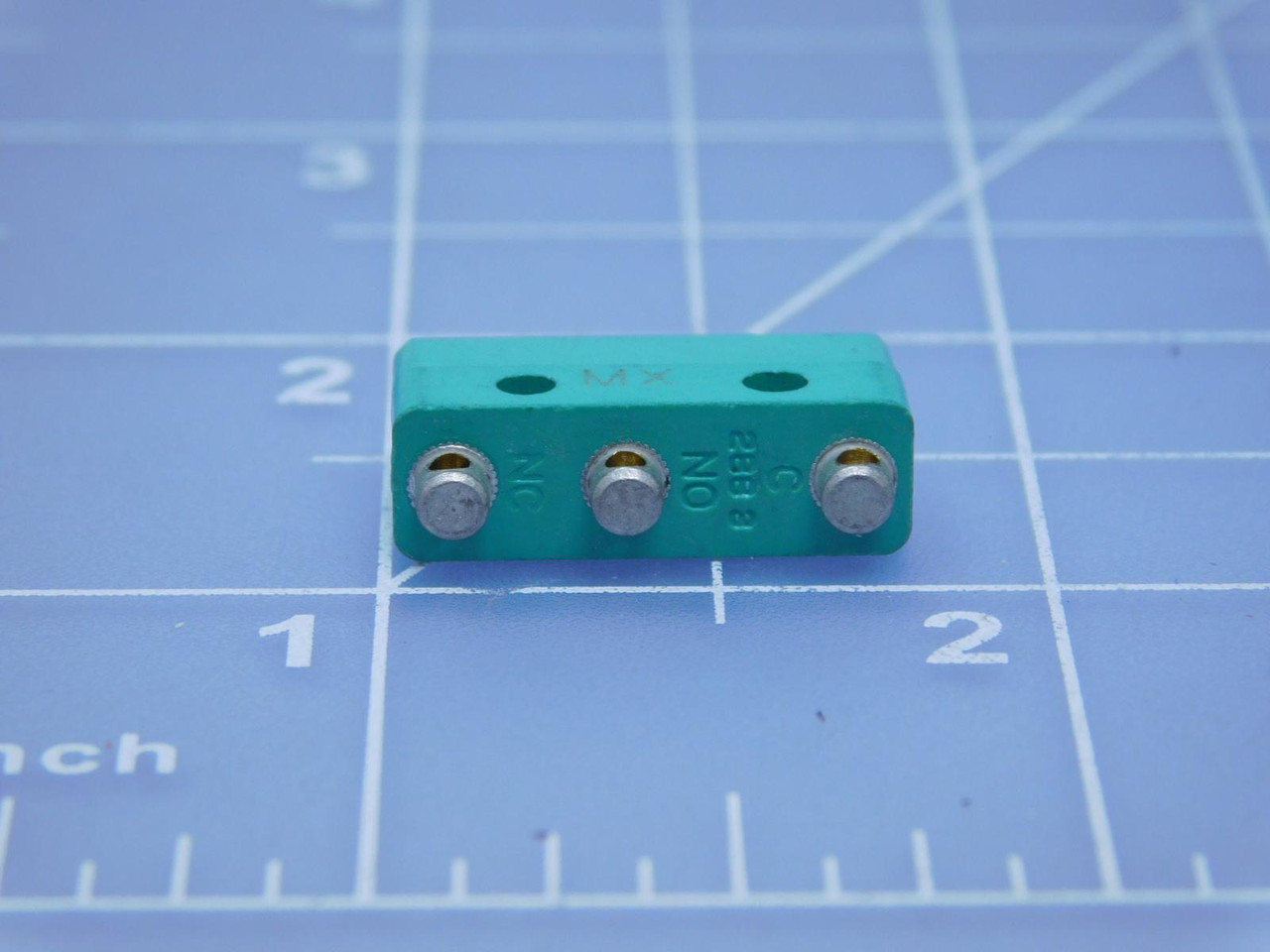

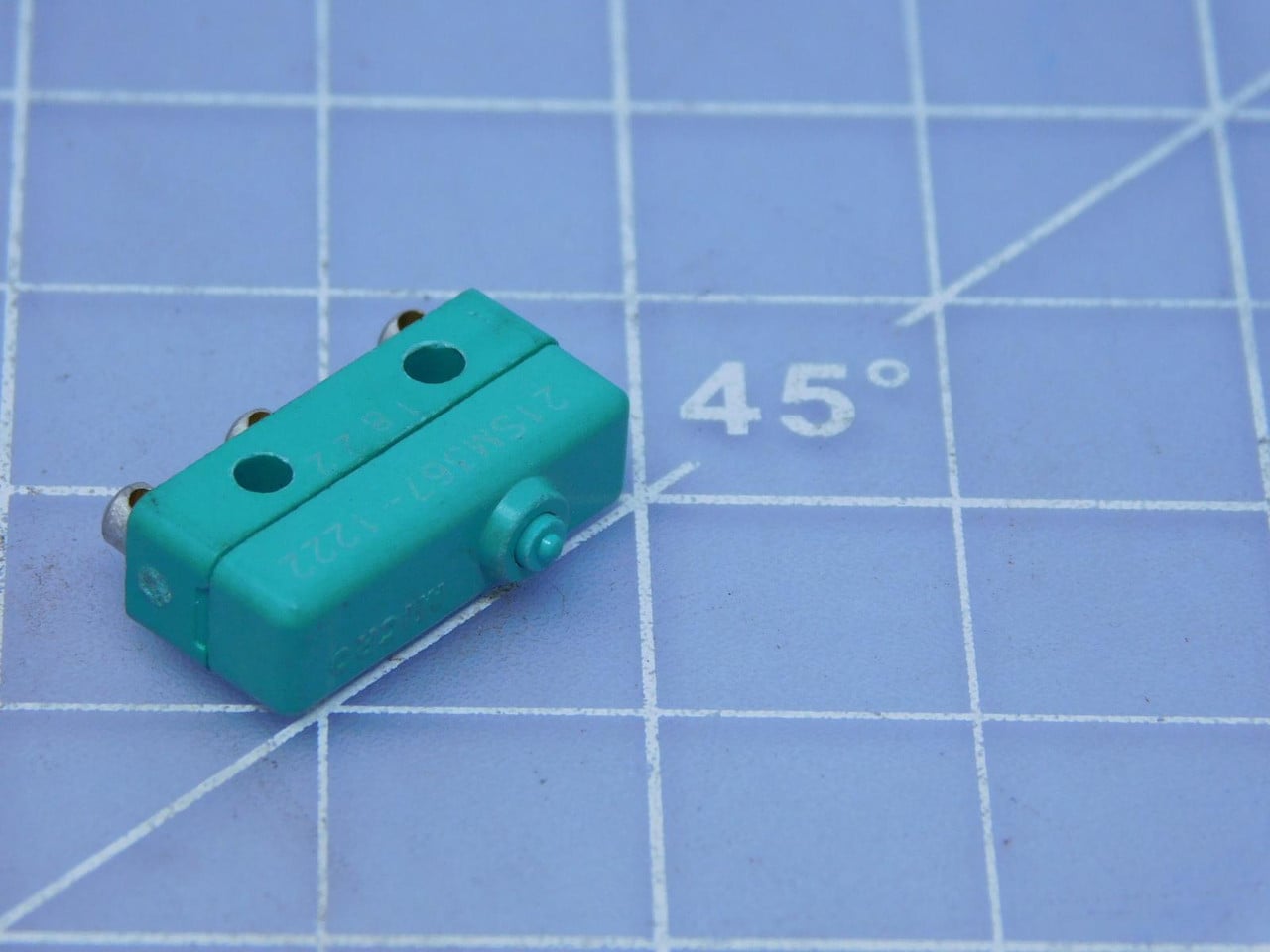

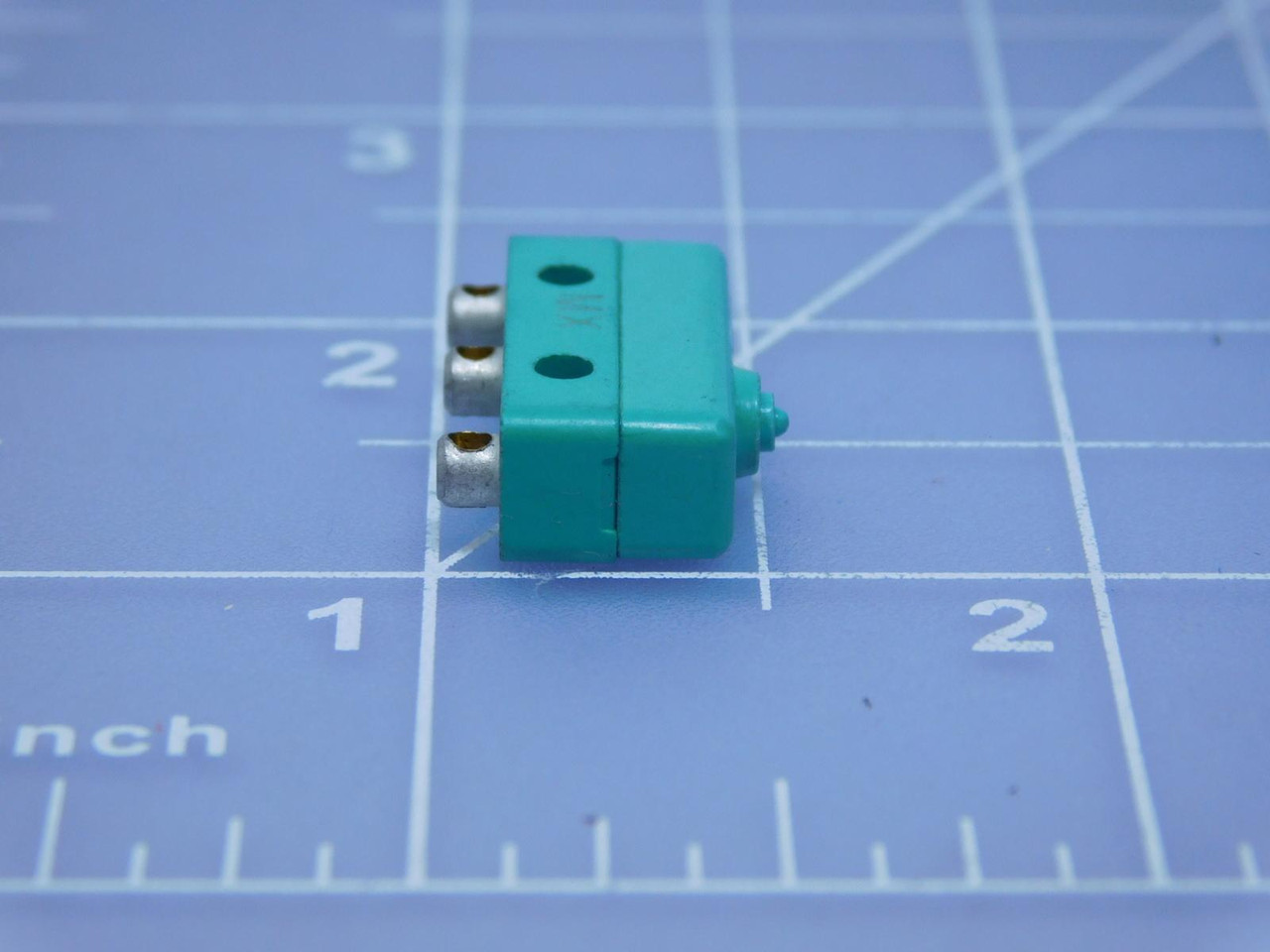

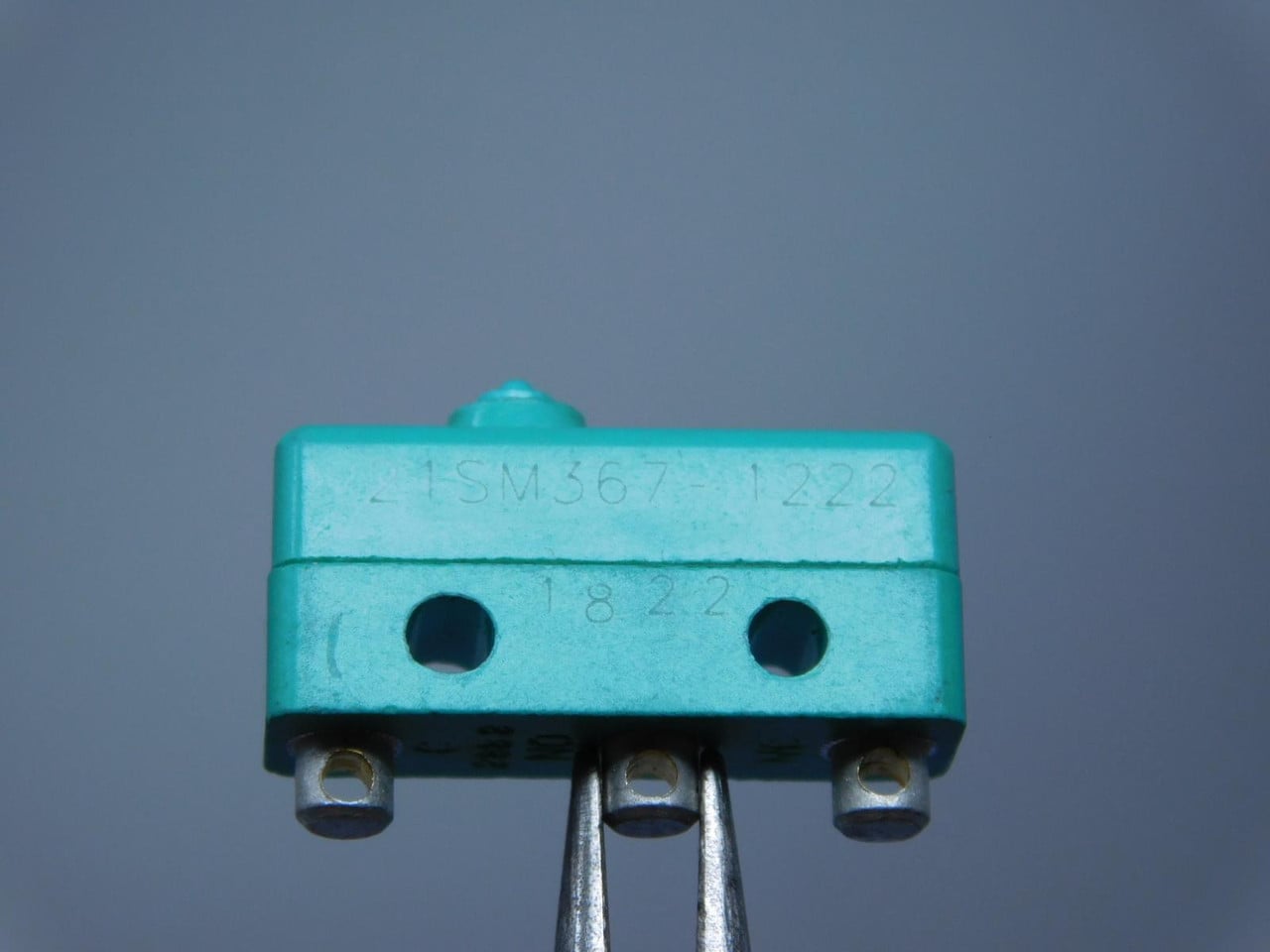

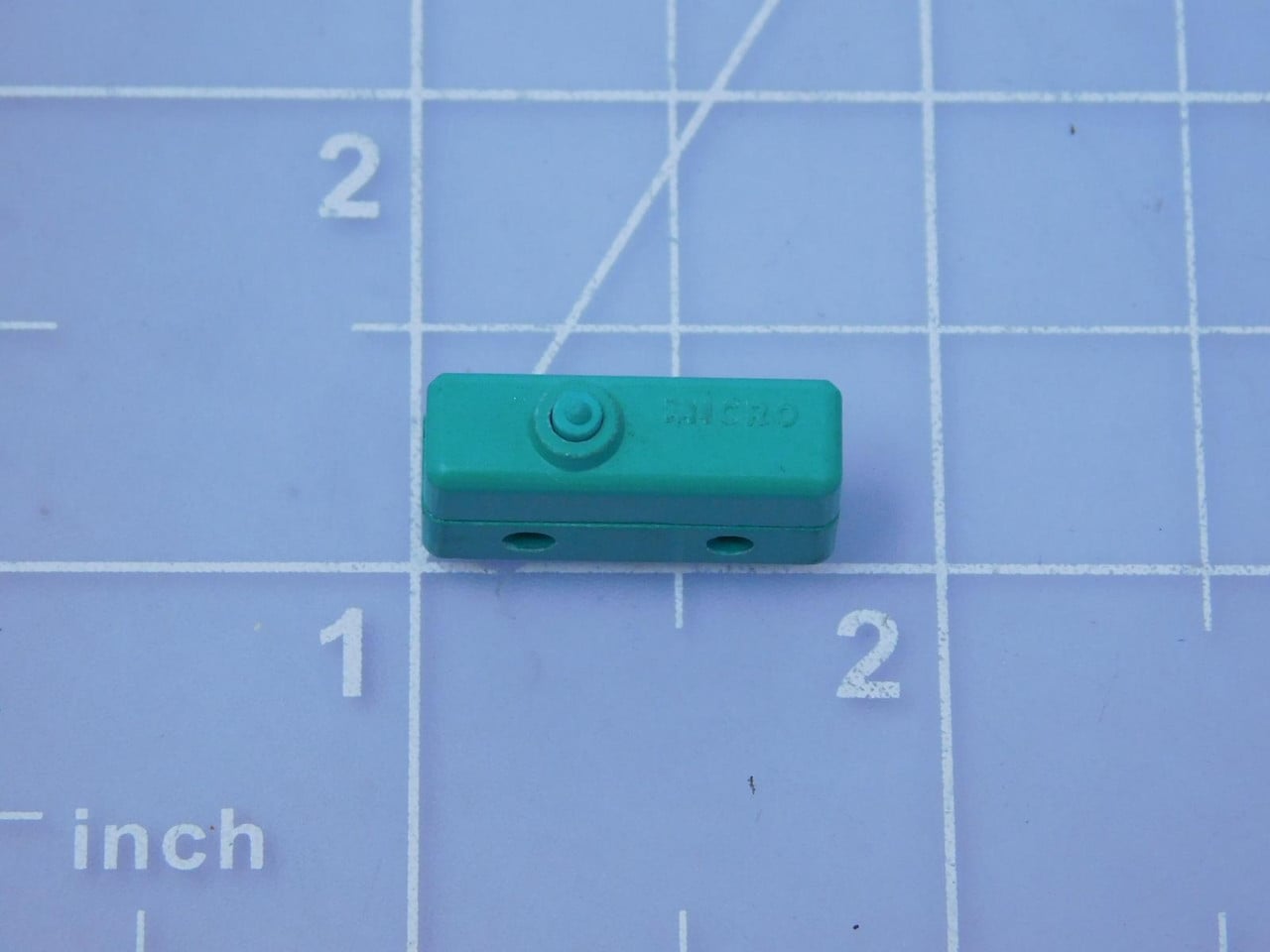

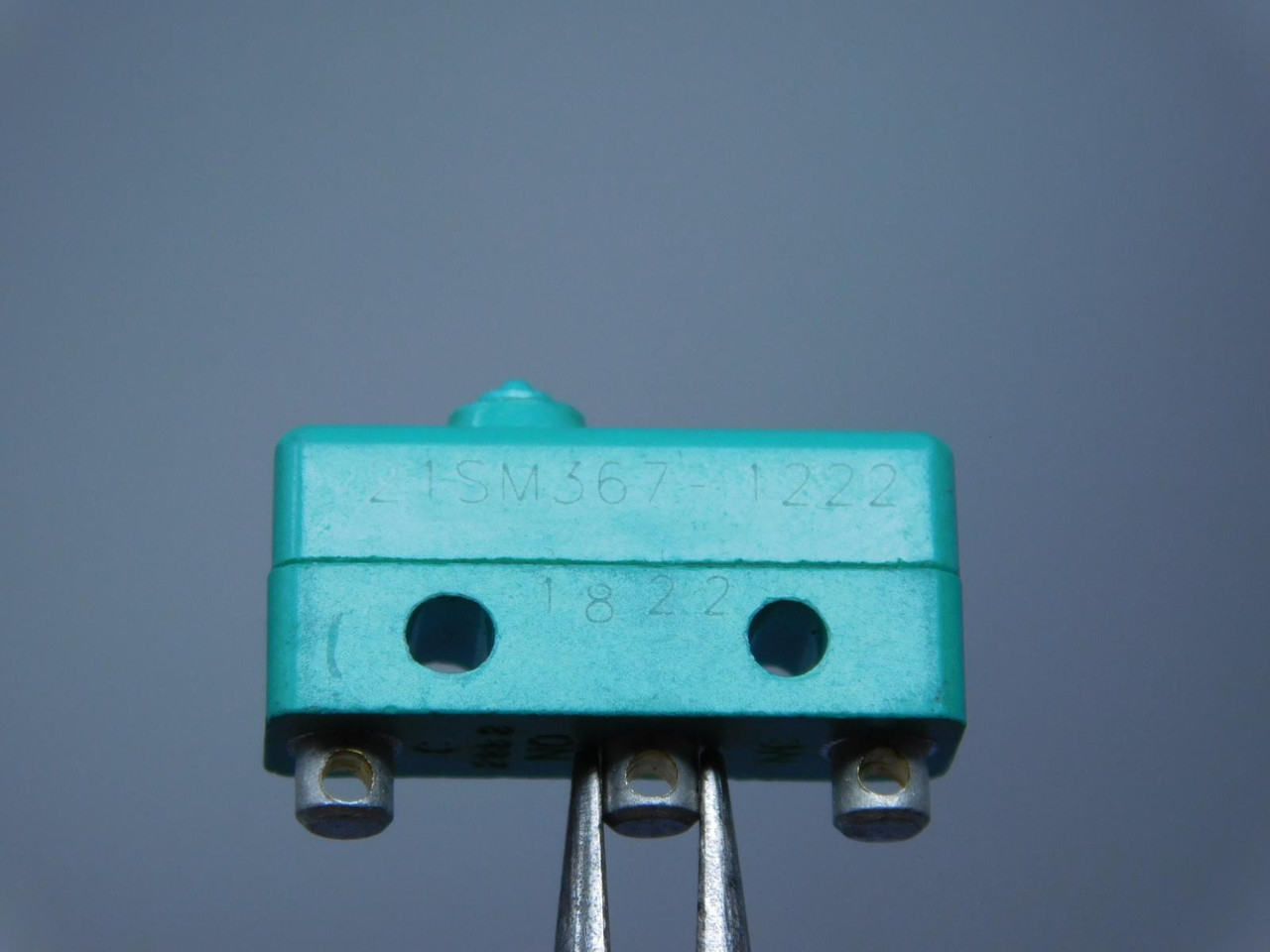

THE MICRO SWITCH 21SM367-1222 IS A SUBMINIATURE SNAP-ACTION BASIC SWITCH FEATURING A SINGLE POLE DOUBLE THROW (SPDT) CONTACT CONFIGURATION. THIS MODEL INCORPORATES A PIN PLUNGER ACTUATOR AND UTILIZES SOLDER TERMINALS FOR ELECTRICAL CONNECTION. IT IS RATED FOR AN ELECTRICAL LOAD OF 10 A AT 250 VAC, 0.5 A AT 125 VDC, AND 0.25 A AT 250 VDC. KEY OPERATIONAL CHARACTERISTICS INCLUDE A MAXIMUM OPERATING FORCE OF 1.94 N (7 OZ) AND A MINIMUM RELEASE FORCE OF 0.17 N (0.6 OZ). PRETRAVEL IS SPECIFIED AT A MAXIMUM OF 0.89 MM (0.035 IN), WITH A MINIMUM OVERTRAVEL OF 0.38 MM (0.015 IN) AND A MAXIMUM DIFFERENTIAL TRAVEL OF 0.05 MM (0.002 IN). THE SWITCH IS DESIGNED FOR OPERATION WITHIN A TEMPERATURE RANGE OF -55 TO 121 °C (-67 TO 250 °F), OFFERING A MECHANICAL LIFE OF 10,000,000 OPERATIONS AND AN ELECTRICAL LIFE OF 100,000 OPERATIONS AT ITS RATED LOAD.
