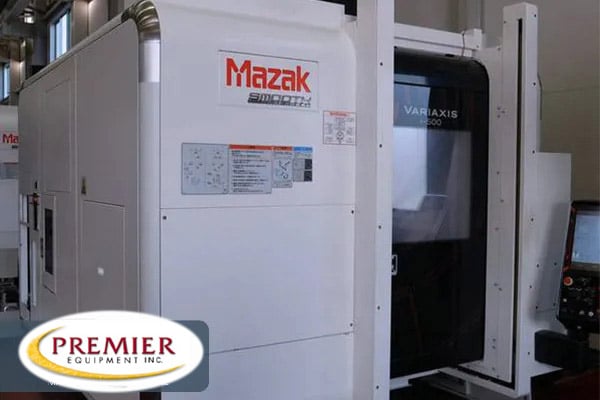

Mazak #Variaxis-i500, 5-Axis CNC vertical machining center, Mazatrol Smooth X Control, 13.7" X, 21.6" Y, 20" Z, 12000 RPM, 30 automatic tool changer, 2020

MAZAK VARIAXIS i500 5 Axis Machining Center

SPECIFICATIONS
X-AXIS TRAVEL 13.78″
Y-AXIS TRAVEL 21.65″
Z-AXIS TRAVEL 20.08″
C-AXIS TRAVEL 360 deg
A-AXIS TRAVEL -120 deg +30 deg
DISTANCE FROM TABLE TOP TO SPINDLE NOSE 1.97″ to 22.05″
TABLE SIZE 19.69″ x 15.75″
MAX WORKPIECE SIZE 19.69″ dia X 13.78″ H
TABLE LOAD CAPACITY 661 lbs
MAX. SPINDLE SPEED 12,000 rpm
SPINDLE TAPER 40 Taper
RAPID TRAVERSE RATE X 2362 IPM
RAPID TRAVERSE RATE Y 2362 IPM
RAPID TRAVERSE RATE Z 2205 IPM
RAPID TRAVERSE RATE A 18000 deg/min
RAPID TRAVERSE RATE C 18000 deg/min
SIMULTANEOUSLY CONTROLLED AXIS 5
MIN. INDEXING INCREMENT (A-AXIS & C-AXIS) 0.0001 deg
INDEXING TIME 0.55 sec / 90 deg (A-Axis)
TOOL SHANK 40 taper
TOOL STORAGE CAPACITY 30 Tools
TOOL CHANGE TIME (CHIP TO CHIP) 4.5 sec
SPINDLE MOTOR 30 / 20 HP (40% ED / Cont. rating)
MACHINE SIZE 94.49″ X 120.47″ X 117.13″

OPTIONS / EQUIPPED WITH
•MAZATROL SMOOTH X CONTROL
•12000 SPINDLE SPEED
•RENISHAW NC4 TOOL LENGTH MEASURING LASER TYPE
•WIRELESS RENISHAW REECEIVER CHIP CONVEYOR – BACK OUT / HINGE TYPE
•HIGH PRESSURE COOLANT SYSTEM (300 PSI)
•COOLANT THRU SPINDLE
•UNDER 12000 CUTTING HOURS
