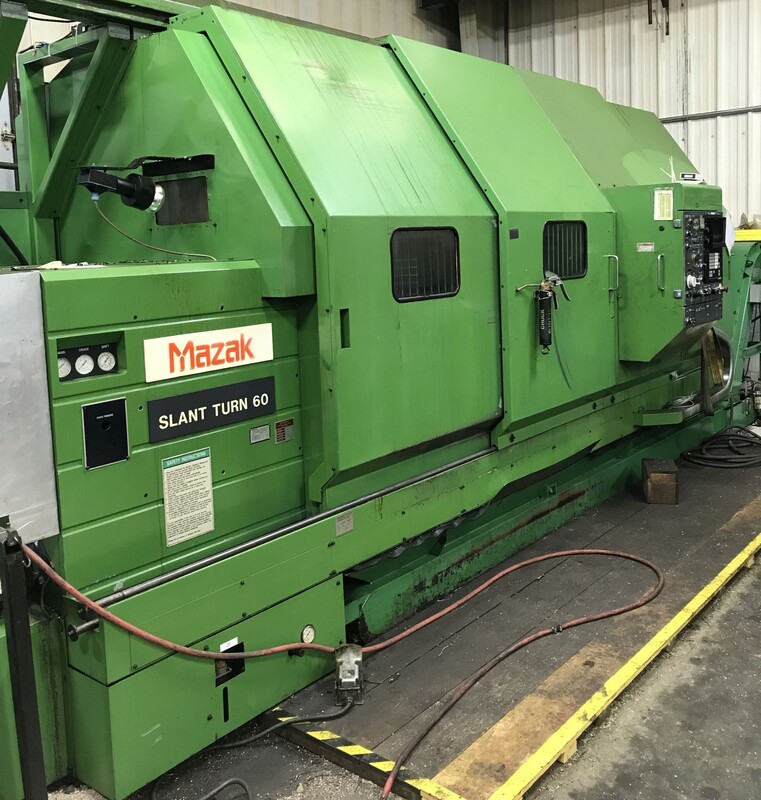

Mazak #Slant-Turn-60U, CNC turning center, 36" swing, 20" chuck, 6.5" spindle bore, 1989

1989 MAZAK ST 60 U
SPECIFICATIONS:
Swing.............. 36"
Machining Length... 105"
# Axis............. 2
Chuck Size......... 19.5"
Bar Capacity....... 6.5"
Power.............. 40 hp
Tailstock.......... Yes
Control............ CNC (Fanuc)
EQUIPPED WITH:
MAZAK SLANT TURN 60 CNC TURNING CENTER
Max Swing Over Bed...................................... 36."
Max Swing Over Turret................................... 27"
Chuck Size.............................................. 20"
Cross Travel (X-Axis)................................... 25.6"
Longitudinal Travel (Z-Axis)............................105"
Rapid Traverse Rate (X-Axis)............................ 315 IPM
Rapid Traverse Rate (Y-Axis)............................ 400 IPM

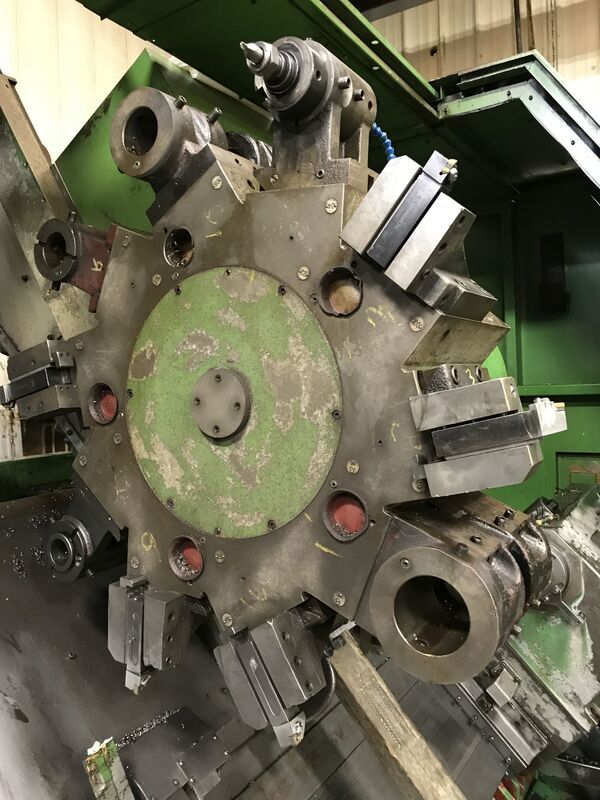

Number of Turrets....................................... 1
Turret Positions........................................ 15
Spindle Bore............................................ 6.5
Spindle Nose............................................ A2-11
Spindle Has Heavy Duty 4 Speed Fully
Enclosed, Gearbox
Spindle Speed Range ..................up to 1000 RPM

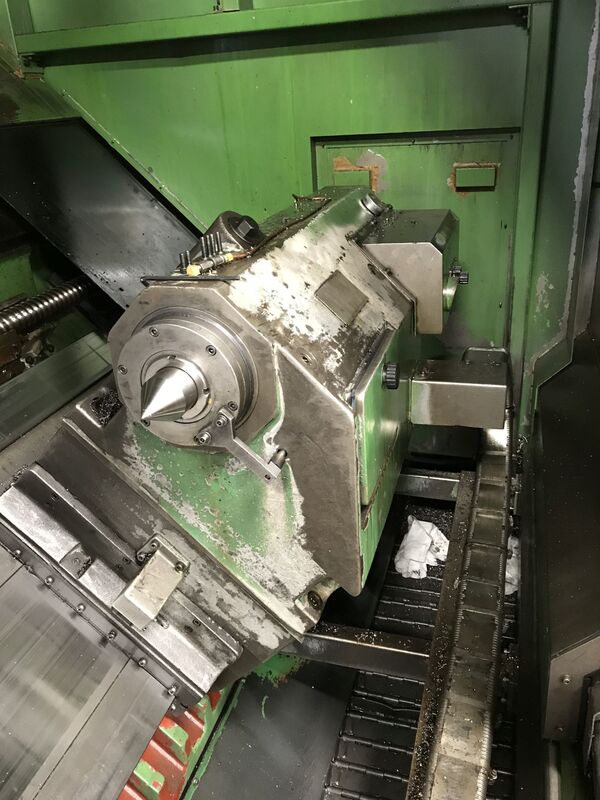

ProgramableTailstock
Tail Stock Quill Diameter........................... 5"
Tail Stock Quill Travel................................. 6"
Tail Stock Body Travel ................................77"
Machine Main Motor............................................... 40 Hp.
Approximate Overall Machine Dimensions.......................... 110" x 320"
Approximate Machine Height.............................. 130"
Approximate Machine Weight......................... 38,800 LBS
Coolant System, Chip Conveyor
Full Enclosure Sliding Doors
Hardened & Ground Ways

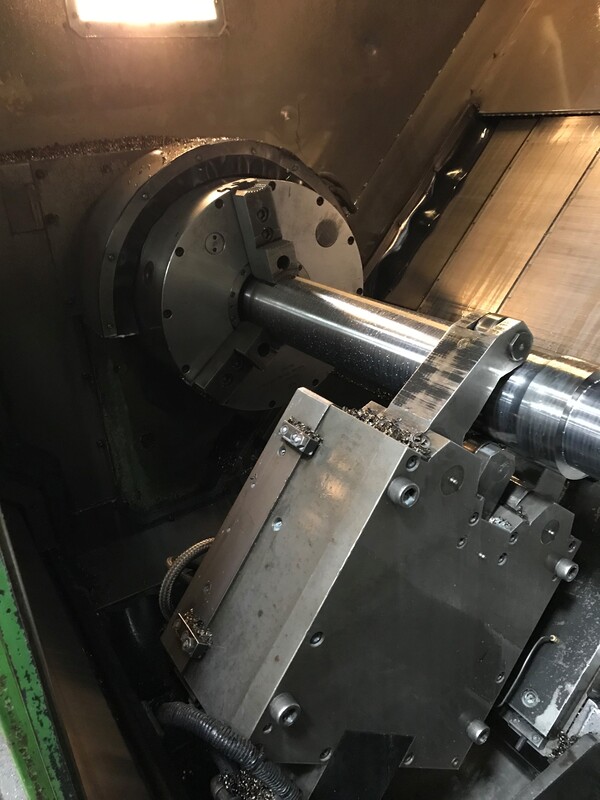

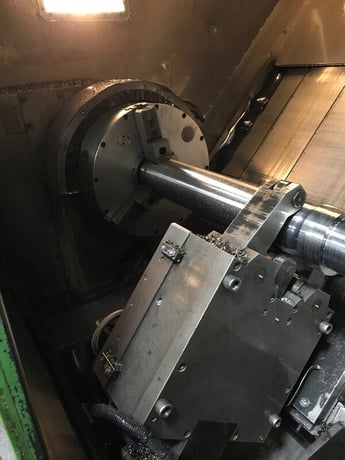

19 1/2" Forkardt Air Operated 3 Jaw Chuck
Hydraulic Steady Rest

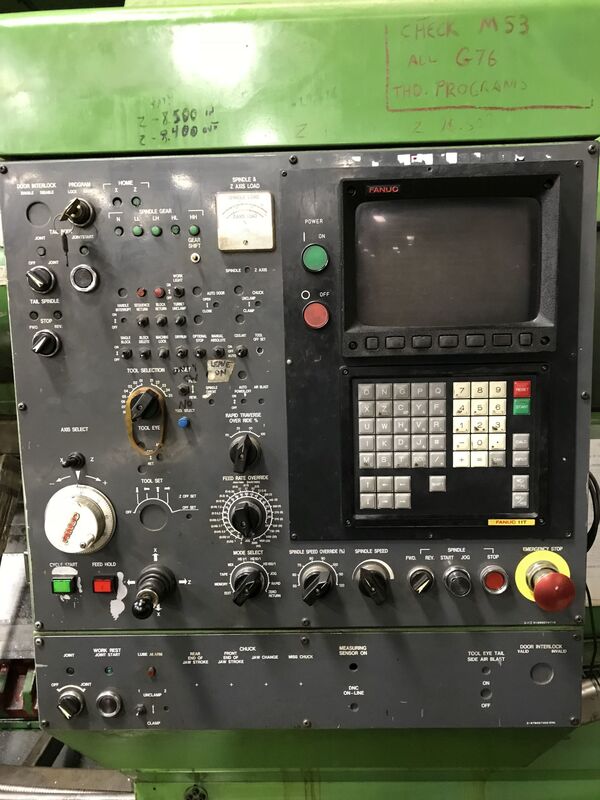

FANUC 11T CONTROL
These are Catalog Specifications
PULLED FROM LOCALPLANT MAKING PARTS, SOME UPGRADES RECEIVED NEW MACHINE
