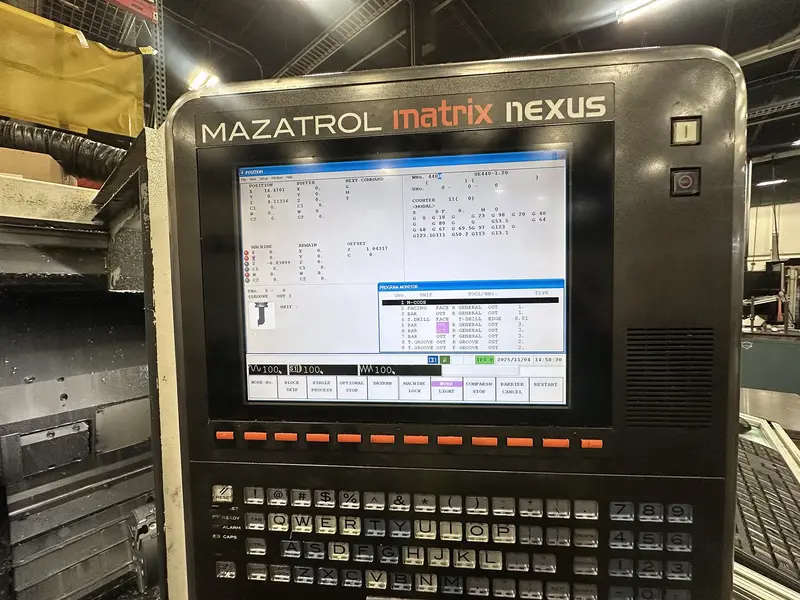

Mazak #QTN-250MSY, multi spindle lathe, 26.5" swing, 10" chuck, 3" bar, 21.2" centers, tool presetter, Mazatrol Matrix Nexus, LNS MOVE S-2 bar feeder, 2011

Sub-Spindle| Y axis| Clean Machine!

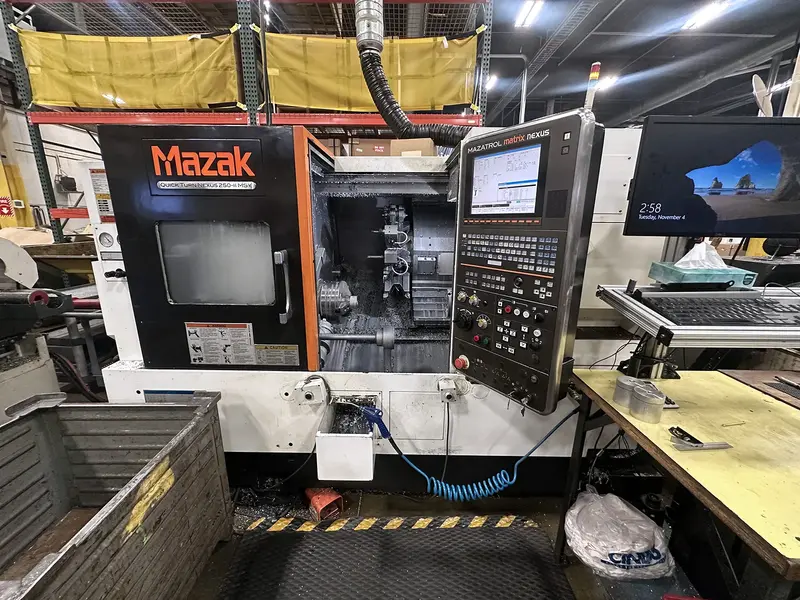

Used 2011 Mazak QTN 250 MSY Multi-Spindle CNC Lathe with Mazatrol Control, this is a high-performance turning center designed for efficient Done-in-One machining. Combining turning, drilling, and milling in a single setup, it is ideal for producing complex, high-precision components. Widely used in aerospace and medical device manufacturing, this machine delivers excellent surface finishes, accuracy, and productivity with its powerful spindle and direct-drive turret.
Maximum Swing : 26.5"
Max Turning Diameter: 14.75"
Main Spindle Bore/Max Bar Capacity : 3.46"/ 3.0"
Maximum Swing over Cross Slide: 14"
Distance Between Spindles: 21.28"
X-Axis Travel (X1, X2, X3) : 9
Z-Axis Travel (Z1, Z2, Z3): 22.62
Y-Axis Travel (Y1, Y2, Y3): + / - 2.0"
C-Axis Indexing (1, 2): .0001 DEGREE

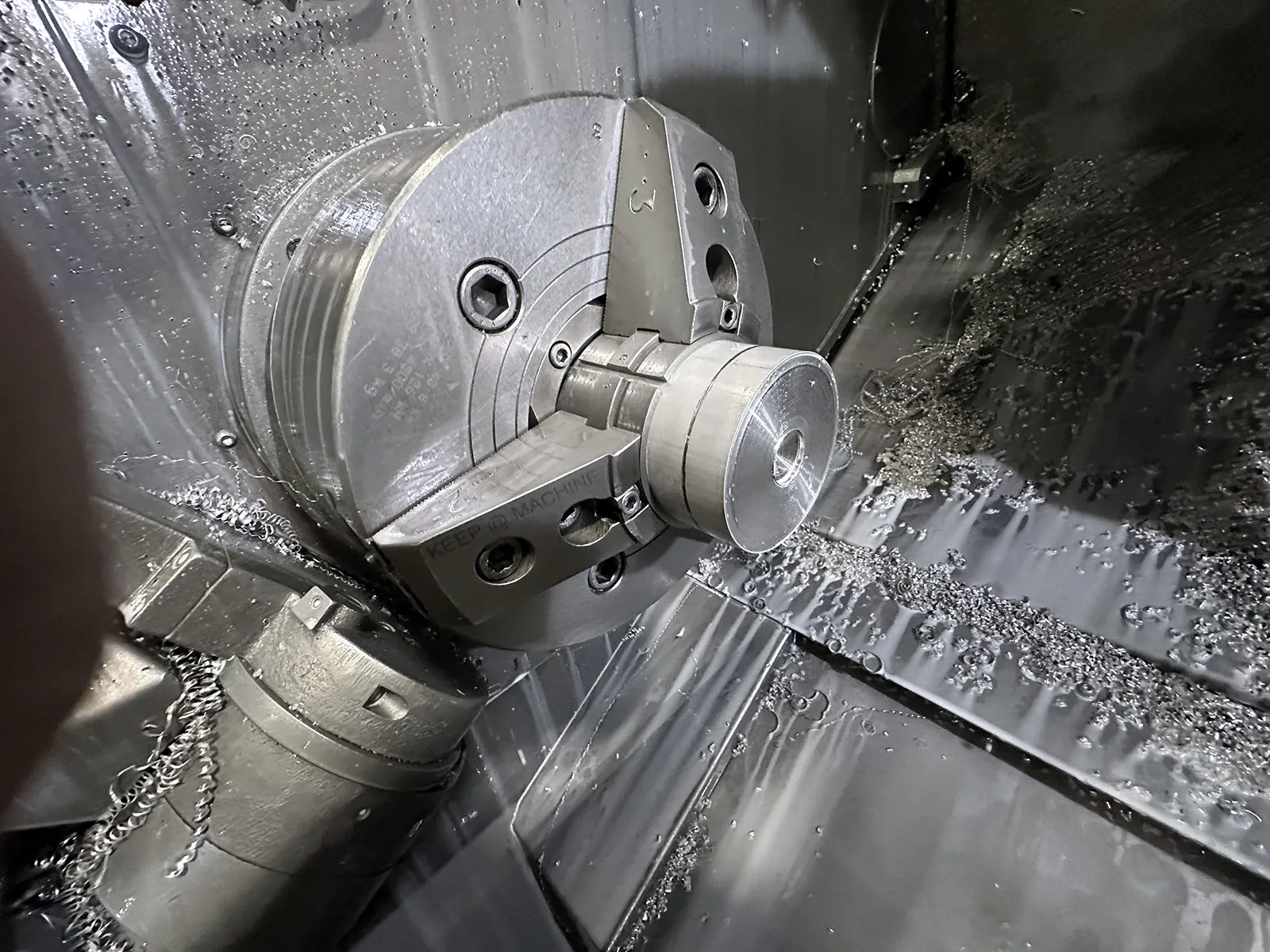

Main Spindle Chuck Size : 10"
Main Spindle Bore Diameter: 3.46"
Main Spindle Maximum Bar Work: 3"
Main Spindle Speed: 4,000 RPM
Main Spindle Horsepower (CONT. /30 MINS): 35/ 30
Sub Spindle/2nd Spindle Chuck Size: 6
Sub Spindle/2nd Spindle Bore Size: 1.69" THROUGH HOLE
Sub Spindle/2nd Spindle Speed: 6,000 RPM
Sub Spindle/2nd Spindle Horsepower (CONT. /30 MINS) : 10
Turret Tool Positions: 12
High Pressure Coolant System (PSI): 213
