Description

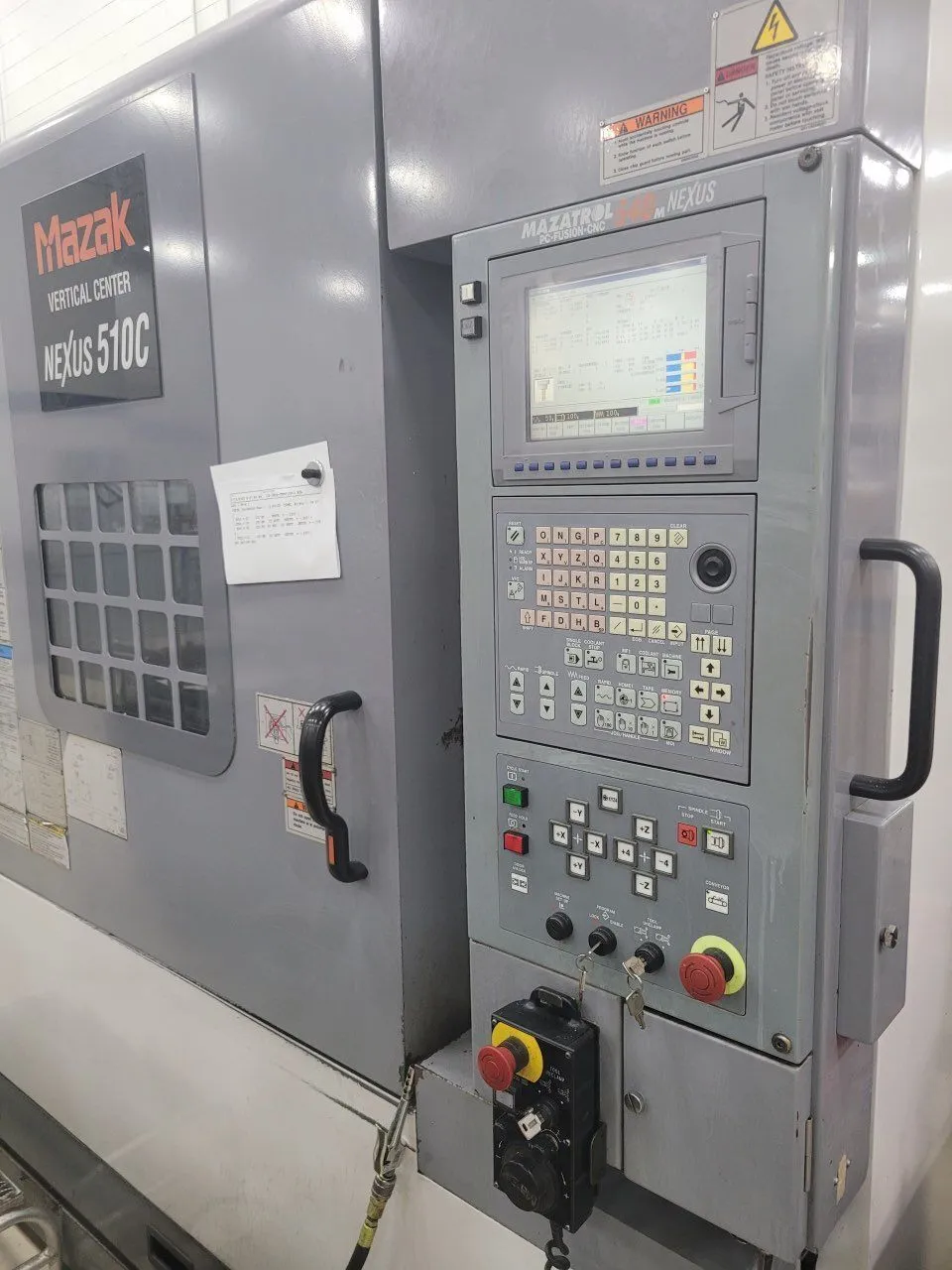

THE MAZAK NEXUS VCN 510C/40-II IS A 3-AXIS VERTICAL MACHINING CENTER CONTROLLED BY A MAZAK FUSION CNC SYSTEM, COMPATIBLE WITH G-CODE PROGRAMMING. IT FEATURES A WORK ENVELOPE DEFINED BY X, Y, AND Z AXIS TRAVELS OF 41.34 INCHES, 20.87 INCHES, AND 20.08 INCHES, RESPECTIVELY. RAPID TRAVERSE RATES ARE 1417 IPM FOR THE X AND Y AXES, AND 1181 IPM FOR THE Z AXIS. THE MACHINE'S WORK TABLE, MEASURING 61.18 INCHES IN LENGTH BY 21.66 INCHES IN WIDTH, SUPPORTS A MAXIMUM LOAD OF 2646 POUNDS. POWER IS SUPPLIED BY A 25 HP SPINDLE CAPABLE OF SPEEDS UP TO 12,000 RPM, UTILIZING A CAT-40 TAPER. TOOL MANAGEMENT IS FACILITATED BY A 30-TOOL AUTOMATIC TOOL CHANGER, AND THE MACHINE INCLUDES ADVANCED TOOL LENGTH MEASUREMENT (ATLM) SYNCH TAP FUNCTIONALITY ALONG WITH A TOUCH PROBE.
Used Vertical Machining Center with 40.7" X, 22" Y, 20.1" Z travel. s 15 hp, 12,000 RPM, 30 ATC, CAT 40 taper. Includes Through Spindle Coolant, 4th Axis Ready, and 40 ATC., 2012 DMG MORI DURAVERTICAL 1035 ECO, X. 40.7", Y. 22", Z. 20.1", Power. 15 hp, RPM. 12,000 RPM, # ATC. 30, Taper. CAT 40, Table-W. 22", Table-L. ...more

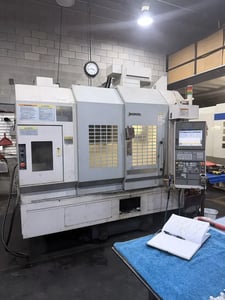

Low hours, The Okuma Genos M560V Vertical Machining Center (2011) with OSP P200M Control delivers exceptional precision, rigidity, and high-speed performance for demanding CNC applications. Its robust bridge-style construction and powerful spindle enable aggressive machining of stainless steel, titanium, and other ...more
Maximize your production efficiency with the Mazak VCU 500C 3X Vertical Machining Center (2014). Featuring the intuitive Mazatrol Smart Control, this machine is engineered for fast, precise milling, drilling, and tapping on small-to-medium-sized parts. Discover quality and performance for your workshop today. ...more
