Manufacturer: Mazak
Model: NEXUS-250IIX40
Year: 2012
Swing: 24.0
Chuck: 10
Bar Capacity: 3.0
Stock # 47263
Click to zoom in
For Sale by Premier Equipment Inc
Surplus Record Dealer Since 2023
Location: Altamonte Springs, FL
Contact Tom Kohm
Phone Number: 407...> Show Phone Number 407-759-4569
Let the seller know you found their listing on Surplus Record!
Description

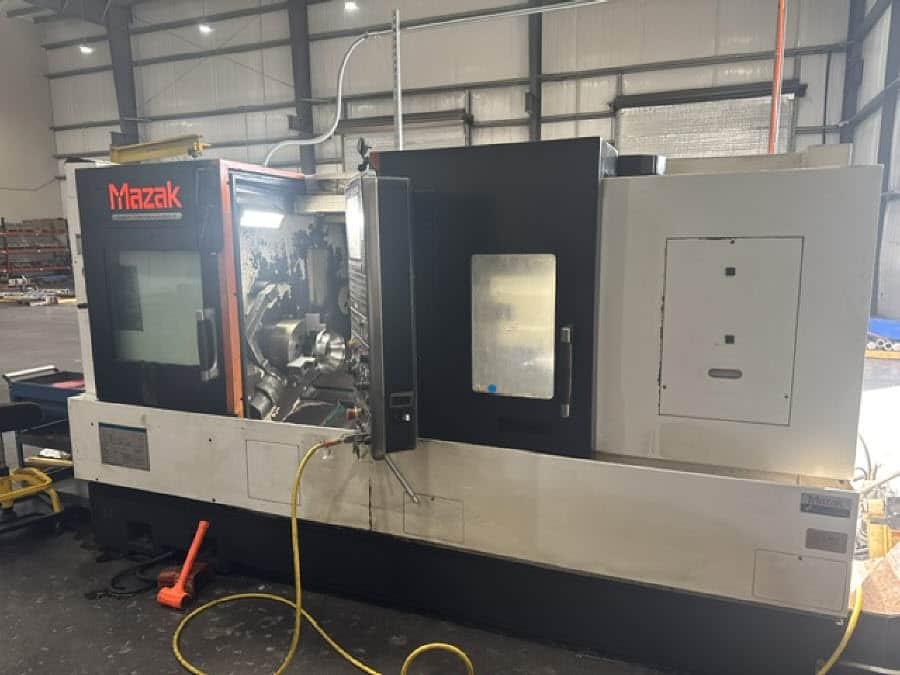

MAZAK QT Nexus 250 II x 40″ CNC Lathe / QTN-250 / QTN250
SPECIFICATIONS:
SWING OVER BED: 24.02″
MACHINING LENGTH: 38.733″
TURNING DIAMETER, SHAFT DIAMETER: 13.78″
CHUCK SIZE 1: 10″
SPINDLE NOSE 1 : A2 – 8
SPINDLE BORE DIAMETER: 3.46″
SPINDLE BAR CAPACITY: 3″
SPINDLE SPEEDS 1: 4,000 RPM
SPINDLE HORSEPOWER 1: 35 hp
X1 – AXIS TRAVEL: 7.5″
Z1 – AXIS TRAVEL: 40.25″
RAPID TRAVERSE RATE – X1: 1,181 in/min.
RAPID TRAVERSE RATE – Z1: 1,299 in/min.
TURRET CONFIGURATION 1: 12
TAILSTOCK TAPER: MT 4
PROGRAMMABLE TAILSTOCK: YES
TAILSTOCK TRAVEL: 39.62″
# AXIS: 2
BAR CAPACITY: 3″
EQUIPPED WITH:
MAZATROL MATRIX CNC CONTROL
EIA/ISO INPUT FUNCTION
600 VARIABLE USER MACRO
SEQUENCE COMPARISON STOP FUNCTION
HYDRAULIC PRESSURE INTERLOCK
AUTO TOOL EYE
TRANSFORMER
CHIP CONVEYOR SIDE DISCHARGE
MAZATROL MATRIX CNC CONTROL
STANDARD ROTARY HEADS, AND STATIC HOLDERS
ALL AVAILABLE MANUALS
10″ 3-JAW HYDRAULIC CHUCK
Get Your Price from Premier Equipment Inc!
Buyers Who Viewed This Listing Also Viewed:
JUST ADDED!
Haas #HL-4, CNC Lathe, 24" swing, 39" machining length, 14" turning diameter, 10" chuck, 3" bar, 30 HP, 3400 RPM, tailstock, 1998
Category: CNC Lathes and Turning Centers
Seller: Star Equipment Co., Inc.
Location: Utica, MI
Mfr: Haas
Model: HL-4
Year: 1998
1998 HAAS HL-4, Swing. 24", Machining Length. 39", # Axis. 0, Chuck Size. 10", Bar Capacity. 3", Power. 30 hp, Max RPM. 3,400 RPM, Turning Dia. 14", Tailstock. 'Yes', Live Tooling. 'No', Sub Spindle. 'No'.
JUST ADDED!

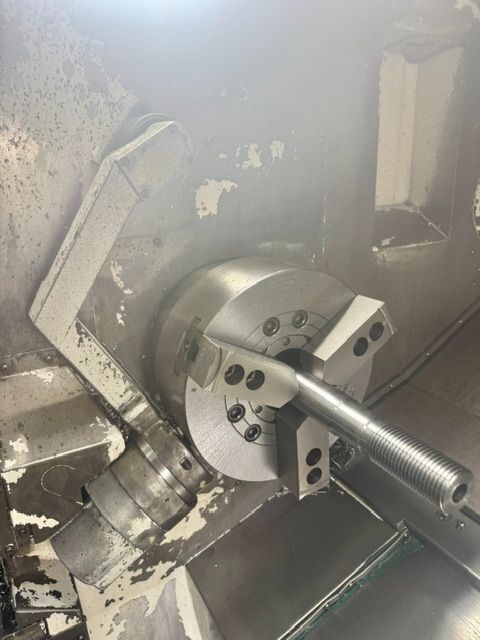

Mazak #QTN-250-II, CNC lathe, 24" swing, 10" chuck, 3" bar, 13.8" diameter, 38.7" length, A2-8, 4000 RPM, 35 HP, 12 turret, Mazatrol Matrix, 2012
Category: CNC Lathes and Turning Centers
Seller: Used CNC LLC
Location: Huntley, IL
Mfr: Mazak
Model: QTN-250-II
Year: 2012
2012 Mazak Nexus QTN 250 II/1000 CNC Lathe available, featuring a 10" hydraulic chuck, 24.02" swing over bed, 38.733" machining length, and 4,000 RPM spindle. MAZATROL MATRIX CNC control, chip conveyor, and all manuals., 2012 MAZAK NEXUS QTN 250 II, Swing Over Bed. 24.02", Machining Length. 38.733", Turning Diameter ...more
Mazak #Integrex-300SY, mulit-axis CNC turning center, Mazatrol Fusion 640MT, 24" swing, 3" bar, 10" chuck, 2000
Category: CNC Lathes and Turning Centers
Seller: Premier Equipment Inc
Location: Altamonte Springs, FL
Mfr: Mazak
Model: INTEGREX-300SY
Year: 2000
Mazak Integrex 300SY Multi-Axis CNC Turning Center – 2000 (subject to buyer verification):Maximum Swing 24.01″Maximum Swing Over Carriage17.71”-24.01″Main Spindle Nose / Spindle Bore / Max. Bar WorkA2-8 / 3.46” / 3.0”Main Spindle Speed / Motor / Index35 – 3,500 / 35 HP / 0.001 ...more
JUST ADDED!

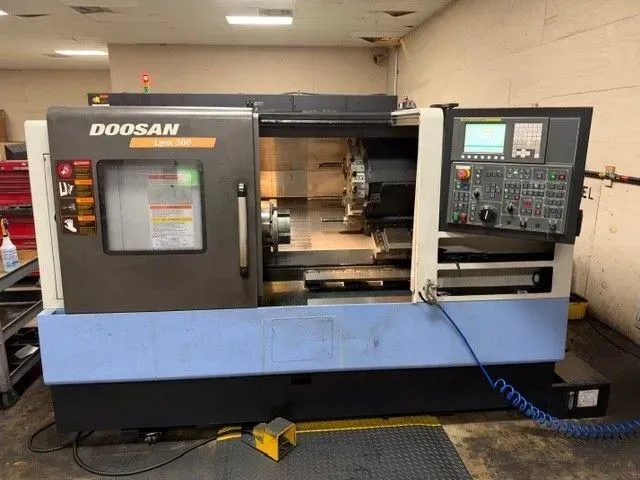

Daewoo Doosan #Lynx-300, CNC Lathe, 25.6" swing, 30.1" machining length, 10" chuck, 3" bar, 17.7" turning diameter, 20 HP, 3500 RPM, Fanuc control, 2011
