Description

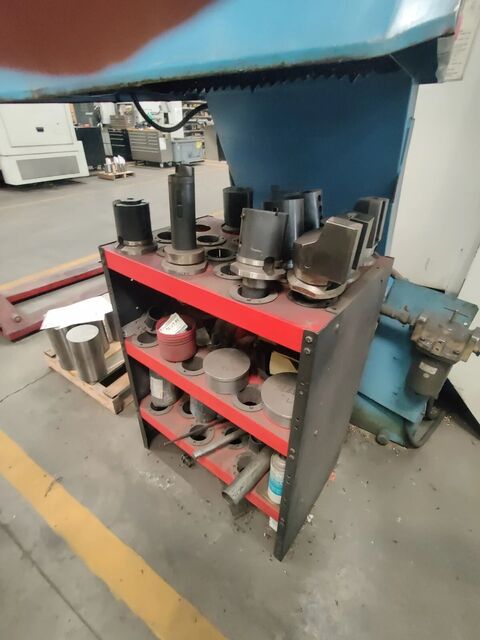

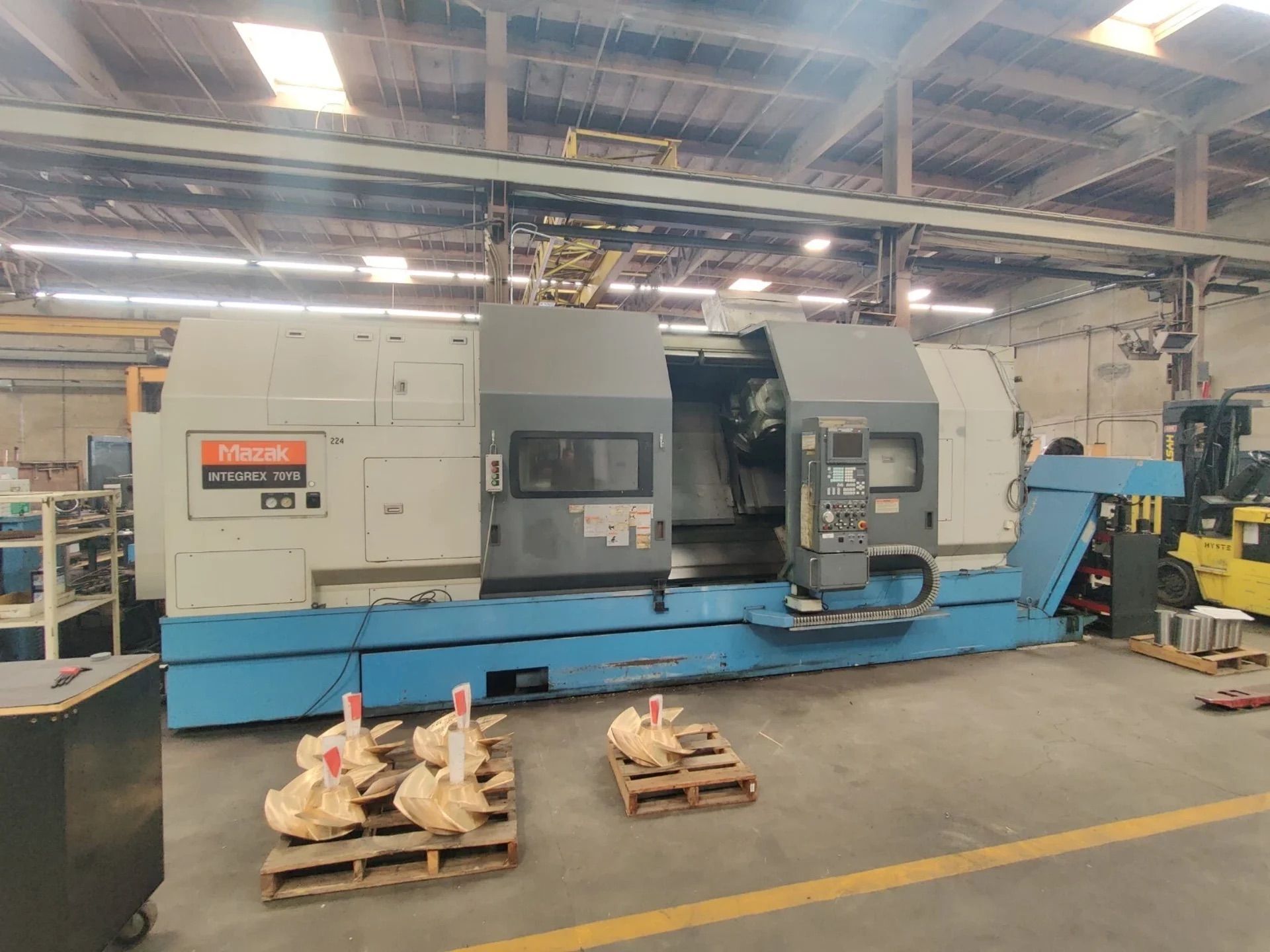

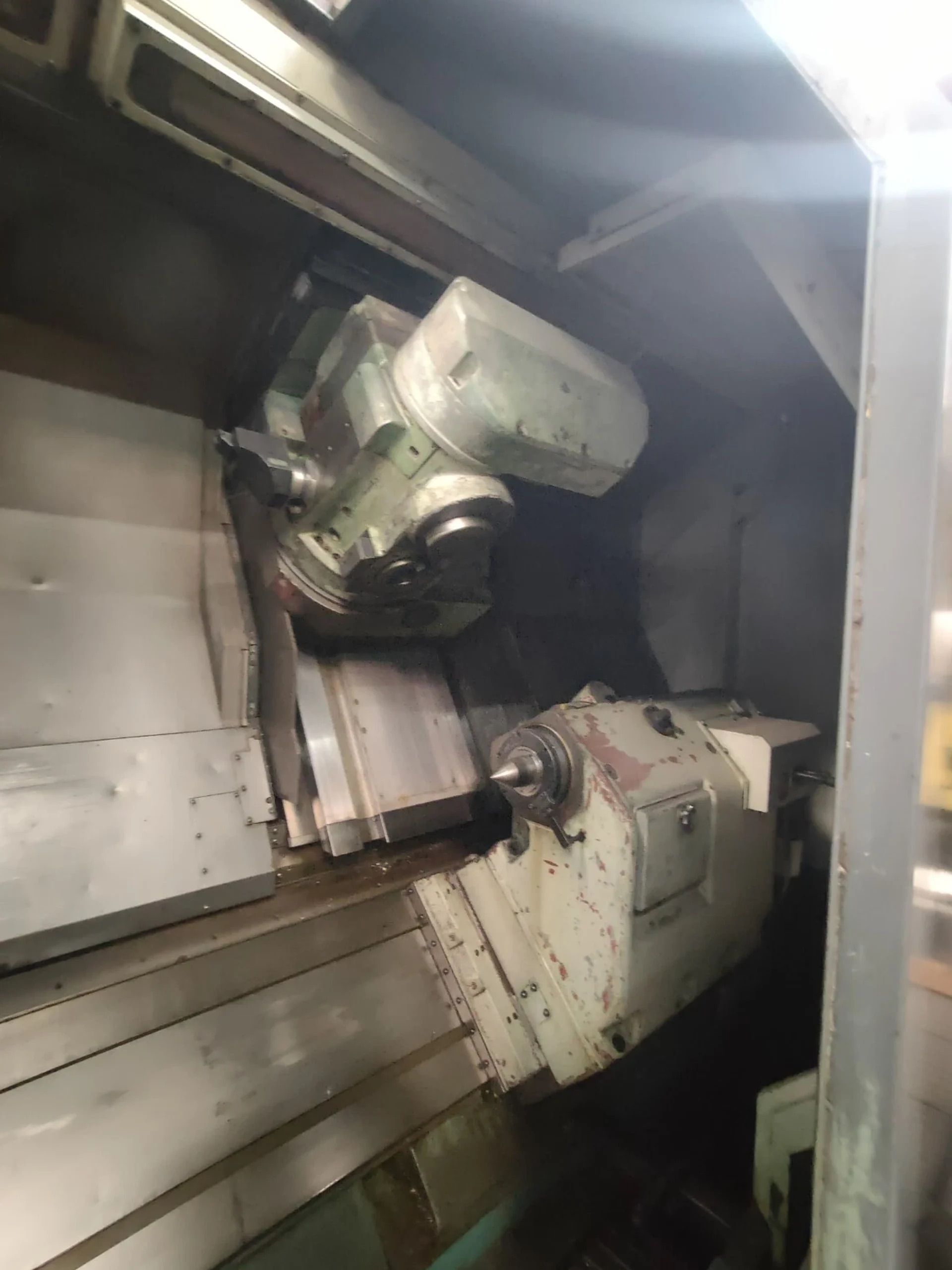

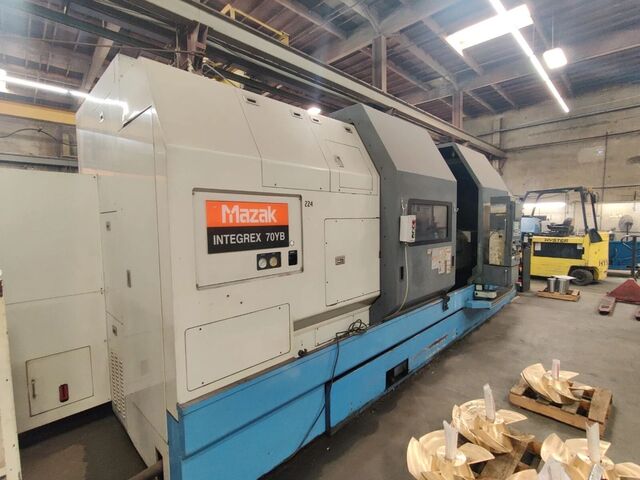

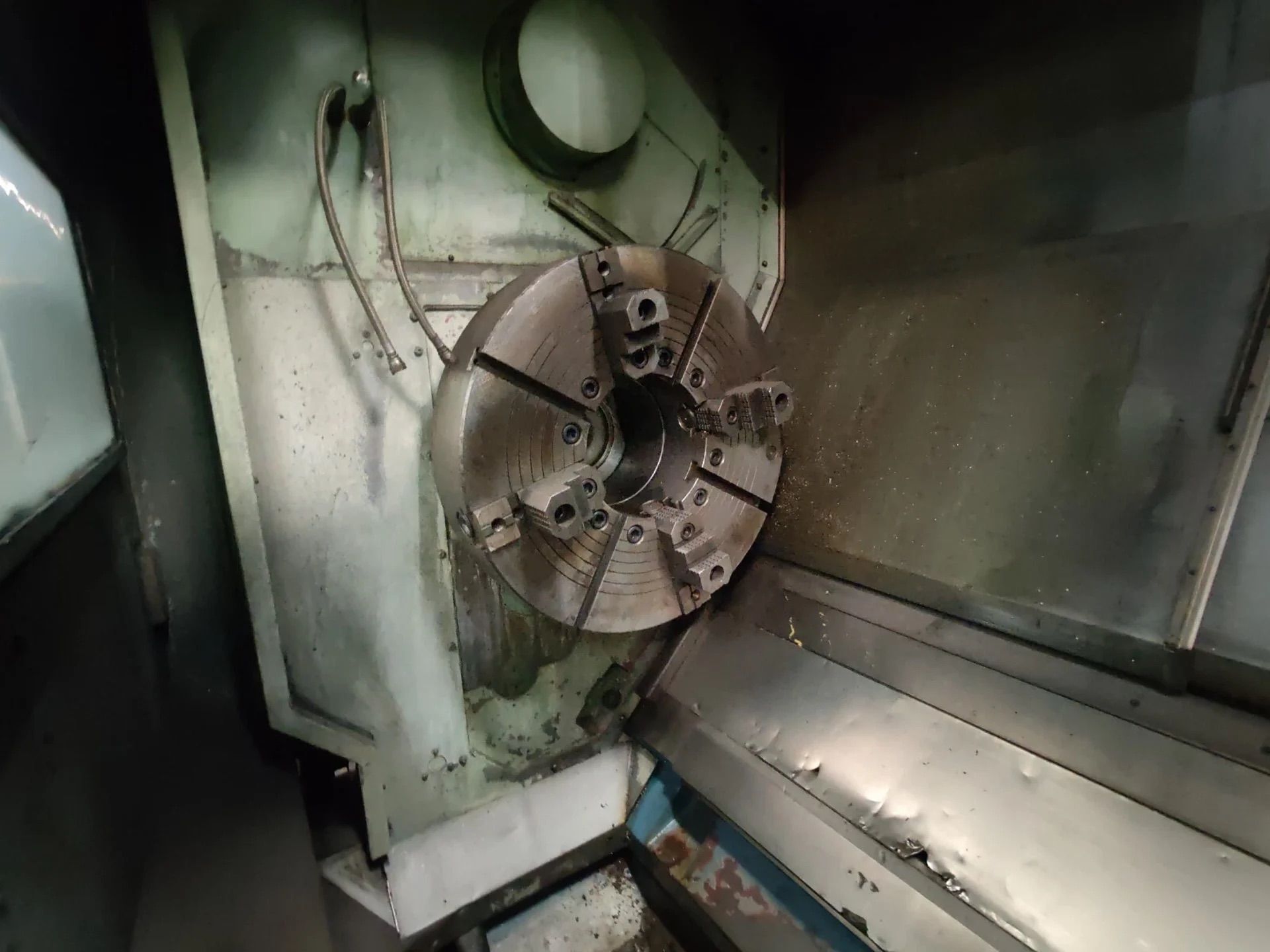

2001 MAZAK INTEGREX 70YB CNC Lathe available. Features include 36" swing, 80" machining length, 30" chuck, 60 hp, and 5000 RPM. Equipped with tailstock and live tooling.
MAXIMUM SWING..36.02
MAXIMUM SWING OVER CARRIAGE30.3
MAXIMUM CUTTING DIAMETER CHUCKING36.02
X-AXIS 29.33
Y-AXIS -+130MM
Z-AXIS 40
C-AXIS .001
B-AXIS 225 DEGREES
SPINDLE NOSEA2-15
SPINDLE BORE10.24
SPINDLE SPEED/RANGE..1 750 RPM
SPINDLE HORSEPOWER (CONT/30 MINS.)..50/60 HP (AC)
SPINDLE TORQUE.1112 FT/LBS
TYPE OF TURRET.2 POSITION, W/ATC
TOOL SHANK HEIGHT.1.25
MAGAZINE CAPACITY.60 TOOLS
Spindle motor: 15hp 18 3000 RPM
TOOL SIZE (BORING BAR MAX. DIA.).2.0
TOOL SELECTION METHODRANDOM
TOOL TO TOOL ATC TIME2.5 SEC.
MAX. TOOL DIA. W/ALL POCKETS FULL4.72
MAX. TOOL DIA. W/ADJACENT POCKETS EMPTY6.3
MAX. TOOL LENGTH (FROM GAGE-LINE)18.11
MAXIMUM TOOL WEIGHT..44 LBS.
ATC TOOL SHANK-ROTARY TOOL.CAT 50
TURNING TOOLMAZAK 60MM VDI
Y-AXIS RAPIDS..315 IPM
X-AXIS RAPIDS..472 IPM
Z-AXIS RAPIDS..590 IPM
C-AXIS RAPIDS..15 RPM
MACHINE HEIGHT.129.45
TOTAL POWER REQUIRED (MACHINE ONLY).94.7 KVA
NOTE: ACTUAL MACHINE MAIN TRANSFORMER
KVA RATING WILL BE GREATER.
AIR REQUIREMENTS..71 PSI / 14 CFM
MAXIMUM SWING..36.02
MAXIMUM SWING OVER CARRIAGE30.3
MAXIMUM CUTTING DIAMETER CHUCKING36.02
X-AXIS 29.33
Y-AXIS -+130MM
Z-AXIS 40
C-AXIS .001
B-AXIS 225 DEGREES
SPINDLE NOSEA2-15
SPINDLE BORE10.24
SPINDLE SPEED/RANGE..1 750 RPM
SPINDLE HORSEPOWER (CONT/30 MINS.)..50/60 HP (AC)
SPINDLE TORQUE.1112 FT/LBS
TYPE OF TURRET.2 POSITION, W/ATC
TOOL SHANK HEIGHT.1.25
MAGAZINE CAPACITY.60 TOOLS
Spindle motor: 15hp 18 3000 RPM
TOOL SIZE (BORING BAR MAX. DIA.).2.0
TOOL SELECTION METHODRANDOM
TOOL TO TOOL ATC TIME2.5 SEC.
MAX. TOOL DIA. W/ALL POCKETS FULL4.72
MAX. TOOL DIA. W/ADJACENT POCKETS EMPTY6.3
MAX. TOOL LENGTH (FROM GAGE-LINE)18.11
MAXIMUM TOOL WEIGHT..44 LBS.
ATC TOOL SHANK-ROTARY TOOL.CAT 50
TURNING TOOLMAZAK 60MM VDI
Y-AXIS RAPIDS..315 IPM
X-AXIS RAPIDS..472 IPM
Z-AXIS RAPIDS..590 IPM
C-AXIS RAPIDS..15 RPM
MACHINE HEIGHT.129.45
TOTAL POWER REQUIRED (MACHINE ONLY).94.7 KVA
NOTE: ACTUAL MACHINE MAIN TRANSFORMER
KVA RATING WILL BE GREATER.
AIR REQUIREMENTS..71 PSI / 14 CFM
