Description

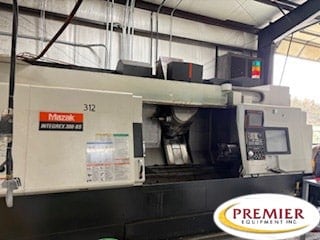

Mazak Integrex 300-3S x 60” CNC Multi-Axis Turning Center
Specifications (subject to buyer verification):
Maximum Swing……………………… 30″
Maximum Swing using Y-Axis………….. 26″-30″
Maximum Swing over Cross Slide………. 30″
Maximum Cutting Diameter: Chucking…… 30″
Maximum Cutting Length 60″………….. 60″
Maximum Distance Between Chuck Faces 60″ 60.2″
MAIN SPINDLE SPECIFICATIONS (L):
Spindle Nose………………………. A2-8
Spindle Bore………………………. 3.46″
Maximum Bar Work…. ………………. 3.0″ Dia.
Spindle Speed……………………… 4,000 RPM
Spindle Index (Programmable)………… 0.0001 Deg.
Spindle Horsepower (Cont./30 Mins.)….. 30/35 HP (AC)
Spindle Torque…………………….. 442.5 ft-lbs.
SECOND SPINDLE SPECIFICATIONS (R)
Spindle Nose………………………. A2-8
Spindle Bore………………………. 3.46″
Maximum Bar Work…………………… 3″ Dia.
Spindle Speed……………………… 4,000 RPM
Spindle Index (Programmable)………… 0.001 Deg.
Spindle Horsepower (Cont./30 Min.)…… 30/35 HP (AC)
Spindle Torque…………………….. 368.8 ft-lbs
TURRET AND TOOLING SPECIFICATIONS:
Magazine Capacity………………….. 40 Tools??
Tool to Tool ATC Time………………. 1.3 Sec.
Max. Tool Dia. w/All Pockets Full……. 3.54″
Max. Tool Dia. w/Adjacent Pockets Empty. 4.92″
Max. Tool Length (From Gage-Line)……. 15.75″
Maximum Tool Weight………………… 22 lbs.
Rotary Tool Spindle Speed…………… 12,000 RPM
Rotary Tool Spindle Horsepower.. .. …. 24.8 HP (AC)
Rotary Tool Torque (20%ED)………….. 88.5 ft-lbs.
AXIS TRAVELS:
Y-Axis……………………………. +/- 4.53″
X-Axis……………………………. 24.8″
Z-Axis 60″ ……………………….. 62.4″
Second Headstock W-Axis.60″…………. 60.24″
Equipped With (subject to buyer verification):
Mazatrol Fusion 640MT Pro Control
Tool Eye
EIA
Sub C-Axis Control
Chip Conveyor
