Description

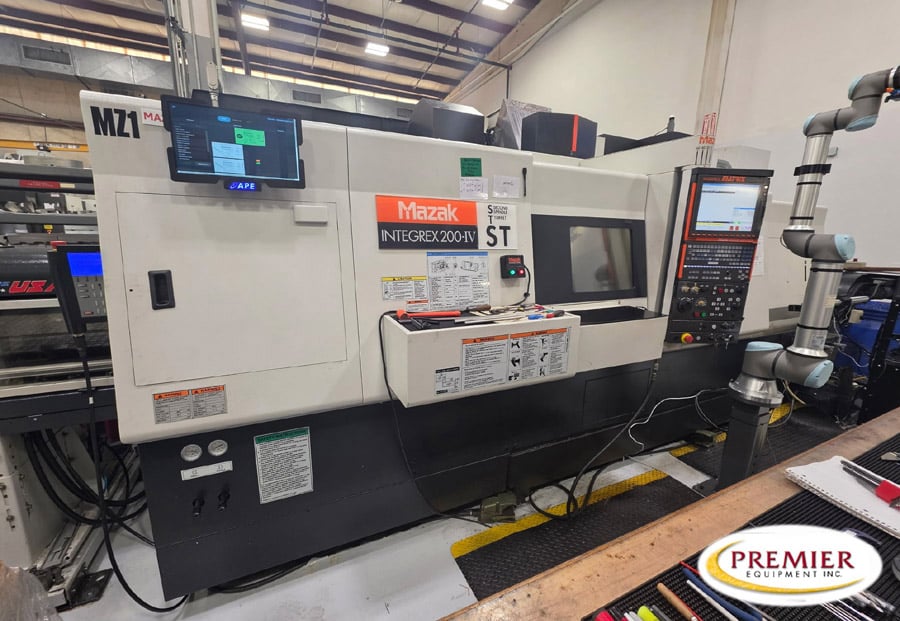

Mazak Integrex 2004ST Multi-Axis CNC Turning with Milling Center
Specifications (subject to buyer verification):
Maximum Swing……………………… 26″
Maximum Swing Using Y-Axis………….. 19.5″ – 26″
NOTE: Limited to 12.99″ when lower turret is
in operating range without tools mounted.
Maximum Swing over Lower Turret……… 10.6″
NOTE: Without tools or holders on lower
turret.
Maximum Cutting Diameter: Chucking…… 26″ (Upper)
Maximum Cutting Diameter: Chucking…… 10.24″ (Lower)
NOTE: Without boring bar holder mounted.
Maximum Cutting Length 60″………….. 58.85″
Maximum Distance Between Chuck Jaws 60″. 60.83″
MAIN SPINDLE SPECIFICATIONS (L):
Spindle Nose………………………. A2-6
Spindle Bore………………………. 2.99″
Maximum Bar Work…. ………………. 2.5″
Spindle Speed……………………… 35 – 5000 RPM
Spindle Index (Programmable)………… 0.0001 Degree
Spindle Horsepower (Cont./30 Mins.)….. 20/30 H.P. (A.C.)
Magazine Capacity………………….. 40 Tools
ATC Tool Shank…………………….. CAT40
Rotary Tool Spindle Speed…………… 12,000 RPM
Equipped With (subject to buyer verification):
Mazatrol Matrix Control
Lower Turret w/o milling)
40-Tool Magazine
CAT-40
Cylindrical Interpolation G07
EIA/ISO Spindle & Mill Independent Rotation
X,Y,Z Error Compensation
Chuck / Open Close Confirmation
9-Station Lower Turret
71-PSI Through Spindle Coolant
2nd Spindle C-Full C-Axis
Mill-Spindle Synchronous Tapping
Automatic Parts Catcher
Chip Conveyor Hinge Side Discharge
C1&C2 Synchronous Spindle Orientation
Barfeed Interface For An LNS Quick Servo S3 Barfeeder
8” Chuck On Main Spindle W-2.5” Bar Capacity
8” Chuck On Rear Spindle
Get Your Price from Premier Equipment Inc!
Buyers Who Viewed This Listing Also Viewed:
JUST ADDED!
Mazak #Integrex-200-4ST, 6-Axis CNC lathe, Mazatrol Matrix Control, 26" swing, 8" chuck, 2.5" bar, sub spindle, Y-Axis, lower turret, 2011
Category: CNC Lathes and Turning Centers
Seller: Premier Equipment Inc
Location: Altamonte Springs, FL
Mfr: Mazak
Model: INTEGREX-200-4ST
Year: 2011
Mazak Integrex 2004ST Multi Axis CNC Lathe – Sub Spindle, Y Axis, Lower Turret, # AXIS 6, SWING 26″, MACHINING LENGTH 60″, CHUCK SIZE 8″, BAR CAPACITY 2.55″, POWER 30 hp, MAX RPM 5,000 RPM, TURNING DIA 26″, TAILSTOCK No, CONTROL CNC (Mazatrol Matrix CNC Control), DIMENSIONS 160 in x ...more
JUST ADDED!
Mazak #Integrex-200-IV-ST, multi-axis CNC lathe, 26" swing, 8" chuck, 2.5" bar, 60" length, A2-6, 30 HP, 40 ATC, 12k RPM, sub spindle, Y-Axis, 2011
Category: CNC Lathes and Turning Centers
Seller: MachineStation
Location: Lake Elsinore, CA
Mfr: Mazak
Model: INTEGREX 200-IV ST
Year: 2011
Disclaimer: All and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all prior to purchase. Accessories shown are included only if listed on the invoice., Equipment is sold AS-IS, WHERE-IS. All sales are final., s:, Mazatrol Matrix CNC Control, TR1 - 10,751 Hours ...more
JUST ADDED!

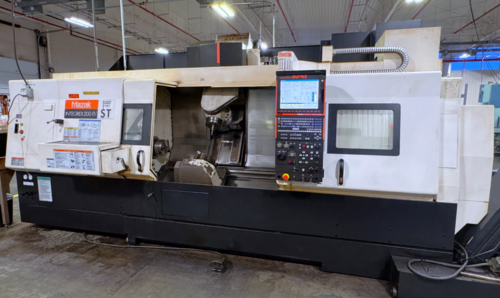

Mazak #Integrex-200-IV-ST, Multi-Axis CNC Lathe, 26" swing, 60" machining length, 22.8" X, 3.15" Y, 41.14" Z, 8" chuck, 5000 RPM, 40 ATC, Mazatrol Matrix CNC, 2011
