Manufacturer: Mazak
Model: INTEGREX 100-IVS
Year: 2006
Swing: 21.5
Chuck: 6
Bar Capacity: 1.7
Stock # X1X2690
1 / 10
Click to zoom in
1 / 10
For Sale by Toolquip Inc
Surplus Record Dealer Since 2025
Location: Lebanon, OH
Contact Daniela Weaver
Phone Number: 513...> Show Phone Number 513-450-6223
Let the seller know you found their listing on Surplus Record!
Description

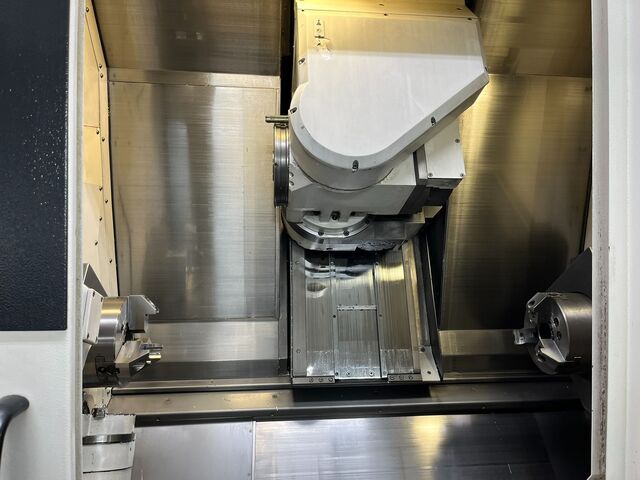

2006 Mazak Integrex 100-IVS CNC lathe. Featuring a 6" chuck, 21.46" max swing, and 29.65" cutting length. Equipped with Y and B axis controls, auto tool eye.
Standard Chuck Dia. Main Spindle (L) - 6"
standard Chuck Dia. Second Spindle (R) - 6"
Maximum Swing - 21.46"
NOTE: Tool eye body may limit max. Swing.
Maximum Swing using Y-Axis 16.22" - 21.46"
Maximum Swing over Cros Slide - 13.86"
Maximum Cutting Diameter: Chucking - 21.46"
Maximum Cutting Length - 29.65"
Maximum Distance Between Chuck Faces - 31.18
MAIN SPINDLE SPECIFICATIONS (L):
Spindle Nose - A2-5
Spindle Bore - 2.4"
Maximum Bar Work - 1.65" (2.0" option)
Spindle Speed - 6,000 RPM
Spindle Index (Programmable) - 0.0001 Deg.
3,600,000 Positions
Spindle Horsepower (Cont./30 Mins.) - 10/15 HP (AC)
Spindle Torque - 119 ft-lbs.
SECOND SPINDLE SPECIFICATIONS (R)
Spindle Nose - A2-5
Spindle Bore - 2.4"
Drawtube ID - 1.69" x 24.8" deep
From chuck face (2" thru optional)
Spindle Speed - 6,000 RPM
Spindle Index (Programmable) - 0.001 Deg.
(0.0001 Deg. C-axis optional)
Spindle Horsepower (cont./30 Min) - 10/15 HP (AC)
Spindle Torque - 119 ft-lbs
TURRET AND TOOLING SPECIFICATIONS:
Type of Turret - 1 position w/ATC
Tool Shank Height - 3/4"
Tool Size (Boring Bar Max. Dia.) - 1.25"
Magazine Capacity - 20 tools (40/80 opt)
Tool Selection Method - Random
Tool to Tool ATC Time - 1.2 sec.
Max. Tool Dia. w/All Pockets Full - 2.76"
Max. Tool Length (From Gage-Line) 7.87"
Maximum Tool Weight - 8.8 Lbs.
ATC Tool Shank - Mazak KM63
(CAPTO C6 / CAT 40 Optional)
Rotary Tool Spindle Speed - 12,000 RPM
Rotary Tool Spindle Horsepower (20%ED) - 7.5 HP (AC)
Rotary Tool Torque (20% ED) - 36.2 FT-lbs
Maximum Face Mill - 3"
Maximum End Mill - 1"
Maximum Drill - 1"
Maximum Tap - 5/8 UNC
AXIS TRAVELS:
B-Axis - 225 degrees
(0.0001 degree increments)
Y-Axis - +/-2.75"
X-Axis - 16.14"
Z-Axis - 31.69"
Second Headstock W-Axis - 31.3"
AXIS RAPID RATES:
Y Axis - 1024 IPM
X Axis - 1181 IPM
Z Axis - 1299 IPM
Second Headstock W-Axis - 1181 IPM
C-Axis - 555 RPM
Standard Chuck Dia. Main Spindle (L) - 6"
standard Chuck Dia. Second Spindle (R) - 6"
Maximum Swing - 21.46"
NOTE: Tool eye body may limit max. Swing.
Maximum Swing using Y-Axis 16.22" - 21.46"
Maximum Swing over Cros Slide - 13.86"
Maximum Cutting Diameter: Chucking - 21.46"
Maximum Cutting Length - 29.65"
Maximum Distance Between Chuck Faces - 31.18
MAIN SPINDLE SPECIFICATIONS (L):
Spindle Nose - A2-5
Spindle Bore - 2.4"
Maximum Bar Work - 1.65" (2.0" option)
Spindle Speed - 6,000 RPM
Spindle Index (Programmable) - 0.0001 Deg.
3,600,000 Positions
Spindle Horsepower (Cont./30 Mins.) - 10/15 HP (AC)
Spindle Torque - 119 ft-lbs.
SECOND SPINDLE SPECIFICATIONS (R)
Spindle Nose - A2-5
Spindle Bore - 2.4"
Drawtube ID - 1.69" x 24.8" deep
From chuck face (2" thru optional)
Spindle Speed - 6,000 RPM
Spindle Index (Programmable) - 0.001 Deg.
(0.0001 Deg. C-axis optional)
Spindle Horsepower (cont./30 Min) - 10/15 HP (AC)
Spindle Torque - 119 ft-lbs
TURRET AND TOOLING SPECIFICATIONS:
Type of Turret - 1 position w/ATC
Tool Shank Height - 3/4"
Tool Size (Boring Bar Max. Dia.) - 1.25"
Magazine Capacity - 20 tools (40/80 opt)
Tool Selection Method - Random
Tool to Tool ATC Time - 1.2 sec.
Max. Tool Dia. w/All Pockets Full - 2.76"
Max. Tool Length (From Gage-Line) 7.87"
Maximum Tool Weight - 8.8 Lbs.
ATC Tool Shank - Mazak KM63
(CAPTO C6 / CAT 40 Optional)
Rotary Tool Spindle Speed - 12,000 RPM
Rotary Tool Spindle Horsepower (20%ED) - 7.5 HP (AC)
Rotary Tool Torque (20% ED) - 36.2 FT-lbs
Maximum Face Mill - 3"
Maximum End Mill - 1"
Maximum Drill - 1"
Maximum Tap - 5/8 UNC
AXIS TRAVELS:
B-Axis - 225 degrees
(0.0001 degree increments)
Y-Axis - +/-2.75"
X-Axis - 16.14"
Z-Axis - 31.69"
Second Headstock W-Axis - 31.3"
AXIS RAPID RATES:
Y Axis - 1024 IPM
X Axis - 1181 IPM
Z Axis - 1299 IPM
Second Headstock W-Axis - 1181 IPM
C-Axis - 555 RPM
