Description

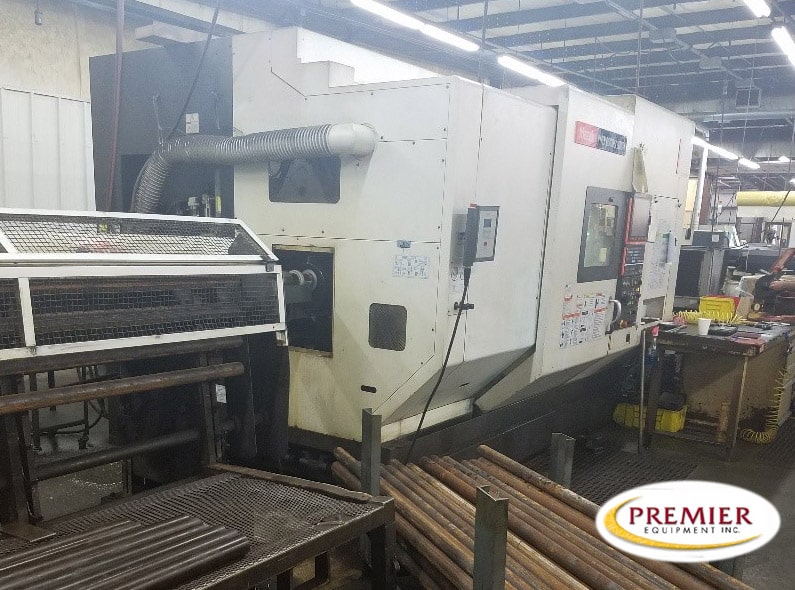

Mazak Hyper Quadrex 200MSY CNC Turning Center with Milling
Specifications (subject to buyer verification):
Maximum Swing Over Upper Turret……… 14.56″
Maximum Swing Over Lower Turret……… 12.598″
Maximum Machining Diameter: Chucking…. 13.54″(Upper)
Maximum Machining Diameter: Chucking…. 8.26″(Lower)
Maximum Distance Between Chuck Jaws….. 33.875″
MAIN SPINDLE SPECIFICATIONS (L):
Preparation ONLY for BB08 8″ 3-Jaw or Collet Chuck
Spindle Nose………………………. A2-6
Spindle Bore………………………. 2.99″
Maximum Bar Work…. ………………. 2.56″
NOTE: Maximum bar work and maximum spindle speed
depends upon optional chuck package.
Spindle Speed……………………… 35-5,000 RPM
Spindle Index (Programmable)………… 0.0001 Deg.
3,600,000 Positions
Spindle Horsepower (Cont./30 Min.)…… 20/30 HP (AC)
Spindle Torque (25% ED)…………….. 344.4 ft-lbs.
UPPER / LOWER TURRET AND TOOLING SPECIFICATIONS:
Type of Turret…………………….. 12 pos. Drum VDI
Rotary Tool Spindle Speed…………… 35-6,000 RPM
Rotary Tool Spindle Horsepower/(10 min). 7.5 HP
AXIS TRAVELS:
X1-Axis…………………………… 8.2″
Y1-Axis…………………………… +/-2.0″
Z1-Axis…………………………… 29.875″
X2-Axis.Lower……………………… 5.5625″
Y2 Axis Lower……………………… +0.75″/-2.0″
Z2 Axis Lower……………………… 32.125″
W Axis……………………………. 34.075″
Equiped With (subject to buyer verification):
Mazatrol Matrix Control
Barfeed
Chip Conveyor
